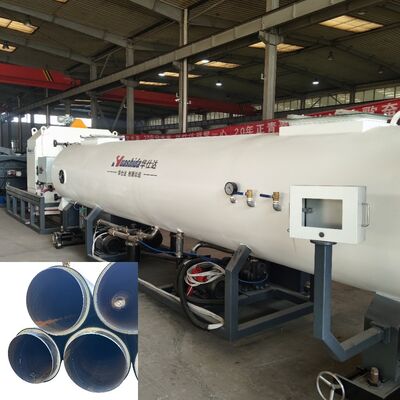

110mm-2200mm HDPE Plastic Pipe Machine for Thermal Insulation Jacket Production with Siemens Control System

 Product Overview

The HUASHIDA HDPE Jacket Pipe Extrusion Line is a high-speed, energy-saving production system designed specifically for manufacturing the outer protective casing of Polyurethane (PU) Foam Pre-insulated Pipes.

Utilizing advanced vacuum calibration technology, this line ensures that every pipe meets rigorous international standards for district heating, cooling, and industrial oil/gas transmission.

• Application: Protective outer jacket for thermal insulation pipes.

• Final Product Features: Smooth internal/external walls, superior anti-corrosion properties, and high mechanical strength.

 Technical Parameters

We offer a versatile range of models to cover all project scales, from standard municipal heating to heavy-duty industrial casings.

Note: Parameters are for reference. Configuration can be customized to meet specific client requirements.

Complete Production Line Components

Our turnkey solution includes the following high-performance equipment:

1. Material Handling: Vacuum Loader & Hopper Dryer.

2. Extrusion System: High-efficiency Single Screw Extruder (Optimal melt quality).

3. Forming & Cooling: Vacuum Calibration Table & Water Spraying Tank.

4. Downstream: High-torque Hauling Machine & Synchronized Cutting Machine.

5. Logistics: Heavy-duty Discharging Frame / Stacker.

6. Intelligence: Integrated Siemens PLC Control System.

Core Advantages

1. Operation & Cost Efficiency

• Labor Saving: High degree of automation allows the entire line to be managed by only one person.

• Zero Waste: One-time forming process eliminates the need for edge trimming.

• Energy Efficient: High-output extruder reduces power consumption per kilogram of product.

2. Engineering Excellence

• Precision Quality: Guarantees uniform wall thickness and a smooth finish to prevent insulation leaks.

• Durability: Built with heavy-duty components for a long service life and minimal maintenance.

• Stability: Designed for 24/7 continuous industrial production.

3. Service & Global Expertise

• Proven Record: 389 sets of production lines successfully delivered worldwide.

• One-Stop Service: We provide design, installation, commissioning, and staff training.

• Technical Authority: Supported by a professional team of senior engineers and a high-end expert workstation in China.

 About HUASHIDA

Qingdao Huashida Machinery Co., Ltd is a premier manufacturer with over 20 years of experience specializing in plastic pipe machinery and anti-corrosion materials.

• Global Reach: Exported to over 400 overseas customers in Russia, Kazakhstan, Uzbekistan, Egypt, Iran, Turkey, Nigeria, and more.

• Certifications: Fully certified with ISO 9001, ISO 14001, ISO 45001, and CE/ENC.

• Full Product Range: 1. HDPE Jacket Pipe Lines (Up to 2200mm)

  2. Rigid/Flexible Pre-insulated Pipe Lines

  3. Steel Pipe 3LPE/FBE Coating Lines

  4. Anti-corrosion Materials (Heat shrink sleeves, Electro-fusion joints).



 Contact Us

Upgrade your production capability with HUASHIDA. Contact our sales team today for a technical consultation and a personalized quotation.
