Industrial 3LPE Coating Production Line for Elbow Pipes with 4-6 Times D Curvature Radius and 426-1200mm Diameter Range

The Qingdao Huashida steel elbow 3PE anti-corrosion production line is mainly used in various fields, such as industrial oil and gas transportation, water supply transportation, sewage transportation, and chemical transportation.

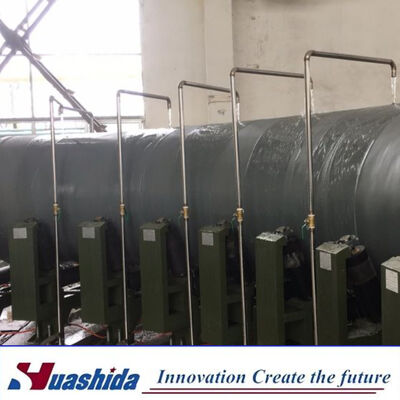

At least sixteen sets of Elbow pipe conveying structures have been set up, with Elbow pipes placed on the conveying structures. The rotating shaft of the driving mechanism is driven by a rotating motor to rotate the gear plate, and the rotational power is transmitted through the driving mechanism as the center. Adjust the height of the hanging rubber roller using the lifting device of the Elbow pipe conveying structure to adapt to the uniform center height of different pipe diameters.

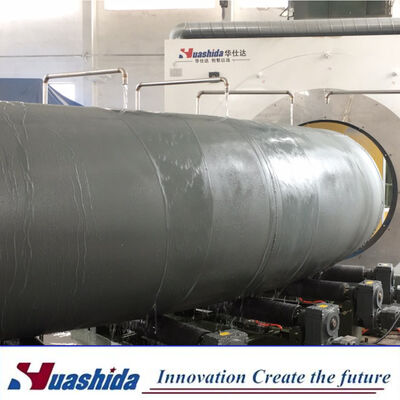

3LPE Elbow Coating Machinery is for curve steel pipe blasting&coating and PE layer wrapping machinery.   Anticorrosion form: epoxy powder + adhesive + PE tape.

Elbow conveyor line

Independent center of rotation drive

Gear ring gear drive

frequency control

The main parts adopt protective supporting wheel

The supporting wheel is equipped with slide rail, which is easy to install

Fixed angle of self-locking structure of transmission line

Height lift adjustment

Medium frequency heating

Angle handwheel adjustment

Front and rear electric adjustment

The height is adjusted through the conveyor line

Narrow thickness to avoid uneven heating in bending section

If power 350kW

Voltage and current double close regulation

Powder spraying for elbow

Annular dusting chamber

Front and rear electric adjustment of powder spraying chamber

The spray gun swings left and right

CNC adjustment of powder quantity

There are 12 powder guns

U-shaped bottom blowback recovery

Overall material 304 stainless steel

The hard negative pressure of recovery air duct does not deform

Powder injection recovery

The drawing air duct is suitable for the change of pipe diameter

Cyclone + filter cartridge dust removal standard discharge

U-shaped bottom structure + pulse back blowing to recover powder more thoroughly

304 stainless steel fluidization tank, vibrating screen powder filter, equipped with 12 venturi powder pumps

Winding machine

Automatic belt locking

One side with corrosion protection

Continuous operation of winding tape

The strip is wound tightly

High degree of automation

Automatic calculation of strip by computer

The deviation of straight pipe from the center does not affect the winding work

PLC control systerm

Data collection

edit

With memory function

Automatic calculation of strip consumption

Automatic acquisition and correction of transmission speed

√ Recognized Innovation - Awarded as the First (Set) Technical Equipment in Shandong Province.

√ High Efficiency & Stability - Ensures reliable performance with consistent production quality.

√ Automation & Intelligence - Advanced automation reduces manual labor and improves operational safety.

√ Global Export Capability - 70% of products are exported to Europe, America, the Middle East, Central Asia, Africa, Russia, and other regions.

√ Strong Market Presence - Proven high market share with long-term customer trust worldwide.

Qingdao Huashida Machinery Co., Ltd was established in 2003. Since its inception, Huashida has focused on plastic polyurethane insulation pipe production line, 3PE anti-corrosion pipe production line, large diameter underground pipe production line and plastic pipe joints for 20 years. We always attach great importance to research and development,collaborating closely with Beijing University of chemical technology, Qingdao university of technology and scientific research institutions. by absorbing advanced technology home and abroad, after 20 years of endeavor we now rank one of the top 3 manufacturers in the industry in China.  Huashida machines have been well received in Saudi Arabia, Kazakhstan, Uzbekistan, United Arab Emirates, Turkey, Russia, etc.
