Steel Pipe Anti-Corrosion Coating Line with 50-4200mm Pipe Diameter Water Cooling System and Touch Screen Operating System

The Steel Pipe Anti-Corrosion Coating Line (3PE / FBE Coating Line) is specifically designed for applying corrosion-resistant coatings onto steel pipes of various diameters. It is extensively used in oil and gas pipelines, natural gas transmission, district heating networks, and water supply systems.

This coating line supports multiple coating types, including:

• FBE (Fusion Bonded Epoxy)
• 2-layer PE / PP
• 3-layer PE (3LPE)

It delivers excellent corrosion protection, strong adhesion, and a long service life, making it a reliable solution for critical pipeline infrastructure.

The lines can be applied to FBE, 2 layer FBE, 2 layer PE, 2 layer PP and 3 layer PE Anti-corrosion coating.

3 layer PE Anti-corrosion coating consists of first FBE coating, middle adhesive layer and outer polyethylene layer.

Three-layer polyethylene (3LPE) anti-corrosion coating is an advanced technology used as the outer protective layer for buried pipelines. It is widely applied in the anti-corrosion protection of oil and gas transmission pipelines, urban gas supply networks, water supply pipelines, and other fluid conveyance systems.

The 3LPE coating enhances the mechanical properties of pipelines, offering high electrical resistance, excellent waterproofing, outstanding durability, and strong aging resistance.

The Anti-corrosion coating processing line includes:

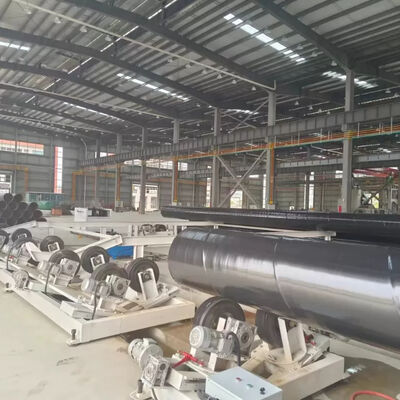

• Steel pipe transmission system
• Surface treatment system
• Pipe dust removal system
• Pipe heating system
• Electrostatic spraying system

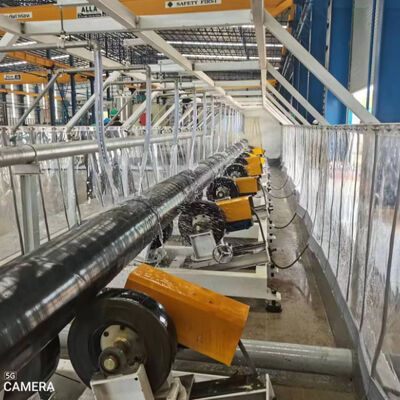

• Coating system

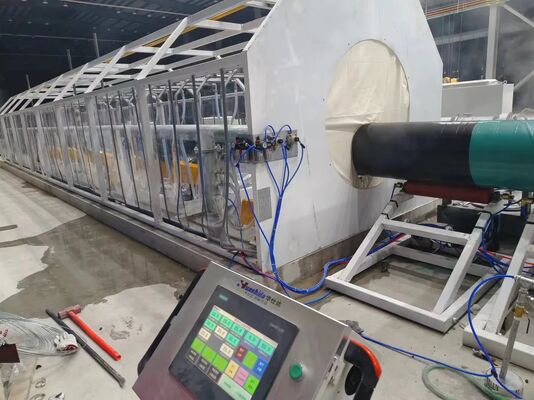

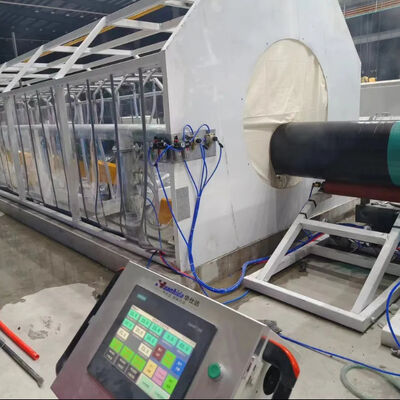

• Water cooling system
• End cutting system
• Hydraulic and pneumatic system
• Testing system
• Electronic control system
• Bevelling system

Upload pipes → pipes screw conveyor → rust removal → intermediate frequency heating → Epoxy powder coating → outer layer adhesive polyethylene coating → cooling spray → pipes screw conveyor → grinding pipe ends → download pipes

• Adopt advanced technology
• Stable operation
• High degree of automation, saving labor costs
• Good anti-corrosion quality, meets international standard
• Supply full completed production solution: design, installation, commissioning, training
• Share you 389 sets of production experience from all the world
• Having 9 professional senior engineers
• Having a high-end plastic machinery equipment expert workstation in China

• Pipe diameter: 50-4200mm
• Processing capacity: ≥250m²/h
• Cleaning level: ≥Sa2.5
• Materials for production: epoxy powder, adhesive, polyethylene

Established in 2003, Huashida has focused on plastic polyurethane insulation pipe production line, 3LPE anticorrosion pipe production line, large diameter underground pipe production line and plastic pipe joints for 20 years.

We always attach great importance to research and development, collaborating closely with Beijing University of chemical technology, Qingdao university of technology and scientific research institutions. By absorbing advanced technology home and abroad, after 22 years of endeavor we now rank one of the top 3 manufacturers in the industry in China.

Huashida machines have been well received in Saudi Arabia, Kazakhstan, Uzbekistan, United Arab Emirates, Turkey, Russia, and other countries.

Welcome to our factory to discuss cooperation!
