Name: Steel Pipe Pre-Insulated Production Line with PU Foam Insulation and HDPE Outer Casing for High-Pressure Foaming
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: 110-2000mm
Price: 700,000.00 USD
Availability: InStock

Steel Pipe Pre-Insulated Production Line with PU Foam Insulation and HDPE Outer Casing for High-Pressure Foaming

MOQ

US$100000-1300000

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Medium Temperature: ≤120°C (incidental Peak Value <140°C)

Inner Pipe Material: PE

Foamingmethod: High-pressure Foaming

Customized: Customized

Contactor: Siemens

HS Code: 8477209000

Basic Infomation

Place of Origin: Qingdao ，China

Brand Name: Huashida

Certification: CE, Rohs，TUV

Model Number: 110-2000mm

Payment & Shipping Terms

Payment Terms: L/C,Western Union,T/T

Supply Ability: 5-10 +sets+per mouth

Gallery

Steel Pipe Pre-Insulated Production Line with PU Foam Insulation and HDPE Outer Casing for High-Pressure Foaming

Product Description

Steel Pipe Pre-Insulated Production Line PU Foam Insulation + HDPE Outer Casing

Product Overview

Our independently developed spray-wound insulation pipe production line consists of three integrated sections that work in sequence to produce high-quality pre-insulated steel pipes:

Shot blasting & rust removal line
Polyurethane (PU) spraying line
PE winding line

Technical Specifications

Steel pipe coverage: 206mm-1820mm
Processing capacity: ≤250m²/h
Cleaning level: Sa2.5
Materials used: Black material (isocyanate), white material (combined polyether), polyethylene
Main equipment: Shot blasting and rust removal production line, polyurethane spraying production line, PE winding production line

Production Line Components

PUF spray PE winding preinsulated pipe production line consists of the following parts:

Steel pipe outwall shot blasting line
Polyurethane spray molding line
Polyethylene sheet extruding winding line
Water cooling line
End-cutting equipment

Main Line Equipment Composition

No.	Equipment Name
1	External wall Shot blasting rust removal machine
2	Medium-frequency induction heating furnace
3	Polyurethane spray foaming unit
4	Pipe rotator trolley
5	Single screw extruder and diehead mould
6	Finished pipe ends trimming machine
7	Pipe conveyers and racks
8	Electrical system and PLC

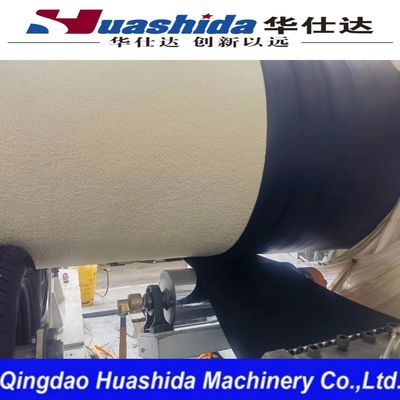

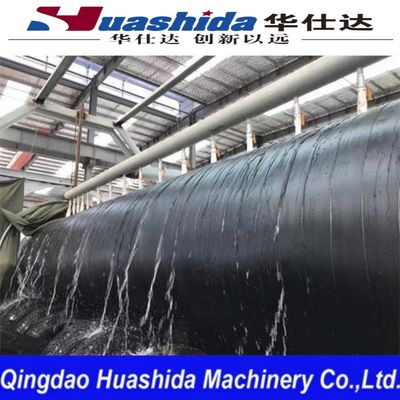

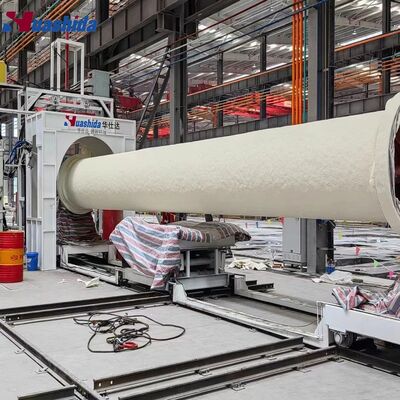

Detailed Photos

About Qingdao Huashida Machinery Co., Ltd

Established in 2003, Huashida has focused on plastic polyurethane insulation pipe production line, 3LPE anticorrosion pipe production line, large diameter underground pipe production line and plastic pipe joints for 20 years.

We always attach great importance to research and development, collaborating closely with Beijing University of chemical technology, Qingdao university of technology and scientific research institutions. By absorbing advanced technology home and abroad, after 22 years of endeavor we now rank one of the top 3 manufacturers in the industry in China.

Huashida machines have been well received in Saudi Arabia, Kazakhstan, Uzbekistan, United Arab Emirates, Turkey, Russia, and other countries.

Welcome to our factory to discuss cooperation!
