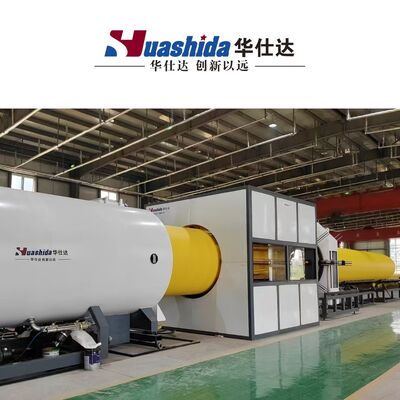

Pre-Insulated Pipe Production Line with HDPE Jacket Pipe Extruder for PU Foam Insulated Pipes Dia.110-2200mm Featuring Single-screw Extruder and Vacuum Calibration

1
MOQ
US$200,000.00 - 1,000,000.00
Price
Pre-Insulated Pipe Production Line with HDPE Jacket Pipe Extruder for PU Foam Insulated Pipes Dia.110-2200mm Featuring Single-screw Extruder and Vacuum Calibration
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Screw No.: Single-screw
Raw Material: Pe
HDPE Jacket Pipe Color: Can Be Customized
Application: Producing Pre-Insulated Pipe
Highlight:

Dia.110-2200mm Pre-Insulated Pipe Production Line

,

Single-screw Extruder HDPE Jacket Pipe Extruder

,

Vacuum Calibration PU Foam Insulated Pipe Machine
Basic Infomation
Place of Origin: qingdao,china
Brand Name: huashida
Certification: CE, ISO9001:2008
Model Number: 110-2200mm
Payment & Shipping Terms
Packaging Details: standard packaged
Delivery Time: 60days
Payment Terms: L/C,D/P,Western Union
Supply Ability: 30 Sets/Year
Product Description
Puf Thermal Insulated HDPE Jacket Pipe Extruder Production Line
(Dia.110-2200mm)
Product Description

HDPE jacket pipe extrusion line is high-efficiency equipment with high speed and energy saving for producing HDPE pipe used as protective cover of PU foam thermal Pre-Insulated Pipe according to international standard.
HDPE jacket pipes are produced by vacuum calibration method, with smooth inner and outer walls, a long service life, good anti-corrosion and heat preservation performance, and excellent mechanical properties.
Puf Thermal Insulated HDPE Casing Pipe Extruder Production Line

Product Parameters


Style PE-110/500 PE-655/1380 PE-960/1860 PE-1155/2200
Main Extruder SJ-75/33 SJ-120/33 SJ-150/33 SJ-150/33
Pipe diameter Φ110-600mm Φ655-1380mm Φ960-1860mm Φ1155-2200mm
Capacity 250-350kg/h 700-900kg/h 1000-1200kg/h 1350kg/h
Installed power 160kw 480kw 580kw 650kw
Length 26m 36m 45m 48m

Production line composition:

-1set   Vacuum loader
-1set   Hopper dryer
-1set   High-efficiency single screw extruder
-1set   Vacuum calibration table
-1set   Water spraying tank
-1set   Hauling machine
-1set   Cutting machine
-1set   Discharging Frame
-1set   PLC

Technical Highlights:

Single-screw extruder Precision temperature control system ensures consistent material fusion
Proprietary single-screw extruder optimized for polyethylene (PE) materials
Vacuum Calibration Patented vacuum calibration system replaces traditional internal pressure methods
Smart Automation Fully integrated PLC control system
Real-time process monitoring
Production Capabilities Diameter range: 110mm - 2200mm (customizable)
Output capacity: 250-1600 kg/h (material-dependent)




Our Advantages

Features of the HDPE sleeve production line:

1.small dimension
2.high degree of automation, can be operated by one person, saving labor costs
3.long service life.
4.high-efficiency extruder gives larger output, stable performance
5.pipe wall is average and smooth
6.no waste of raw material
7.One-time molding
Puf Thermal Insulated HDPE Casing Pipe Extruder Production LinePuf Thermal Insulated HDPE Casing Pipe Extruder Production LinePuf Thermal Insulated HDPE Casing Pipe Extruder Production Line

Puf Thermal Insulated HDPE Casing Pipe Extruder Production Line
Puf Thermal Insulated HDPE Casing Pipe Extruder Production Line


Puf Thermal Insulated HDPE Casing Pipe Extruder Production Line
Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!


International Trading show

Puf Thermal Insulated HDPE Casing Pipe Extruder Production Line


Certifications

Puf Thermal Insulated HDPE Casing Pipe Extruder Production Line


Clients case


Puf Thermal Insulated HDPE Casing Pipe Extruder Production Line
