Product Description

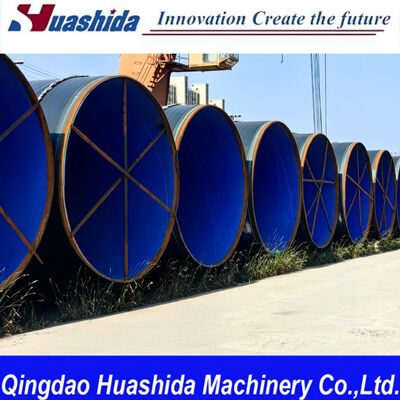

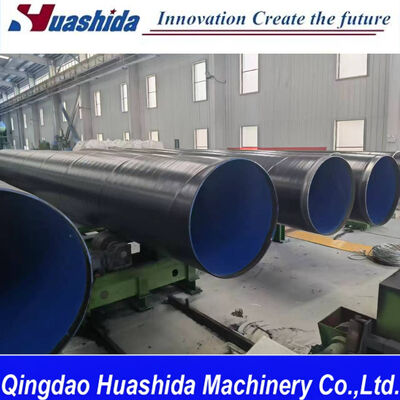

The 3-layer polyethylene (3LPE) anti-corrosion steel pipe production line is designed for the external anti-corrosion coating of steel pipes used in oil, gas, water supply, district heating, and industrial pipeline systems.

The 3LPE anti-corrosion structure consists of three layers:

1. Base Layer – Epoxy Powder Coating (FBE)
Provides strong adhesion to the steel pipe surface and excellent corrosion resistance.

2. Middle Layer – Copolymer Adhesive
Ensures a firm bond between the epoxy layer and the polyethylene outer layer.

3. Outer Layer – High-Density Polyethylene (HDPE)
Offers outstanding mechanical protection, low water absorption, and strong environmental adaptability.

This three-layer structure combines the anti-corrosion performance of epoxy powder, the bonding strength of adhesive, and the durability of polyethylene, significantly improving the service life of steel pipelines.

Our Advantages

1. Excellent Anti-Corrosion Performance
Strong corrosion resistance with a service life of up to 30–50 years.

2. High Sealing Performance
Provides excellent sealing, helping reduce maintenance costs and energy loss.

3. Low Temperature Resistance
Maintains good impact resistance and anti-corrosion performance in low-temperature environments.

4. Reliable Material Combination
Combines the high strength of epoxy powder, the low water absorption of polyethylene, and the flexibility of hot melt adhesive.

5. Economical and Efficient
Simple production process, stable operation, and high cost performance.

Technical Parameters

Main Equipment List

A. Derusting Equipment

B. Coating Equipment

C. Platform Equipment

D. Groove Equipment

Technological Process

Pipe Uploading → Screw Conveyor → Shot Blasting / Rust Removal → Induction Heating → Epoxy Powder Coating → Adhesive & Polyethylene Coating → Cooling Spray → Screw Conveyor → Pipe End Grinding → Pipe Downloading

Applications

The 3LPE anti-corrosion coating is an ideal external protective layer for buried steel pipelines and is widely used in:

1. Oil and Gas Transportation
Long-distance crude oil and natural gas transmission pipelines.

2. Urban Gas Supply
Urban gas pipeline networks and distribution systems.

3. Water Supply Pipelines
Municipal and industrial water transportation systems.

4. District Heating Pipelines
Pipelines used in thermal energy and central heating projects.

5. Chemical and Industrial Pipelines
Pipeline systems for chemicals, sewage, and industrial fluids.

6. Underground Buried Pipelines
Provides excellent waterproof, wear-resistant, anti-aging, and mechanical protection performance.

Company Profile

Qingdao Huashida Machinery Co., Ltd. is a professional manufacturer of plastic pipe machinery, municipal pipe machinery, pipe insulation & anti-corrosion machinery, and pipe joint anti-corrosion materials, with more than 21 years of production experience.

Our Main Products

1. HDPE jacket pipe production line for pre-insulated pipe (110–2000 mm)
2. Rigid pre-insulated pipe production line
3. Flexible pre-insulated pipe (PERT) production line
4. Steel pipe FBE / 2LPE / 3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe / water & gas supply pipe production line
7. PP / PE plastic board / sheet / geomembrane production line
8. NBR / PVC thermal insulation tube / sheet production line
9. Pipeline anti-corrosion materials and tools, including:

• Heat shrink joint coating sleeves
• Electro-fusion weldable joint sleeves
• Portable welding guns (extruders)
• PE / PP welding rods

We have served more than 400 overseas customers and exported our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria, and many other countries.
