750-800mm Radiation Cross-Linked Polyethylene Heat Shrink Metal Reinforced Tape Production Machine

1
MOQ
160000
Price
750-800mm Radiation Cross-Linked Polyethylene Heat Shrink Metal Reinforced Tape Production Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Sleeve Thickness: 0.5-3mm
Sleeve Width: 750-800mm
Peel Strength: >150N/cm (ASTM D1000)
Water-Intake Rate:: 0.05% (ASTM D570)
Tensile Strength: 15-20Mpa (ASTM D638)
Shear Strength: ≥100N/cm (DIN 30 672)
Adhesive Softening Point: 70-80°C (ASTM E 28)
Model: Model 1000
Transport Package: Standard Package
Warranty: 12 Months
Product Type: PE Board
Highlight:

750-800mm heat shrink tape machine

,

metal reinforced polyethylene tape machine

,

radiation cross-linked heat shrink sleeve
Basic Infomation
Place of Origin: Qingdao, China
Brand Name: Huashida
Certification: CE, ISO9001:2008, QS
Model Number: Model 1000
Payment & Shipping Terms
Packaging Details: 600.00cm * 230.00cm * 220.00cm
Delivery Time: 50-70 days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 100 Sets/Year
Product Description


750-800mm Radiation Cross-Linked Polyethylene Heat Shrink Metal Reinforced Tape Production Machine



Product Introduction

Developed by Qingdao Huashida Machinery Co., Ltd. with over 20 years of industrial manufacturing experience, this high-efficiency, energy-saving heat shrinkable tape and sleeve production line is an intelligent integrated system dedicated to producing premium pipeline anti-corrosion and joint sealing materials. Adopting cutting-edge extrusion, irradiation crosslinking, and online lamination technology, the line can manufacture standard two-layer heat shrinkable products and upgraded three-layer fiberglass reinforced heat shrinkable tape/sleeve, widely applied for joint corrosion protection, repair, and sealing of various municipal, oil and gas, and industrial pipelines. The whole line features low energy consumption, low noise, stepless speed regulation, and a high degree of automation, leading the domestic and international industry in technical performance and product quality.

750-800mm Radiation Cross-Linked Polyethylene Heat Shrink Metal Reinforced Tape Production Machine  0750-800mm Radiation Cross-Linked Polyethylene Heat Shrink Metal Reinforced Tape Production Machine  1

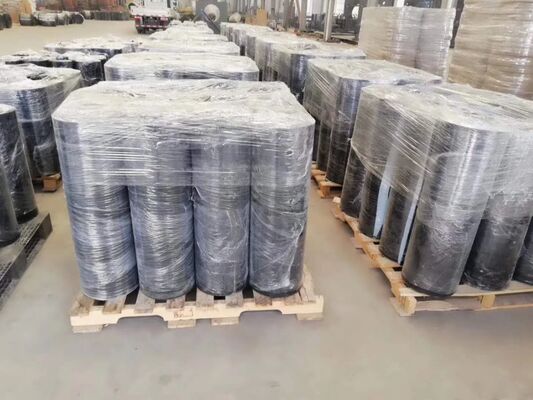

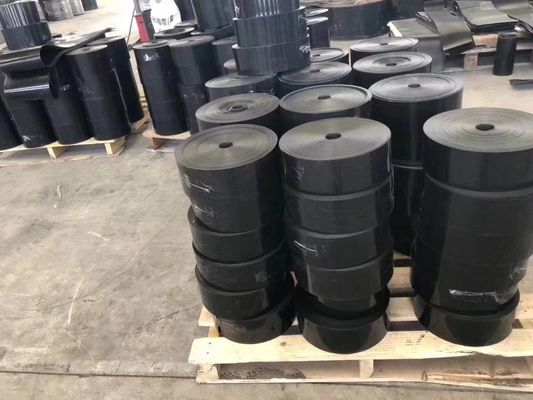

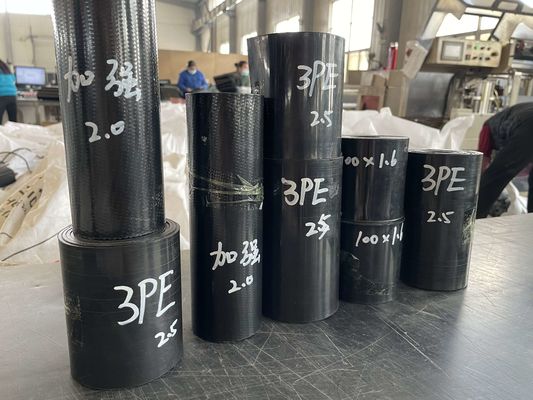

Finished Products
  • Standard Products: 650mm width, Two-layer PE heat shrinkable tape, sleeve-type heat shrinkable sleeves, clip-on heat shrinkable sleeves
  • Upgraded Products: Three-layer fiberglass reinforced PE heat shrinkable tape/sleeve



Product Applications


Hollow wall spiral wound pipes, steel-reinforced spiral corrugated pipes, plastic-steel spiral wound pipes, double-flat-wall plastic-steel spiral wound pipes, PVC-U sewage pipes, polyurethane foam insulated pipes (black and yellow jacket pipes), 3PE/2PE steel pipes, seamless steel pipes, large diameter wastewater pipes, and other ordinary steel pipelines. Main Application Fields: Municipal pipeline engineering, oil and gas long-distance transmission pipelines, industrial fluid pipelines, pre-insulated pipeline joint closure, pipeline damage repair, girth weld straight joint field coating

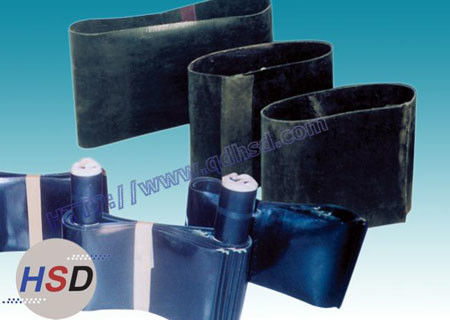

Heat shrinkable sleeve for Oil & Gas Pipe


750-800mm Radiation Cross-Linked Polyethylene Heat Shrink Metal Reinforced Tape Production Machine  2750-800mm Radiation Cross-Linked Polyethylene Heat Shrink Metal Reinforced Tape Production Machine  3

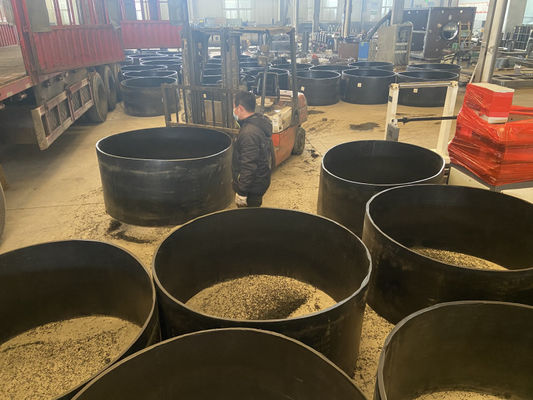

For metal reinforced HDPE corrugated pipe (drainpipe)


750-800mm Radiation Cross-Linked Polyethylene Heat Shrink Metal Reinforced Tape Production Machine  4750-800mm Radiation Cross-Linked Polyethylene Heat Shrink Metal Reinforced Tape Production Machine  5

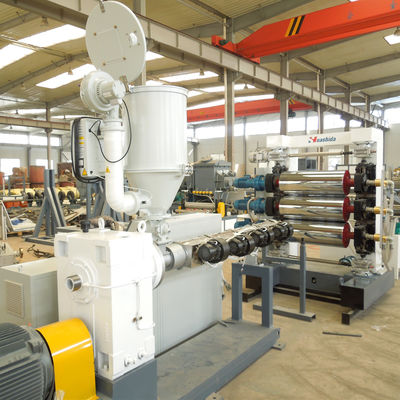

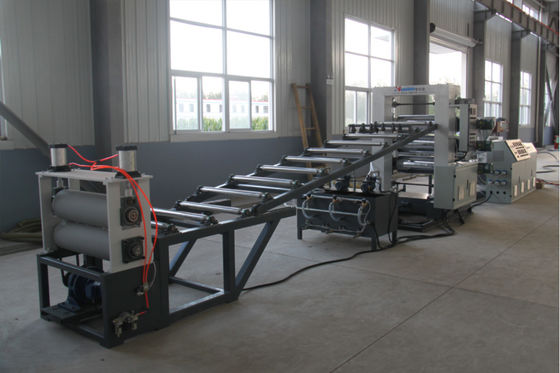

 Production Line Composition

Complete Line Structure

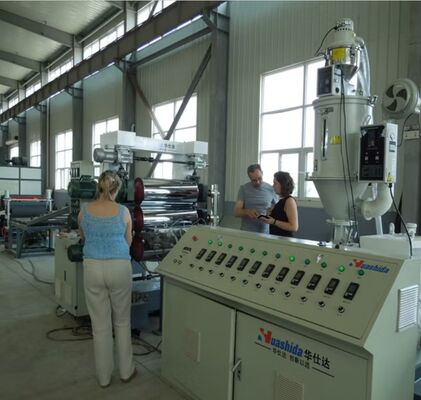

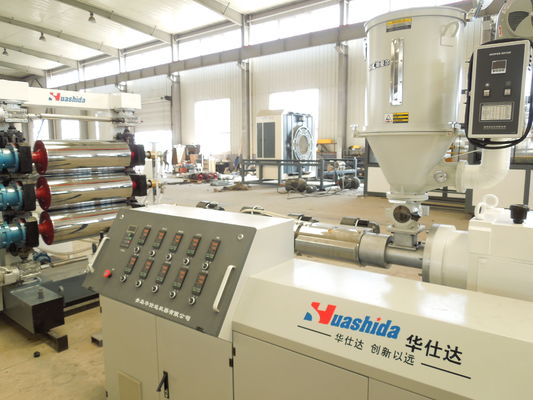

  1. RS-800 PE Backing Extrusion Line: Output 150-200kg/h, responsible for high-purity LDPE substrate forming

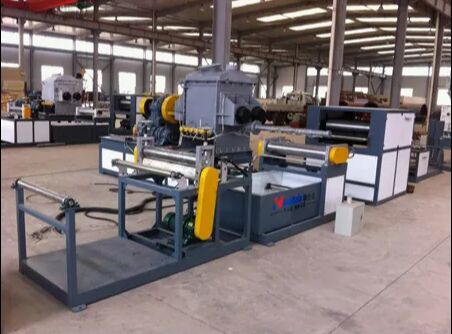

  2. TJ-700 Adhesive Coating Line: Completes online adhesive coating, stretching, and shaping
  3. Fiberglass Reinforced Upgrade Configuration: Fiber unwinding, heating, and leveling equipment, 65/30 single-screw extruder, special T-shaped flat-head die
  4. Auxiliary & Control System: Irradiation crosslinking equipment, cooling system, haul-off unit, Siemens electric control system, ABB main motor

Operating Environmental Conditions

  • Working Place: Indoor, no dangerous area
  • Power Supply: 380V 50HZ (-10%, +5%)
  • Humidity: ≤85%, no condensation
  • Circulating Cooling Water: ~0.5m³/min (≤20ºC, 0.3Mpa)
  • Compressed Air: ~0.4m³/min, >0.5Mpa

Main Equipment List (Standard Heat Shrinkable Tape Production Line)

RS-800 PE Backing Extruder Line


No.
Equipment Name
Quantity
1
Automatic Vacuum Feeder
1 Set
2
Hopper Dryer
1 Set
3
SJ-90×30 Single Screw Extruder
1 Set
4
T-Die Mold
1 Set
5
Hydraulic Filter Screen Changer
1 Set
6

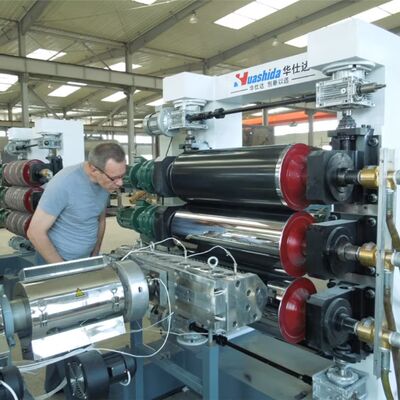

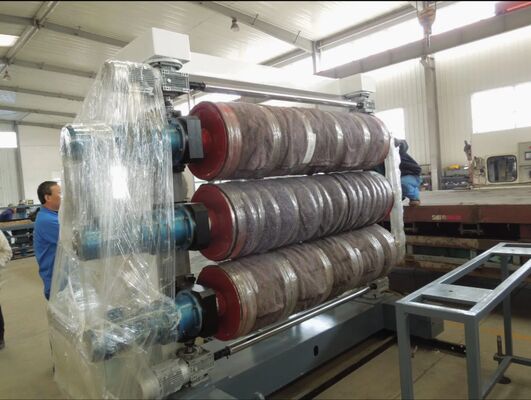

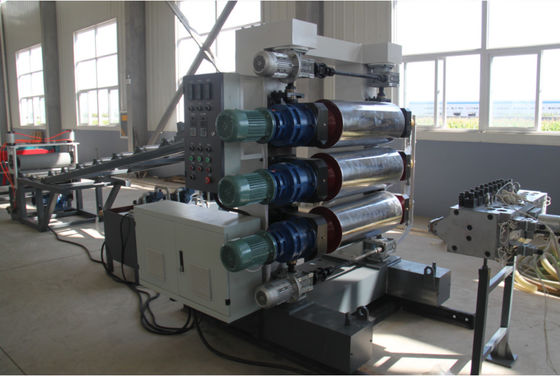

3-Roller Calender
1 Set
7
Roller Temperature Control System
1 Set
8
Cooling Bracket with Lengthways Cutting Device
1 Set
9
Haul-Off Unit
1 Set
10
Coiler
1 Set
11
Siemens Electric Control System
1 Set
750-800mm Radiation Cross-Linked Polyethylene Heat Shrink Metal Reinforced Tape Production Machine  6750-800mm Radiation Cross-Linked Polyethylene Heat Shrink Metal Reinforced Tape Production Machine  7750-800mm Radiation Cross-Linked Polyethylene Heat Shrink Metal Reinforced Tape Production Machine  8750-800mm Radiation Cross-Linked Polyethylene Heat Shrink Metal Reinforced Tape Production Machine  9

TJ-700 Adhesive Coating Production Line

No.
Equipment Name
Quantity
1
Unpowered Uncoil Device (Separate Uncoiler Optional)
2 Sets
2
PE Backing Stretching Unit
1 Set
3
300L Reactor
1 Set
4
Adhesive Coating Roller
1 Set
5
Cooling Water Tank
1 Set
6
Haul-Off Unit
1 Set
7
Digital Meter Counter
1 Set
8
Coiler
1 Set
9
Siemens Electric Control System
1 Set
750-800mm Radiation Cross-Linked Polyethylene Heat Shrink Metal Reinforced Tape Production Machine  6750-800mm Radiation Cross-Linked Polyethylene Heat Shrink Metal Reinforced Tape Production Machine  7750-800mm Radiation Cross-Linked Polyethylene Heat Shrink Metal Reinforced Tape Production Machine  8750-800mm Radiation Cross-Linked Polyethylene Heat Shrink Metal Reinforced Tape Production Machine  9

Core Production Process

Standard Three-Step Forming Process

  1. Substrate Extrusion: LDPE extrusion line produces high-purity PE backing film with uniform thickness
  2. Irradiation Crosslinking: A professional electron accelerator irradiates the substrate to endow flame retardancy and high tensile strength
  3. Online Lamination: Secondary stretching shaping, then real-time bonding with imported special hot melt adhesive, ensuring high peel strength and qualified shrinkage rate

Three-Layer Fiberglass Reinforced Process

Adds fiberglass unwinding, heating, and leveling steps on the standard process, realizes one-pass continuous forming of three-layer fiber-reinforced products, with higher strength and better shrinkage performance
750-800mm Radiation Cross-Linked Polyethylene Heat Shrink Metal Reinforced Tape Production Machine  14   750-800mm Radiation Cross-Linked Polyethylene Heat Shrink Metal Reinforced Tape Production Machine  15

Our Advantages
  • High Efficiency & Low Consumption: Innovative single-screw extruder with direct-connection technology, low energy consumption, high output, long service life, maximizes production profit
  • Intelligent Control: Siemens PLC control system, ABB main motor, controllable production speed, fully automated operation, and reduces labor costs
  • Stable Product Quality: Advanced T-shaped molds and coat hanger-style flow channels, high-precision mirror rollers, and patented secondary stretching equipment ensure uniform substrate thickness and low scrap rate
  • Multifunctional Production: One set of equipment can produce various heat-shrinkable tape and sleeve products, avoiding redundant equipment investment
  • Premium Configuration: Adopts top-brand electrical components, imported high-quality adhesive raw materials (DuPont, Sumitomo, Hanwha), stable performance, low failure rate
  • Industry Leading Technology: Three-layer one-pass molding technology, reaching world-class level in equipment structure, vulcanization and product performance

Core Test Parameters (Meet ASTM, DIN, GB/T International Standards)

  • Adhesive Softening Point: 70-80°C (ASTM E 28)
  • Shear Strength: ≥100N/cm (DIN 30 672)
  • Tensile Strength: 15-20Mpa (ASTM D638)
  • Elongation at Break: 350%
  • Peel Strength: >150N/cm (ASTM D1000)
  • Water-Intake Rate: 0.05% (ASTM D570)
Company Profile

Qingdao Huashida Machinery is a professional manufacturer of heat shrinkable tape production lines, pipe anti-corrosion equipment, and plastic machinery with over 20 years of industrial manufacturing experience. We have 9 senior engineers, a national high-end plastic machinery expert workstation, and 389 sets of successful global project application cases. Our heat-shrinkable tape and sleeve production lines are exported to dozens of countries and regions worldwide, and we fully support customized production solutions to meet diverse customer requirements across output, product types, and pipeline applications.
750-800mm Radiation Cross-Linked Polyethylene Heat Shrink Metal Reinforced Tape Production Machine  16
750-800mm Radiation Cross-Linked Polyethylene Heat Shrink Metal Reinforced Tape Production Machine  17

Commercial Terms

Payment Terms

  1. 30% of the contract amount as a deposit within 2 working days after contract signing
  2. 67% of the contract amount before goods delivery
  3. 3% of the contract amount within 10 days after finishing installation and commissioning

After-Sales Service & Warranty

  • Warranty Period: 12 months for mechanical parts, 6 months for electrical parts from the date of equipment receipt
  • Free Services: Free technical documents, electrical drawings, and on-site operator training
  • Installation & Commissioning: Professional technicians dispatched for on-site guidance; buyer covers round-trip tickets, accommodation, transportation, insurance, and USD 150 per person per day allowance
  • Long-term Support: Lifetime technical consultation, spare parts supply, and after-sales troubleshooting

Delivery


Production and delivery are completed within 90 days after receiving the deposit

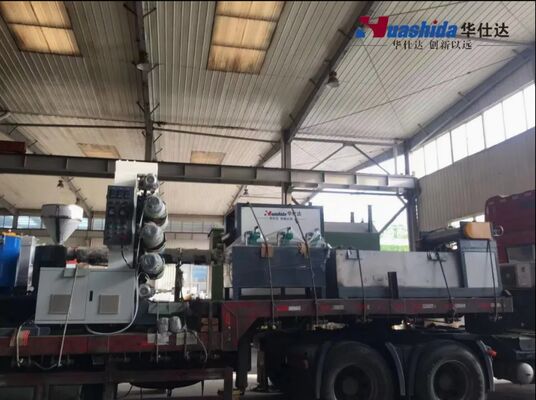

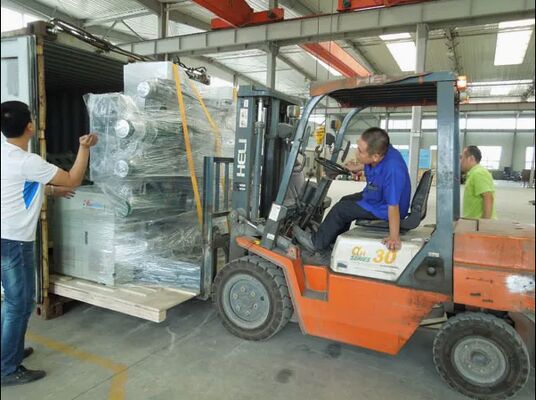

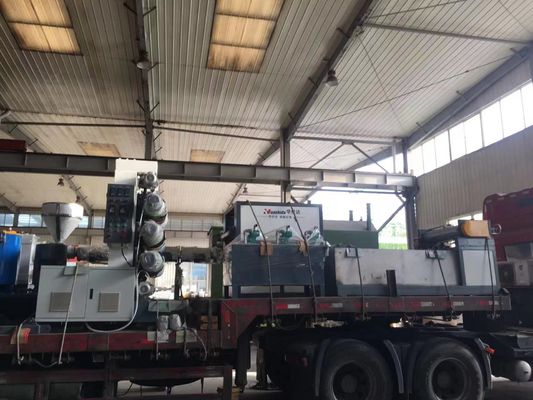

Packaging & Shipping

Standard packaging with wrap film; wooden pallets or cartons are available at the buyer's cost

750-800mm Radiation Cross-Linked Polyethylene Heat Shrink Metal Reinforced Tape Production Machine  18750-800mm Radiation Cross-Linked Polyethylene Heat Shrink Metal Reinforced Tape Production Machine  19
