Name: High-Pressure Foaming Machine Pre-Insulated Pipe Production Line with Sa2.5 Rust Removal and 206mm-1820mm Steel Pipe Coverage
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: Polyurethane Foam Machine
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Pipe Structure: Carrier Steel Pipe-Polyurethane Foam-HDPE Casing

Rust Removal Quality: ≥2.5 Grade

Foaming Machine: High-Pressure Foaming Machine

Principle: High-Pressure Air Type

Highlight:

High-Pressure Foaming Machine Pre-Insulated Pipe Production Line

Sa2.5 Rust Removal Pre-Insulated Pipe Production Line

206mm-1820mm Steel Pipe Coverage Continuous Production Line

Basic Infomation

Place of Origin: Qingdao China

Brand Name: huashida

Certification: CE, ISO9001:2008

Model Number: Polyurethane Foam Machine

Payment & Shipping Terms

Packaging Details: Wodden Box

Delivery Time: 60days

Payment Terms: L/C,D/P,T/T

Supply Ability: 30 Sets/Year

Gallery

High-Pressure Foaming Machine Pre-Insulated Pipe Production Line with Sa2.5 Rust Removal and 206mm-1820mm Steel Pipe Coverage

Product Description

PU Foaming Spary Pre-insulated Pipe Continuous Production Line

1. Pipe structure
Our company independently developed the spray winding insulation pipe production line, which consists of three parts: shot blasting and rust removal production line, polyurethane spraying production line, and PE winding production line.

2. Production line parameters:
(1) Steel pipe coverage: 206mm-1820mm
(2) Processing capacity: ≤250m²/h
(3) Cleaning level: Sa2.5
(4) Materials used: Black material (isocyanate), white material (combined polyether), polyethylene
(5) Main equipment: Shot blasting and rust removal production line, polyurethane spraying production line, PE winding production line, consisting of three parts

3. Technological flow:

PU Foaming spary Preinsulation Pipe Continuous Production Line

PUF spray PE winding preinsulated pipe production line consists of the following parts:

1) Steel pipe outwall shot blasting line

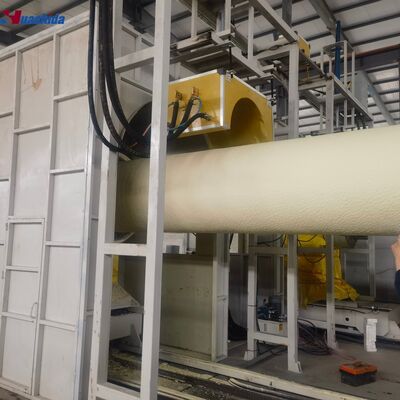

2) Polyurethane spray molding line
3) Polyethylene sheet extruding winding line
4) Water cooling line
5) End-cutting equipment

Main line Composition of the polyurethane coating steel preinsulated pipe equipment:

No.	name
1	External wall Shot blasting rust removel machine
2	Medium-frequency induction heating furnace
3	Polyurethane spray foaming unit
4	pipe rotator trolley
5	Single screw extruder and diehead mould
6	Finished pipe ends trimming machine
7	pipe Conveyers and racks
8	Electrical system and PLC

Production line equipment Photos show

High-Pressure Foaming Machine Pre-Insulated Pipe Production Line with Sa2.5 Rust Removal and 206mm-1820mm Steel Pipe Coverage 2

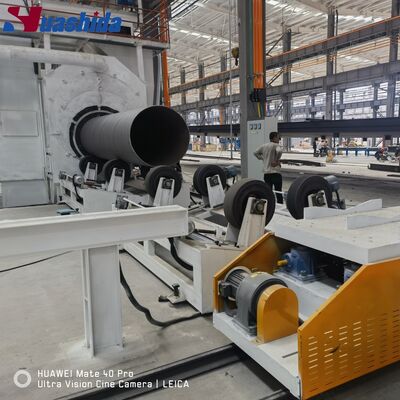

Rust Removal

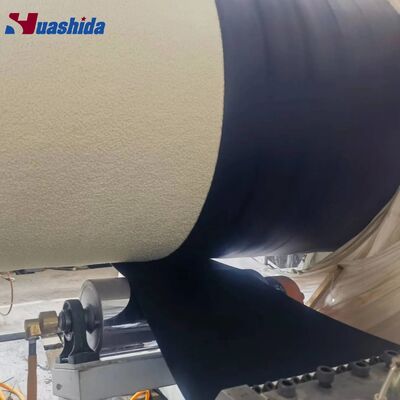

PE film jacket wrapping
High-Pressure Foaming Machine Pre-Insulated Pipe Production Line with Sa2.5 Rust Removal and 206mm-1820mm Steel Pipe Coverage 4

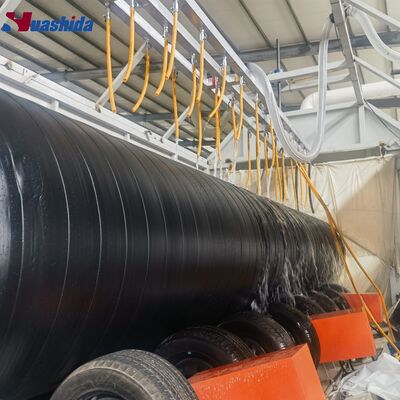

PE Jacket Water quenching
High-Pressure Foaming Machine Pre-Insulated Pipe Production Line with Sa2.5 Rust Removal and 206mm-1820mm Steel Pipe Coverage 5

Qingdao Huashida Machinery Co., Ltd was established in 2003. Since its inception, Huashida has focused on plastic polyurethane insulation pipe production line, 3LPE anticorrosion pipe production line, large diameter underground pipe production line and plastic pipe joints for 20 years. We always attach great importance to research and development,collaborating closely with Beijing University of chemical technology, Qingdao university of technology and scientific research institutions. by absorbing advanced technology home and abroad, after 22 years of endeavor we now rank one of the top 3 manufacturers in the industry in China. Huashida machines have been well received in Saudi Arabia, Kazakhstan, Uzbekistan, United Arab Emirates, Turkey, Russia, etc.

Welcome to our factory to discuss cooperation!
