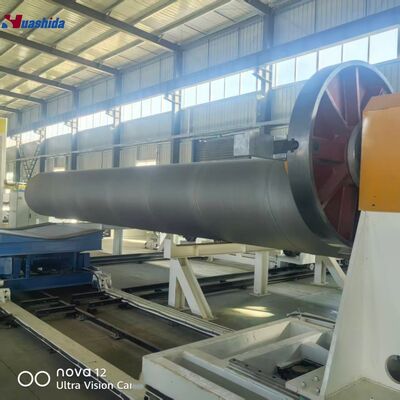

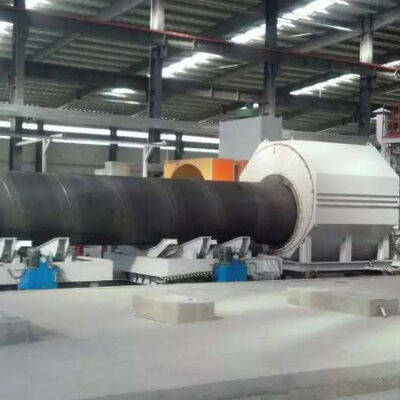

Steel Pipe 3LPE Coating Production Line with Epoxy Powder, Induction Heating, and SA2.5 Surface Treatment

 Steel Pipe 3PE & Epoxy Coating Line with Surface Preparation System

The Steel Pipe 3PE Anti-Corrosion Coating Line with Epoxy Powder is designed for high-performance corrosion protection of steel pipelines used in oil, gas, water, and infrastructure projects. This production line applies a three-layer coating system consisting of epoxy powder, hot melt adhesive, and polyethylene outer layer, ensuring excellent adhesion, mechanical strength, and long-term corrosion resistance.

The epoxy powder layer provides strong bonding and chemical resistance, while the hot melt adhesive enhances interlayer adhesion. The polyethylene outer coating offers outstanding impact resistance, moisture protection, and durability. With a stable and efficient production process, the line delivers uniform coating thickness and reliable quality.

This 3PE coating line supports a wide range of pipe diameters and can be customized to meet specific project requirements. Featuring automated control, energy-efficient design, and easy operation, it helps manufacturers improve productivity, reduce operating costs, and achieve consistent coating performance.

3-layer PE anti-corrosion coating consists of the first FBE coating, middle adhesive layer, and outer polyethylene layer.

The three-layer polyethylene anti-corrosion coating is advanced technology as the outer protective layer of buried pipe, widely used in the anti-corrosion of gas and oil transmission pipelines, urban gas supply, water supply pipes, and other fluid transmission pipelines. 3-layer PE anti corrosion coating can strengthen the pipeline's mechanical properties with high electrical resistance, waterproof, wearable, and anti-aging performance.

The anti-corrosion coating processing line includes:
-steel pipe transmission system
-surface treatment system
-pipe dust removal system
-pipe heating system
-electrostatic spraying system
-coating system
-water cooling system
-end cutting system
-hydraulic and pneumatic system
-testing system
-electronic control system.

Technological processes

Upload pipes→pipes screw conveyor→rust removal of intermediate frequency heating→Epoxy powder coating→outer layer soli quid & polyethylene coating→cooling spray→pipes screw conveyor→grinding pipes, send→unload pipes



Main Equipment List

Qingdao Huashida Machinery Co., Ltd has successfully expanded into overseas markets, including Russia, Iran, the UAE, India, Belarus, and Kazakhstan, with nearly 50 sets of pipeline production lines produced for both domestic and international clients. The factory, located in the Qingdao High & New Technology Industrial Area, covers approximately 4,000 square meters and has obtained over 10 patents along with numerous industry certifications.

Huashida is equipped with a highly qualified and experienced team focused on research and design, manufacturing, and site operation. This expertise allows the company to offer a diverse range of reliable products and meet special customer needs through exceptional R&D and design capabilities. Furthermore, Huashida is committed to providing timely technical support through a comprehensive after-sales service system. As a leader in the machinery manufacturing sector, Qingdao Huashida Machinery Co., Ltd prioritizes quality, innovation, and customer satisfaction.

Our team

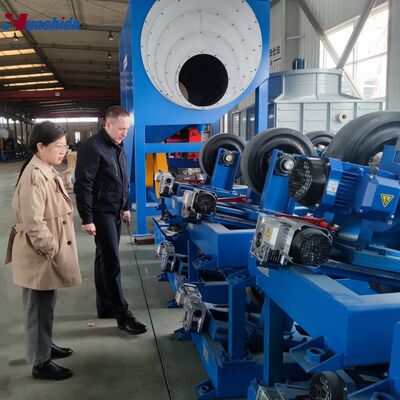

Workshop

We offer customised services to our clients. Customers provide factory drawings we plan the layout of the production line according to the actual site in the customer's country.

We have our own standardised customised packaging for our products. It can also be customised according to the customer's needs.

Every year we participate in specialised exhibitions around the world to promote our brand, and you can find Huashida at exhibitions around the world.
