Steel Pipe Internal FBE & External 3LPE Anti-Corrosion Coating Line

Model: 159–4200mm
Processing Capacity: ≥250 m²/h
Materials: Epoxy powder, adhesive, polyethylene

The TPEP steel pipe coating line is designed for anti-corrosion coating of steel pipes in the factory. It is widely used in engineering projects, particularly in heating, gas, and oil sectors. The line can apply FBE, 2-layer FBE, 2-layer PE, 2-layer PP, and 3-layer PE coatings.

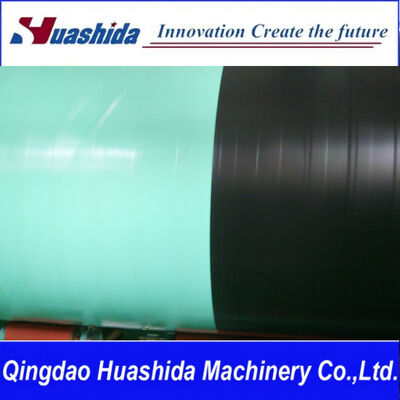

The 3-layer PE coating consists of:

1. FBE Coating (inner layer): Provides strong corrosion resistance.
2. Adhesive Middle Layer: Enhances bonding between inner and outer layers.
3. Polyethylene Outer Layer: Offers mechanical protection and environmental durability.

Applications

• Oil & Gas Pipelines: Long-term protection for safe transport of oil and gas.
• Urban Gas & Water Supply: Ensures reliable, safe, and clean fluid transport.
• District Heating Systems: Provides insulation and corrosion resistance even at high temperatures.
• Underground & Industrial Anti-Corrosion Projects: Durable protection for buried or exposed steel pipes.

3-layer PE coating strengthens the pipeline's mechanical properties while providing excellent electrical resistance, waterproofing, wear resistance, and anti-aging performance.

Detailed Equipment & Features

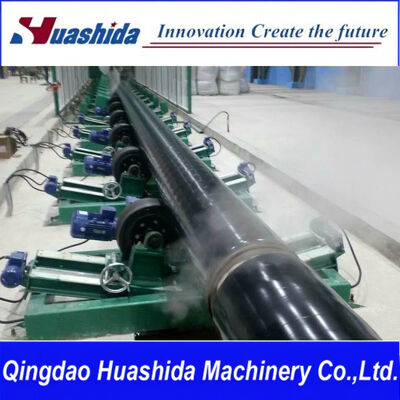

The coating line includes:

• Steel pipe transmission system
• Internal and external shot blasting system
• Dust collection system
• Pipe heating system
• Electrostatic spraying system
• PE coating system
• Water cooling system
• End cutting system
• Hydraulic & pneumatic system
• Testing system
• Electronic control system

Technological Process

Upload pipes → Screw conveyor → Internal rust removal → External rust removal → Intermediate frequency heating → Internal epoxy powder coating → External epoxy powder coating → Adhesive & polyethylene outer layer coating → Cooling spray → Screw conveyor → Grinding pipe ends → Pipe unloading

Advantages

1. Advanced technology for consistent and reliable coating quality.
2. Stable operation and high degree of automation, reducing labor costs.
3. Anti-corrosion quality meets international standards.
4. Full production solution: design, installation, commissioning, and training.
5. Over 389 sets of production experience worldwide.
6. Team includes 9 professional senior engineers and a high-end plastic machinery expert workstation in China.

Main Equipment List

Company Profile

Qingdao Huashida Machinery Co., LTD. has over 20 years of production experience in plastic pipe machinery, municipal pipe machinery, pipe insulation & anti-corrosion machinery, and pipe jointing & anti-corrosion materials.

Main Products:

1. HDPE jacket pipe production lines for pre-insulated pipes (110–2000mm)
2. Rigid and flexible pre-insulated pipe (PERT) production lines
3. Steel pipe FBE / 2LPE / 3LPE anti-corrosion coating lines
4. Steel pipe derusting lines
5. PE pressure pipe / water and gas supply pipe production lines
6. PP/PE plastic board, sheet, and geomembrane production lines
7. NBR PVC thermal insulation tube/plate production lines
8. Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeves, electro-fusion weldable joint sleeves, portable welding guns (extruders), PE/PP welding rods
