Efficient 3LPE FBE Coating Equipment with Shot Blasting Technology for steel pipes

Product Description:

3PE anti-corrosion coating is that the steel pipe is protected by three layers to prolong the life of service from 5-10years to 50-100years. First layer is a fusion-bonded epoxy layer (FBE> 100µm), the second layer is adhesive (AD) 170 ~ 250µm, and the third layer is polyethylene (PE) stripe 2.5 ~ 3.7mm. 3PE steel coating pipe has the features of high mechanical strength, excellent electrical insulation performance, Process accuracy, and environmental friendliness.

Application:

The three-layer HDPE stripe winding process, with epoxy powder coating as the bottom layer and binding adhesive as the second layer, is a widely used technique in steel pipe anti-corrosion all over the world.  The anti-corrosion steel pipe is applied in oil, gas, and water supply pipelines.

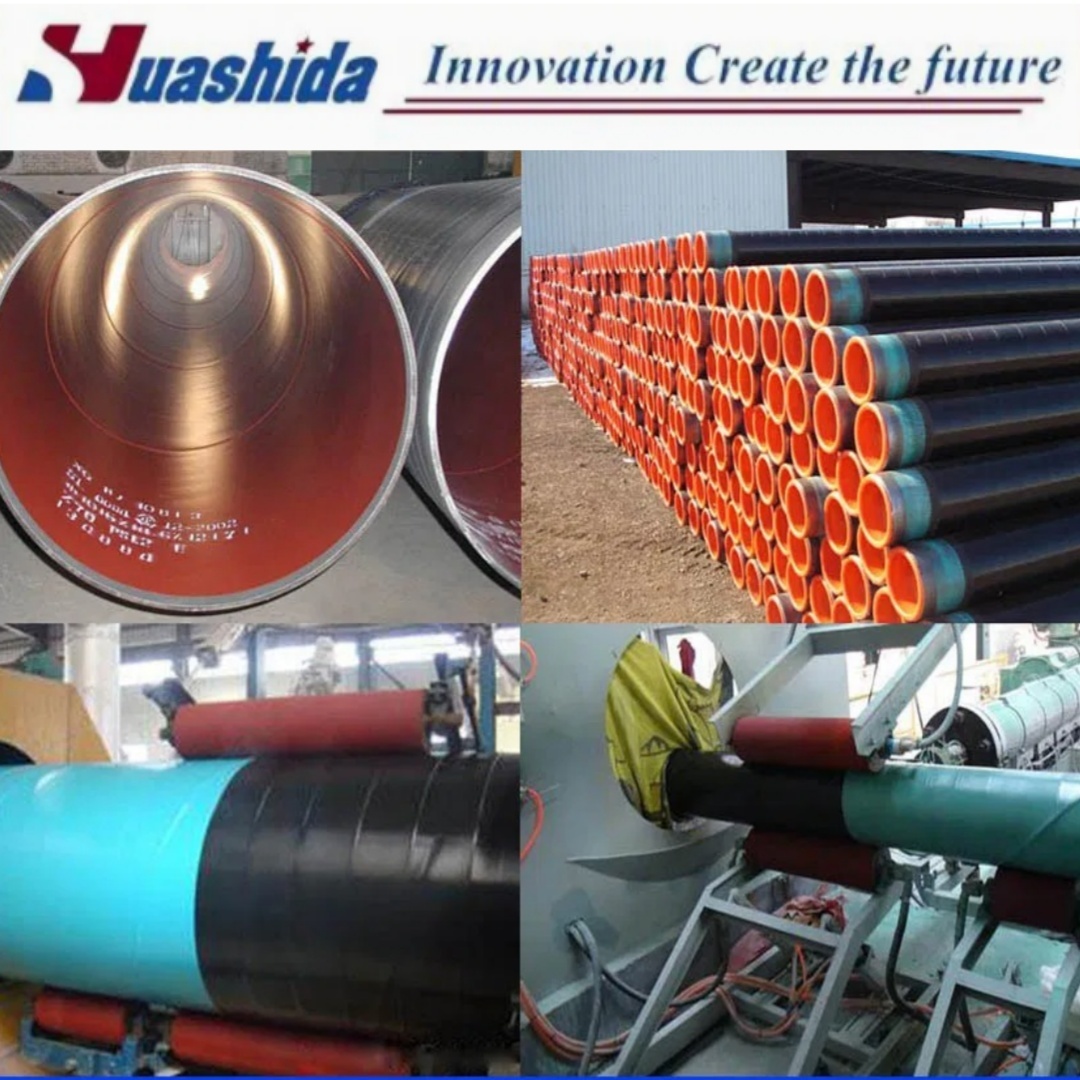

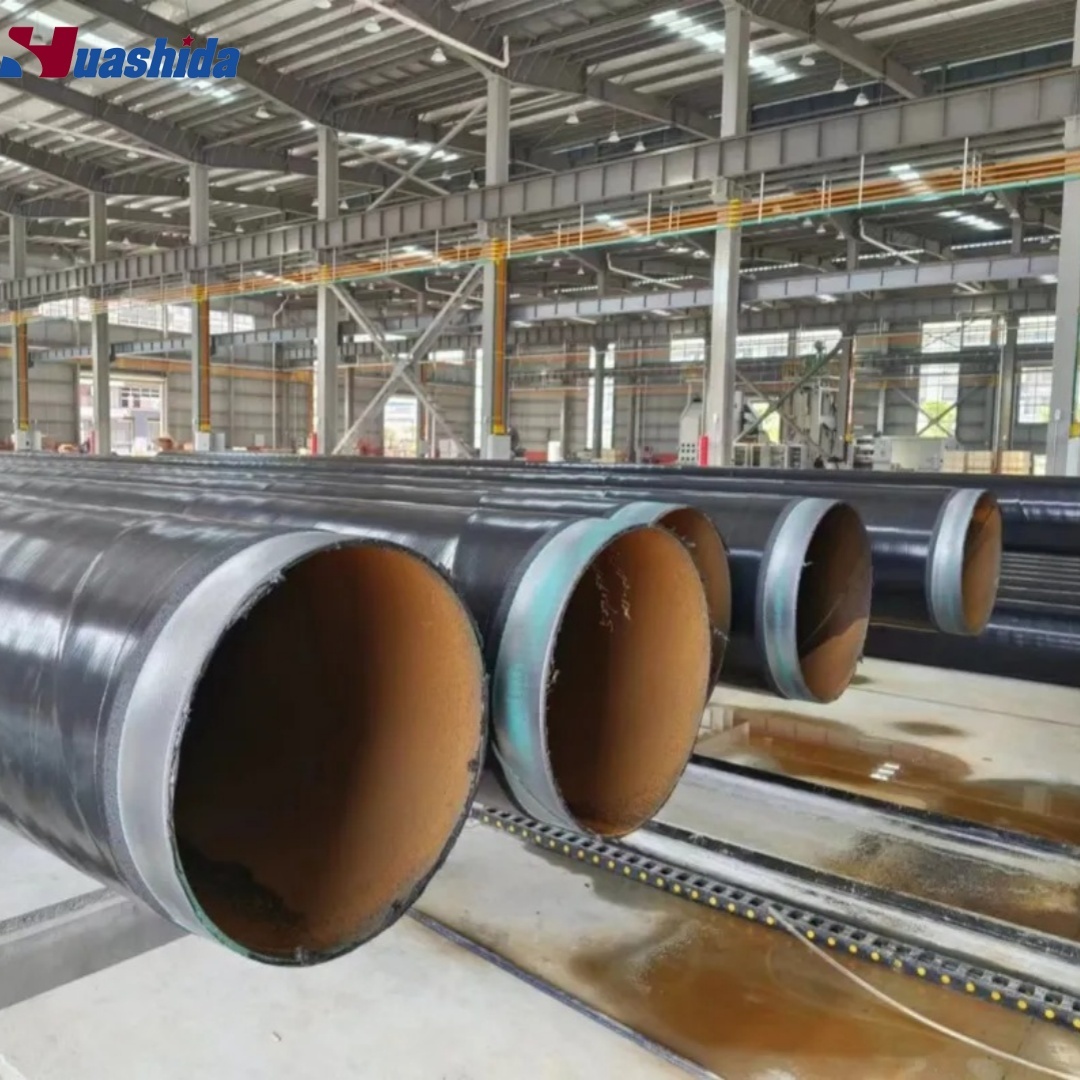

Three-Layer structure of 3PE anti-corrosion pipe
The three-layer PE anti-corrosion structure includes a fusion-bonded epoxy-powder bottom layer, polymer adhesive middle layer, and polyethylene outside layer. The epoxy powder is a kind of thermosetting nontoxic coating, forming a high molecular weight cross-linking structure coating after solidifying, featuring good chemical anti-corrosion and high mechanical properties. The function of the epoxy layer is to form a continuous coating and to provide the steel tube surface with good chemical resistance and cathodic disbanding resistance. The function of the polymer adhesive is to agglutinate the epoxy layer and the polyethylene outside layer, which unites all three layers together. The polyethylene layer protects the pipe from abrasion, bumps, and water.

Technical Flow:

Upload pipes→pipes conveyor→rust removal→intermediate frequency heating→Epoxy powder coating→Middle layer  &polyethylene stripe winding→water cooling→pipes conveyor→ pipe chamfer→unload pipes

Blasting Machinery:

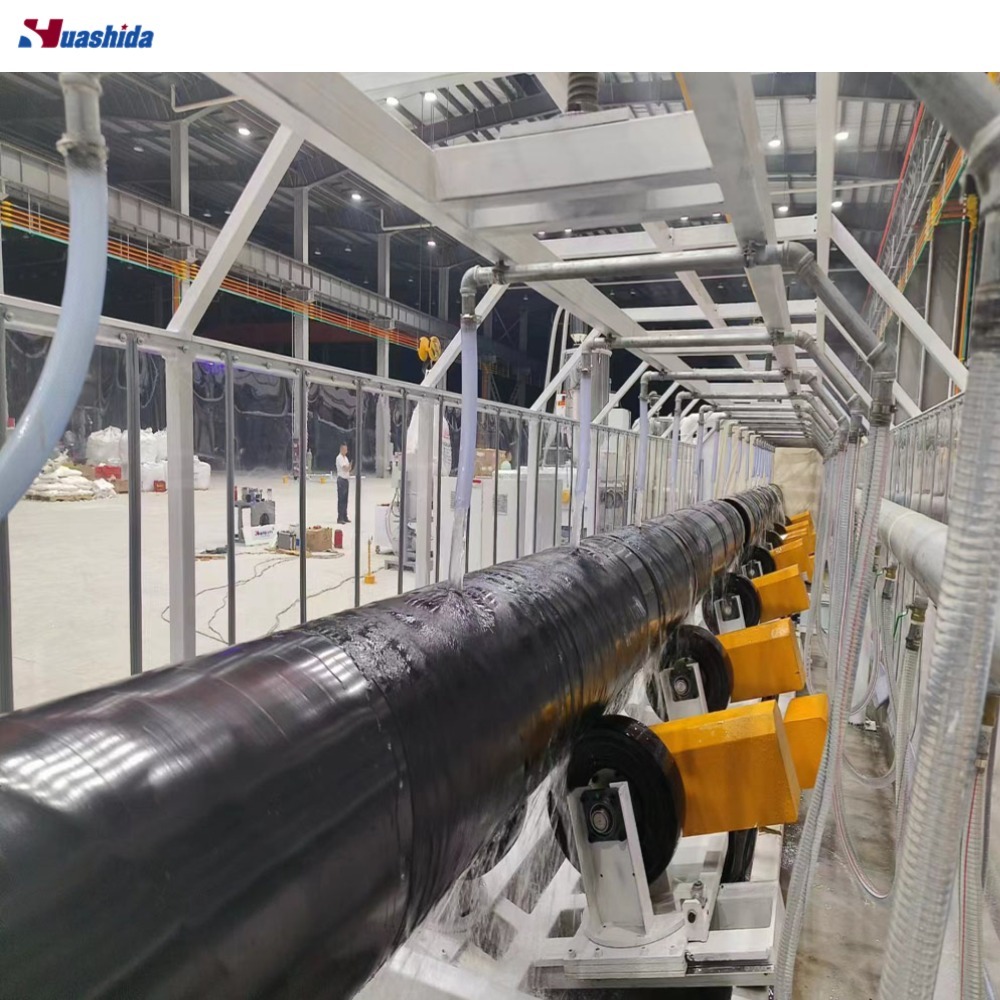

Steel pipe conveyor:

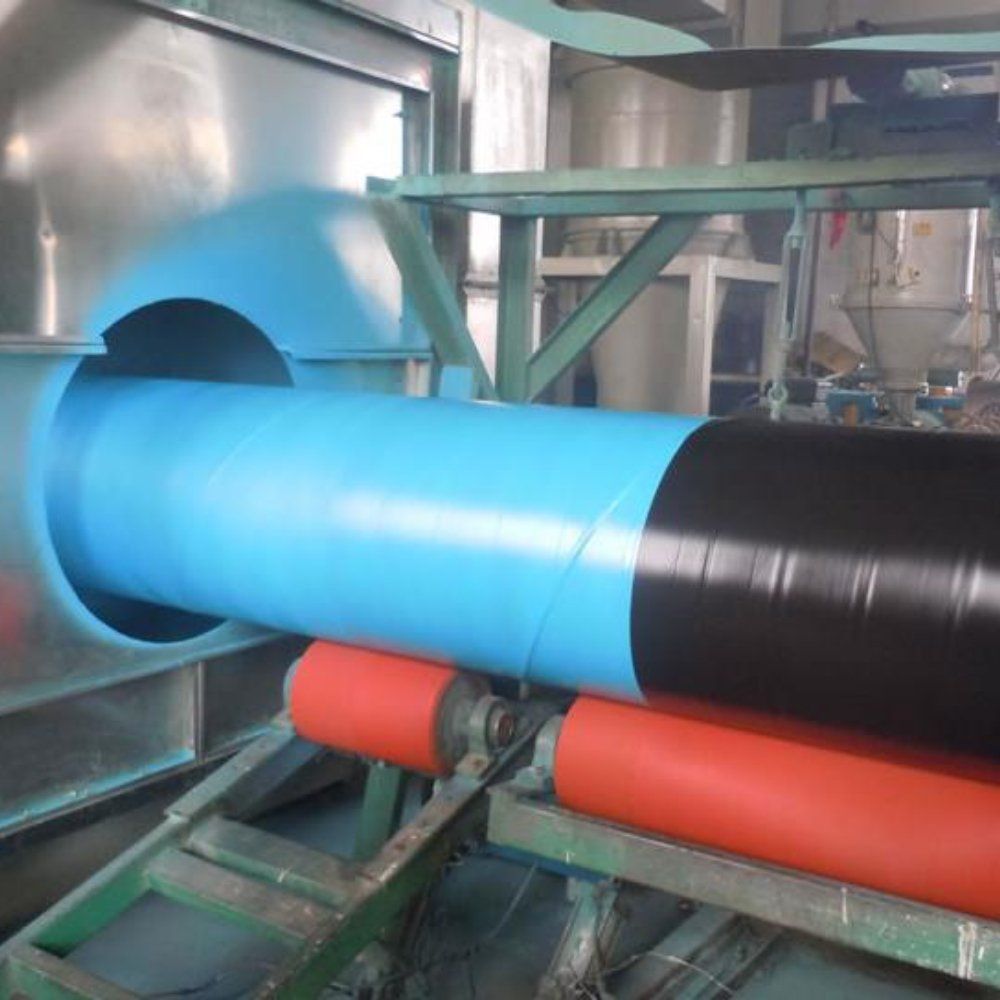

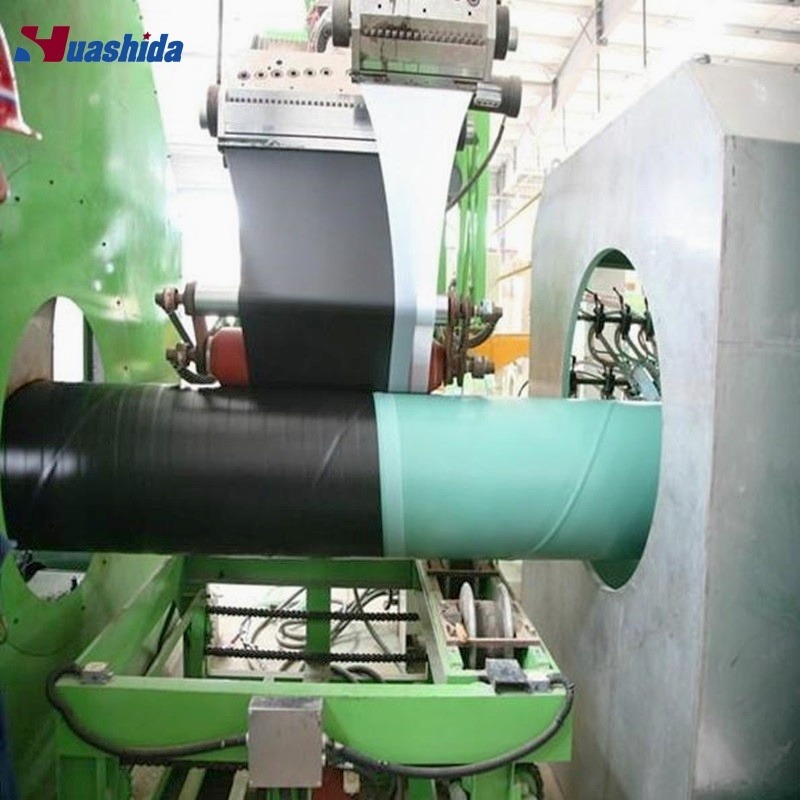

FBE Coating machinery & PE/PP  layer wrap extruder line::

Product Parameters:
