PU Foam Pre-Insulated Pipe Production Line with HDPE Jacket for 110–2200mm Pipes Featuring Single-Screw Extruder and Vacuum Calibration System

1
MOQ
US$200,000.00-1,000,000.00
Price
PU Foam Pre-Insulated Pipe Production Line with HDPE Jacket for 110–2200mm Pipes Featuring Single-Screw Extruder and Vacuum Calibration System
Features Gallery Product Description Request A Quote
Features
Specifications
Plastic Processed: PE
Screw: Single-Screw
Assembly Structure: Separate Type Extruder
Dimension: 24m*4M*4M
Highlight:

110–2200mm PU Foam Pre-Insulated Pipe Production Line

,

Single-Screw Extruder HDPE Jacket Pipe Production Line

,

Vacuum Calibration System Pre-Insulated Pipe Extrusion Line
Basic Infomation
Place of Origin: Qingdao,CHINA
Brand Name: HUASHIDA
Certification: CE
Model Number: Pipe Extruder
Payment & Shipping Terms
Packaging Details: Standard Package
Delivery Time: 60DAYS
Payment Terms: L/C,D/P,T/T
Supply Ability: 100 Units/Year
Product Description
PU Foam Pre-Insulated Pipe HDPE Jacket Pipe Production Line for District Cooling & Oil/Gas Pipelines (110–2200mm)



Product Description
HDPE PU Foam Thermal Pre-insulated thin wall Pipe Extrusion Line is a high efficiency equipment with high speed and energy saving which is developed by Qingdao Huashida Machinery Co.Ltd., PU foam Pre-insulated Pipe Extrusion line is easy to operate with automatic control system and has long service life.


This production line is specially designed for manufacturing PU foam pre-insulated pipes widely used in district cooling, district heating, oil & gas, and large-scale infrastructure projects across the Middle East.HDPE jacket pipe is out case of thermal insulating pipe, which is widely used in central heating, oil, nature gas and other industrial area.


HDPE jacket pipes are produced by vacuum calibration method, with smooth inner and outer walls, a long service life, good anti-corrosion and heat preservation performance, and excellent mechanical properties.

PU Foam Pre-Insulated Pipe Production Line with HDPE Jacket for 110–2200mm Pipes Featuring Single-Screw Extruder and Vacuum Calibration System 0

Product Parameters



Style PE-110/500 PE-655/1380 PE-960/1860 PE-1155/2200
Main Extruder SJ-75/33 SJ-120/33 SJ-150/33 SJ-150/33
Pipe diameter Φ110-600mm Φ655-1380mm Φ960-1860mm Φ1155-2200mm
Capacity 250-350kg/h 700-900kg/h 1000-1200kg/h 1350kg/h
Installed power 160kw 480kw 580kw 650kw
Length 26m 36m 45m 48m

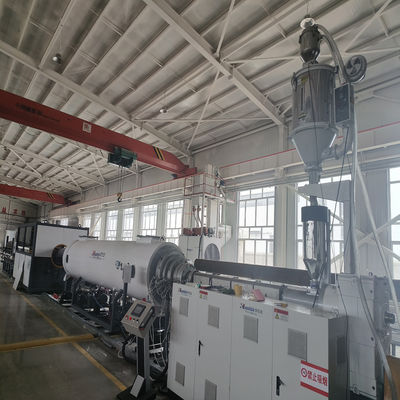

Production line composition:

-1set   Vacuum loader
-1set   Hopper dryer

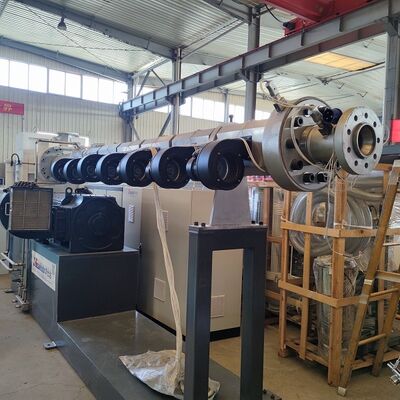

-1set   High-efficiency single screw extruder

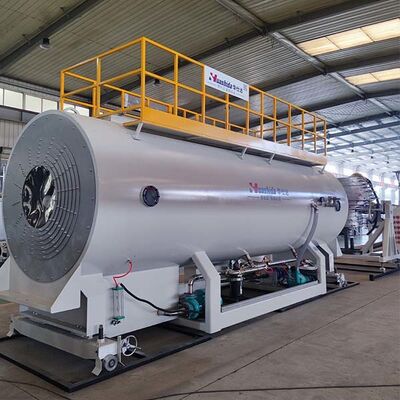

-1set   Vacuum calibration table
-1set   Water spraying tank
-1set   Hauling machine

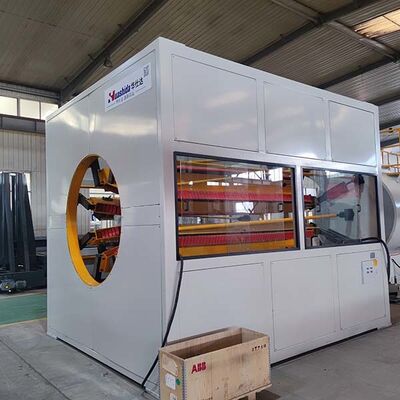

-1set   Cutting machine
-1set   Discharging Frame
-1set   PLC

Technical Highlights:

Single-screw extruder Precision temperature control system ensures consistent material fusion
Proprietary single-screw extruder optimized for polyethylene (PE) materials
Vacuum Calibration Patented vacuum calibration system replaces traditional internal pressure methods
Smart Automation Fully integrated PLC control system
Real-time process monitoring
Production Capabilities Diameter range: 110mm - 2200mm (customizable)
Output capacity: 250-1600 kg/h (material-dependent)


Our Advantages

Features of the HDPE sleeve production line:

1.small dimension
2.high degree of automation, can be operated by one person, saving labor costs
3.long service life.
4.high-efficiency extruder gives larger output, stable performance
5.pipe wall is average and smooth
6.no waste of raw material
7.One-time molding

7.One-time molding
PU Foam Pre-Insulated Pipe Production Line with HDPE Jacket for 110–2200mm Pipes Featuring Single-Screw Extruder and Vacuum Calibration System 1PU Foam Pre-Insulated Pipe Production Line with HDPE Jacket for 110–2200mm Pipes Featuring Single-Screw Extruder and Vacuum Calibration System 2PU Foam Pre-Insulated Pipe Production Line with HDPE Jacket for 110–2200mm Pipes Featuring Single-Screw Extruder and Vacuum Calibration System 3

PU Foam Pre-Insulated Pipe Production Line with HDPE Jacket for 110–2200mm Pipes Featuring Single-Screw Extruder and Vacuum Calibration System 4
PU Foam Pre-Insulated Pipe Production Line with HDPE Jacket for 110–2200mm Pipes Featuring Single-Screw Extruder and Vacuum Calibration System 5

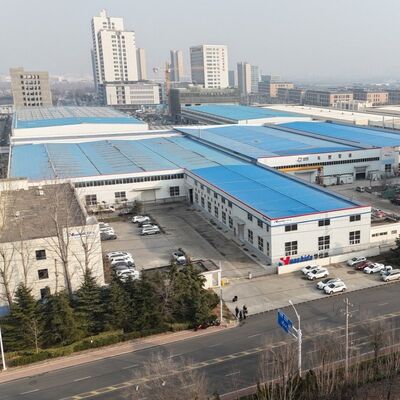

Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!
