Steel Pipe 3lpe fbe Anti-Corrosion Coating Line Manufacturer China Factory
Product Description
The steel pipe anti-corrosion coating line is employed for applying anti-corrosion coatings to steel pipes in the factory with different diameters, which is more extensively utilized in various types of engineering projects, especially in heating, gas, and oil sectors.
The lines can be applied to FBE, 2 layer FBE, 2 layer PE, 2 layer PP and 3 layer PE anti-corrosion coating.

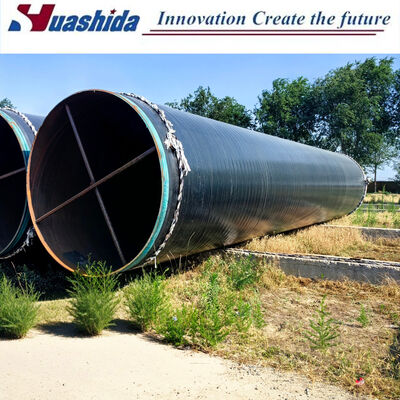

The 3 - layer PE anti - corrosion coating contains a first FBE coating, an intermediate adhesive layer, and an outer polyethylene layer.
The steel pipe anti-corrosion coating line is employed for applying anti-corrosion coatings to steel pipes in the factory with different diameters, which is more extensively utilized in various types of engineering projects, particularly in heating, gas, and oil sectors.
The composition of 3-layer PE coating production line
The three -layer PE anticorrosion structure includes fusion bonded epoxy-powder bottom layer, polymer adhesive middle layer and polyethylene top layer. The so-called 3-layer PE Coating Production line,3-layer refers to the 3-layer structure of epoxy primer, that is a thermosetting, non-toxic coating, curing after form high molecular weight cross-linked structure coating, With excellent chemical corrosion resistance and high mechanical properties, especially the best wear resistance and adhesion. It can form a continuous coating and steel pipe surface directly bonded, with good resistance to chemical corrosion and anti-cathode stripping performance.
To ensure that the overall coating at a higher temperature Has a good adhesion, making the middle layer of adhesive reactive groups to form a chemical bond. That is high quality of steel pipe anti-corrosion coating buried in the ground.
Technological processes
Upload pipes→pipes screw conveyor→rust removal of intermediate frequency heating→Epoxy powder coating→outer layer soli quid & polyethylene coating→cooling spray→pipes screw conveyor→grinding pipes, s end→unload pipes
Our Advantages
-Adopt advanced technology
-Stable operation
-High degree of automation, saving labor costs
-Good anti-corrosion quality, meets international standard
-Provide process design - installation - commissioning - technical training full link services to ensure that customers quickly put into production
-Share you 389 sets of production experience from all the world
-We have a top technical team of 9 professional senior engineers
-Possessing a domestic high - end expert workstation for plastic machinery and equipment
Main Equipment List
| No. |
Name |
Set |
| A. Derusting Equipment |
| 1 |
Pipe wheel conveyor |
1 |
| 2 |
Shot Blasting Machine |
1 |
| 3 |
Cyclone Dust Collector |
1 |
| 4 |
Pulse dust collector |
1 |
| 5 |
Centrifugal exhaust fan |
1 |
| 6 |
Rust removal equipment PLC |
1 |
| B. Coating equipment |
| 1 |
Pipe wheel conveyor |
1 |
| 2 |
Induction heating device |
1 |
| 3 |
Powder spraying device |
1 |
| 4 |
Automatic loading dryer |
2 |
| 5 |
SJ-65/30 Extruder |
1 |
| 6 |
SJ-120/30 Extruder |
1 |
| 7 |
Hot melt adhesive extruder die |
1 |
| 8 |
PE sheet extruder head mold |
1 |
| 9 |
Hot melt adhesive/PE sheet coating device |
1 |
| 10 |
Environmental Protection Ventilation equipment |
1 |
| 11 |
Cooling Spray equipment |
1 |
| C.Platform Equipment |
| 1 |
Steel pipe uploading platform |
1 |
| 2 |
Downloading platform |
1 |
| 3 |
Pipe storage platform |
1 |
| 4 |
Turnover machanism |
3 |
| D.Groove Equipment |
| 1 |
PE Beveling Machine |
2 |
| 2 |
Hydraulic Lifting and Turning Machinery |
1 |
| 3 |
Hydraulic Equipment |
1 |
| 4 |
PLC automatic control system |
1 |

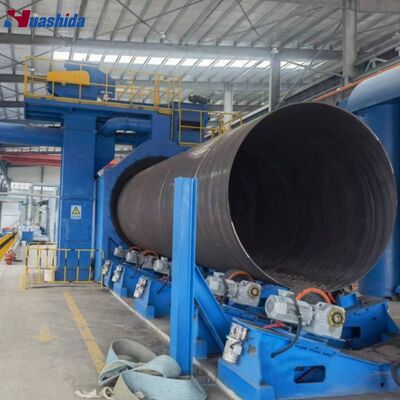

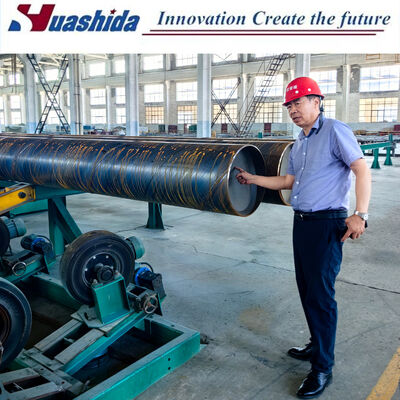

Customer cases
Company Profile
Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation&anticorrosion machines, and pipe jointing&anticorrosion materials, with 21 years of production experience.
Our main products are:
1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.
We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.
