Name: 3LPE Coating Pipe Production Line with 50-4200 mm Pipe Diameter High Voltage Electrostatic Spray Gun and Medium-Frequency Heating System
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: 50-4200MM
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Spray Gun Method: High Voltage Electrostatic Spray Gun

Heating Method: Medium-Frequency Heating System

Applications: Oil, Natural Gas, And Water Supply Pipelines

Type: Coating Production Line

Highlight:

50-4200 mm Pipe Diameter 3LPE Coating Pipe Production Line

High Voltage Electrostatic Spray Gun Steel Pipe Anticorrosion Coating Production Line

Medium-Frequency Heating System Pipe Coating Production Line

Basic Infomation

Place of Origin: Qingdao, China

Brand Name: HUASHIDA

Certification: CE, ISO, RoHS

Model Number: 50-4200MM

Payment & Shipping Terms

Packaging Details: Wooden/Plastic Film

Delivery Time: 60DAYS

Payment Terms: L/C,D/P,T/T

Supply Ability: 30 Sets/Year

Gallery

3LPE Coating Pipe Production Line with 50-4200 mm Pipe Diameter High Voltage Electrostatic Spray Gun and Medium-Frequency Heating System

Product Description

One-Stop Coating Solution for FBE and 3LPE Internal & External Pipe Insulation Line

The steel pipe anticorrosion coating production line is designed for applying protective coatings to steel pipes of various diameters. It is widely used in pipeline projects for heating, gas, and oil industries. The line supports FBE, 2-layer FBE, 2-layer PE, 2-layer PP, and 3LPE coating systems.

The 3LPE coating consists of an epoxy powder primer layer, an adhesive middle layer, and an outer polyethylene layer. It offers excellent corrosion resistance, aging resistance, and mechanical strength, effectively extending the service life of pipelines.

The production line operates stably with uniform coating quality and is suitable for continuous anticorrosion processing of steel pipes with different specifications.

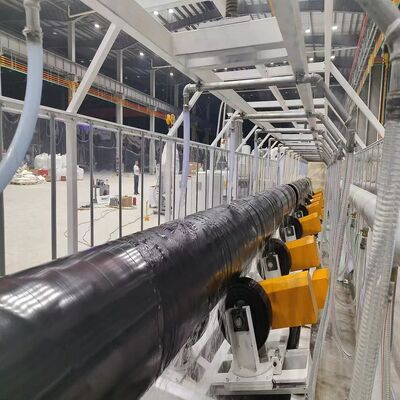

3LPE Coating Pipe Production Line with 50-4200 mm Pipe Diameter High Voltage Electrostatic Spray Gun and Medium-Frequency Heating System 0

Main Parameters:
Pipe diameter: 50-4200 mm
Processing capacity: ≥250 m²/h
Surface cleaning grade: ≥Sa2.5
Applicable materials: epoxy powder, adhesive, polyethylene

The Anticorrosion coating processing line includes:
-steel pipe transmission system
-surface treatment system
-pipe dust removal system
-pipe heating system
-electrostatic spraying system
-coating system
-water cooling system
-end cutting system
-hydraulic and pneumatic system
-testing system
-electronic control system
-bevelling system

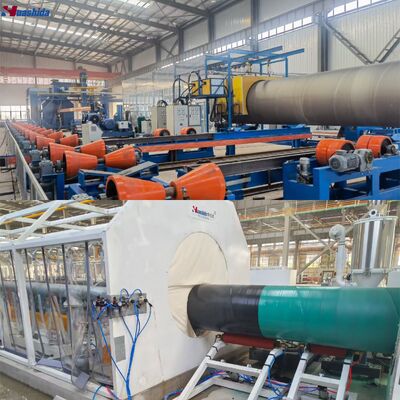

3LPE Coating Pipe Production Line with 50-4200 mm Pipe Diameter High Voltage Electrostatic Spray Gun and Medium-Frequency Heating System 3

Upload pipes→pipes screw conveyor→rust removal → intermediate frequency heating→Epoxy powder coating→outer layer adhesive polyethylene coating→cooling spray→pipes screw conveyor→grinding pipe ends→dowload pipes

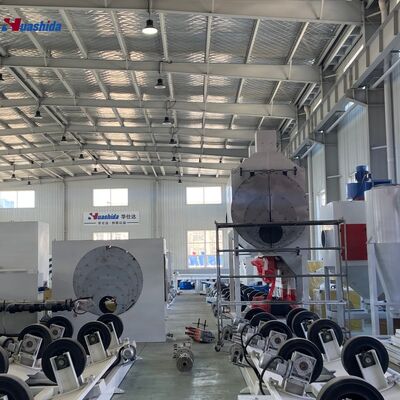

3LPE Coating Pipe Production Line with 50-4200 mm Pipe Diameter High Voltage Electrostatic Spray Gun and Medium-Frequency Heating System 4

Advanced Technology & Stable Performance: Ensuring highly efficient and reliable operation.
High Automation: Significantly reduces labor costs and improves production efficiency.
Internationally Certified Quality: Superior anti-corrosion properties that meet global standards.
Turnkey Solutions: Comprehensive service from design and installation to commissioning and training.
Proven Expertise: Backed by 389 successful production lines worldwide and a team of 9 senior engineers.
Award-Winning Innovation: Recognized by a national-level expert workstation in China.

Main Equipment List

No.	Name	Set
A. Derusting Equipment
1	Pipe wheel conveyor	1
2	Shot Blasting Machine	1
3	Cyclone Dust Collector	1
4	Pulse dust collector	1
5	Centrifugal exhaust fan	1
6	Rust removal equipment PLC	1
B. Coating equipment
1	Pipe wheel conveyor	1
2	Induction heating device	1
3	Powder spraying device	1
4	Automatic loading dryer	2
5	SJ-65/30 Extruder	1
6	SJ-120/30 Extruder	1
7	Hot melt adhesive extruder die	1
8	PE sheet extruder head mold	1
9	Hot melt adhesive/PE sheet coating device	1
10	Environmental Protection Ventilation equipment	1
11	Cooling Spray equipment	1
C.Platform Equipment
1	Steel pipe uploading platform	1
2	Downloading platform	1
3	Pipe storage platform	1
4	Turnover machanism	3
D.Groove Equipment
1	PE Beveling Machine	2
2	Hydraulic Lifting and Turning Machinery	1
3	Hydraulic Equipment	1
4	PLC automatic control system	1

Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!

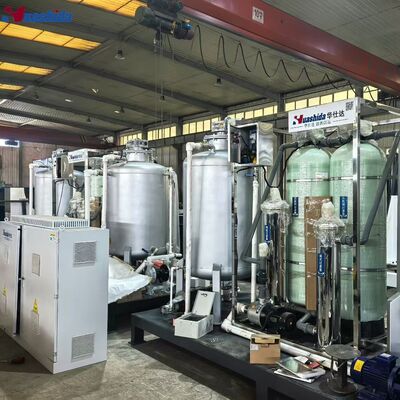

3LPE Coating Pipe Production Line with 50-4200 mm Pipe Diameter High Voltage Electrostatic Spray Gun and Medium-Frequency Heating System 5
