High-Output HDPE Heat Shrink Sleeve Extrusion Line with Three-Roll Calender for Pipeline Anti-Corrosion

1
MOQ
US$40,000.00 - 260,000.00
Price
High-Output HDPE Heat Shrink Sleeve Extrusion Line with Three-Roll Calender for Pipeline Anti-Corrosion
Features Gallery Product Description Request A Quote
Features
Specifications
Product Type: PVC /PE/PP / ABS / PP /PS Sheet
Board Layers: Single & Multilayer Sheet
Product Thickness: 0.1-30mm
Product Width: Maximum 3000mm
Highlight:

High-Output HDPE Heat Shrink Sleeve Extrusion Line

,

Three-Roll Calender Pipeline Anti-Corrosion Extrusion Line

,

Corrosion Resistant Heat Shrinkable Sleeve Production Line
Basic Infomation
Place of Origin: Qingdao,China
Brand Name: Huashida
Certification: CE, ISO9001:2008, QS
Payment & Shipping Terms
Packaging Details: Wooden Cases and Pallets
Delivery Time: 60DAYS
Payment Terms: L/C,T/T,Western Union
Supply Ability: 50 Sets/Month
Product Description
High-Output HDPE Heat Shrink Sleeve Extrusion Line for Pipeline Anti-Corrosion
The plastic sheet production line is an efficient and energy-saving unit independently developed by our company. It has low energy consumption, high output, and easy operation, and can produce various specifications of PE PP plastic sheets—its core advantages make it worth buying, with key highlights as follows:

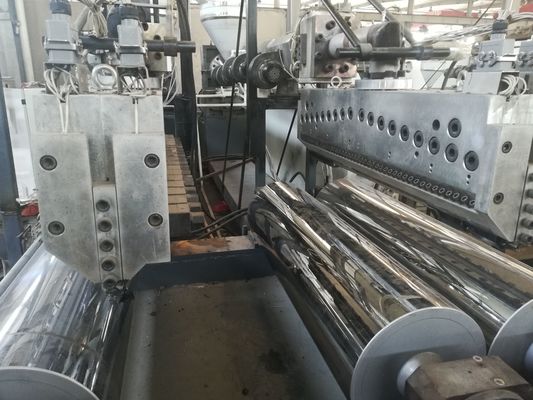

Extruder head:
Hanger style flow channel structure, nitriding polishing treatment, special design for easy and precise thickness adjustment operation, ensuring uniform sheet thickness.

High-Output HDPE Heat Shrink Sleeve Extrusion Line with Three-Roll Calender for Pipeline Anti-Corrosion 0

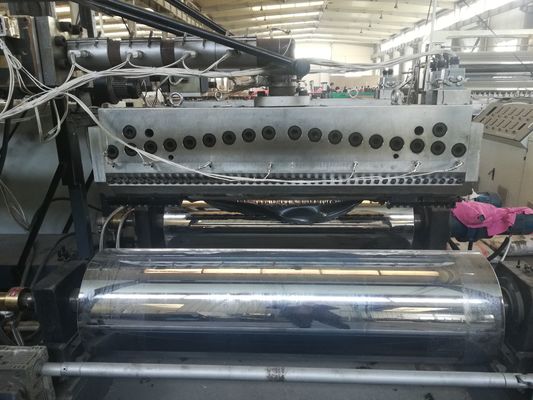

Three roll calender:

Precision Roller System Design The roller system features a flexible structural design—vertical for standard widths and oblique for wider applications—ensuring optimal performance across various production requirements. Key Technical Highlights:
Optimized Inner Flow Channel The specially engineered internal flow structure within the rollers enables precise temperature control, ensuring consistent thermal distribution and superior surface brightness of the finished plastic sheet.
 High-Precision Mirror Finish Advanced mirror-finished rollers guarantee uniform thickness across a wide range of sheet sizes, minimizing tolerance variations and enhancing product quality.
 Durable Hard Chrome Plating The roller surface is coated with hard chromium, providing exceptional wear resistance, high mechanical strength, and extended service life even under continuous operation. Accurate Mold Temperature Control System Integrated with a precision temperature control unit, the system maintains stable processing conditions, delivering consistent high-quality output for demanding production environments.

High-Output HDPE Heat Shrink Sleeve Extrusion Line with Three-Roll Calender for Pipeline Anti-Corrosion 1

High-Output HDPE Heat Shrink Sleeve Extrusion Line with Three-Roll Calender for Pipeline Anti-Corrosion 2



Product Parameters & Configuration
The complete heat-shrinkable sleeve machinery consists of 3 core parts; for three-layer fiber-reinforced heat shrinkable sleeves, additional supporting equipment can be added.

1. PE Back Film Extrusion Line (Model: RS-800)
No.
Equipment Name
Quantity
1
SJ-65×30 Single Screw Extruder
1 Set
2
T-Die Mold
1 Set
3
3-Calender Roller
1 Set
4
Roll Temperature Control System
1 Set
5
Cooling Bracket
1 Set
6
Haul-Off Unit
1 Set
7
Coiler
1 Set

2. Adhesive Mixing and Coating Line (Model: TJ-700)

No.
Equipment Name
Quantity
1
Unpowered Uncoil Device
1 Set
2
Basic Film Drawing Mill
1 Set
3
Reactor
1 Set
4
Adhesive Coating Mold Group
1 Set
5
Cooling Water Tank
1 Set
6
Haul-Off Unit
1 Set
7
Coiler Platform
1 Set
3. Additional Equipment for Three-Layer Fiber Reinforced Heat Shrinkable Sleeve

Fiber Uncoiling Device (1 Set)
Fiber Heating Device (1 Set)
Fiber Flattening Device (1 Set)

Product picture
High-Output HDPE Heat Shrink Sleeve Extrusion Line with Three-Roll Calender for Pipeline Anti-Corrosion 3
High-Output HDPE Heat Shrink Sleeve Extrusion Line with Three-Roll Calender for Pipeline Anti-Corrosion 4
High-Output HDPE Heat Shrink Sleeve Extrusion Line with Three-Roll Calender for Pipeline Anti-Corrosion 5
Certifications
High-Output HDPE Heat Shrink Sleeve Extrusion Line with Three-Roll Calender for Pipeline Anti-Corrosion 6
High-Output HDPE Heat Shrink Sleeve Extrusion Line with Three-Roll Calender for Pipeline Anti-Corrosion 7
