Automatic HDPE Underground Water and Gas Supply Pipe Manufacturing Line

1
MOQ
100,000.00-2,000,000
Price
Automatic HDPE Underground Water and Gas Supply Pipe Manufacturing Line
Features Gallery Product Description Request A Quote
Features
Specifications
Automation: Automatic
Application: Produce Water-Supply Gas-Supply Pressure Pipe
Raw Material: PE80, PE100
Control System: Siemens
Specification: 20-2000mm
Screw No.: Single-screw
After-sales Service: Overseas Installation, Free Technical Supporting
Pipe Diameter Range: 20-2000mm
Mold Type: Spiral Mold
Highlight:

HDPE underground water pipe manufacturing line

,

automatic gas supply pipe production line

,

pre-insulated pipe manufacturing equipment
Basic Infomation
Place of Origin: Qingdao, China
Brand Name: Huashida
Certification: ISO9001:2008
Model Number: 20-2000mm
Payment & Shipping Terms
Packaging Details: 800.00cm * 220.00cm * 200.00cm
Delivery Time: 1-2 months
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 30 set/year
Product Description

Automatic HDPE Underground Water and Gas Supply Pipe Manufacturing Line


Product Description:


This fully automatic HDPE water and gas supply pipe production line is specially designed for manufacturing high‑performance PE pipes using PE80 and PE100 raw materials, covering pipe diameters from 20mm up to 2000mm. It is widely used in municipal water supply, urban gas transmission, agricultural irrigation, underground pipeline engineering, and long‑distance fluid transportation.

The line integrates a high‑efficiency single screw extruder, precision extrusion mold, vacuum calibration cooling system, high‑speed haul‑off machine, and intelligent non‑cutting or chipless cutting machine, ensuring pipes with stable dimensions, smooth surface, high pressure resistance, and long service life. Equipped with a PLC-intelligent control system and online monitoring functions, it enables fully automatic operation, real‑time quality control, and stable, continuous production. Featuring high output, low energy consumption, easy operation, and environmental compliance, it is the ideal solution for manufacturing high‑standard HDPE water and gas pressure pipes.

Automatic HDPE Underground Water and Gas Supply Pipe Manufacturing Line 0


Technical Parameters:


Model Pipe Diameter Screw Total Power Output
SPEG‑110 20–110 mm SJ75×33 180 kW 350 kg/h
SPEG‑250 63–250 mm SJ90×33 280 kW 500–1000 kg/h
SPEG‑630 315–630 mm SJ120×33 522 kW 1000–1200 kg/h
SPEG‑1200 710–1200 mm SJ150×33 680 kW 1000–1600 kg/h
SPEG‑2200 1000–2200 mm SJ150×33 1200 kW 2000–2500 kg/h


Detailed Photos:

SPEG-110

Automatic HDPE Underground Water and Gas Supply Pipe Manufacturing Line 1

SPEG-250
Automatic HDPE Underground Water and Gas Supply Pipe Manufacturing Line 2
SPEG-630
Automatic HDPE Underground Water and Gas Supply Pipe Manufacturing Line 3
SPEG-1200
Automatic HDPE Underground Water and Gas Supply Pipe Manufacturing Line 4


Technological Process


Feeding & Drying → Extrusion Molding → Mold & Vacuum Calibration → Cooling System → Traction → Online Marking → Fixed‑Length Cutting → Automatic Stacking


Main Equipment List


  • Vacuum hopper loader
  • Hopper dryer

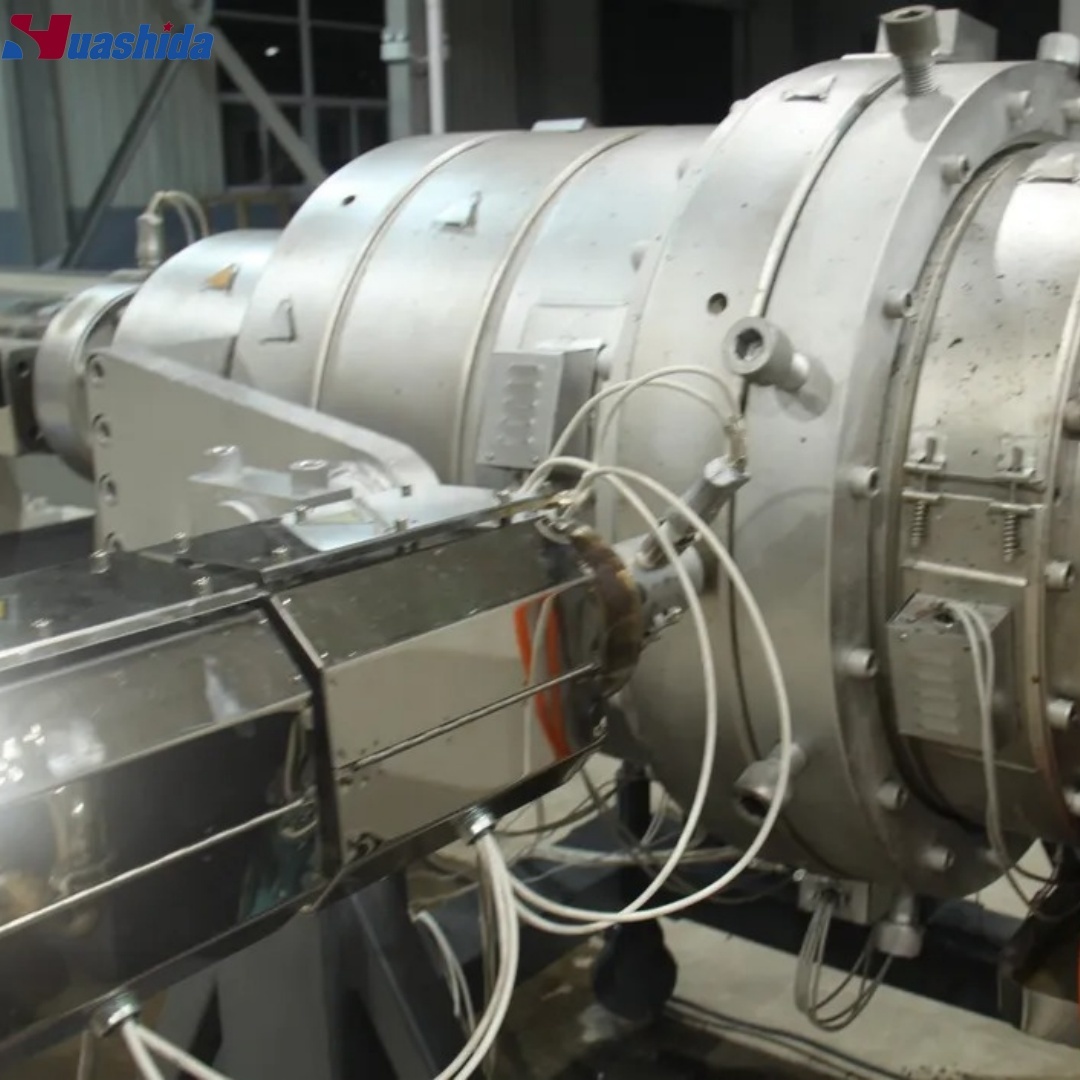

  • High‑efficiency single screw extruder
  • Marking line single screw extruder
  • Vacuum calibration table
  • Multi‑stage water spray cooling tank
  • Hauling machine

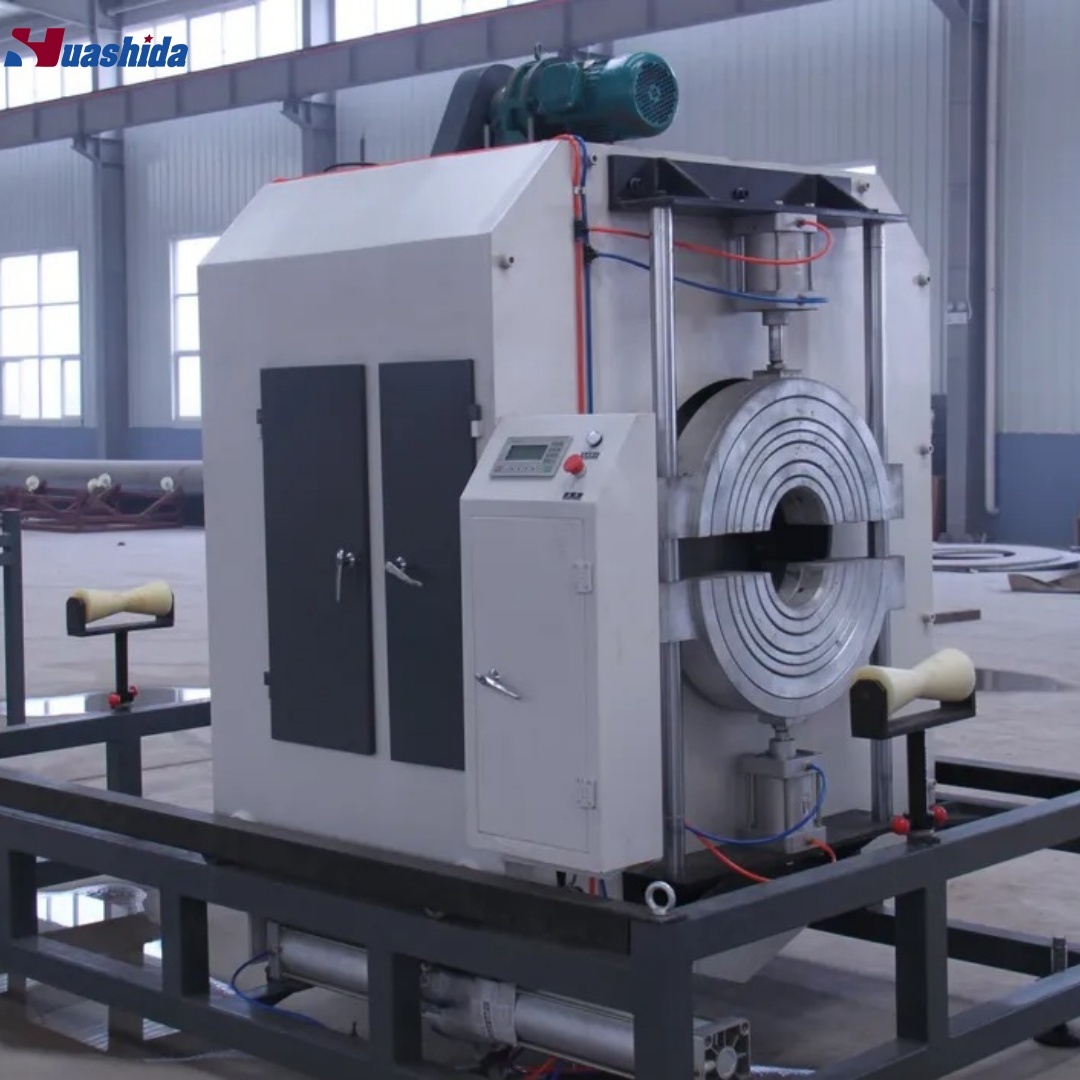

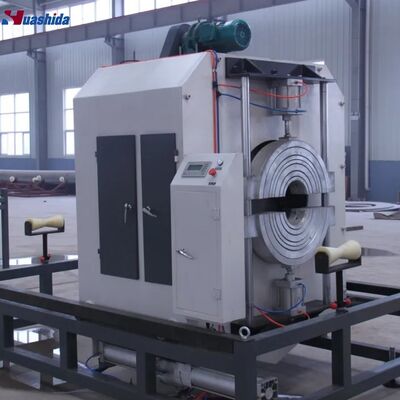

  • Intelligent cutting machine
  • Automatic stacker & receiving table

Automatic HDPE Underground Water and Gas Supply Pipe Manufacturing Line 5
Automatic HDPE Underground Water and Gas Supply Pipe Manufacturing Line 6
Automatic HDPE Underground Water and Gas Supply Pipe Manufacturing Line 7
Automatic HDPE Underground Water and Gas Supply Pipe Manufacturing Line 8
Automatic HDPE Underground Water and Gas Supply Pipe Manufacturing Line 9
Automatic HDPE Underground Water and Gas Supply Pipe Manufacturing Line 10


Our Advantages


  • Mature and advanced extrusion technology for stable performance
  • High automation level, reducing labor cost, and improving efficiency
  • Strict quality control, pipe quality meets international pressure pipe standards
  • Full turnkey solution: design, manufacturing, installation, commissioning, training, and after‑sales service
  • 21 years of manufacturing experience, 389+ successful global project cases
  • Professional technical support: 9 senior engineers + national high‑end plastic machinery expert workstation
  • Customizable solutions for different pipe diameters, output, and automation requirements


Customer Cases:

Automatic HDPE Underground Water and Gas Supply Pipe Manufacturing Line 11


Company Profile:


Qingdao Huashida Machinery Co., Ltd. is a professional manufacturer with 21 years of experience in plastic pipe extrusion equipment, municipal pipeline machinery, pipe insulation and anti‑corrosion production lines, and supporting pipeline materials.

Our main products:

  1. HDPE pre‑insulated jacket pipe production line ( http://hsdextruder.en.made-in-china.com/product/sOBtDPCdQNfi/China-Huashida-Single-Layer-HDPE-Extrusion-Line-for-Water-Gas-Pressure-Pipes-20mm-110mm-.html)
  2. Rigid & flexible PERT pre‑insulated pipe production line (http://hsdextruder.en.made-in-china.com/product/EwvGjZdPlCAT/China-Continuous-PU-Foam-Spraying-Pre-Insulated-Pipe-Machinery.html)
  3. Steel pipe FBE / 2LPE / 3LPE anti‑corrosion coating line (http://hsdextruder.en.made-in-china.com/product/uFRGSelvrCTM/China-Huashida-Steel-Pipe-3lpe-External-Fbe-Internal-Coating-Solution.html)
  4. Steel pipe shot blasting derusting line (http://hsdextruder.en.made-in-china.com/product/uFRGSelvrCTM/China-Huashida-Steel-Pipe-3lpe-External-Fbe-Internal-Coating-Solution.html)
  5. HDPE / PE water supply and gas pressure pipe extrusion line (http://hsdextruder.en.made-in-china.com/product/sOBtDPCdQNfi/China-Huashida-Single-Layer-HDPE-Extrusion-Line-for-Water-Gas-Pressure-Pipes-20mm-110mm-.html)
  6. PP / PE sheet, board, geomembrane production line (https://kruto-machinery.en.made-in-china.com/product/wGsYoPMDXErq/China-HDPE-LDPE-PE-EVA-PVC-PP-Waterproof-Sheet-Geomembrane-Plate-Drainage-Board-Extrusion-Line-Plastic-Machine-Production-Line-Making-Machine.html)
  7. NBR / PVC thermal insulation tube and sheet line (https://hsdextruder.en.made-in-china.com/product/tfkrhcTVmQpz/China-NBR-PVC-Rubber-Foam-Insulation-Tube-and-Sheet-Production-Line-for-HVAC-and-Thermal-Insulation-Industry.html)
  8. Pipeline anti‑corrosion materials: heat shrink sleeves, electrofusion fittings, welding guns, welding rods (http://hsdextruder.en.made-in-china.com/product/OFuAEisTXjGP/China-High-Efficiency-Heat-Shrink-Sleeve-Extrusion-Line-for-HDPE-Pipeline.html)

We have served 400+ overseas customers and exported equipment to Russia, Kazakhstan, Uzbekistan, Iran, Turkey, Nigeria, and many other countries around the world.
