Home /Products/Pre-Insulated Pipe Production Line/HDPE Outer Protective Pipe Production Line with Vacuum Calibration Technology and Dust-Free Planetary Cutting for Pre-Insulated Pipes

HDPE Outer Protective Pipe Production Line with Vacuum Calibration Technology and Dust-Free Planetary Cutting for Pre-Insulated Pipes

1
MOQ
US$100,000.00 - 2,000,000.00
Price
HDPE Outer Protective Pipe Production Line with Vacuum Calibration Technology and Dust-Free Planetary Cutting for Pre-Insulated Pipes
Features Gallery Product Description Request A Quote
Features
Specifications
After-sales Service: Technical Service With Free,Training The Workers
Cutting Method: Dust-Free Planetary Cutting
Transmission Type: Rigid
Raw Material: PE
Highlight:

Vacuum Calibration Technology HDPE Outer Protective Pipe Production Line

,

Dust-Free Planetary Cutting Pre-Insulated Pipe Production Line

,

High-Efficiency Single Screw Extruder HDPE Jacket Pipe Extrusion Line
Basic Infomation
Place of Origin: Qingdao ,China
Brand Name: huashida
Certification: ISO9001:2008, QS
Payment & Shipping Terms
Delivery Time: 90days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 60sets/year
Product Description
Prefabricated insulation pipe special HDPE outer protective pipe production line

The HDPE jacket pipe extrusion line is a high-efficiency, high-speed and energy-saving production line designed for manufacturing HDPE plastic jacket pipes,
 which are widely used as protective casings for PU foam pre-insulated pipes, in accordance with international standards.
The HDPE jacket pipe is produced using vacuum calibration technology, ensuring smooth inner and outer surfaces, uniform wall thickness, long service life, excellent anti-corrosion performance,
thermal insulation protection, and superior mechanical strength.
Applications
1.District heating and cooling pipeline systems
2.PU foam pre-insulated steel pipes
3.Oil & gas thermal insulation pipelines
4.Industrial heat transmission pipelines
5.Municipal underground pipeline protection

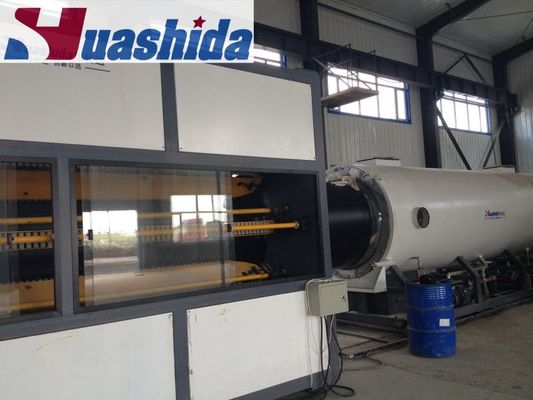

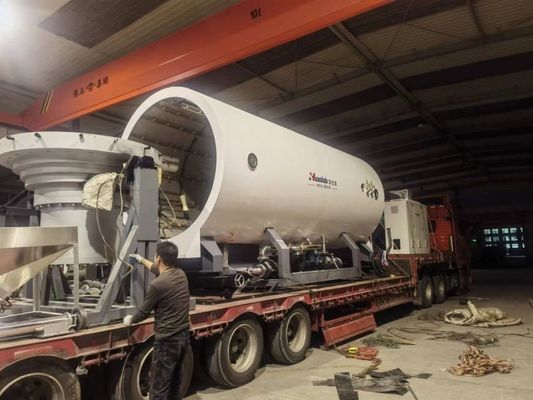

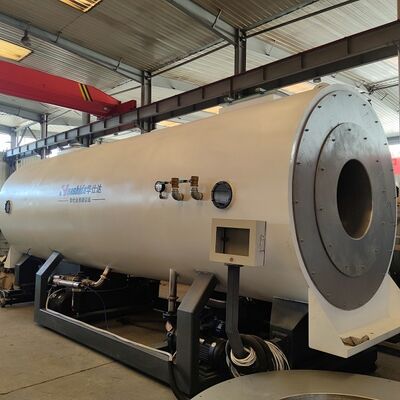

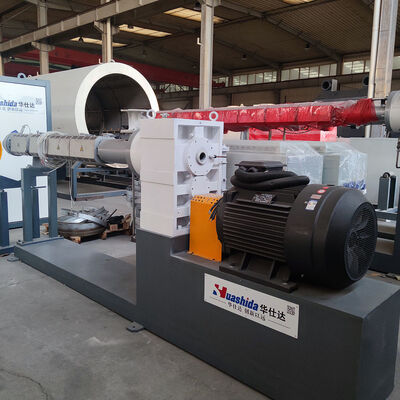

HDPE Outer Protective Pipe Production Line with Vacuum Calibration Technology and Dust-Free Planetary Cutting for Pre-Insulated Pipes 0

HDPE Outer Protective Pipe Production Line with Vacuum Calibration Technology and Dust-Free Planetary Cutting for Pre-Insulated Pipes 1

HDPE Outer Protective Pipe Production Line with Vacuum Calibration Technology and Dust-Free Planetary Cutting for Pre-Insulated Pipes 2

Production Line Composition
1 set Vacuum loader
1 set Hopper dryer
1 set High-efficiency single screw extruder
1 set Vacuum calibration table
1 set Water spraying cooling tank
1 set Haul-off machine
1 set No-dust cutting machine
1 set Discharging frame



HDPE Outer Protective Pipe Production Line with Vacuum Calibration Technology and Dust-Free Planetary Cutting for Pre-Insulated Pipes 3Insulation Layer: Polyurethane rigid foam material

Product Parameters
Main Extruder SJ-75/33 SJ-90/33 SJ-120/33 SJ-150/33 SJ-150/33
Pipe diameter Φ110-600mm Φ365-760m Φ655-1380mm Φ960-1680mm Φ1054-1860mm
Capacity 250-350kg/h 400-500kg/h 700-900kg/h 1000-1200kg/h 1000-1250kg/h
Installed power 160kw 240kw 480kw 580kw 580kw
Length 30m 32m 36m 40m 45m


Exhibition
HDPE Outer Protective Pipe Production Line with Vacuum Calibration Technology and Dust-Free Planetary Cutting for Pre-Insulated Pipes 4

Certifications

HDPE Outer Protective Pipe Production Line with Vacuum Calibration Technology and Dust-Free Planetary Cutting for Pre-Insulated Pipes 5
