Features

Specifications

Surface Treatment Grade: ≥SA2.5

Coating Material: Epoxy Powder, Adhesive, Polyethylene

Coating Structure: Fbe, 2lpe, 3lpe

Heating Method: Induction Heating

Substrate: Steel

Highlight:

3PE FBE coating pipe line

automatic steel pipe coating machine

pre-insulated pipe anticorrosion production line

Basic Infomation

Place of Origin: Qingdao, China

Brand Name: Huashida

Certification: CE, ISO, RoHS

Model Number: 50-4200mm

Payment & Shipping Terms

Packaging Details: standard Packaging

Delivery Time: 1-2 months

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 30 Set/Year

Gallery

Automatic Steel Pipe 3PE FBE Coating Line for Pipeline Anticorrosion

Product Description

Product Description:

Our steel pipe anti‑corrosion coating line is designed for factory‑applied anti‑corrosion treatment of steel pipes with various diameters. It is widely used in multiple engineering construction fields, especially for heating pipelines, gas transmission, and oilfield projects.

This production line supports multiple high-performance anti‑corrosion coating processes, including FBE, two‑layer FBE, two‑layer PE, two‑layer PP, and three‑layer PE (3PE) coating.

The three‑layer PE (3PE) anti‑corrosion structure includes a bottom FBE coating layer, a middle adhesive bonding layer, and an outer polyethylene protective layer.

Steel pipe 3LPE anti-corrosion coating line
(Dia. 159-4200mm)

Application:

The 3-Layer Polyethylene (3PE) Anti-Corrosion Coating is an advanced technology for buried pipeline outer protection—trusted for anti-corrosion in gas & oil transmission pipelines, urban gas supply, water supply pipes, and other fluid transmission systems.

Qingdao Huashida’s 3PE anti-corrosion coating enhances pipeline mechanical properties, boasting high electrical resistance, superior waterproof performance, wear resistance, and anti-aging durability—ensuring long-term pipeline integrity even in harsh underground environments.

Detailed Photos:

The supporting 3PE anti-corrosion coating processing line is fully equipped with complete systems to ensure stable and efficient production, including:

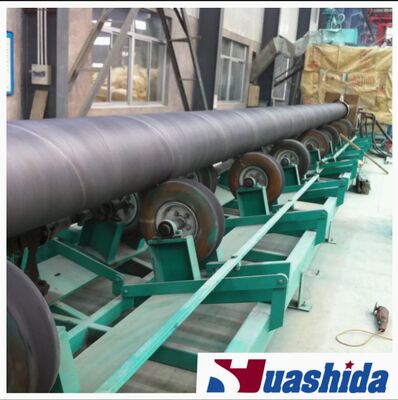

Steel pipe transmission system
Surface treatment system
Pipe dust removal system
Pipe heating system
Electrostatic spraying system
Coating system

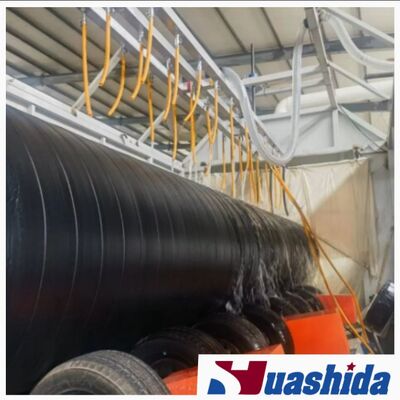

Water cooling system
Bevelling system
Hydraulic and pneumatic system
Testing system
Electronic control system

Automatic Steel Pipe 3PE FBE Coating Line for Pipeline Anticorrosion 3

Technological Processes:

The 3PE anti-corrosion coating technological process is streamlined and efficient, ensuring consistent coating quality. The full production flow is as follows:

Upload pipes → Pipes screw conveyor → Rust removal → Intermediate frequency heating → Epoxy powder coating → Outer layer adhesive polyethylene coating → Cooling spray → Pipes screw conveyor → Grinding pipe ends → Download pipes

Our Advantages:

Adopts advanced international technology
Stable and reliable long‑term operation
High degree of automation, effectively reducing labor costs
Excellent anti‑corrosion quality, fully compliant with international standards
Provides complete turnkey solutions: design, installation, commissioning, and training
Rich global experience with 389 successful production lines worldwide
Supported by a professional team of 9 senior engineers
Equipped with a high‑end expert workstation for plastic machinery in China

Main Equipment List

The 3PE anti-corrosion coating processing line is equipped with complete, high-performance equipment, classified in detail as follows, to ensure stable and efficient production:

A. Derusting Equipment

No.	Name	Set
1	Pipe wheel conveyor	1

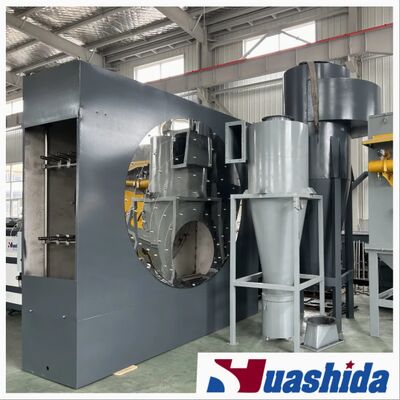

2	Shot Blasting Machine	1
3	Cyclone Dust Collector	1
4	Pulse dust collector	1
5	Centrifugal exhaust fan	1
6	Rust removal equipment PLC	1

B. Coating Equipment

No.	Name	Set
1	Pipe wheel conveyor	1
2	Induction heating device	1
3	Powder spraying device	1
4	Automatic loading dryer	2
5	SJ-65/30 Extruder	1
6	SJ-120/30 Extruder	1
7	Hot melt adhesive extruder die	1
8	PE sheet extruder head mold	1
9	Hot melt adhesive/PE sheet coating device	1
10	Environmental Protection Ventilation Equipment	1
11	Cooling Spray equipment	1

C. Platform Equipment

No.	Name	Set
1	Steel pipe uploading platform	1
2	Downloading platform	1
3	Pipe storage platform	1
4	Turnover mechanism	3

D. Groove Equipment

No.	Name	Set
1	PE Beveling Machine	2
2	Hydraulic Lifting and Turning Machinery	1
3	Hydraulic Equipment	1
4	PLC automatic control system	1

Product Parameters

The 3PE anti-corrosion coating processing line has stable performance and flexible adaptability, with specific parameters as follows:

Pipe diameter: 50-4200mm
Processing capacity: ≥250m²/h
Cleaning level: ≥Sa2.5
Materials for production: epoxy powder, adhesive, polyethylene

Automatic Steel Pipe 3PE FBE Coating Line for Pipeline Anticorrosion 5

Customer Visits:

Company Profile:

Qingdao Huashida Machinery Co., LTD, a professional manufacturer with 21 years of industry experience, specializes in a full range of plastic pipe machinery, municipal pipe equipment, pipe insulation & anti-corrosion machines, and pipe jointing & anti-corrosion materials. With the core concept of "introducing first-class talents, developing high-tech products, and advancing into the international market", we have built a strong reputation for reliability and technological advancement in the global market.

Our main product portfolio covers all key equipment and materials for pipeline projects, including:

HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
Rigid pre-insulated pipe Production Line
Flexible pre-insulated pipe (PERT) production line
Steel pipe FBE/2LPE/3LPE anti-corrosion coating line (including the 3PE anti-corrosion coating processing line introduced above)
Steel pipe derusting line
PE pressure pipe/Water Gas supply pipe production line
PP/PE plastic board/sheet/geomembrane production line
NBR PVC Thermal insulation tube/plate production line
Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun (extruder), PE PP welding rod

We have established long-term, stable cooperative relations with more than 400 overseas customers, and our products are exported to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria, and other countries worldwide. With advanced production technology, reliable product quality, and thoughtful after-sales service, we have won wide recognition from international customers, including high praise from Russian merchants for our professional strength and product performance.
