Automatic HDPE Pipe Extrusion Production Line for Pre-Insulated Pipes with 1000kg/H Capacity and 0.5-6m/min Speed

HDPE Pipe Extrusion Production Line for The Outer Insulation Jacket of Municipal Insulated Pipes

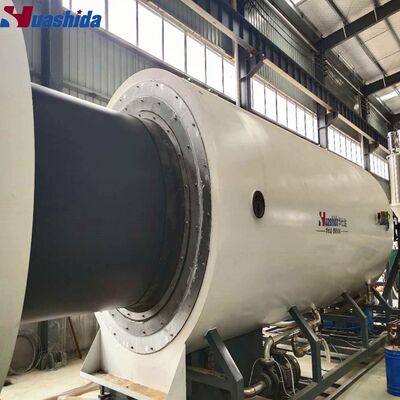

HDPE Jacket pipe extrusion line for pre-insulated pipe is used for extruding thin wall shell to protect the Polyurethane foaming Prefabricated Directly Buried Insulating Pipe. China manufacturer Huashida company adopts vacuum calibration method. The line runs steady. It is easy to operate by Siemens PLC. High-speed and efficient production can save costs for customers. It is an environmental protection and energy-saving production line.

HDPE Jacket pipe:   dia. 48-2000mm

Carrier        pipes: steel/stainless steel/plastic/copper

Insulation    layer: polyurethane rigid foam Material

Model:PE-960/1680

Product size:
Product usage: Pre-insulating pipe

1. Black
2. Size and wall thickness:

Condition:

1.  In room
2. No danger zone
3.  85%  no condensation
4. Tempreture: 0-35ºC

Working condition:

• 3 phrase ,380V(-10%,+5%)50Hz

1. supply:  3 phase 380V(-10%,+5%) 50HZ

•  560 kW

1.   About 1500KW

•  ≤20ºC≥0.3Mpa 26~30 m³/h

1. water recycling: ≤20ºC≥0.3Mpa 26~30 m³/h
2. air                 0.4m³/min >0.5MPa

Total length:            About 45m

      Material:                   HDPE

PE-960/1680
PE-960/1680 Pre-insulating Jacket Pipe Production line Configuration
