PreInsulated Pipe Production Line Capable of Producing PreInsulated Pipes with Excellent Thermal Insulation Properties

1
MOQ
US$100,000.00-2,800,000.00
Price
PreInsulated Pipe Production Line Capable of Producing PreInsulated Pipes with Excellent Thermal Insulation Properties
Features Gallery Product Description Request A Quote
Features
Specifications
Coating Layer: Internal Liquid Painting External 3lpe
Spray Gun Method: High Voltage Electrostatic Spray Gun
Applications: Oil, Natural Gas, And Water Supply Pipelines
Heating Method: Medium-Frequency Heating System
Highlight:

pre-insulated pipe production line with thermal insulation

,

pre-insulated pipe manufacturing equipment

,

thermal insulated pipe production machine
Basic Infomation
Place of Origin: Qingdao, China
Brand Name: huashida
Certification: CE, ISO, RoHS
Model Number: Coating Production Line
Payment & Shipping Terms
Packaging Details: Wooden/Plastic Film
Delivery Time: 60DAYS
Payment Terms: L/C,D/P,Western Union
Supply Ability: 30 Sets/Year
Product Description
Efficient 3LPE Line with Advanced Anti-Corrosion Performance

Specifically engineered to apply a three-layer protective coating on steel pipes, this production line significantly enhances the pipes' mechanical strength, dielectric properties, and overall durability. It is the ideal solution for manufacturing pipelines used in the transportation of oil, gas, water, and various other media.


PreInsulated Pipe Production Line Capable of Producing PreInsulated Pipes with Excellent Thermal Insulation Properties 0


Technological processes

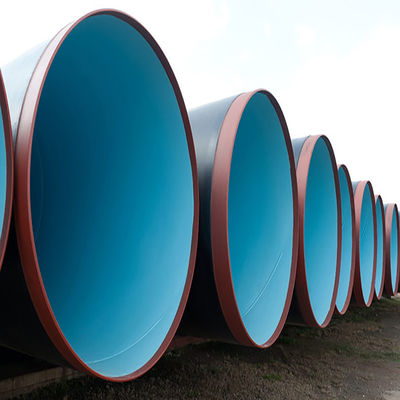

Upload pipes→conveyor→rust removal→ intermediate frequency heating→Epoxy powder coating→ Adhesive&polyethylene coating→cooling spray→conveyor→grinding pipes end→unload pipesWe can produce single/double layer, fusion bond exopy (FBE),two/three layers 3LPE/3LPP etc. And three layers of polyethylene (3LPE) anti-corrosion steel pipe for oil and natural-gas industry.

PreInsulated Pipe Production Line Capable of Producing PreInsulated Pipes with Excellent Thermal Insulation Properties 1





Features
PreInsulated Pipe Production Line Capable of Producing PreInsulated Pipes with Excellent Thermal Insulation Properties 2PreInsulated Pipe Production Line Capable of Producing PreInsulated Pipes with Excellent Thermal Insulation Properties 3PreInsulated Pipe Production Line Capable of Producing PreInsulated Pipes with Excellent Thermal Insulation Properties 4


Production Line Components

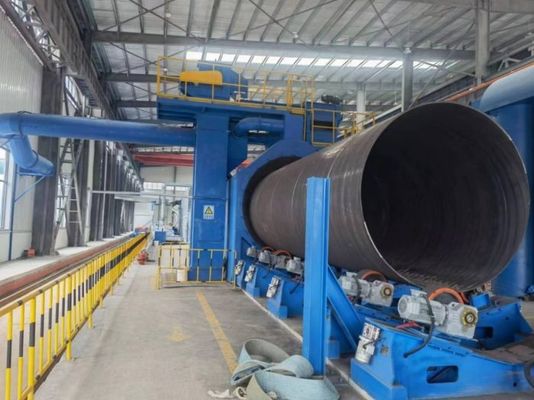

Rust Removal Equipment: Includes shot blast cleaning machine, dust collectors, and rust removal PLC control system.
Coating Equipment: Features powder spraying device, heating system, coating devices, cooling spray, and extruders.
Platform Equipment: Steel pipe platform, storage platform, hydraulic equipment.
Groove Equipment: Includes PE beveling machines and lifting machinery.
Compressed Air Equipment: Air compressors, precision filters, and gas tanks.

Product Parameters
PreInsulated Pipe Production Line Capable of Producing PreInsulated Pipes with Excellent Thermal Insulation Properties 2PreInsulated Pipe Production Line Capable of Producing PreInsulated Pipes with Excellent Thermal Insulation Properties 3PreInsulated Pipe Production Line Capable of Producing PreInsulated Pipes with Excellent Thermal Insulation Properties 4


No. Name Set
A. Derusting Equipment
1 Pipe-converying Equipment 1
2 Shot Blast Cleaning Machine 1
3 Cyclone Dust Collector 1
4 Pulse dust collector 1
5 Centrifugal exhaust fan 1
6 Rust removal equipment PLC 1
B. Coating equipment
1 Coating transfer equipment 1
2 IF heating device 1
3 Powder spraying device 1
4  Automatic loading dryer 2
5 SJ-65/30 Extruder 1
6 SJ-180/30 Extruder 1
7 Hot melt adhesive extruder die 1
8 PE sheet extruder head mold 1
9 Hot melt adhesive/PE sheet coating device 1
10 Environmental Protection Ventilation equipment 1
11 Cooling Spray equipment 1
C.Platform Equipment
1 Steel pipe platform 1
2 Post-rust removal transition platform 1
3 Product tube storage platform 1
4 Hydraulic Equipment 3
D.Groove Equipment
1 PE Beveling Machine 2
2 Hydraulic Lifting and Turning Machinery 1
3 Hydraulic Equipment 1
4 PLC 1
E.Compressed air Equipment
1 Screw Air Compressor 1
2 Cold dry machine 1
3 Precision filters 3
4 Gas tanks 1
PreInsulated Pipe Production Line Capable of Producing PreInsulated Pipes with Excellent Thermal Insulation Properties 2PreInsulated Pipe Production Line Capable of Producing PreInsulated Pipes with Excellent Thermal Insulation Properties 9PreInsulated Pipe Production Line Capable of Producing PreInsulated Pipes with Excellent Thermal Insulation Properties 3PreInsulated Pipe Production Line Capable of Producing PreInsulated Pipes with Excellent Thermal Insulation Properties 4


Global Reach:
Our 3PE pipeline coating production line has been successfully deployed in key markets worldwide, including Iran, Russia, Saudi Arabia, and Nigeria, earning consistent acclaim from international clients for its reliability, performance, and adherence to global standards in oil and gas infrastructure projects.
After-Sales Service:
  • Warranty Coverage:
    • 12 months comprehensive warranty for mechanical components
    • 6 months warranty for electrical systems and control units
  • Technical Support:
    • On-site troubleshooting and remote diagnostics by certified engineers
    • Customized operator training programs tailored to client workflows
    • 24/7 multilingual support for seamless operational continuity

Strategic Advantage: Combining proven global deployment experience with localized technical agility, our 3PE production line delivers unmatched operational efficiency and lifecycle value for pipeline projects across diverse geographies and industries.




PreInsulated Pipe Production Line Capable of Producing PreInsulated Pipes with Excellent Thermal Insulation Properties 12

PreInsulated Pipe Production Line Capable of Producing PreInsulated Pipes with Excellent Thermal Insulation Properties 13


PreInsulated Pipe Production Line Capable of Producing PreInsulated Pipes with Excellent Thermal Insulation Properties 14PreInsulated Pipe Production Line Capable of Producing PreInsulated Pipes with Excellent Thermal Insulation Properties 3PreInsulated Pipe Production Line Capable of Producing PreInsulated Pipes with Excellent Thermal Insulation Properties 4​PreInsulated Pipe Production Line Capable of Producing PreInsulated Pipes with Excellent Thermal Insulation Properties 17

Company Profile
PreInsulated Pipe Production Line Capable of Producing PreInsulated Pipes with Excellent Thermal Insulation Properties 2PreInsulated Pipe Production Line Capable of Producing PreInsulated Pipes with Excellent Thermal Insulation Properties 3PreInsulated Pipe Production Line Capable of Producing PreInsulated Pipes with Excellent Thermal Insulation Properties 4

Qingdao Huashida Machinery Co., Ltd was established in 2003 and has focused on plastic pipe extruder production line and joints of plastic pipes and 2PE 3PE pipes machinery for over 16 years, we are a private high-tech enterprises integrated by R&D, manufacturing, selling, service and trading.

We are always concertrating on research and development of plastic extrusion equipments, tightly cooperating with Tsinghua University, Beijing University of chemical technology, South China university of technology and some other colleges and scientific research institutions. Meanwhile, by absorbing advanced technology home and abroad, we have been one of the top manufacturers of plastic extrusion machines in China, especially of PE insulation jacket pipe extrusion line, PE PP sheet extrusion line, and PE hollow wall spiral pipe production line.
