HDPE Structured Wall Pipe Extrusion Line Single-screw 200-3000mm for Drainage Corrugated Pipe Production

1
MOQ
US$150,000.00-200,000.00
Price
HDPE Structured Wall Pipe Extrusion Line Single-screw 200-3000mm for Drainage Corrugated Pipe Production
Features Gallery Product Description Request A Quote
Features
Specifications
Structure: With "H" Structure.
Screw No.: Single-screw
Material: PP/HDPE
Field: Drainage/Water Supply/Sewage Discharge/Agricultura
Highlight:

Single-screw HDPE Structured Wall Pipe Extrusion Line

,

200-3000mm Corrugated Pipe Production Line

,

Drainage HDPE Hollow Wall Corrugated Pipe Extrusion Line
Basic Infomation
Place of Origin: Qingdao, China
Brand Name: HUASHIDA
Certification: CE, ISO9001:2008
Model Number: 200-3000MM
Payment & Shipping Terms
Packaging Details: Standard Packing
Delivery Time: 60DAYS
Payment Terms: L/C,D/P,T/T
Supply Ability: 30 Set/Year
Product Description

HDPE Structured Wall Pipe Extrusion Line High Density Polyethylene Black Big Diameter (I-Beam Structure) for Drainage


HDPE Hollow Wall Corrugated Pipe/Structured Wall Pipe produced by this Line have high ring stifness,highbrunt intensity and low weight due to its unique structure.In addition,it has many advantages such as goodcreep defomation resistance,outer pressure resistance,erosion resistance(such as acid,alkali and salt etc.),long life of approximate 50 years.
Qingdao Huashida Machinery Co., Ltd.'s winding pipe production line incorporates the latest domestic and international technologies and can produce pipes with diameters ranging from 200 to 3000 mm.

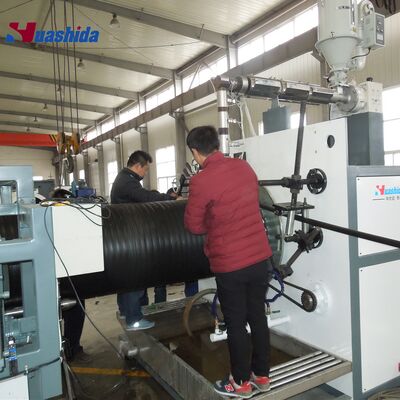

HDPE Structured Wall Pipe Extrusion Line Single-screw 200-3000mm for Drainage Corrugated Pipe Production 0

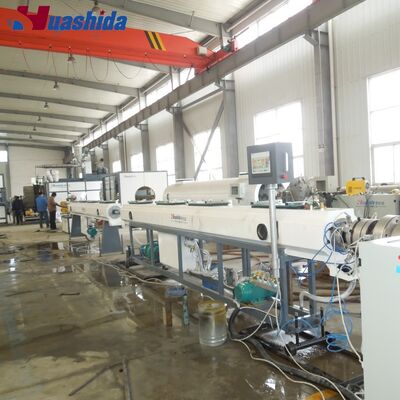

HDPE Structured Wall Pipe Extrusion Line Single-screw 200-3000mm for Drainage Corrugated Pipe Production 1

It has been widely used for sewerage and drainage inmunicipal,it willreplace the cement pipe,cast iron pipe and other pipes.Its low cost of assembling,easy operation,easyconnection and economical construction can make itwide foreground and market potential.
Production process of HDPE hollow-wall corrugated pipe extrusion line:

Raw materials→Mixing→Vacuum feeding→Material drying→Single screw extrusion →Calibration→Spray
cooling→ traction→Single screw glue extrusion →Winding and forming→water cooling→cutter→pipe bracket→inspecting &packing.

Product Parameters

                                   Model           Pipe Diameter(mm) Extruder  Speed of forming  Max. output Installed Power  dimension
SKRG-1200 Ø400-Ø1200 SJ-65(50)X30 1-12m/h 320kg/h 230KW 26X18X5
SKRG-1600 Ø800-Ø1600 SJ-80(50)X30 1-6m/h 500kg/h 310KW 27X18X5
SKRG-2200 Ø1000-Ø2200 SJ-90(65)X30 0.5-5m/h 650kg/h 380KW 28X19X5
SKRG-3000 Ø1600-Ø3000 SJ-90(65)X30 0.3-3m/h 800kg/h 390KW 48X26X6

Composition of Equipments
1.1set  Single screw extruder with vacuum loader& hopper dryer
2.1set  Square tube die head & mould
3.1set  Vacuum calibration table
4.1set  Water spraying tank
5.1set  Hauling machine
6.1set  Single screw extruder with vacuum loader & hopper dryer
7.1set  Melt adhesive extrusion die head
8.1set  Rewinding forming machine
9.1set  Cutting machine
10.1set Stacker
11.set  Siemens PLC

The complete production line includes two parts:

1.The first part is PE Pipe extrusion line to extrude the PE/PP Square Shaped Pipe ( according to customers' requirements ).
Single Screw Extruder
Die Head (mold and mandrill)
Calibrator
Vacuum calibration&cooling Tank
Spray Cooling Tank
Haul-off

2. The second part is Spiral forming line to form and weld the big pipe.
Single Screw Extruder
Die Head
Spiral forming unit
Cutter
Bracket
Detailed Photos

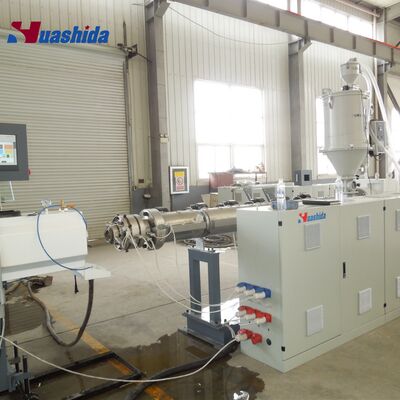

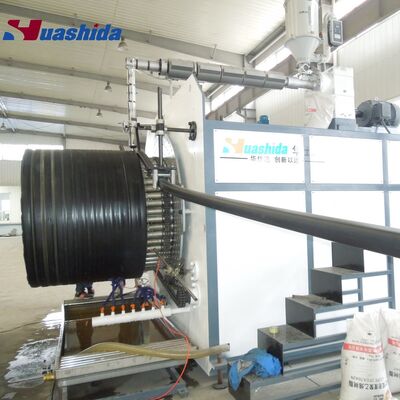

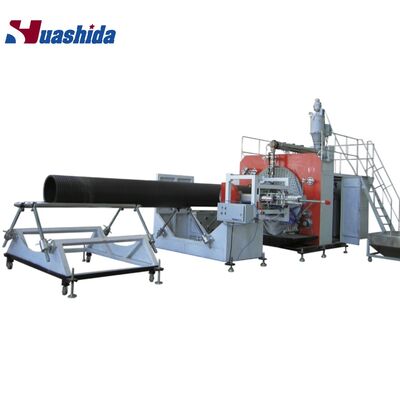

HDPE Structured Wall Pipe Extrusion Line Single-screw 200-3000mm for Drainage Corrugated Pipe Production 2HDPE Structured Wall Pipe Extrusion Line Single-screw 200-3000mm for Drainage Corrugated Pipe Production 3HDPE Structured Wall Pipe Extrusion Line Single-screw 200-3000mm for Drainage Corrugated Pipe Production 4







Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!
