HDPE Structured Wall Spiral Pipe Production Line with 200 mm - 3000 mm Pipe Diameter and Single-screw Extruder for 50 Years Service Life

1
MOQ
US$150,000.00-200,000.00
Price
HDPE Structured Wall Spiral Pipe Production Line with 200 mm - 3000 mm Pipe Diameter and Single-screw Extruder for 50 Years Service Life
Features Gallery Product Description Request A Quote
Features
Specifications
Screw No.: Single-screw
After-sales Service: Overseas Installation, Free Technical Supporting
Material: PP/HDPE
Field: Drainage/Water Supply/Sewage Discharge/Agricultura
Highlight:

200 mm - 3000 mm Pipe Diameter HDPE Structured Wall Spiral Pipe Production Line

,

Single-screw Extruder Corrugated Pipe Production Line

,

50 Years Service Life Weholite Pipe Production Line
Basic Infomation
Place of Origin: Qingdao, China
Brand Name: HUASHIDA
Certification: CE, ISO9001:2008
Model Number: 200-1000mm
Payment & Shipping Terms
Packaging Details: Standard Packing
Delivery Time: 60DAYS
Payment Terms: L/C,D/P,T/T
Supply Ability: 30 Set/Year
Product Description

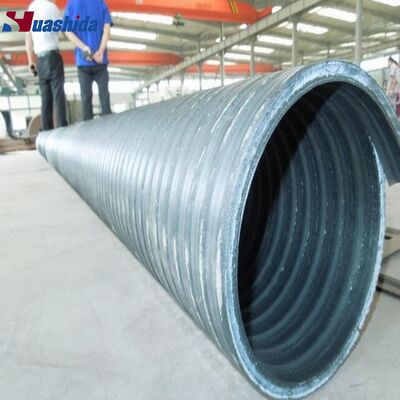

Plastic HDPE Structured Wall Spiral Pipe Weholite Pipe Production Line


Key Features & Advantages:

  • Unique structured wall design with high ring stiffness, strong impact resistance and low weight

  • Excellent creep resistance, external load resistance and chemical corrosion resistance (acid, alkali and salt resistant)

  • Service life up to 50 years

  • Pipe diameter range: 200 mm - 3000 mm

  • Widely used for municipal sewage and drainage systems

  • Ideal replacement for cement pipes, cast iron pipes and other traditional pipes

  • Advantages of low installation cost, easy connection and economical construction

  • Broad application prospects and strong market potential


Production process of HDPE hollow-wall corrugated pipe extrusion line:

Raw materials→Mixing→Vacuum feeding→Material drying→Single screw extrusion →Calibration→Spray
cooling→ traction→Single screw glue extrusion →Winding and forming→water cooling→cutter→pipe bracket→inspecting &packing.
HDPE Structured Wall Spiral Pipe Production Line with 200 mm - 3000 mm Pipe Diameter and Single-screw Extruder for 50 Years Service Life 0
HDPE Structured Wall Spiral Pipe Production Line with 200 mm - 3000 mm Pipe Diameter and Single-screw Extruder for 50 Years Service Life 1
HDPE Structured Wall Spiral Pipe Production Line with 200 mm - 3000 mm Pipe Diameter and Single-screw Extruder for 50 Years Service Life 2



Product Parameters

                                   Model           Pipe Diameter(mm) Extruder  Speed of forming  Max. output Installed Power  dimension
SKRG-1200 Ø400-Ø1200 SJ-65(50)X30 1-12m/h 320kg/h 230KW 26X18X5
SKRG-1600 Ø800-Ø1600 SJ-80(50)X30 1-6m/h 500kg/h 310KW 27X18X5
SKRG-2200 Ø1000-Ø2200 SJ-90(65)X30 0.5-5m/h 650kg/h 380KW 28X19X5
SKRG-3000 Ø1600-Ø3000 SJ-90(65)X30 0.3-3m/h 800kg/h 390KW 48X26X6

Composition of Equipments
1.1set  Single screw extruder with vacuum loader& hopper dryer
2.1set  Square tube die head & mould
3.1set  Vacuum calibration table
4.1set  Water spraying tank
5.1set  Hauling machine
6.1set  Single screw extruder with vacuum loader & hopper dryer
7.1set  Melt adhesive extrusion die head
8.1set  Rewinding forming machine
9.1set  Cutting machine
10.1set Stacker
11.set  Siemens PLC

The complete production line includes two parts:

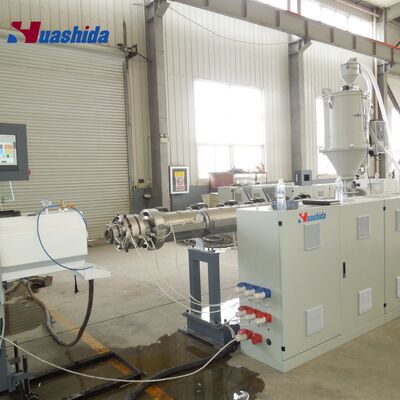

1.The first part is PE Pipe extrusion line to extrude the PE/PP Square Shaped Pipe ( according to customers' requirements ).
Single Screw Extruder
Die Head (mold and mandrill)
Calibrator
Vacuum calibration&cooling Tank
Spray Cooling Tank
Haul-off

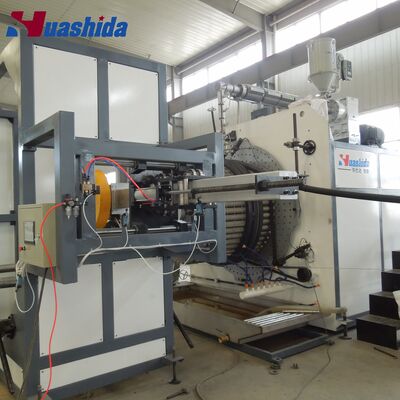

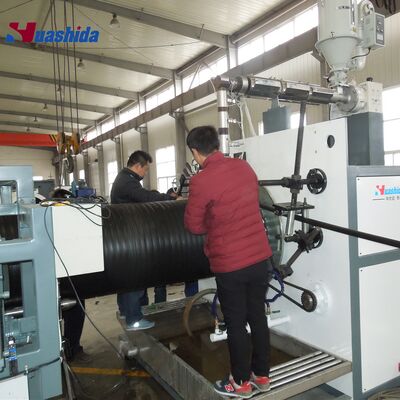

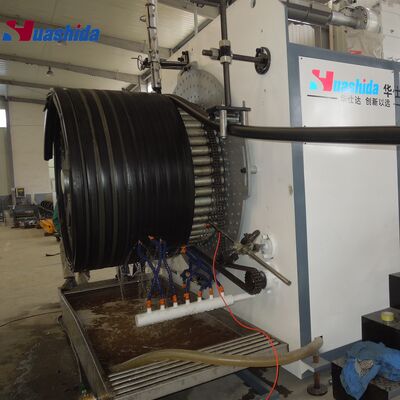

2. The second part is Spiral forming line to form and weld the big pipe.
Single Screw Extruder
Die Head
Spiral forming unit
Cutter
Bracket
Detailed Photos

HDPE Structured Wall Spiral Pipe Production Line with 200 mm - 3000 mm Pipe Diameter and Single-screw Extruder for 50 Years Service Life 3HDPE Structured Wall Spiral Pipe Production Line with 200 mm - 3000 mm Pipe Diameter and Single-screw Extruder for 50 Years Service Life 4HDPE Structured Wall Spiral Pipe Production Line with 200 mm - 3000 mm Pipe Diameter and Single-screw Extruder for 50 Years Service Life 5


Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!
