Big Diameter HDPE Hollow Wall Corrugated Pipe Extrusion Line with Single-Screw Extruder for Municipal Underground Drainage System

1
MOQ
US$150,000.00-200,000.00
Price
Big Diameter HDPE Hollow Wall Corrugated Pipe Extrusion Line with Single-Screw Extruder for Municipal Underground Drainage System
Features Gallery Product Description Request A Quote
Features
Specifications
Screw No.: Single-screw
Automation: Automatic
Max Speed: 6m/Min,1.2m/Min
Field: Drainage/Water Supply/Sewage Discharge/Agricultura
Highlight:

Big Diameter HDPE Hollow Wall Corrugated Pipe Extrusion Line

,

Single-Screw Extruder Corrugated Pipe Production Line

,

Municipal Underground Drainage System HDPE Pipe Extrusion Machine
Basic Infomation
Place of Origin: Qingdao, China
Brand Name: HUASHIDA
Certification: CE, ISO9001:2008
Model Number: Corrugated Pipe Extrusion Line
Payment & Shipping Terms
Packaging Details: Standard Packing
Delivery Time: 60DAYS
Payment Terms: L/C,D/P,T/T
Supply Ability: 30 Set/Year
Product Description

Big Diameter HDPE Hollow Wall Corrugated Pipe Extrusion Line for Municipal Underground Drainage System

The HDPE hollow wall corrugated pipes / structured wall pipes manufactured by this production line feature a unique structural design, which provides high ring stiffness, excellent impact strength and low weight.
They also offer outstanding performance in creep resistance, external load resistance and corrosion resistance (including resistance to acids, alkalis and salts), with a service life of up to 50 years.
The winding pipe extrusion line of Qingdao Huashida Machinery Co., Ltd. integrates advanced domestic and international technologies, and is capable of producing pipes with diameters ranging from 200 mm to 3000 mm.

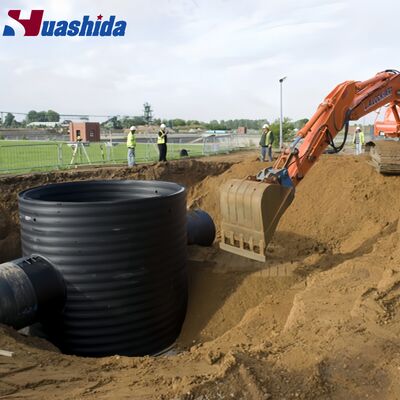

It is widely applied in municipal sewage and drainage systems and is an ideal replacement for traditional cement pipes, cast iron pipes and other conventional materials.Featuring low installation cost, simple operation, convenient connection and economical construction, it offers broad application prospects and strong market potential.
Production process of HDPE hollow-wall corrugated pipe extrusion line:

Raw materials→Mixing→Vacuum feeding→Material drying→Single screw extrusion →Calibration→Spray
cooling→ traction→Single screw glue extrusion →Winding and forming→water cooling→cutter→pipe bracket→inspecting &packing.

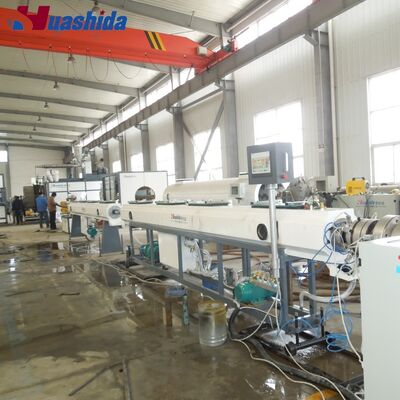

Big Diameter HDPE Hollow Wall Corrugated Pipe Extrusion Line with Single-Screw Extruder for Municipal Underground Drainage System 0

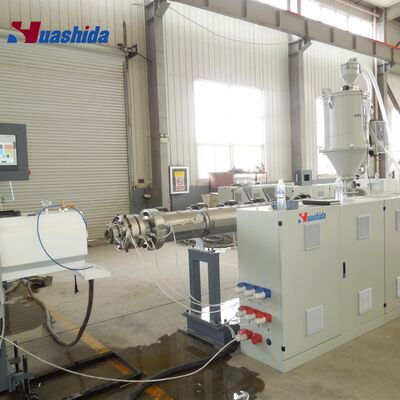

Big Diameter HDPE Hollow Wall Corrugated Pipe Extrusion Line with Single-Screw Extruder for Municipal Underground Drainage System 1

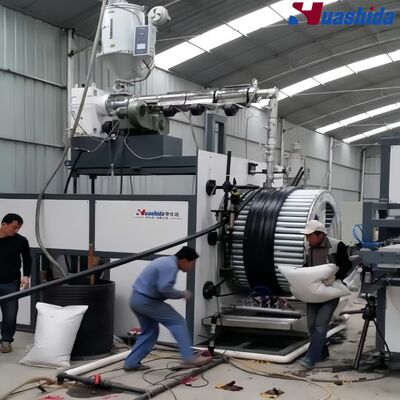

Big Diameter HDPE Hollow Wall Corrugated Pipe Extrusion Line with Single-Screw Extruder for Municipal Underground Drainage System 2



Product Parameters

                                   Model           Pipe Diameter(mm) Extruder  Speed of forming  Max. output Installed Power  dimension
SKRG-1200 Ø400-Ø1200 SJ-65(50)X30 1-12m/h 320kg/h 230KW 26X18X5
SKRG-1600 Ø800-Ø1600 SJ-80(50)X30 1-6m/h 500kg/h 310KW 27X18X5
SKRG-2200 Ø1000-Ø2200 SJ-90(65)X30 0.5-5m/h 650kg/h 380KW 28X19X5
SKRG-3000 Ø1600-Ø3000 SJ-90(65)X30 0.3-3m/h 800kg/h 390KW 48X26X6

Composition of Equipments
1.1set  Single screw extruder with vacuum loader& hopper dryer
2.1set  Square tube die head & mould
3.1set  Vacuum calibration table
4.1set  Water spraying tank
5.1set  Hauling machine
6.1set  Single screw extruder with vacuum loader & hopper dryer
7.1set  Melt adhesive extrusion die head
8.1set  Rewinding forming machine
9.1set  Cutting machine
10.1set Stacker
11.set  Siemens PLC

The complete production line includes two parts:

1.The first part is PE Pipe extrusion line to extrude the PE/PP Square Shaped Pipe ( according to customers' requirements ).
Single Screw Extruder
Die Head (mold and mandrill)
Calibrator
Vacuum calibration&cooling Tank
Spray Cooling Tank
Haul-off

2. The second part is Spiral forming line to form and weld the big pipe.
Single Screw Extruder
Die Head
Spiral forming unit
Cutter
Bracket
Detailed Photos

Big Diameter HDPE Hollow Wall Corrugated Pipe Extrusion Line with Single-Screw Extruder for Municipal Underground Drainage System 3Big Diameter HDPE Hollow Wall Corrugated Pipe Extrusion Line with Single-Screw Extruder for Municipal Underground Drainage System 4Big Diameter HDPE Hollow Wall Corrugated Pipe Extrusion Line with Single-Screw Extruder for Municipal Underground Drainage System 5


Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!
