HDPE Hollow Wall Corrugated Pipe Extruder Line with 200-3000mm Pipe Diameter and 1000kg/H Max Output for Corrosion Resistant Applications

1
MOQ
US$150,000.00-200,000.00
Price
HDPE Hollow Wall Corrugated Pipe Extruder Line with 200-3000mm Pipe Diameter and 1000kg/H Max Output for Corrosion Resistant Applications
Features Gallery Product Description Request A Quote
Features
Specifications
Material: PP/HDPE
Max Speed: 6m/Min,1.2m/Min
Field: Drainage/Water Supply/Sewage Discharge/Agricultura
Max Output: 1000kg/H
Highlight:

200-3000mm Pipe Diameter Corrugated Pipe Extrusion Line

,

1000kg/H Max Output HDPE Hollow Wall Corrugated Pipe Extruder Line

,

Corrosion Resistant Structured Wall Corrugated Pipe Production Line
Basic Infomation
Place of Origin: Qingdao, China
Brand Name: HUASHIDA
Certification: CE, ISO9001:2008
Model Number: Corrugated Pipe Extruder Line
Payment & Shipping Terms
Packaging Details: Standard Packing
Delivery Time: 60DAYS
Payment Terms: L/C,D/P,T/T
Supply Ability: 30 Set/Year
Product Description

HUASHIDA HDPE Hollow Wall / Structured Wall Corrugated Pipe Extruder Line

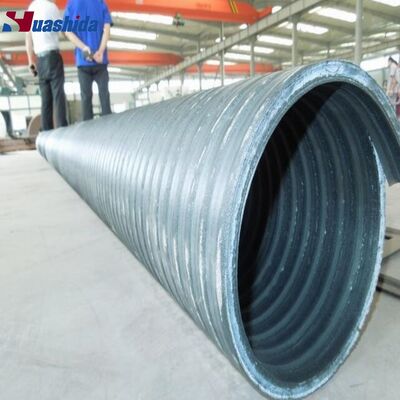

The winding pipe extrusion line of Qingdao Huashida Machinery Co., Ltd. integrates advanced domestic and international technologies, and is capable of producing pipes with diameters ranging from 200 mm to 3000 mm.Large-diameter hollow wall spiral-wound pipes feature a unique"I-shaped "  wall structure.

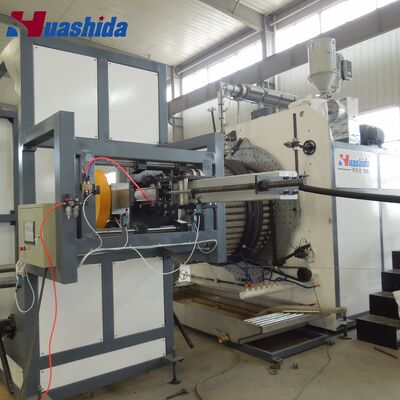

HDPE Hollow Wall Corrugated Pipe Extruder Line with 200-3000mm Pipe Diameter and 1000kg/H Max Output for Corrosion Resistant Applications 0

Why Choose Our Production Line?

  • High Strength, Lightweight

  • Up to 50 Years Service Life

  • Corrosion Resistant

  • Wide Application Range

  • Better Than Cement & Cast Iron

  • Easy & Fast Installation

  • High Market Potential

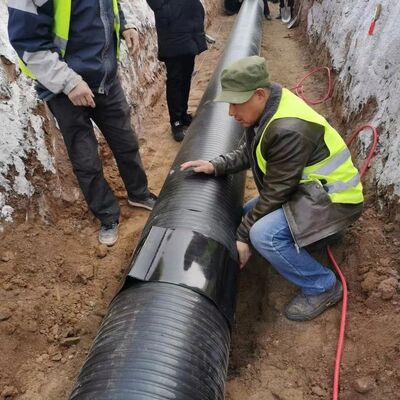

HDPE Hollow Wall Corrugated Pipe Extruder Line with 200-3000mm Pipe Diameter and 1000kg/H Max Output for Corrosion Resistant Applications 1

Production process of HDPE hollow-wall corrugated pipe extrusion line:


Raw materials→Mixing→Vacuum feeding→Material drying→Single screw extrusion →Calibration→Spray
cooling→ traction→Single screw glue extrusion →Winding and forming→water cooling→cutter→pipe bracket→inspecting &packing.

Product Parameters

                                   Model           Pipe Diameter(mm) Extruder  Speed of forming  Max. output Installed Power  dimension
SKRG-1200 Ø400-Ø1200 SJ-65(50)X30 1-12m/h 320kg/h 230KW 26X18X5
SKRG-1600 Ø800-Ø1600 SJ-80(50)X30 1-6m/h 500kg/h 310KW 27X18X5
SKRG-2200 Ø1000-Ø2200 SJ-90(65)X30 0.5-5m/h 650kg/h 380KW 28X19X5
SKRG-3000 Ø1600-Ø3000 SJ-90(65)X30 0.3-3m/h 800kg/h 390KW 48X26X6

Composition of Equipments

No.
Equipment Name
Model
Qty
1 Automatic Loader Hopper Dryer
1Set
2 single screw extruder Model SJ90×30    1Set
3 Square tube machine head Model  SMTRG500~1200 1Set
4 Vacuum Spray Cooling Tank Model  CRZL-110 1Set
5 Sizing sleeve Model  SGJL-110 1Set
6 Cooling Water Tank Model   SGJL-110 1Set
7 Automatic Loader Hopper Dryer
1Set
8 single screw extruder Model   SJ65×30    1Set
9 Forming Machine Model  CRFJ-1200 1Set
10 Cutting Saw Model  STG-1200 1Set
11 Unloading Rack Model  CRFQ-1200 2Sets
12 PLC Computer Control System

1Set

The complete production line includes two parts:

1.The first part is PE Pipe extrusion line to extrude the PE/PP Square Shaped Pipe ( according to customers' requirements ).
Single Screw Extruder
Die Head (mold and mandrill)
Calibrator
Vacuum calibration&cooling Tank
Spray Cooling Tank
Haul-off

2. The second part is Spiral forming line to form and weld the big pipe.
Single Screw Extruder
Die Head
Spiral forming unit
Cutter
Bracket
Detailed Photos

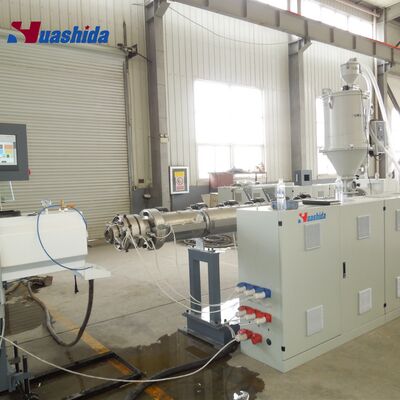

Extruder
Efficient single screw extruder with water-cooling force feeding system, and barrel with grooving in the feeding zone are designed to save power of main motor; Long L/D ratio and mixing head are designed to get perfect jellification and high output.
HDPE Hollow Wall Corrugated Pipe Extruder Line with 200-3000mm Pipe Diameter and 1000kg/H Max Output for Corrosion Resistant Applications 2

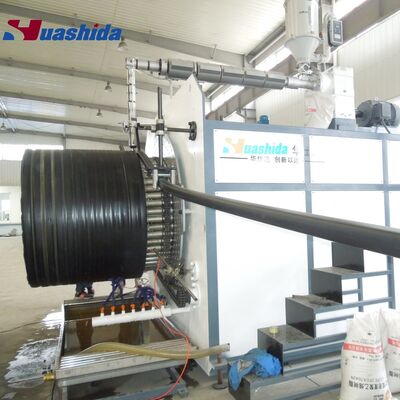

Spiral forming machine
It adopts composite die head and spiral rotating forming method, is designed with compact structure.
HDPE Hollow Wall Corrugated Pipe Extruder Line with 200-3000mm Pipe Diameter and 1000kg/H Max Output for Corrosion Resistant Applications 3
Forming machine
High-quality workmanship, exquisite design, and stable transmission
HDPE Hollow Wall Corrugated Pipe Extruder Line with 200-3000mm Pipe Diameter and 1000kg/H Max Output for Corrosion Resistant Applications 4
Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!
