Product Description

High-Efficiency and Stable PE Pipe Production Line: Achieving High-Speed Extrusion and Premium Production of Large-Diameter Thick-Walled Pipes

This PE pipe production line utilizes a high-efficiency extruder specifically designed for HDPE and PP pipes, equipped with a barrier-type mixing screw and a grooved barrel, ensuring excellent plasticization, extrusion stability, and high output.

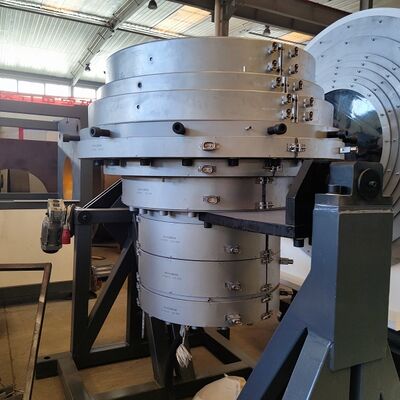

The optimized spiral die head is specifically designed for large-diameter thick-walled pipes, featuring low melt temperature, excellent mixing performance, low mold cavity pressure, and stable production.

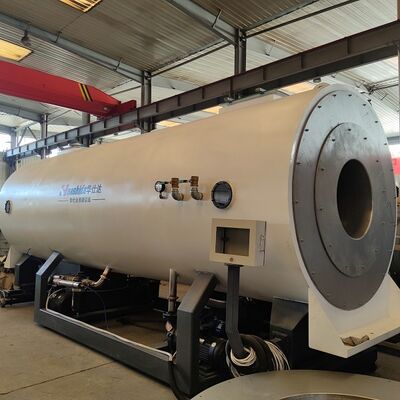

The production line is equipped with an advanced sizing and cooling system, utilizing water film lubrication and water ring cooling technology to ensure stable pipe diameter and roundness during high-speed production.

The entire production line is centrally controlled by the PLC system, equipped with a touch-screen human-machine interface for intuitive and straightforward parameter setting and monitoring. The application of multi-layer co-extrusion technology further reduces production costs.

The produced pipes exhibit excellent heat fusion buttability, flexibility, corrosion resistance, lightweight properties, and anti-aging performance, widely used in municipal water supply and urban gas transportation sectors.

Detailed Photos

Product Parameters

​

Installation Instructions

​​Our engineers are at the client's factory abroad, commissioning and installing the equipment and production lines.

Company Profile

Qingdao Huashida Machinery Co., Ltd. is a nationally recognized technology-based enterprise approved by the Shandong Provincial Department of Science and Technology, and is listed in provincial innovation capability projects. With over 20 years of industrial experience, the company holds multiple technical patents and international certifications, and maintains strategic R&D cooperation with top universities. Huashida's advanced machinery and solutions are exported to global markets and highly regarded by customers worldwide.

Our Advantages

1. Strong R&D and Innovation Capability

With over 20 years of industry experience, Qingdao Huashida Machinery Co., Ltd. is committed to continuous technological innovation. We independently develop core equipment and processes, supported by multiple patented technologies and long-term cooperation with leading universities and research institutions.

2. Mature and Stable Production Technology

Our production lines adopt advanced and proven technologies, featuring high automation, stable operation, and excellent repeatability, ensuring consistent product quality and reliable long-term performance.

3. Customized Turnkey Solutions

We provide fully customized production lines tailored to customers' pipe specifications, capacity requirements, and application scenarios, offering complete turnkey solutions from design and manufacturing to installation and commissioning.

4. Wide Product Coverage

Our equipment is suitable for a wide range of pipe diameters and applications, including pre-insulated pipelines, 3LPE anti-corrosion coating, internal and external epoxy coating, and HDPE jacket pipe production, meeting diverse market needs.

5. Strict Quality Control System

All equipment is manufactured under a strict quality management system, using high-quality components and precision machining to ensure durability, safety, and high production efficiency.

6. Global Service and Support

Huashida machinery has been successfully exported to many countries and regions worldwide. We provide professional technical support, operator training, and after-sales service to ensure smooth operation and long-term value for our customers.
