Name: Huashida HDPE Casing Pipe Extrusion Line for PU Foam Pre-Insulated Pipes
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: 20-110 mm
Price: 130.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Screw: Single Screw

Product Type: Extrusion Molding Machine

Plastic Processed: PE

Feeding Mode: One Feed

Assembly Structure: Integral Type Extruder

Engagement System: Full Intermeshing

Screw Channel Structure: Deep Screw

Specification: 960-1680mm, PE, 800-1200kg/H

Highlight:

HDPE casing pipe extrusion line

PU foam pre-insulated pipe machine

pre-insulated pipe production equipment

Basic Infomation

Place of Origin: Qingdao, China

Brand Name: Huashida

Certification: ISO

Model Number: 20-110 mm

Payment & Shipping Terms

Packaging Details: Standard Package

Delivery Time: 2 months

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 1000/year

Gallery

Huashida HDPE Casing Pipe Extrusion Line for PU Foam Pre-Insulated Pipes

Product Description

Huashida HDPE Casing Pipe Extrusion Line for PU Foam Pre-Insulated Pipes

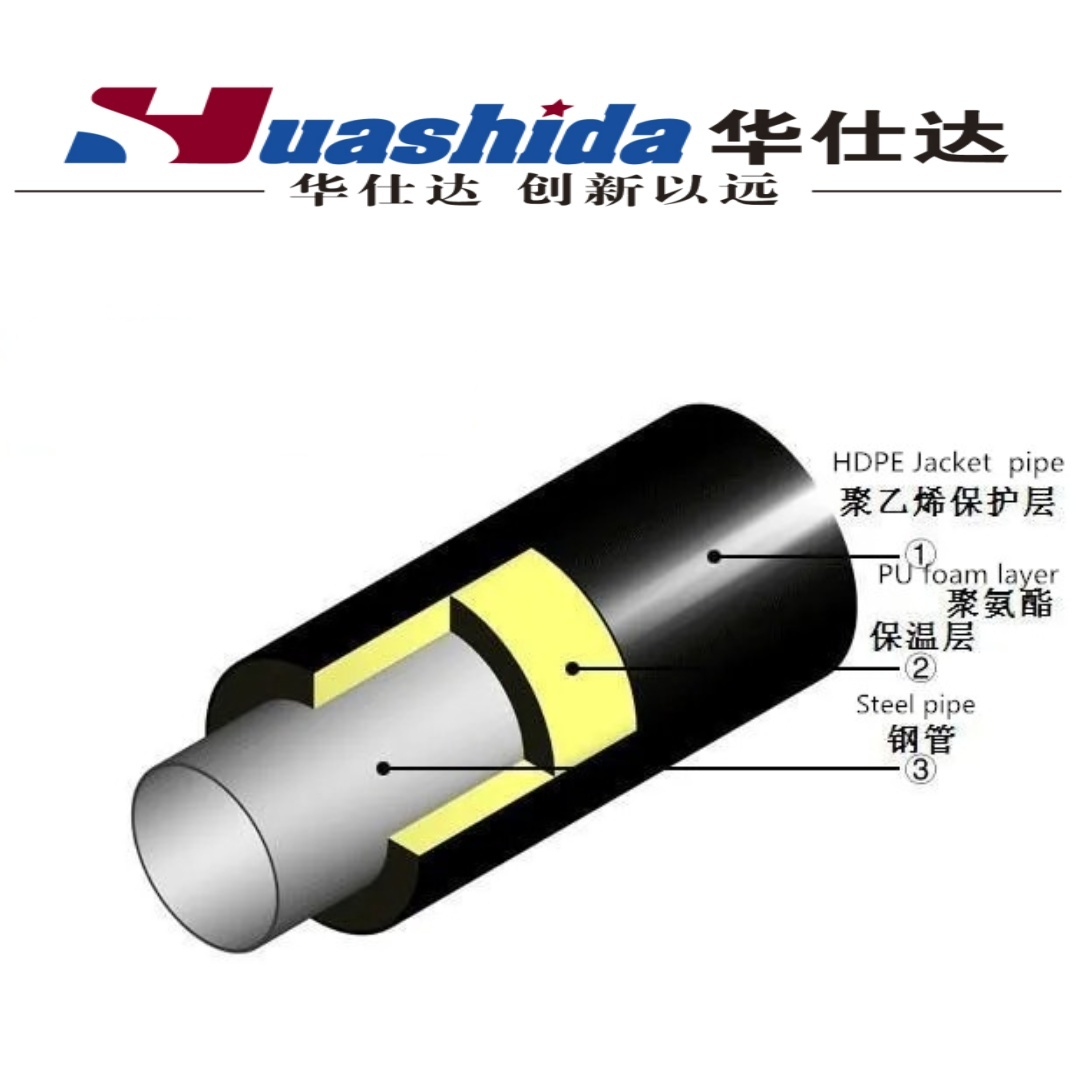

This compact and highly efficient extrusion line is engineered for the high-speed, energy-saving production of HDPE outer casing pipes, which serve as the essential protective jacket for polyurethane (PU) foam pre-insulated pipe systems. Featuring a fully automatic control system, the equipment is easy to operate, reliable in the long term, and designed to maximize productivity with a minimal operational footprint.

Huashida HDPE Casing Pipe Extrusion Line for PU Foam Pre-Insulated Pipes 0

Production line Composition:

#	Component	Model / Key Feature	Primary Function
1	Mixed Raw PE Loader	Automatic / 1 Set	Feeds & Conveys raw HDPE material to the drying system.
2	Hopper Dryer	Dehumidifying / 1 Set	Removes moisture from pellets to ensure optimal extrusion quality.
3	Single Screw Extruder	High-Efficiency / 1 Set	The core unit that melts, compresses, and homogenizes material into a continuous pipe profile.
4	Vacuum Calibration Table	Sizing Tank / 1 Set	Cools and precisely shapes the molten pipe to the exact outer diameter and wall thickness.
5	Water Spraying Tank	Spray Cooling / 1 Set	Further cools and solidifies the pipe to its final dimensional stability.
6	Hauling Machine	1 Set	Provides the pulling force to draw the pipe through the line at a controlled, steady speed.
7	Cutting Machine	Automatic / 1 Set	Cuts the pipe to pre-set lengths with clean, square ends.
8	Stacker	Tilting or Conveyor / 1 Set	Automatically collects and stacks finished pipes for packaging or storage.

Huashida HDPE Casing Pipe Extrusion Line for PU Foam Pre-Insulated Pipes 1

Key Technical Specifications

Feature	Specification
Primary Function	Produces the HDPE outer casing for pre-insulated pipes.
Output Pipe Diameter	110 mm to 1680 mm (Covers a wide range from residential to large industrial lines).
Core Production Unit	High-Efficiency Single Screw Extruder.
Automation Level	High (Designed for minimal operator intervention).

Machine Advantages & Client Benefits

Feature	Technical Advantage	Direct Benefit to You
High-Efficiency Extruder	Delivers larger output with stable, consistent performance.	Maximizes productivity and ROI through higher yield and reliable uptime.
Precision Sizing & Control	Produces a pipe wall that is uniform, smooth, and precisely controlled. Thickness is easily adjustable.	Reduces raw material waste and ensures a consistent, high-quality product that meets exact specifications.
Advanced Die Design	No trim edge, once the forming process.	Simplifies operation, eliminates a finishing step, and contributes to material savings.
Integrated Automation	High degree of automation throughout the line.	Saves significantly on labor, as just one operator can efficiently manage costs for the entire line.

High-Efficiency Single Screw Extruder: Features a barrier & mixing head screw combined with a new-model slotted barrel. This advanced design ensures excellent material plasticization, high output, and exceptionally stable performance.

Precision Die-Head: Constructed from polished, chrome-plated components for smooth material flow and corrosion resistance. Features adjustable bolts for uniform wall thickness control and an integrated copper calibrating sleeve for simultaneous pipe cooling and outer diameter sizing.

Vacuum Calibration Tank: A stainless steel tank integrating a vacuum system and multi-directional spray cooling. It creates negative pressure to size the pipe's outer diameter against the calibrating sleeve and rapidly quenches the pipe with water spray for immediate dimensional stabilization.

Huashida HDPE Casing Pipe Extrusion Line for PU Foam Pre-Insulated Pipes 4

Hauling Machine: An AC motor-driven haul-off with variable frequency control to perfectly match extrusion speeds. It features an integrated automatic length measuring device for precise cutting at a set length.

Huashida HDPE Casing Pipe Extrusion Line for PU Foam Pre-Insulated Pipes 5 .

No-Dust Cutting Machine: Employs a blade-punching principle for clean, dust-free operation. Features synchronized clamping and cutting mechanisms for precise, square cuts.

Huashida HDPE Casing Pipe Extrusion Line for PU Foam Pre-Insulated Pipes 6

PLC Control System: Centralized control via a Programmable Logic Controller (PLC) with an intuitive touch-screen HMI. Allows for easy setting and monitoring of all technical parameters, and can be customized to specific client requirements.

Huashida HDPE Casing Pipe Extrusion Line for PU Foam Pre-Insulated Pipes 7

Automatic Discharging Frame: Features a stainless steel table surface and utilizes a pneumatic tilting mechanism for fully automatic, hands-off pipe discharging and stacking.

Huashida HDPE Casing Pipe Extrusion Line for PU Foam Pre-Insulated Pipes 8
