Name: Fully Automated Production Line for Pre-Insulated Steel Pipes: Computer-Controlled PU Foaming and HDPE Cladding
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: 50-1500MM
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Pipe Structure: Puf Insulation Layer, PE Outer Casing

Foaming Machine: High-Pressure Foaming Machine

High-Pressure Foaming Machine: 30-100mm

Applications: Hot Chiller Water/Oil /Chemical Material Pipeline

Highlight:

fully automated pre-insulated pipe production line

computer-controlled PU foaming steel pipe machine

HDPE cladding pre-insulated pipe equipment

Basic Infomation

Place of Origin: QINGDAO,CHINA

Brand Name: 50-1500MM

Certification: CE, ISO9001:2008

Model Number: 50-1500MM

Payment & Shipping Terms

Delivery Time: 60days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 30 Sets/Year

Gallery

Fully Automated Production Line for Pre-Insulated Steel Pipes: Computer-Controlled PU Foaming and HDPE Cladding

Product Description

Fully Automated Production Line for Pre-Insulated Steel Pipes: Computer-Controlled PU Foaming and HDPE Cladding

1. Production line introduction
Polyurethane (PU)spraying polyethylene(PE) wrapping pre-insulated pipe production line is used for the production of polyurethane prefabricated direct buried thermal insulating pipes, which are widely used in the field of heating, cooling and crude oil transportation.
Fully Automated Production Line for Pre-Insulated Steel Pipes: Computer-Controlled PU Foaming and HDPE Cladding 0

2. Product structure
Huashida Rigid polyurethane spraying polyethylene winding prefabricated directly buried insulation pipe consists of steel working pipe, spraying polyurethane rigid foam insulation layer and winding polyethylene outer protective pipe. The product structure is shown in the figure below:
Fully Automated Production Line for Pre-Insulated Steel Pipes: Computer-Controlled PU Foaming and HDPE Cladding 1

3. Technological flow:

The spraying and winding production process ensures the uniformity of the density of the insulation layer, improves product quality, and reduces production costs.

4. PUF spray PE winding preinsulated pipe production line consists of the following parts:

1) Steel pipe outwall shot blasting line

2) Polyurethane spray molding line
3) Polyethylene sheet extruding winding line
4) Water cooling line
5) End-cutting equipment

Main line Composition of the polyurethane coating steel preinsulated pipe equipment:

No.	name
1	External wall Shot blasting rust removel machine
2	Medium-frequency induction heating furnace
3	Polyurethane spray foaming unit
4	pipe rotator trolley
5	Single screw extruder and diehead mould
6	Finished pipe ends trimming machine
7	pipe Conveyers and racks
8	Electrical system and PLC

5. Advantages of Polyurethane spray insulation pipe:
1). The density of polyurethane is uniform and controllable.
2). Polyurethane rigid foam has no empty spaces.
3). The surface of polyurethane foam is rough, the shear strength (friction) to the polyethylene outer casing is greater than 200Kpa.
4). The thickness of the polyurethane insulation layer and the thickness of the polyethylene outer casing can be adjusted according to the design.
5). The production has a high degree of automation.

Production line equipment Photos show

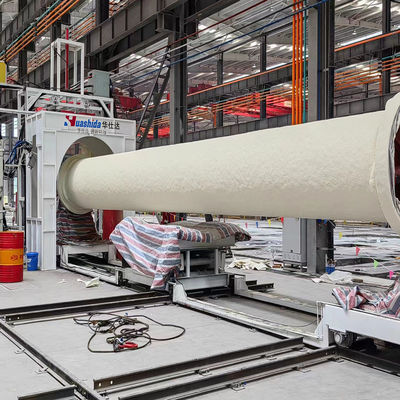

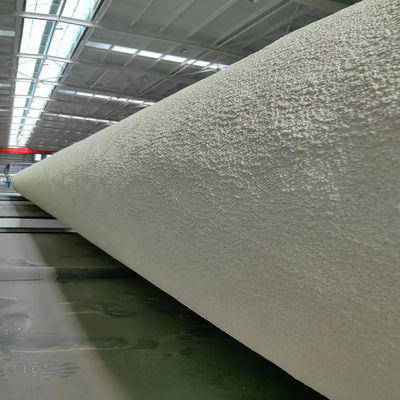

Fully Automated Production Line for Pre-Insulated Steel Pipes: Computer-Controlled PU Foaming and HDPE Cladding 3
Rust Removal

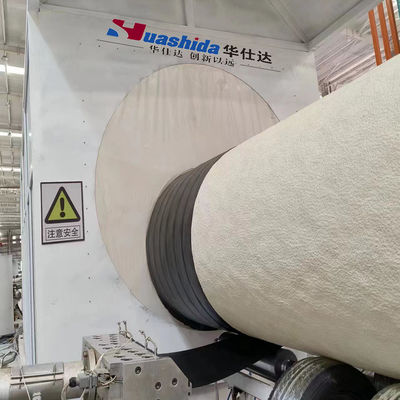

PE film jacket wrapping
Fully Automated Production Line for Pre-Insulated Steel Pipes: Computer-Controlled PU Foaming and HDPE Cladding 5

PE Jacket Water quenching
Fully Automated Production Line for Pre-Insulated Steel Pipes: Computer-Controlled PU Foaming and HDPE Cladding 6
