Name: PE/PP Sheet Extrusion Production Line for 0.1-30mm Thickness Range
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: Plastic Sheet Extrusion Production Line
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Type: PVC /PE/PP / ABS / PP /PS Sheet

Board Layers: Single & Multilayer Sheet

Product Thickness: 0.1-30mm

Product Width: Maximum 3000mm

Condition: New

Highlight:

PE PP sheet extrusion line with warranty

PP sheet production line 0.1-30mm thickness

PE sheet extrusion machine for boards

Basic Infomation

Place of Origin: QINGDAO,CHINA

Brand Name: huashida

Certification: CE, ISO9001:2008, QS

Model Number: Plastic Sheet Extrusion Production Line

Payment & Shipping Terms

Packaging Details: Wooden Cases and Pallets

Delivery Time: 60DAYS

Payment Terms: T/T,L/C,Western Union

Supply Ability: 50 Sets/Month

Gallery

PE/PP Sheet Extrusion Production Line for 0.1-30mm Thickness Range

Product Description

PE/PP Sheet Extrusion Production Line for 0.1-30mm Thickness Range

This sheet extrusion line is equipped vertical three-roller calender, with high perfomance vented extruder, diescreen chanae svstem, cooling rocket, haul-off unit, cuting unit and etc. This kind of line is suitable to produce PE/PP/PS/HIPS/ABS/PVC single-layer and multi-layer sheet with thickness of 0.1mm to 30mm and width of up to3000mm.

The PE/PVC/ABS sheets are widely used in the fields of refrigerator, air conditioner, auto, advertisement, and construction, environmental protection, etc.

PE/PP Sheet Extrusion Production Line for 0.1-30mm Thickness Range 0

The plastic sheet extrusion lines equipments as below:

1	Single screw Extruder	1 Set
2	T-Die mold	1 Set
3	3-Calender Roller	1 Set
4	Roll temperature control system	1 Set
5	Cooling Bracket	1 Set
6	Haul-Off Unit	1 Set
7	Coiler	1 Set

Machine Features:

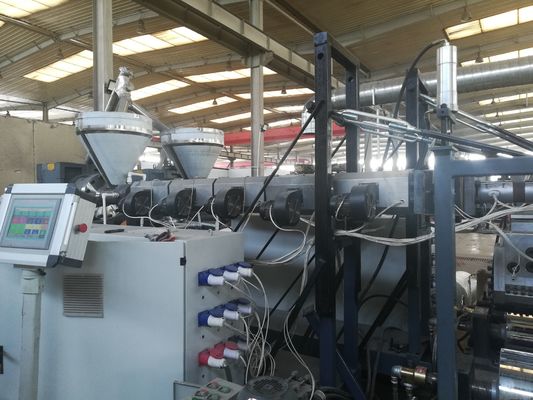

High-Strength Alloy Structural Steel: The material barrel, screw, and die are made of high-grade alloy structural steel (38CRMOALA) treated by nitriding, providing high hardness, corrosion resistance, and long service life.

PE/PP Sheet Extrusion Production Line for 0.1-30mm Thickness Range 1

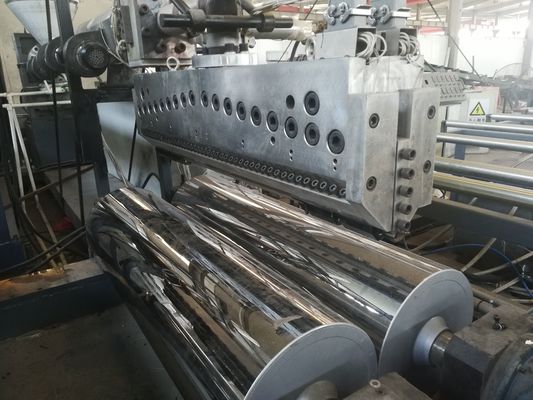

T-Die Design: The flow channel is designed for smooth flow of the melt without detaining, ensuring uniform sheet thickness.

PE/PP Sheet Extrusion Production Line for 0.1-30mm Thickness Range 2

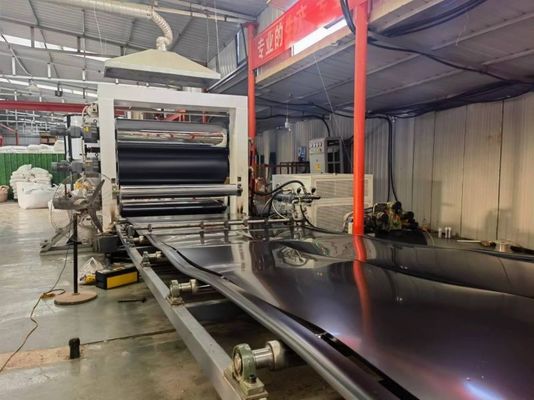

Calendering Design: The large conical slot design enhances cooling inside the rollers, ensuring temperature synchronization for high-quality production

PE/PP Sheet Extrusion Production Line for 0.1-30mm Thickness Range 3

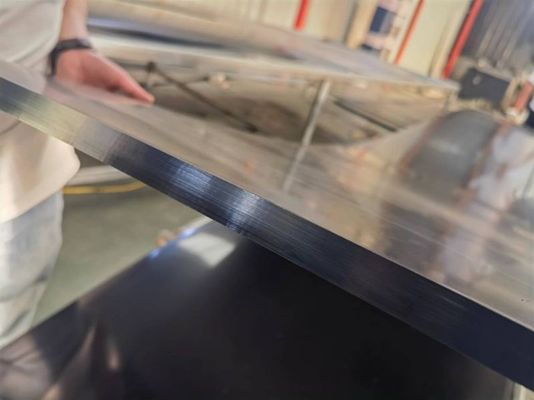

PC/PP hollow cross-section plate. PVC transparent soft & hard plat & sheet. PVC foamed plate, PMMA/ABS co-extrusion bathing plate, inside chamber plate of the refrigerator and other multiple-layer composite co-extrusion plate & sheet size: width:300MM-700MM thickness0.2MM-45MM: output rate:80-1800KG./H. The machinery unit is the best solution for plate & sheet production.

(Modle)	(width)	Thickness(MM)	Seedtm/min)	Outputr(kg/h)
SBJZ-800	650	0.18-1.5	1-25	80-320
SBJZ -1000	800	0.2-2.0	1-20	150-430
SBJZ -1500	1350	1-10	0.5-10	150-450
SBJZ -2000	1850	2-15	0.5-8	300-550
SBJZ -2200	2000	1-10	0.4-3	420-820
SBJZ -3000	2850	2-8	0.2-3	500-1200
SBJZ -7000	6800	2-6	0.2-2	600-1560

PE/PP Sheet Extrusion Production Line for 0.1-30mm Thickness Range 4

Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation&anticorrosion machines, and pipe jointing&anticorrosion materials, with 21 years of production experience.
Our main products are:
1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.

We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.
