Product Description
A PE Vacuum Calibration Insulation Pipeline Making Machine is a full production line for making pre-insulated PE jacket pipes with precise dimensions and high quality. It's widely used in modern pipeline production - especially where energy efficiency and long service life are required.
These machines produce HDPE outer jacket pipes for pre-insulated pipelines. The typical three-layer structure of pre-insulated pipe is: Qingdao Huashida Machinery Co., Ltd.
Inner Carrier Pipe: Steel or other metal that carries fluid (hot water, steam, oil, etc.)
Middle Insulation Layer: Rigid polyurethane foam (PUF) for thermal insulation
Outer PE Jacket Pipe: High-density polyethylene protective shell
The result is high durability, excellent insulation, corrosion resistance, and reliable performance in trenchless and direct burial applications.

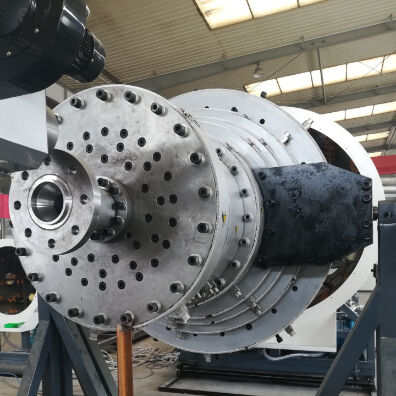

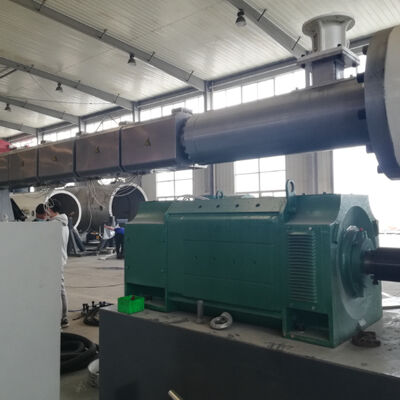

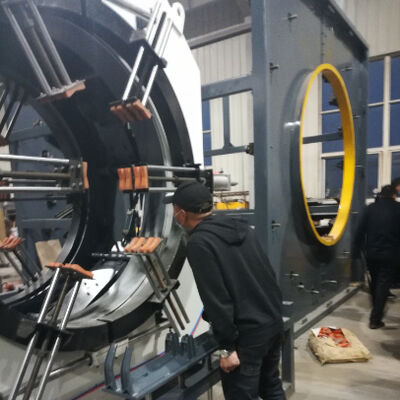

Detailed Photos




Product Parameters
|
PE-365/760 |
PE-420/960 |
PE-850/1372 |
PE-960/1680 |
| Main extruder |
SJ-90/33 |
SJ-90/33 |
SJ-120/33 |
SJ-150/33 |
| Pipe diameter (mm) |
Φ365-960 |
Φ420-960 |
Φ850-1372 |
Φ960-1680 |
| capacity (kg/h) |
550-700 |
550-700 |
700-900 |
800-1200 |
| Installed power (kw) |
360 |
380 |
440 |
580 |
| Length (m) |
35 |
36 |
40 |
48 |
Certifications

The first set of insulated pipe production lines in Shandong Province,China.

Packaging & Shipping


Installation Instructions

Our engineers are at the client's factory abroad, commissioning and installing the equipment and production lines.
Company Profile

Qingdao Huashida Machinery Co., Ltd. is a nationally recognized technology-based enterprise approved by the Shandong Provincial Department of Science and Technology, and is listed in provincial innovation capability projects. With over 20 years of industrial experience, the company holds multiple technical patents and international certifications, and maintains strategic R&D cooperation with top universities. Huashida's advanced machinery and solutions are exported to global markets and highly regarded by customers worldwide.
Our Advantages
1. Strong R&D and Innovation Capability
With over 20 years of industry experience, Qingdao Huashida Machinery Co., Ltd. is committed to continuous technological innovation. We independently develop core equipment and processes, supported by multiple patented technologies and long-term cooperation with leading universities and research institutions.
2. Mature and Stable Production Technology
Our production lines adopt advanced and proven technologies, featuring high automation, stable operation, and excellent repeatability, ensuring consistent product quality and reliable long-term performance.
3. Customized Turnkey Solutions
We provide fully customized production lines tailored to customers' pipe specifications, capacity requirements, and application scenarios, offering complete turnkey solutions from design and manufacturing to installation and commissioning.
4. Wide Product Coverage
Our equipment is suitable for a wide range of pipe diameters and applications, including pre-insulated pipelines, 3LPE anti-corrosion coating, internal and external epoxy coating, and HDPE jacket pipe production, meeting diverse market needs.
5. Strict Quality Control System
All equipment is manufactured under a strict quality management system, using high-quality components and precision machining to ensure durability, safety, and high production efficiency.
6. Global Service and Support
Huashida machinery has been successfully exported to many countries and regions worldwide. We provide professional technical support, operator training, and after-sales service to ensure smooth operation and long-term value for our customers.
