3LPE Coating Pipe Production Line with Internal Liquid Painting and External 3LPE Coating for SA2.5 Clean Level

External 3PE anti corrosive internal epoxy coating is an efficient anti-corrosive method for steel pipes.

Epoxy powder mainly plays an anti-corrosion role, adhesives enhance the bonding between the layers, and polyethylene provides good mechanical protection and environmental resistance. Internal epoxy coating spraying has strong anti-corrosion adhesion and good chemical corrosion resistance, which can effectively prevent the inside of the steel pipe from being corroded by the conveying medium (such as oil, gas, water, etc.). This anti-corrosion method is widely used in the fields of oil and natural gas pipelines, water supply and drainage pipelines, etc., and can greatly extend the service life of steel pipes.

Production line parameters:

(1) Steel pipe coverage range: 114mm-4200mm
(2) Processing capacity: ≤250m²/h
(3) Cleaning level: Sa2.5
(4) Materials used: epoxy powder, adhesive, polyethylene, epoxy coating (single component, two-component)
(5) Main equipment: steel pipe external rust removal equipment, steel pipe internal rust removal equipment, medium frequency heating equipment, epoxy powder spraying equipment, AD adhesive extrusion equipment, PE polyethylene extrusion equipment, cooling equipment, PE groove equipment, high-pressure airless spraying machine, curing furnace heating and drying equipment, spray marking equipment, catalytic combustion environmental protection equipment, etc.


3LPE coating line Features:
1. Microcomputer-controlled automatic adjustment of the coordination of various parts of the production line.
2. High-speed shot blasting equipment for internal and external wall rust removal.
3. High-performance electrostatic spraying equipment with good impact resistance.
4. High-quality PE sheet extrusion equipment with good anti-corrosion effect.

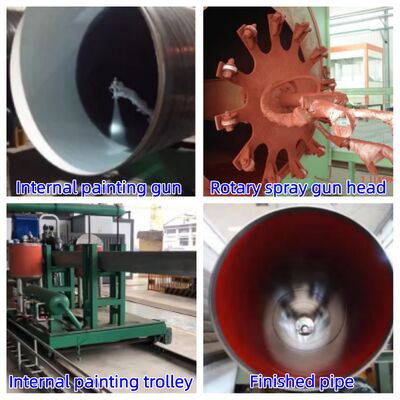

5. Energy-saving internal wall coating equipment.


Detailed Photos

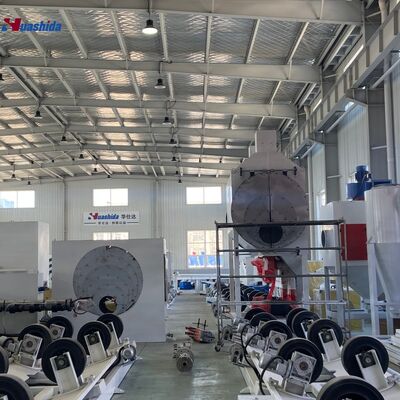

The anti-corrosion coating processing line includes:

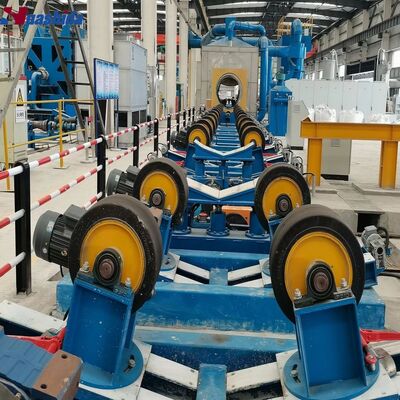

-steel pipe transmission system
-Internal and external shot blasting system
-dust collection system
-pipe heating system
-electrostatic spraying system

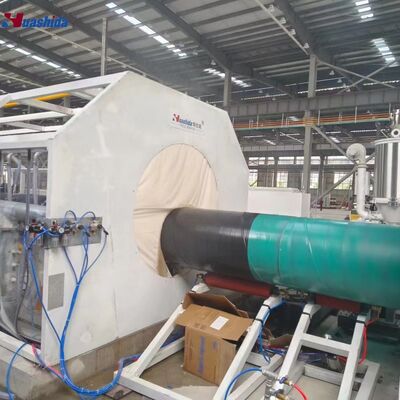

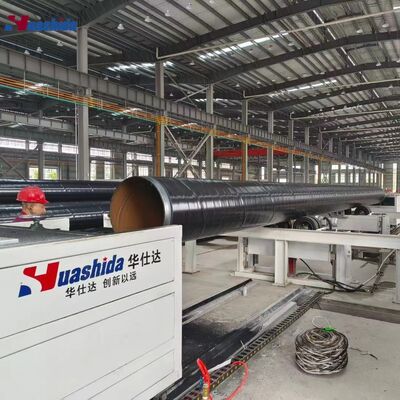

-PE coating system

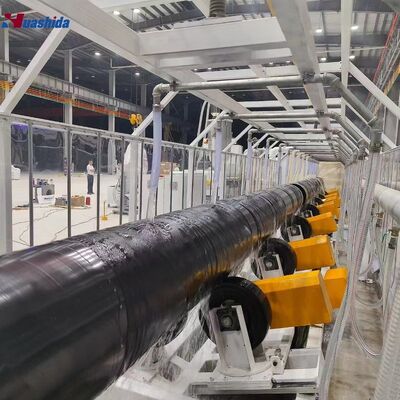

-water cooling system
-end cutting system
-hydraulic and pneumatic system
-testing system

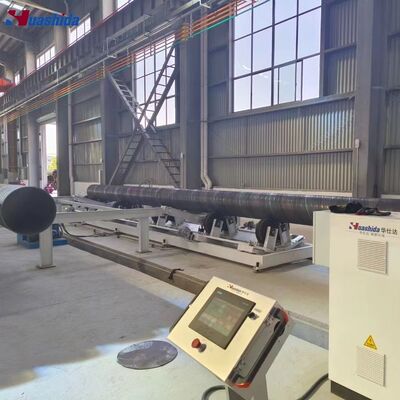

-electronic control system

Our Advantages

Advanced Technology & Stable Performance: Ensuring highly efficient and reliable operation.
High Automation: Significantly reduces labor costs and improves production efficiency.
Internationally Certified Quality: Superior anti-corrosion properties that meet global standards.
Turnkey Solutions: Comprehensive service from design and installation to commissioning and training.
Proven Expertise: Backed by 389 successful production lines worldwide and a team of 9 senior engineers.
Award-Winning Innovation: Recognized by a national-level expert workstation in China.



Company Profile

Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!
