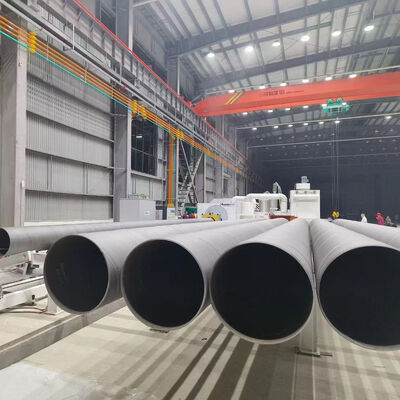

Automatic 3LPE Coating Pipe Production Line with SA2.5 Cleaning Level for 50-4200mm Steel Pipe Coating

Coating Structure:

• First Layer: Fusion-bonded epoxy powder (FBE) with a thickness greater than 100 µm.
• Second Layer: Adhesive (AD) with a thickness of 170 to 250 µm.
• Third Layer: Polyethylene (PE) with a thickness ranging from 2.5 to 3.7 mm.

1.Enhanced Pipe Lifespan: Increases pipe lifespan from 5-10 years to 50-100 years.
2.High-Performance Coating: Offers excellent mechanical strength, electrical insulation, waterproofing, wear resistance, and anti-aging properties for harsh environments.
3.High Efficiency: Max production output of 3-8 km/day, with an annual processing capacity of 2 million square meters (Φ508mm).
4.Compliance with International Standards: Meets international standards including SY/T0413-2002, GB/T23257-2009, and DIN 30670.

Production Line Components

Rust Removal Equipment: Includes shot blast cleaning machine, dust collectors, and rust removal PLC control system.
Coating Equipment: Features powder spraying device, heating system, coating devices, cooling spray, and extruders.
Platform Equipment: Steel pipe platform, storage platform, hydraulic equipment.
Groove Equipment: Includes PE beveling machines and lifting machinery.
Compressed Air Equipment: Air compressors, precision filters, and gas tanks.

Global Reach:
The 3PE production line has been exported to countries such as Iran, Russia, Saudi Arabia, and Nigeria, receiving high praise from international clients.

After-Sales Service:
√  Warranty: 12 months for mechanical parts, 6 months for electrical components.
√ Support: Technical services, operator training, and guidance are provided.

Customization Options:
The production line can be customized for different pipe diameters, coating thicknesses, and production speeds to meet specific requirements.

Pipe Diameter Range

• Diameter Options:
  • Φ48 to 219 mm
  • 219 to 220 mm
  • 800 to 1600 mm
  • 1000 to 2400 mm

Sandblasting Grade

• Grade: SA2.5

Anti-Corrosion Coating Standard

• Standards Compliance: Conforms to various international standards, including SY/T0413-2002 and DIN 30670.

Delivery Time

• Estimated Time: 2 to 3 months after receipt of deposit.

Production Output

• Maximum Output: Up to 3 to 8 km per day, with an annual capacity of 2 million square meters for pipes with a diameter of Φ508 mm.

Sales Regions for 3PE Equipment

• Countries Sold To: Russia, Iran, UAE, India, Belarus, Kazakhstan, and others.
