Name: 3LPE Coating Pipe Production Line with High Voltage Electrostatic Spray Gun SA2.5 Clean Level and PLC Automatic Control System
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: Coating Production Line
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Coating: Powder Coating

Clean Level: >=SA2.5

Spray Gun Method: High Voltage Electrostatic Spray Gun

Applications: Oil, Natural Gas, And Water Supply Pipelines

Highlight:

High Voltage Electrostatic Spray Gun 3LPE Coating Pipe Production Line

SA2.5 Clean Level FBE Epoxy Powder Coating Line

PLC Automatic Control System Steel Pipe Anti-Corrosion Coating Line

Basic Infomation

Place of Origin: Qingdao, China

Brand Name: HSD

Certification: CE, ISO, RoHS

Model Number: Coating Production Line

Payment & Shipping Terms

Packaging Details: Wooden/Plastic Film

Delivery Time: 60DAYS

Payment Terms: L/C,D/P,T/T

Supply Ability: 30 Sets/Year

Gallery

3LPE Coating Pipe Production Line with High Voltage Electrostatic Spray Gun SA2.5 Clean Level and PLC Automatic Control System

Product Description

Internal and External FBE Epoxy Powder Coating Line for Anti-Corrosion 3LPE Steel Pipe Protection

3LPE Coating Pipe Production Line with High Voltage Electrostatic Spray Gun SA2.5 Clean Level and PLC Automatic Control System 0

The epoxy powder anti-corrosion process for the inner and outer walls of steel pipes is currently an efficient and reliable solution for pipeline anti-corrosion. The "Internal and External FBE Epoxy Anti-Corrosion Coating Production Line" of Qingdao Huashida Machinery Co., Ltd. has been recognized as a First (Set) Technical Equipment in Shandong Province.
The anti corrosive steel pipe has many advantages, such as strong corrosion resistance of the coating, which can resist the erosion of a variety of chemical mediator; The coating surface is smooth and the friction resistance is small. This steel pipe of anti corrosion is widely used in petroleum, natural gas transmission pipelines, water supply and drainage pipelines and many other fields.

According to customer demand for the production of different specifications products
Huashida steel pipe internal and external epoxy coating anti-corrosion equipment adopts high metering spraying technology, which can evenly cover the inner and outer wall of steel pipe, improve the anti-corrosion performance and prolong the service life of steel pipe. Meanwhile, it is equipped with PLC automatic control system to reduce human error and realize stable production.

3LPE Coating Pipe Production Line with High Voltage Electrostatic Spray Gun SA2.5 Clean Level and PLC Automatic Control System 1

Internal & External FBE coating Structure:

Epoxy powder is a thermosetting, non-toxic coating that, after curing, forms a high-molecular-weight cross-linked coating with excellent chemical corrosion resistance and high mechanical properties. The epoxy powder primer forms a continuous coating, providing excellent adhesion to the steel pipe surface through bonding and curing, and exhibiting excellent chemical resistance and cathodic disbondment resistance. The polymer binder bonds the epoxy powder before gelation and also bonds the polyethylene topcoat, combining the three layers together.

Advantages of production line:

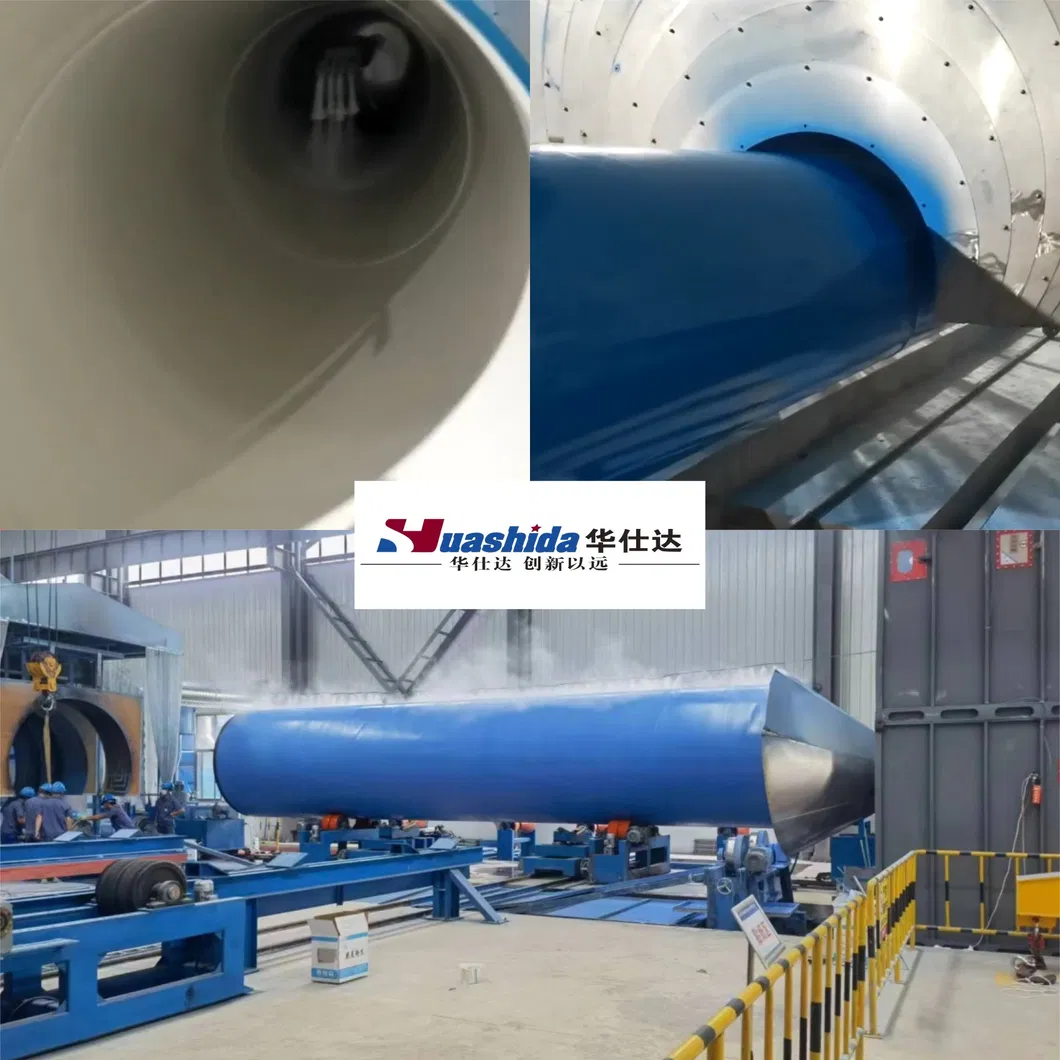

1. The internal powder coating line is equipped with an electrostatic spraying system to avoid pinholes in the internal coating caused by spray gun discharge.
2. The dust collection system provides comprehensive coverage, enabling multi-point environmental control.
3. The external powder coating line adopts a closed-loop powder circulation system, improving recovery rate and cleanliness.
4. The dust collection system features a reasonable airflow, and the filter cartridges are highly efficient, low-noise, environmentally friendly, and energy-saving.

3LPE Coating Pipe Production Line with High Voltage Electrostatic Spray Gun SA2.5 Clean Level and PLC Automatic Control System 2

3LPE Coating Pipe Production Line with High Voltage Electrostatic Spray Gun SA2.5 Clean Level and PLC Automatic Control System 3

3LPE Coating Pipe Production Line with High Voltage Electrostatic Spray Gun SA2.5 Clean Level and PLC Automatic Control System 4

3LPE Coating Pipe Production Line with High Voltage Electrostatic Spray Gun SA2.5 Clean Level and PLC Automatic Control System 5

3LPE Coating Pipe Production Line with High Voltage Electrostatic Spray Gun SA2.5 Clean Level and PLC Automatic Control System 6

3LPE Coating Pipe Production Line with High Voltage Electrostatic Spray Gun SA2.5 Clean Level and PLC Automatic Control System 7

Main equipment:

Item	Process Flow
1	Upload pipes
2	pipes sprial conveyor
3	external blasting
4	internal blasting
5	Rust removal
6	intermediate frequency heating
7	FBE powder coating
8	Powder recycling system
9	load down pipe rack

3LPE Coating Pipe Production Line with High Voltage Electrostatic Spray Gun SA2.5 Clean Level and PLC Automatic Control System 8

Advanced Technology & Stable Performance: Ensuring highly efficient and reliable operation.
High Automation: Significantly reduces labor costs and improves production efficiency.
Internationally Certified Quality: Superior anti-corrosion properties that meet global standards.
Turnkey Solutions: Comprehensive service from design and installation to commissioning and training.
Proven Expertise: Backed by 389 successful production lines worldwide and a team of 9 senior engineers.
Award-Winning Innovation: Recognized by a national-level expert workstation in China.

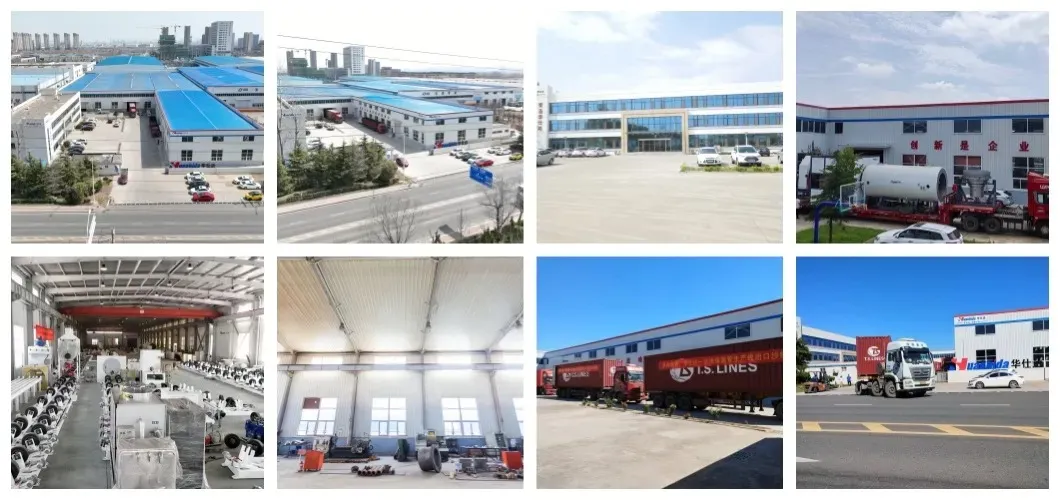

Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!
3LPE Coating Pipe Production Line with High Voltage Electrostatic Spray Gun SA2.5 Clean Level and PLC Automatic Control System 9
Our Main Products Include:
HDPE Jacket Pipe Extrusion Line
3LPE Steel Pipe Anti-Corrosion Coating Line
Hollow Wall Spiral Pipe Production Line
Double Wall Corrugated Pipe Production Line
PE/PP Geo Membrane Production Line
PE/PP Sheet Board Extrusion Line
Rubber Foam Insulation Pipe Production Line
HDPE Welding Wire Welder Rods
Besides manufacturing machines, we also make Heat shrinkable sleeves and electro fusion sleeves and plastic welders, which are widely used as pipe joints and sealings of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines.
