Name: HDPE Jacket Casing Pipe Extrusion Line with Siemens PLC Control for Ø110-2200 mm Pre-Insulated Pipes at 250-1600 kg/h
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: 110-2200MM
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Raw Material: PE

Application: Producing Pre-Insulated Pipe Jacket

Cutting Method: Dust-Free Planetary Cutting

Calibration Method: Vacuum And Water Spraying Cooling

Highlight:

Siemens PLC Control HDPE Jacket Casing Pipe Extrusion Line

Ø110-2200 mm Pre-Insulated Pipe Production Line

250-1600 kg/h PU Foam Outer Protective Pipe Making Machine

Basic Infomation

Place of Origin: QINGDAO,CHINA

Brand Name: HSD

Certification: CE

Model Number: 110-2200MM

Payment & Shipping Terms

Packaging Details: Standard Package

Delivery Time: 60DAYS

Payment Terms: T/T,L/C,D/P,Western Union

Supply Ability: 30 Sets/Year

Gallery

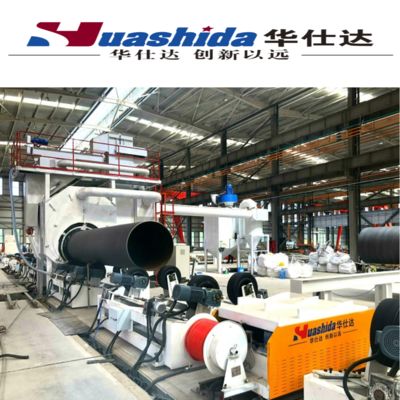

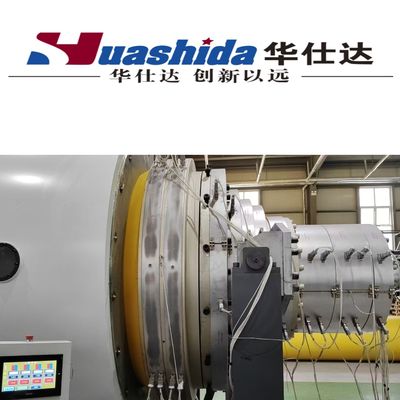

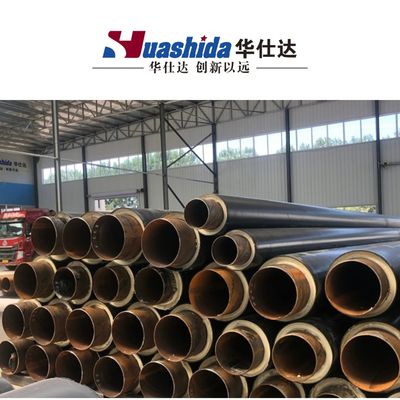

HDPE Jacket Casing Pipe Extrusion Line with Siemens PLC Control for Ø110-2200 mm Pre-Insulated Pipes at 250-1600 kg/h

Product Description

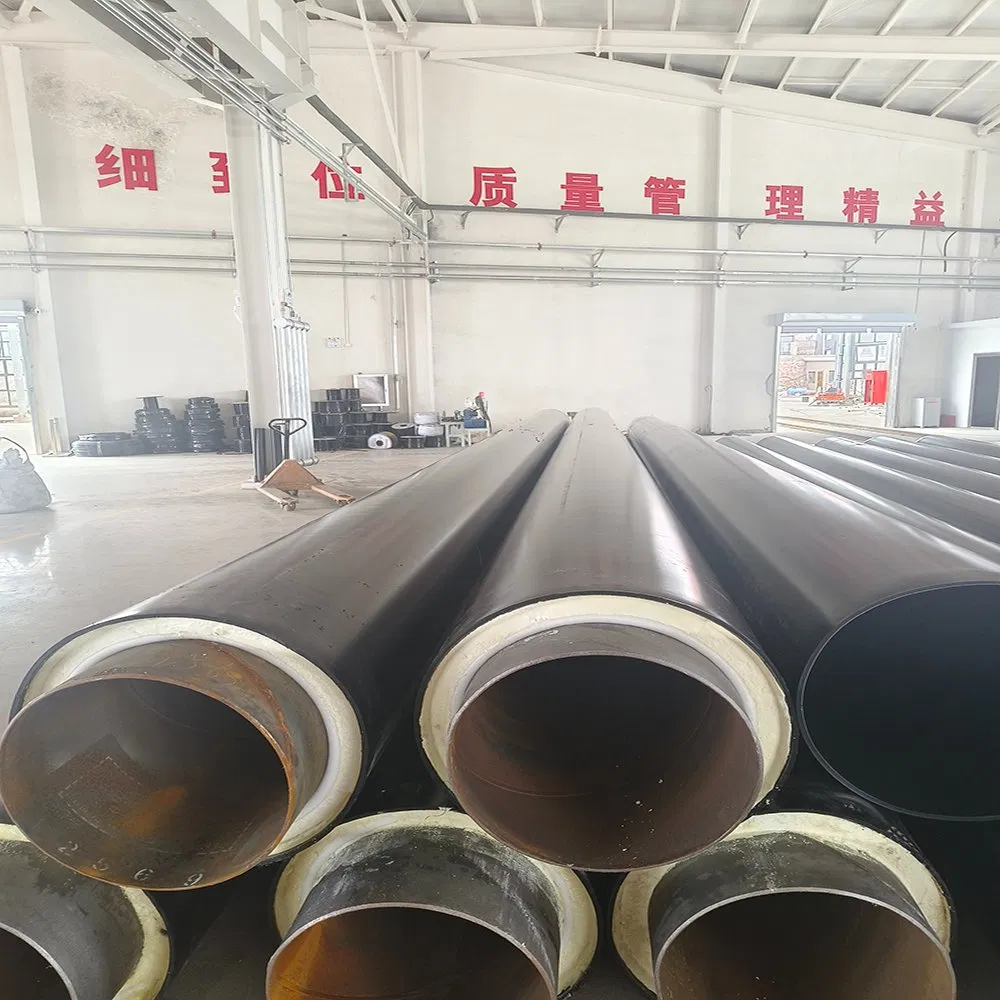

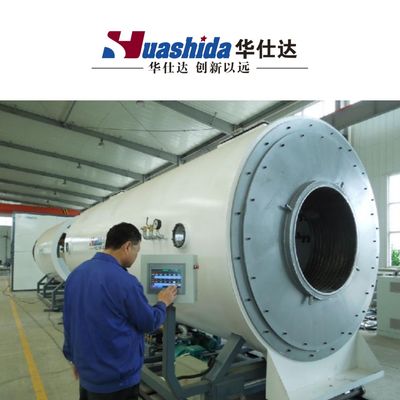

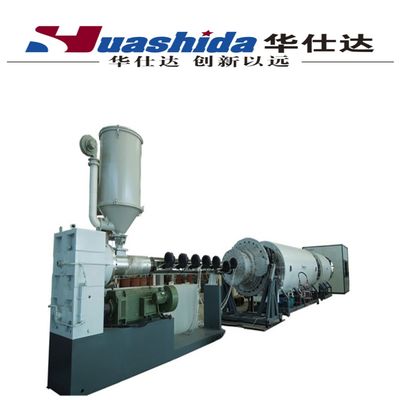

HDPE Jacket Casing Pipe Extrusion Line Vacuum Calibration Pre-Insulated PU Foam Outer Protective Pipe Making Machine

The HDPE Jacket Casing Pipe Extrusion Line is suitable for producing casing pipes used in PU foam pre-insulation systems. With vacuum calibration shaping, the line ensures stable sizing and high surface quality.
Siemens PLC control provides intelligent monitoring and easy operation. Its high-output and energy-saving configuration delivers strong performance for medium and large-scale production.

Pipe Size Range: Ø110-2200 mm

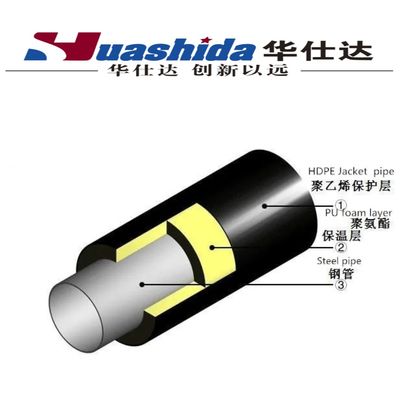

Carrier Pipe Types: steel / stainless steel / copper / plastic

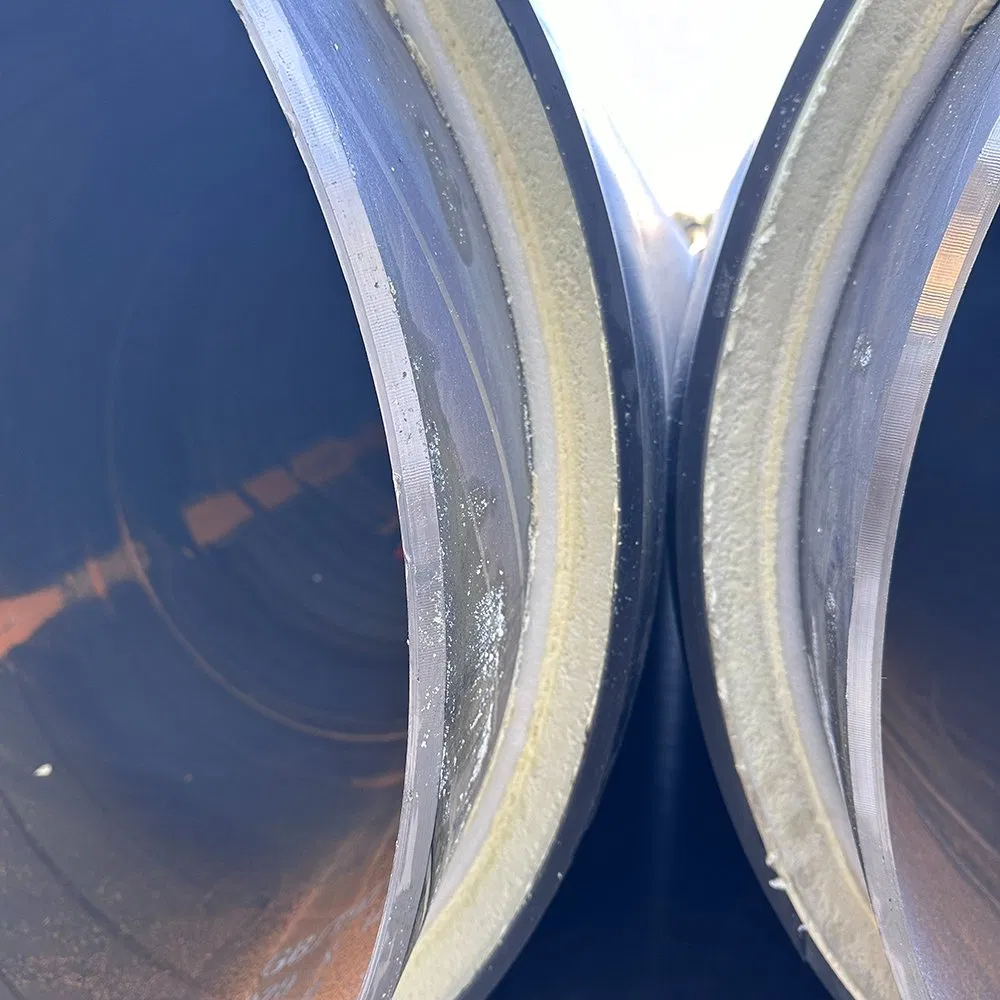

Insulation Layer: rigid PU foam
Production Capacity: 250-1600 kg/h (material-dependent)

Style	PE-110/500	PE-655/1380	PE-960/1860	PE-1155/2200
Main Extruder	SJ-75/33	SJ-120/33	SJ-150/33	SJ-150/33
Pipe diameter	Φ110-600mm	Φ655-1380mm	Φ960-1860mm	Φ1155-2200mm
Capacity	250-350kg/h	700-900kg/h	1000-1200kg/h	1350kg/h
Installed power	160kw	480kw	580kw	650kw
Length	26m	36m	45m	45m

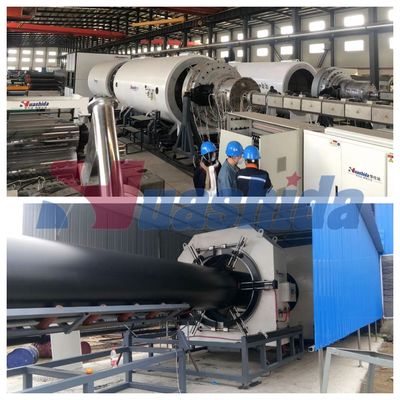

Production line composition:

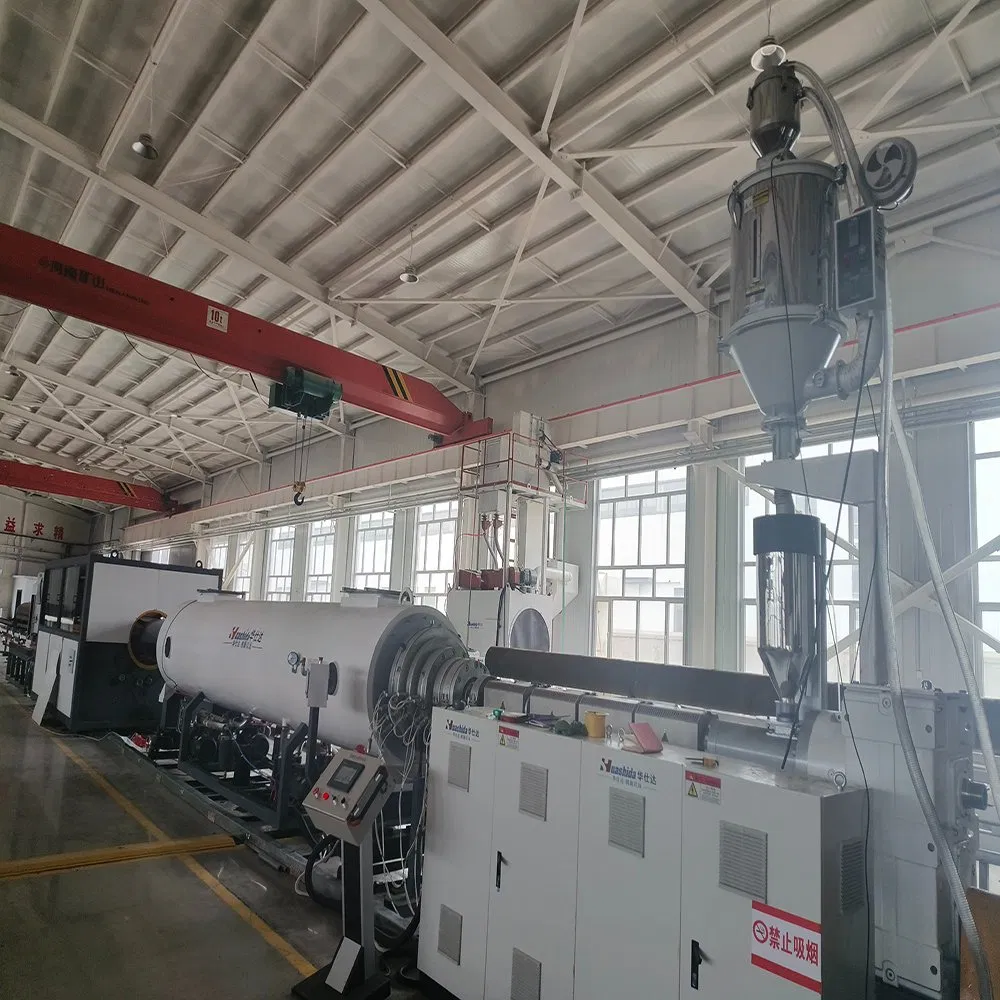

-1set   Vacuum loader
-1set   Hopper dryer
-1set   High-efficiency single screw extruder
-1set   Vacuum calibration table
-1set   Water spraying tank
-1set   Hauling machine
-1set   Cutting machine
-1set   Discharging Frame
-1set PLC

Technical Highlights:

HDPE Jacket Casing Pipe Extrusion Line with Siemens PLC Control for Ø110-2200 mm Pre-Insulated Pipes at 250-1600 kg/h 6

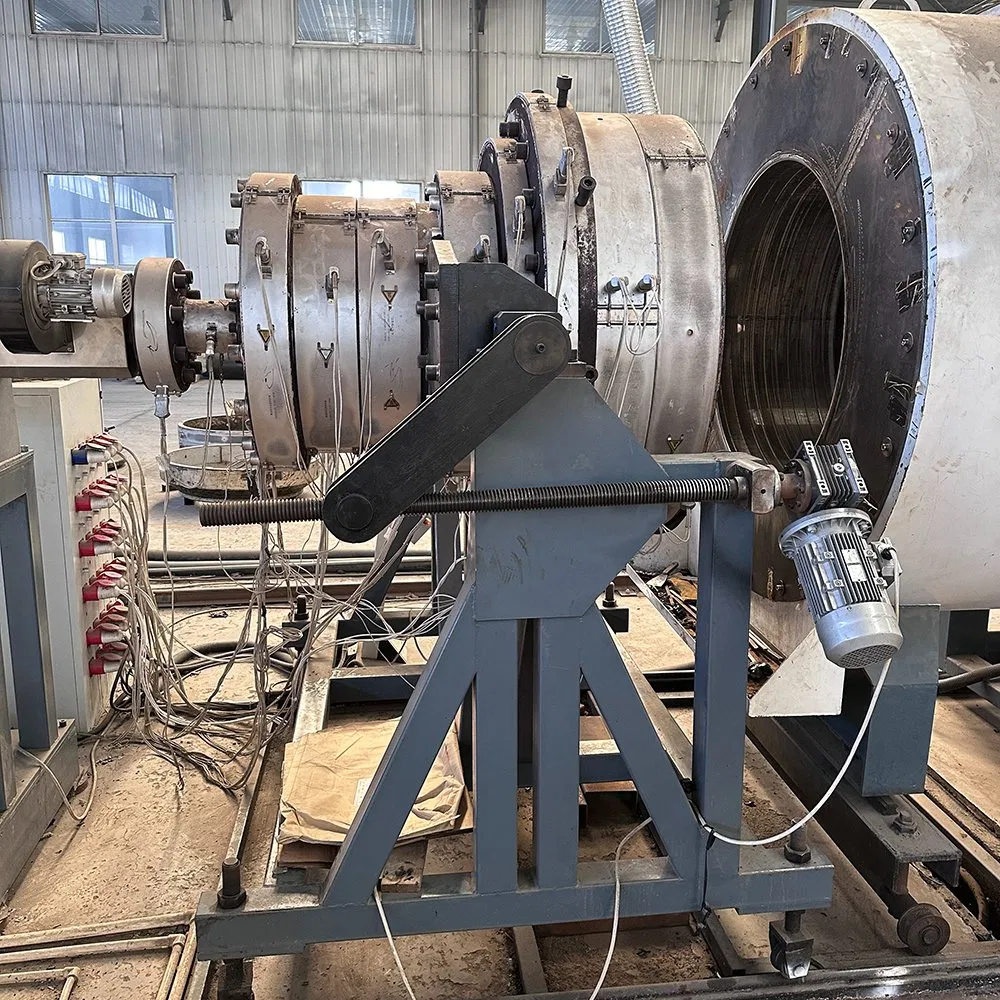

Single-screw extruder
Proprietary single-screw extruder optimized for polyethylene (PE) materials
Precision temperature control system ensures consistent material fusion

HDPE Jacket Casing Pipe Extrusion Line with Siemens PLC Control for Ø110-2200 mm Pre-Insulated Pipes at 250-1600 kg/h 7

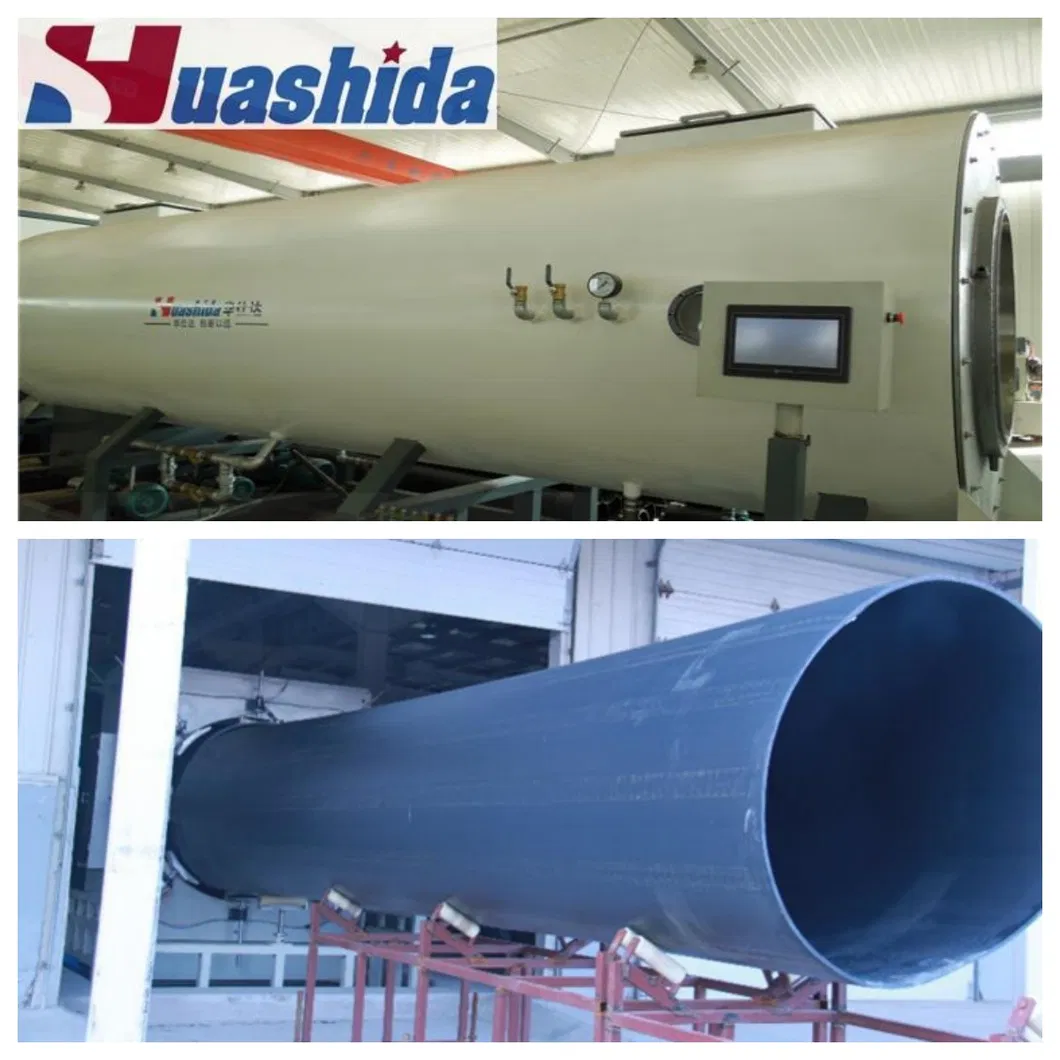

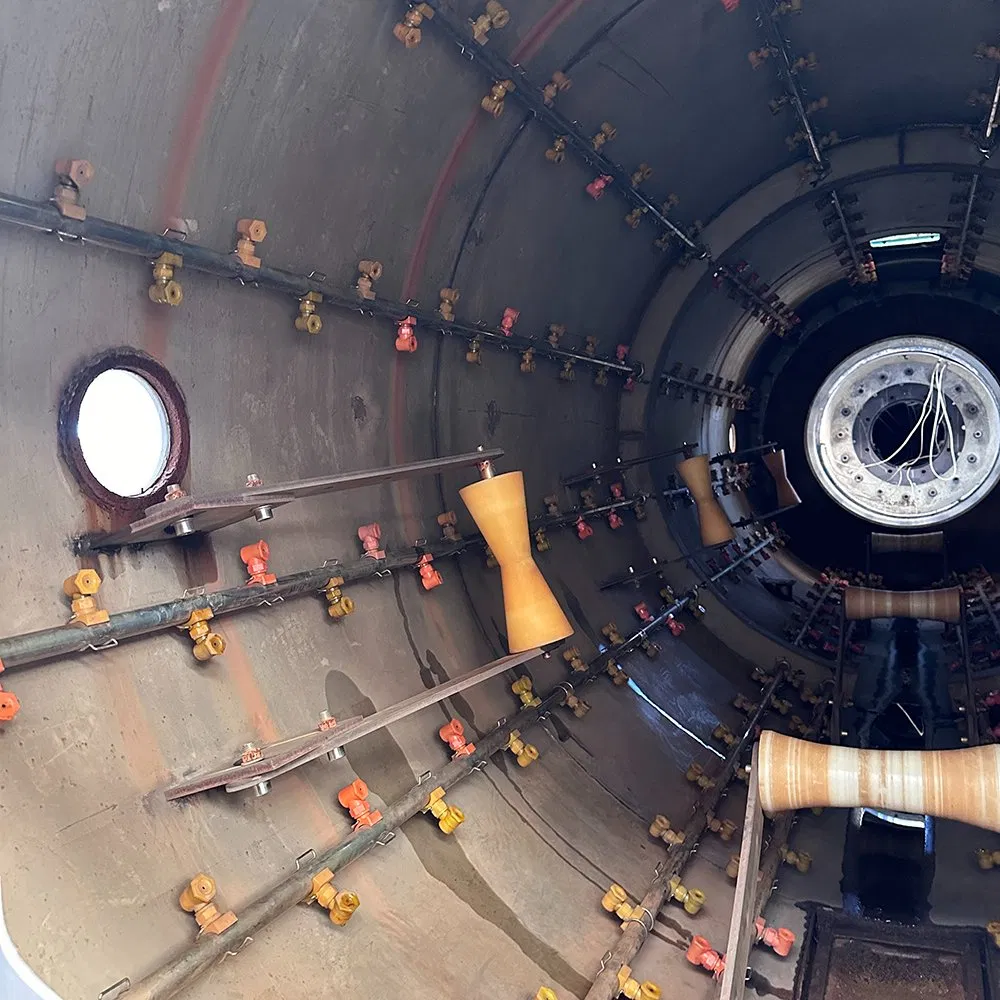

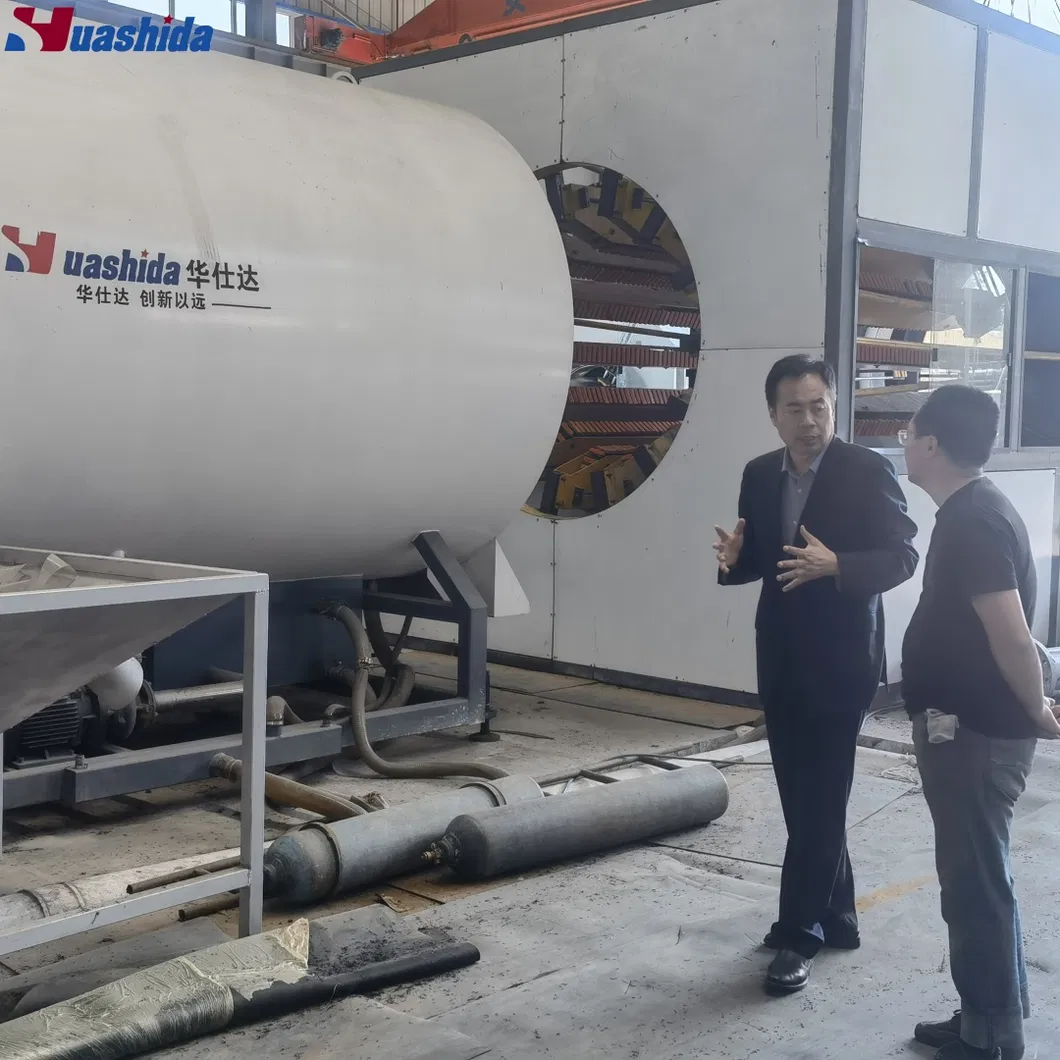

Vacuum Calibration
Vacuum calibration tank is mainly composed of frame, stainless steel tank, vacuum system, spray cooling system, position adjustment device. The vacuum pump exhausts the air from the sealed tank to pressurize the fresh pipe cling to calibrating copper sleeve and to calibrate the outer diameter. Spray nozzles spray cooling water from all directions on pipe surface to cool down the pipe promptly.

HDPE Jacket Casing Pipe Extrusion Line with Siemens PLC Control for Ø110-2200 mm Pre-Insulated Pipes at 250-1600 kg/h 8

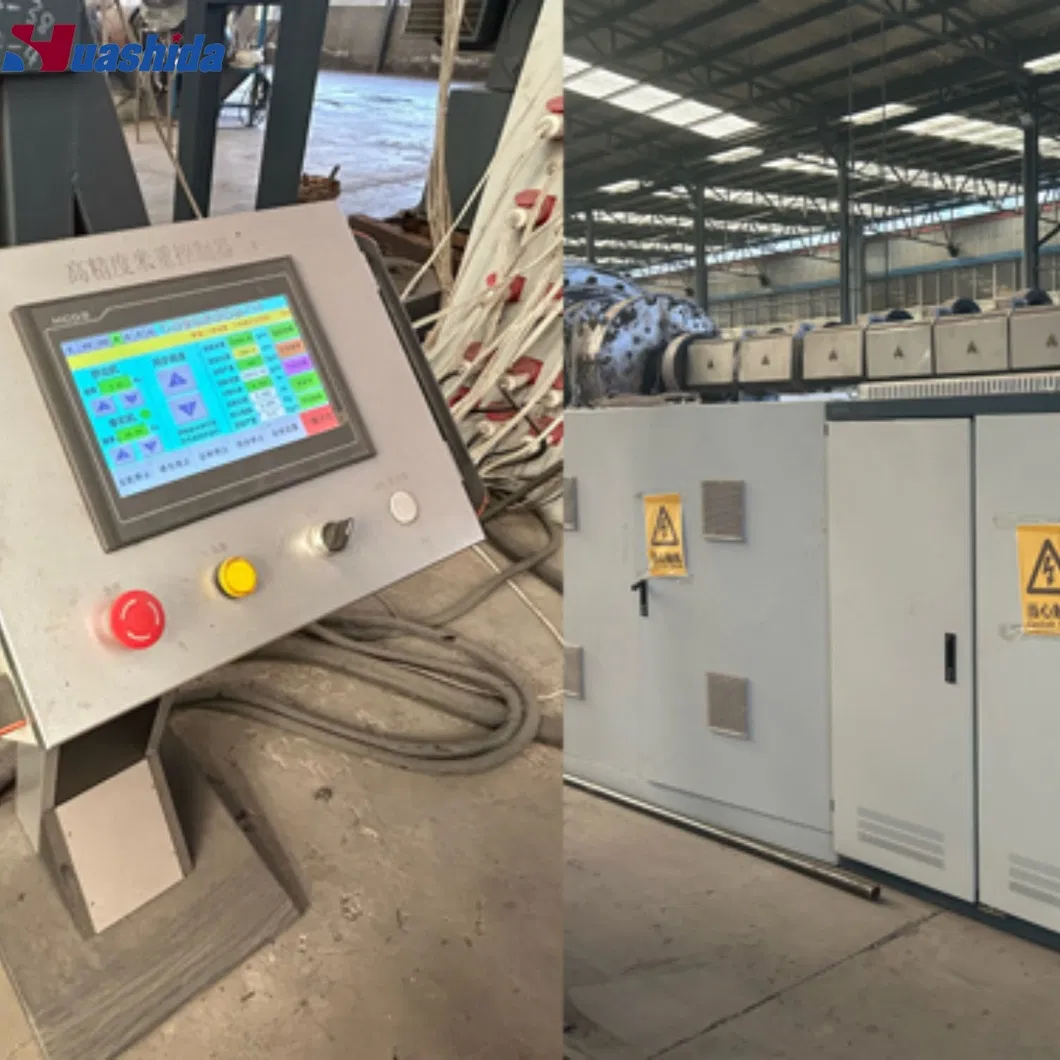

Smart Automation
Fully integrated PLC control system
Real-time process monitoring

HDPE Jacket Casing Pipe Extrusion Line with Siemens PLC Control for Ø110-2200 mm Pre-Insulated Pipes at 250-1600 kg/h 9

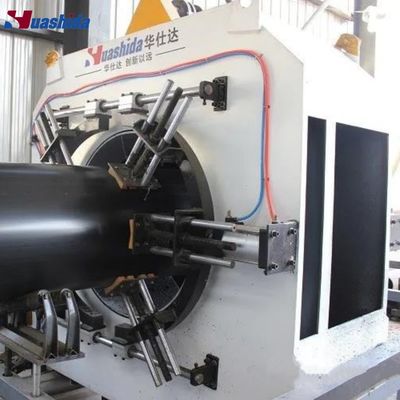

Haul-off Machine

The haul-off machine is mainly composed of driving device, tracks, clamping structure, adjusting system, side plate and foundation bed. Haul-off tracks are driven by AC motor with frequency conversion control to adapt to different extrusion speeds.
An automatic length measuring device realizes cutting at a set length.

HDPE Jacket Casing Pipe Extrusion Line with Siemens PLC Control for Ø110-2200 mm Pre-Insulated Pipes at 250-1600 kg/h 10

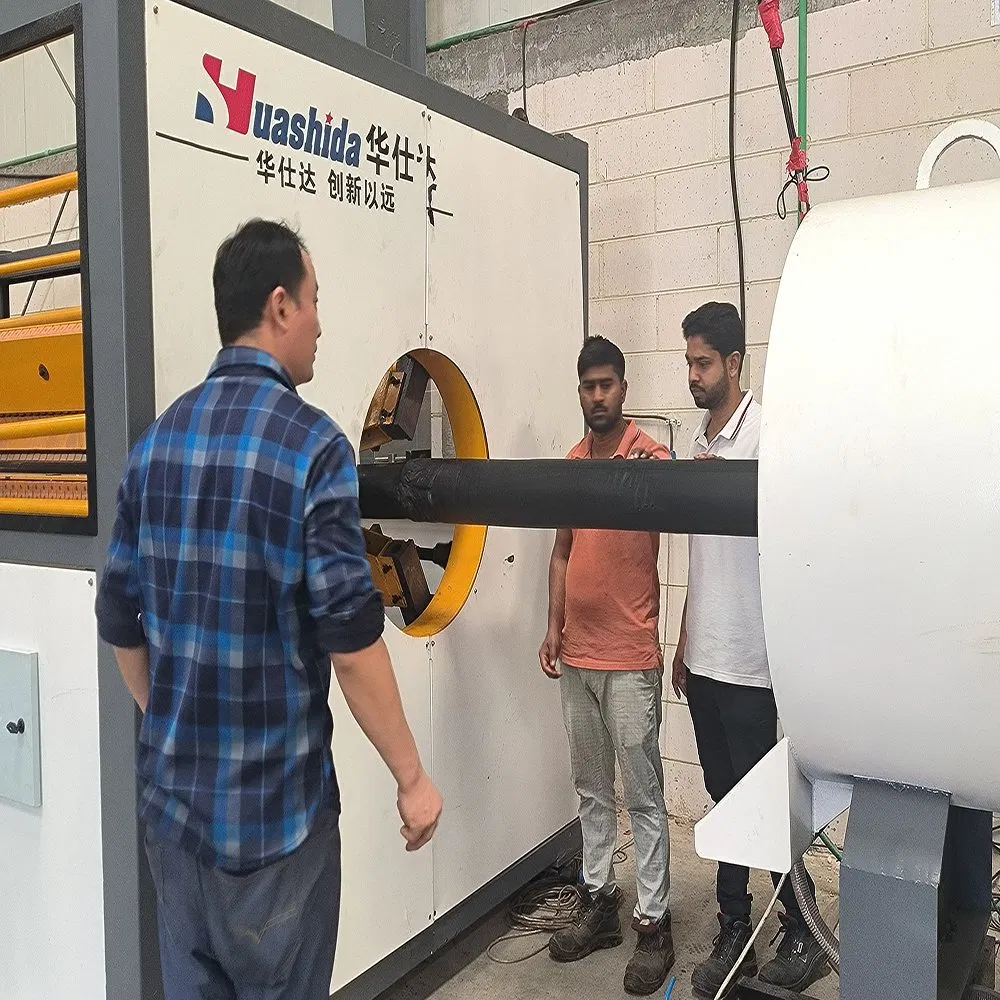

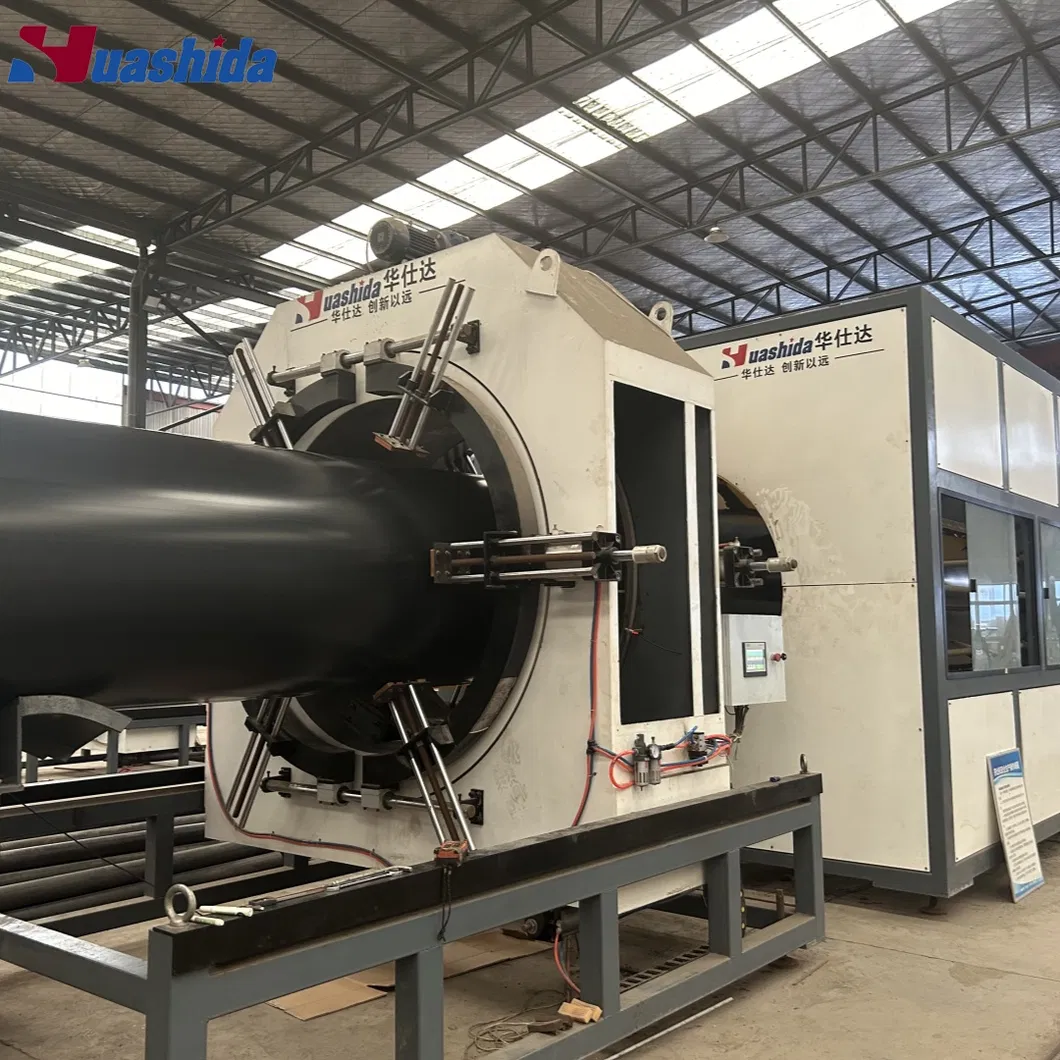

No-Dust Cutter
It adopts blade punching principle to realize no-dust cutting. It is mainly composed of cutting device, clamping device, structure synchronous movement device and frame.

Features of the HDPE sleeve production line:

1.small dimension
2.high degree of automation, can be operated by one person, saving labor costs
3.long service life.
4.high-efficiency extruder gives larger output, stable performance
5.pipe wall is average and smooth
6.no waste of raw material
7.One-time molding

The advantages of our company:

1.Provide a comprehensive and fully integrated production solution, including design, installation, commissioning, and training.
2.Share you 389 sets of production experience from all the world
3.Having 9 professional senior engineers
4.Having a high-end plastic machinery equipment expert workstation in China

HDPE Jacket Casing Pipe Extrusion Line with Siemens PLC Control for Ø110-2200 mm Pre-Insulated Pipes at 250-1600 kg/h 11

HDPE Jacket Casing Pipe Extrusion Line with Siemens PLC Control for Ø110-2200 mm Pre-Insulated Pipes at 250-1600 kg/h 12

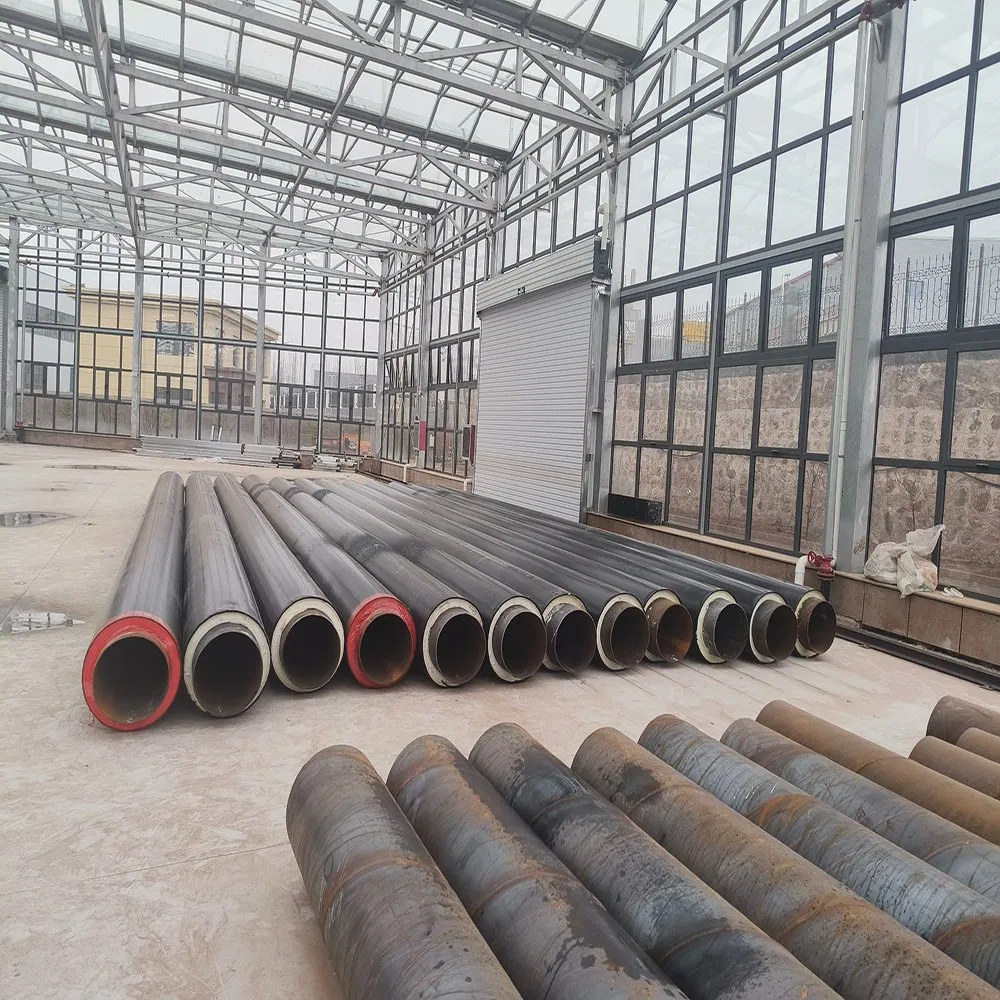

HDPE Jacket Casing Pipe Extrusion Line with Siemens PLC Control for Ø110-2200 mm Pre-Insulated Pipes at 250-1600 kg/h 13

Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation

Our Main Products Include:
HDPE Jacket Pipe Extrusion Line
3LPE Steel Pipe Anti-Corrosion Coating Line
Hollow Wall Spiral Pipe Production Line
Double Wall Corrugated Pipe Production Line
PE/PP Geo Membrane Production Line
PE/PP Sheet Board Extrusion Line
Rubber Foam Insulation Pipe Production Line
HDPE Welding Wire Welder Rode

Besides manufacturing machines, we also make Heat shrinkable sleeves and electro fusion sleeves and plastic welders, which are widely used as pipe joints and sealings of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines.

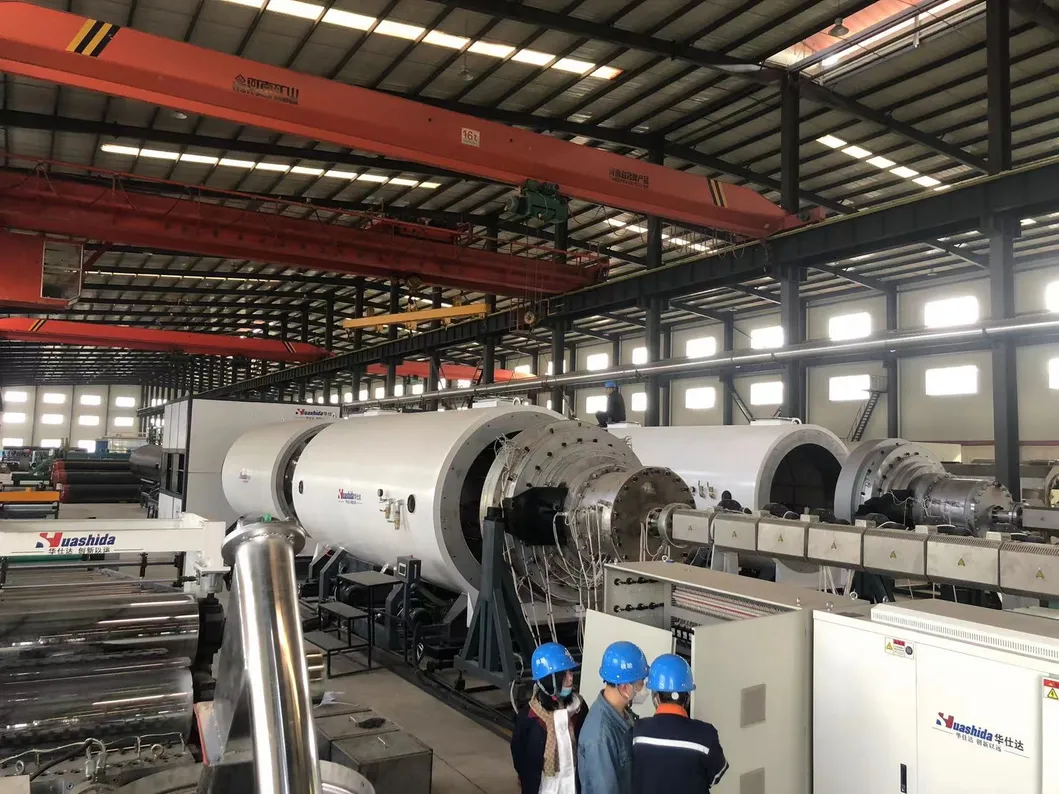

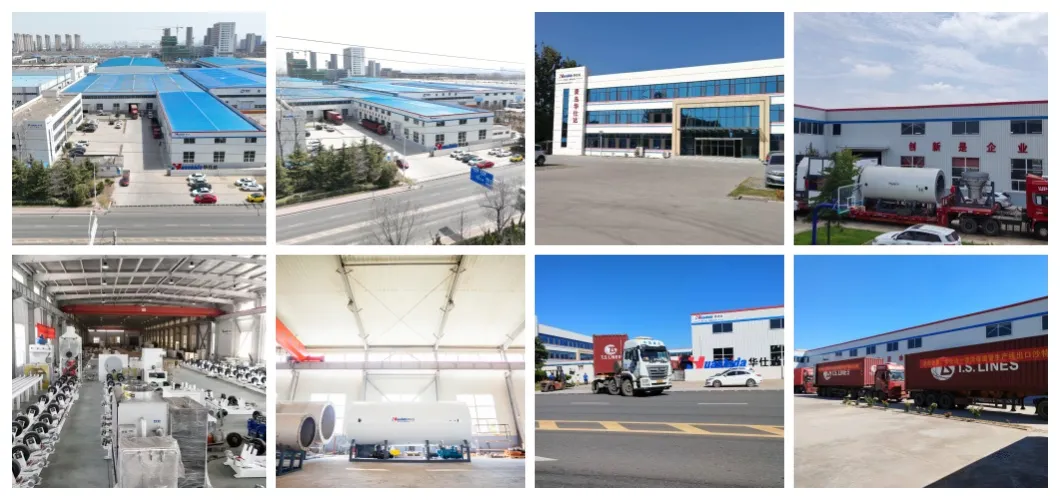

Factory overview
HDPE Jacket Casing Pipe Extrusion Line with Siemens PLC Control for Ø110-2200 mm Pre-Insulated Pipes at 250-1600 kg/h 14

Delivery

Exhibition

HDPE Jacket Casing Pipe Extrusion Line with Siemens PLC Control for Ø110-2200 mm Pre-Insulated Pipes at 250-1600 kg/h 17

HDPE Jacket Casing Pipe Extrusion Line with Siemens PLC Control for Ø110-2200 mm Pre-Insulated Pipes at 250-1600 kg/h 18

Tag:

Contact Person :	Mr. Lily
Tel :	+8615969839906
Fax :	86-532-80999083

HDPE Jacket Casing Pipe Extrusion Line with Siemens PLC Control for Ø110-2200 mm Pre-Insulated Pipes at 250-1600 kg/h

Siemens PLC Control HDPE Jacket Casing Pipe Extrusion Line

Ø110-2200 mm Pre-Insulated Pipe Production Line

250-1600 kg/h PU Foam Outer Protective Pipe Making Machine

Besides manufacturing machines, we also make Heat shrinkable sleeves and electro fusion sleeves and plastic welders, which are widely used as pipe joints and sealings of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines.

Pipe Making Machine

Pipe Extrusion Machine

pipe extrusion line

Insulated Foaming HDPE Pipe Extruder

65mm Rubber Foam Insulation Tube

Pre Insulated Pipe Extrusion Line

Polyethylene Jacket Casing Pipe SystemFor 110-1680mm Thermal Pre-Insulated Pipe

HDPE Pipe Extrusion Machine For Polyurethane Foam Preinsulated Pipe

HDPE PE Jacket Extruder Pipe Making Machine For Plastic Protective Pipe Production Line

HDPE Extrusion Jacket Pipe Machinery Supplier For Preinsulated Pipe Machine

Automatic Plastic Pipe Cutting Machine for Insulation Pipe Production Line Cutter
