Vacuum Calibrated HDPE Jacket Pipe Extrusion Equipment with High-Efficiency Extruder and Uniform Wall Thickness for Pre-Insulated Pipe Production

1
MOQ
US$200,000.00 - 1,000,000.00
Price
Vacuum Calibrated HDPE Jacket Pipe Extrusion Equipment with High-Efficiency Extruder and Uniform Wall Thickness for Pre-Insulated Pipe Production
Features Gallery Product Description Request A Quote
Features
Specifications
Raw Material: PE
HDPE Jacket Pipe Color: Can Be Customized
After-sales Service: Overseas Installation, Free Technical Supporting
Cutting Method: Dust-Free Planetary Cutting
Highlight:

Customizable Color HDPE Jacket Pipe Extrusion Equipment

,

High-Efficiency Extruder Pre-Insulated Pipe Production Line

,

Uniform Wall Thickness Vacuum Calibrated Extrusion Line
Basic Infomation
Place of Origin: QINGDAO,CHINA
Brand Name: HSD
Certification: CE
Model Number: 110-2200MM
Payment & Shipping Terms
Packaging Details: Standard Package
Delivery Time: 60DAYS
Payment Terms: L/C,T/T,Western Union,D/P
Supply Ability: 30 Sets/Year
Product Description
Vacuum Calibrated HDPE Jacket Pipe Extrusion Equipment for PPU Pre-Insulated Pipe Manufacturing



Product Description

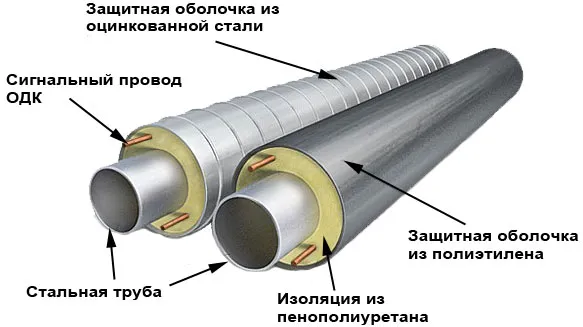

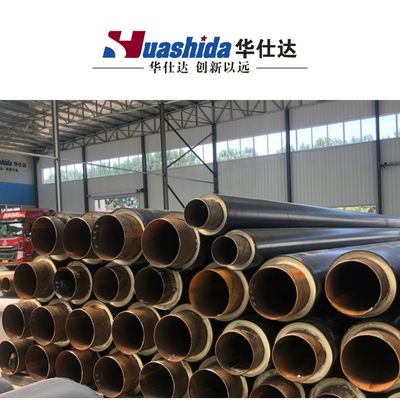

The pre-insulated HDPE jacket pipe extrusion line is a high-performance production solution designed for manufacturing protective HDPE outer casing pipes used in PU foam thermal insulation systems.
By adopting the vacuum calibration forming process, the line ensures excellent pipe roundness, uniform wall thickness, smooth surfaces, and strong durability.

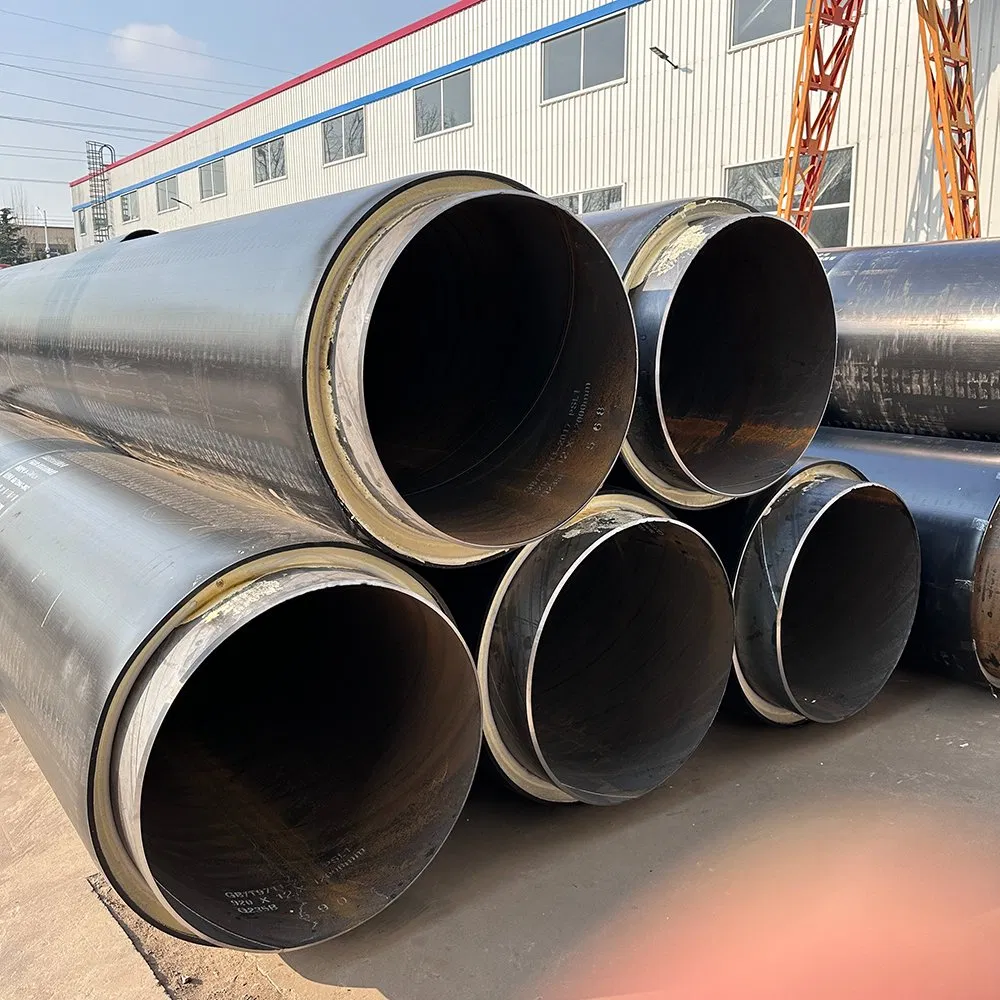

The finished jacket pipes feature outstanding corrosion resistance, stable thermal protection, long service life, and reliable mechanical strength, fully meeting international standards for pre-insulated pipeline systems.

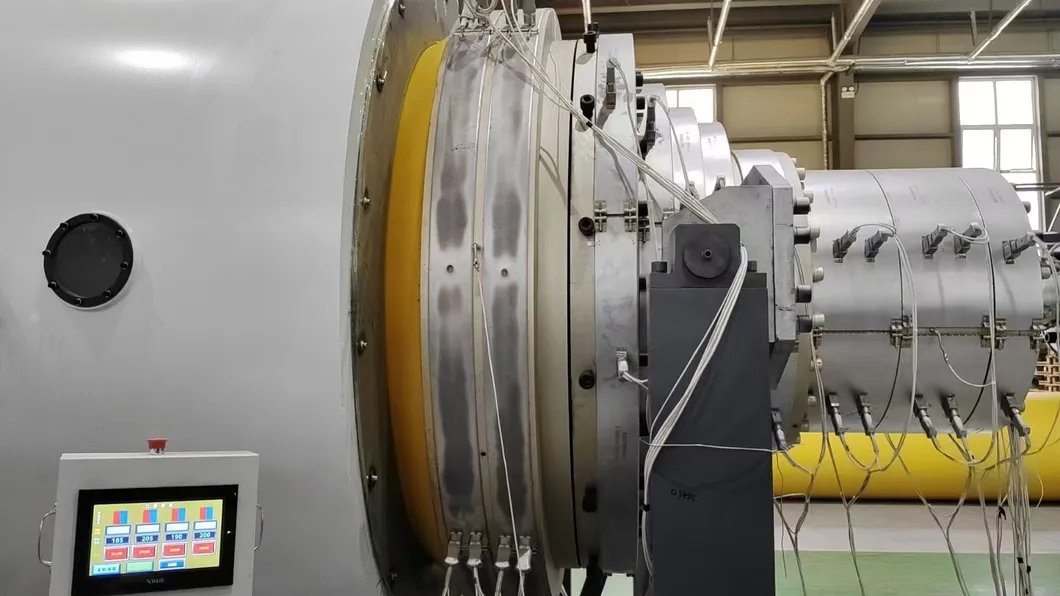

Vacuum Calibrated HDPE Jacket Pipe Extrusion Equipment with High-Efficiency Extruder and Uniform Wall Thickness for Pre-Insulated Pipe Production 0

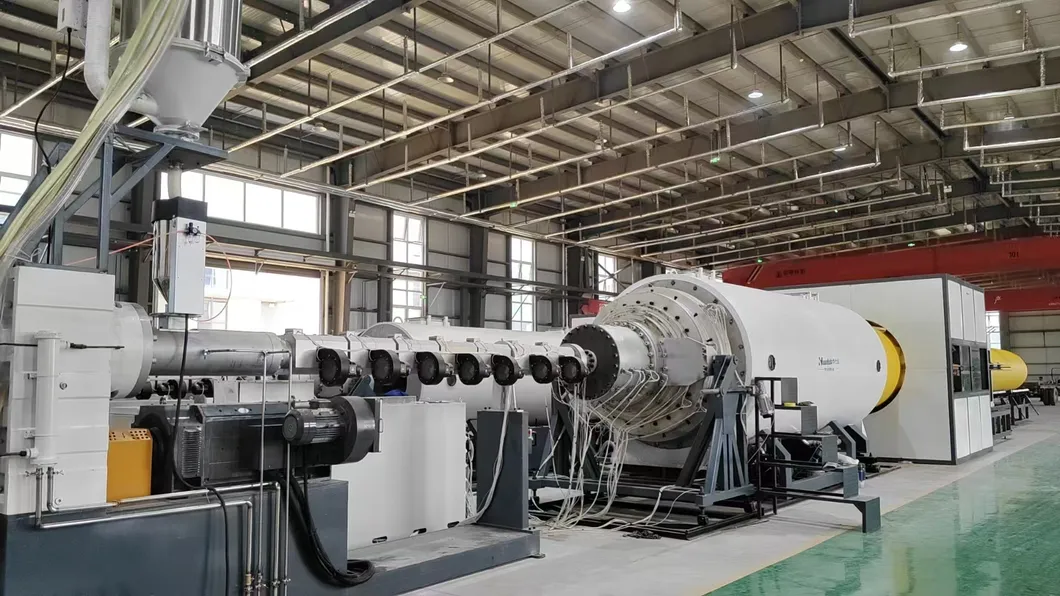

Vacuum Calibrated HDPE Jacket Pipe Extrusion Equipment with High-Efficiency Extruder and Uniform Wall Thickness for Pre-Insulated Pipe Production 1
Vacuum Calibrated HDPE Jacket Pipe Extrusion Equipment with High-Efficiency Extruder and Uniform Wall Thickness for Pre-Insulated Pipe Production 2


Product Parameters



Style PE-110/500 PE-655/1380 PE-960/1860 PE-1155/2200
Main Extruder SJ-75/33 SJ-120/33 SJ-150/33 SJ-150/33
Pipe diameter Φ110-600mm Φ655-1380mm Φ960-1860mm Φ1155-2200mm
Capacity 250-350kg/h 700-900kg/h 1000-1200kg/h 1350kg/h
Installed power 160kw 480kw 580kw 650kw
Length 26m 36m 45m 48m

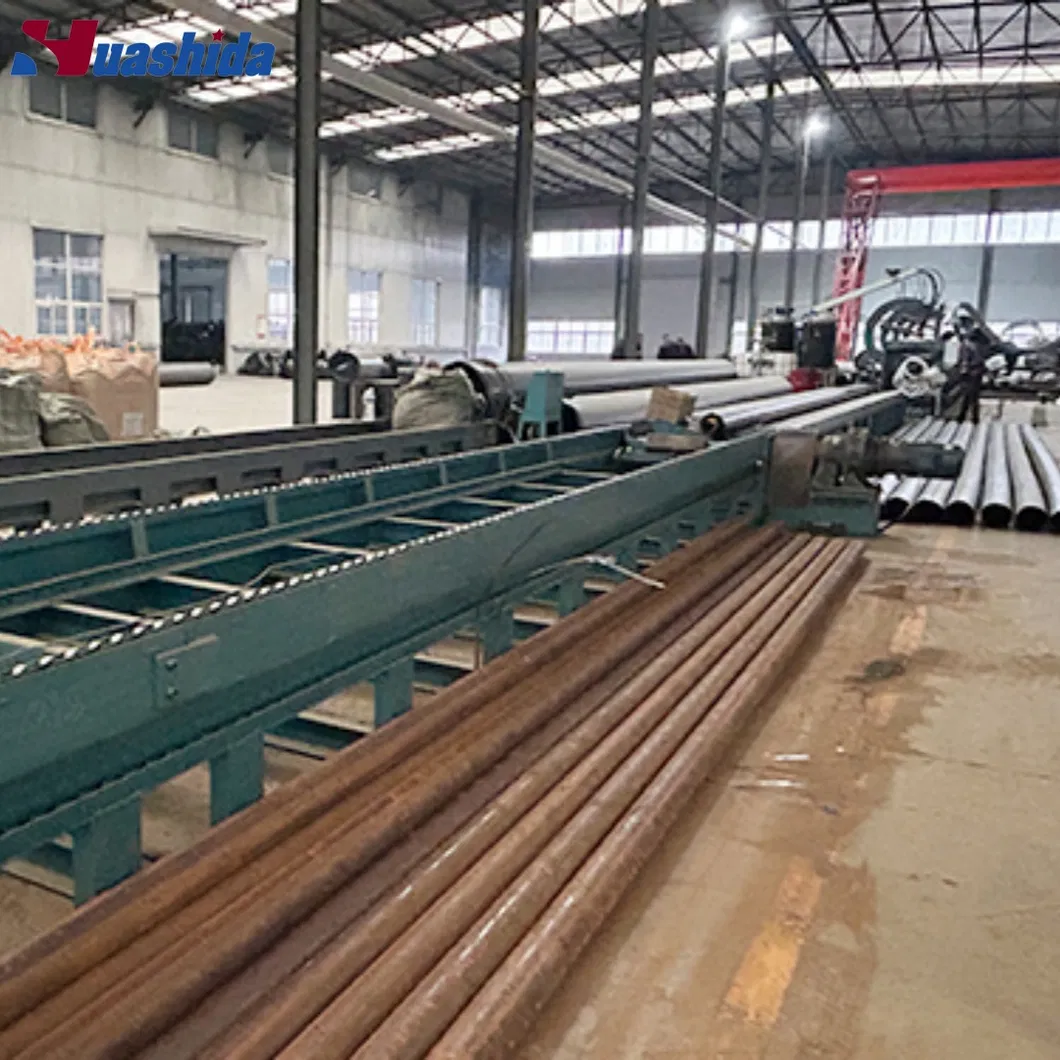

Production line composition:

-1set   Vacuum loader
-1set   Hopper dryer
-1set   High-efficiency single screw extruder
-1set   Vacuum calibration table

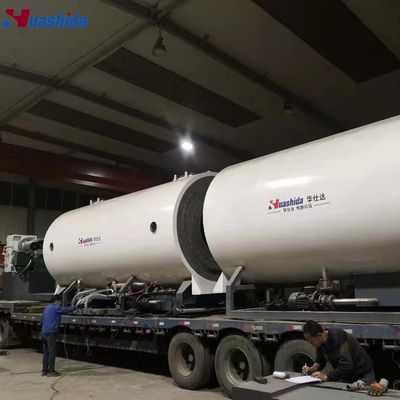

-1set   Water spraying tank
-1set   Hauling machine

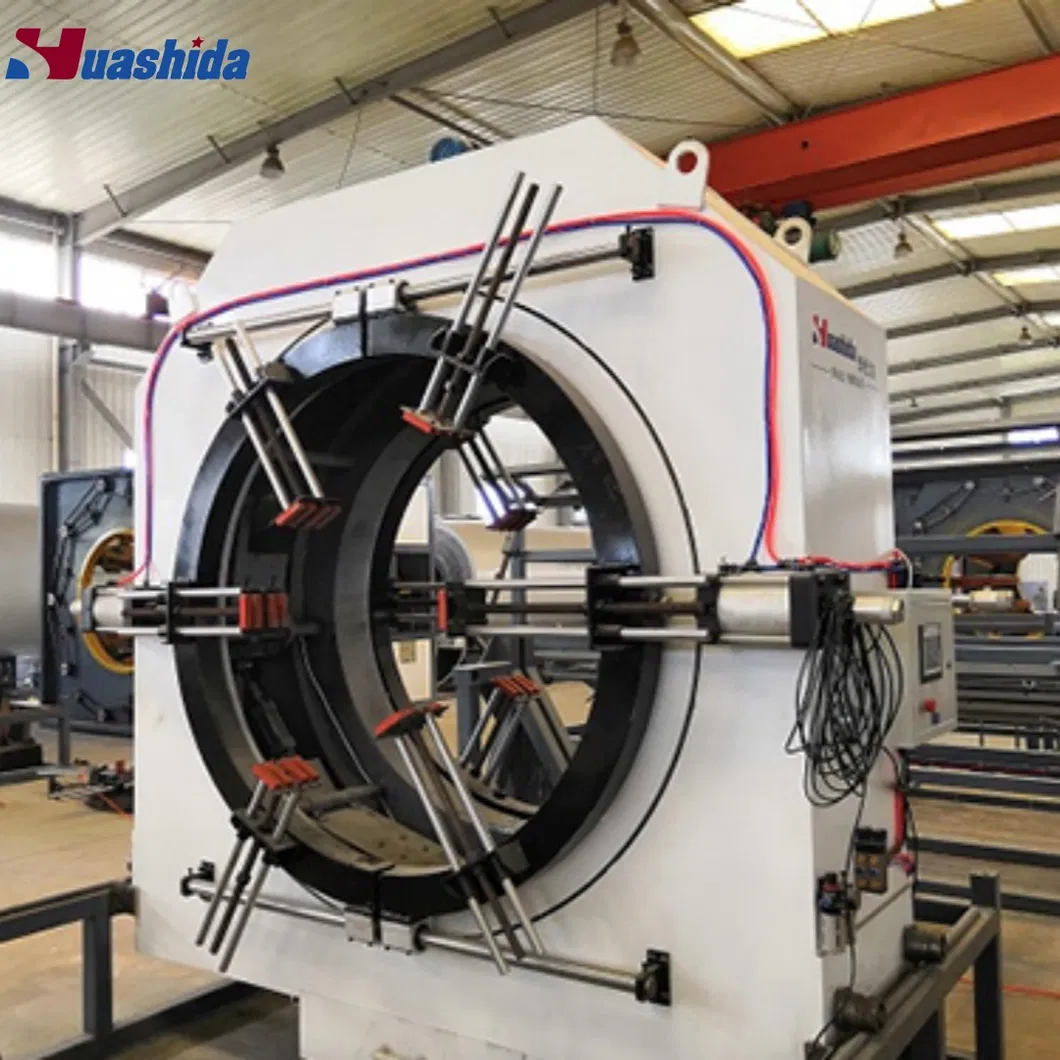

-1set   Cutting machine
-1set   Discharging Frame
-1set   PLC

Technical Highlights:

Single-screw extruder Precision temperature control system ensures consistent material fusion
Proprietary single-screw extruder optimized for polyethylene (PE) materials
Vacuum Calibration Patented vacuum calibration system replaces traditional internal pressure methods
Smart Automation Fully integrated PLC control system
Real-time process monitoring
Production Capabilities Diameter range: 110mm - 2200mm (customizable)
Output capacity: 250-1600 kg/h (material-dependent)




Our Advantages

Features of the HDPE sleeve production line:

1.small dimension
2.high degree of automation, can be operated by one person, saving labor costs
3.long service life.
4.high-efficiency extruder gives larger output, stable performance
5.pipe wall is average and smooth
6.no waste of raw material
7.One-time molding
Vacuum Calibrated HDPE Jacket Pipe Extrusion Equipment with High-Efficiency Extruder and Uniform Wall Thickness for Pre-Insulated Pipe Production 3Vacuum Calibrated HDPE Jacket Pipe Extrusion Equipment with High-Efficiency Extruder and Uniform Wall Thickness for Pre-Insulated Pipe Production 4Vacuum Calibrated HDPE Jacket Pipe Extrusion Equipment with High-Efficiency Extruder and Uniform Wall Thickness for Pre-Insulated Pipe Production 5

Vacuum Calibrated HDPE Jacket Pipe Extrusion Equipment with High-Efficiency Extruder and Uniform Wall Thickness for Pre-Insulated Pipe Production 6
Vacuum Calibrated HDPE Jacket Pipe Extrusion Equipment with High-Efficiency Extruder and Uniform Wall Thickness for Pre-Insulated Pipe Production 7

Vacuum Calibrated HDPE Jacket Pipe Extrusion Equipment with High-Efficiency Extruder and Uniform Wall Thickness for Pre-Insulated Pipe Production 8

Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!


Our Main Products Include:
HDPE Jacket Pipe Extrusion Line
https://hsdextruder.en.made-in-china.com/product/nUGpodSAarVq/China-HDPE-Insulation-Pipe-Extrusion-Machine-for-Supplying-Hot-Water-Oil-Pipeline.html

3LPE Steel Pipe Anti-Corrosion Coating Line
https://hsdextruder.en.made-in-china.com/product/EAnUkIvojTYJ/China-3lpe-3PE-Fbe-Anti-Corrosion-Insulation-Coating-Line-for-Trunk-Petroleum-Transport-Pipelines.html

Hollow Wall Spiral Pipe Production Line
https://hsdextruder.en.made-in-china.com/product/stZrvGPyCnYX/China-Durable-HDPE-Hollow-Wall-Corrugated-Pipe-Machine-Production-Line.html

Double Wall Corrugated Pipe Production Line
https://hsdextruder.en.made-in-china.com/product/uaCYpfkvstre/China-High-Density-Polyethylene-Double-Wall-Corrugated-Pipe-Production-Line-for-Drainage-Water.html

PE/PP Geo Membrane Production Line
https://hsdextruder.en.made-in-china.com/product/SfypzaVGOnYF/China-HDPE-Plastic-Geo-Membrane-Film-Extrusion-Line.html

PE/PP Sheet Board Extrusion Line
https://hsdextruder.en.made-in-china.com/product/ITrUKBnEBtRa/China-PE-PP-Pet-Multi-Layer-Sheets-Boards-Co-Extrusion-Line.html

Rubber Foam Insulation Pipe Production Line
https://hsdextruder.en.made-in-china.com/product/WafrnuQwRERF/China-PVC-NBR-Nitrile-Rubber-Foam-Insulation-Sheet-Tube-Production-Line-with-Thickness-9mm-13mm-19mm.html


HDPE Welding Wire Welder Rods

https://hsdextruder.en.made-in-china.com/product/OfIpGDJSmEUQ/China-HDPE-Welding-Wire-Plastic-Welding-Rod-Colored-Welder-Rods.html


Besides manufacturing machines, we also make Heat shrinkable sleeves and electro fusion sleeves and plastic welders, which are widely used as pipe joints and sealings of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines.
