Name: High-Output Energy-Efficient HDPE Jacket Pipe Extrusion Line for Smooth Internal and External Walls
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: 110-2200MM
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Type: Plastic Pipe

Plastic Processed: PE

Application: For Producing Pre-Insulated Pipe Jacket

Use For: Central Heating, Cooling Oil & Gas Transmission

Highlight:

High-Output HDPE Jacket Pipe Extrusion Line

Energy-Efficient Pre-Insulated Pipe Production Line

Smooth Internal and External Walls PU Foam Pre-Insulated Pipe Extrusion Equipment

Basic Infomation

Place of Origin: QINGDAO,CHINA

Brand Name: HSD

Certification: CE

Model Number: 110-2200MM

Payment & Shipping Terms

Packaging Details: Standard Package

Delivery Time: 60DAYS

Payment Terms: D/A,T/T,MoneyGram

Supply Ability: 100 Unit/Year

Gallery

High-Output Energy-Efficient HDPE Jacket Pipe Extrusion Line for Smooth Internal and External Walls

Product Description

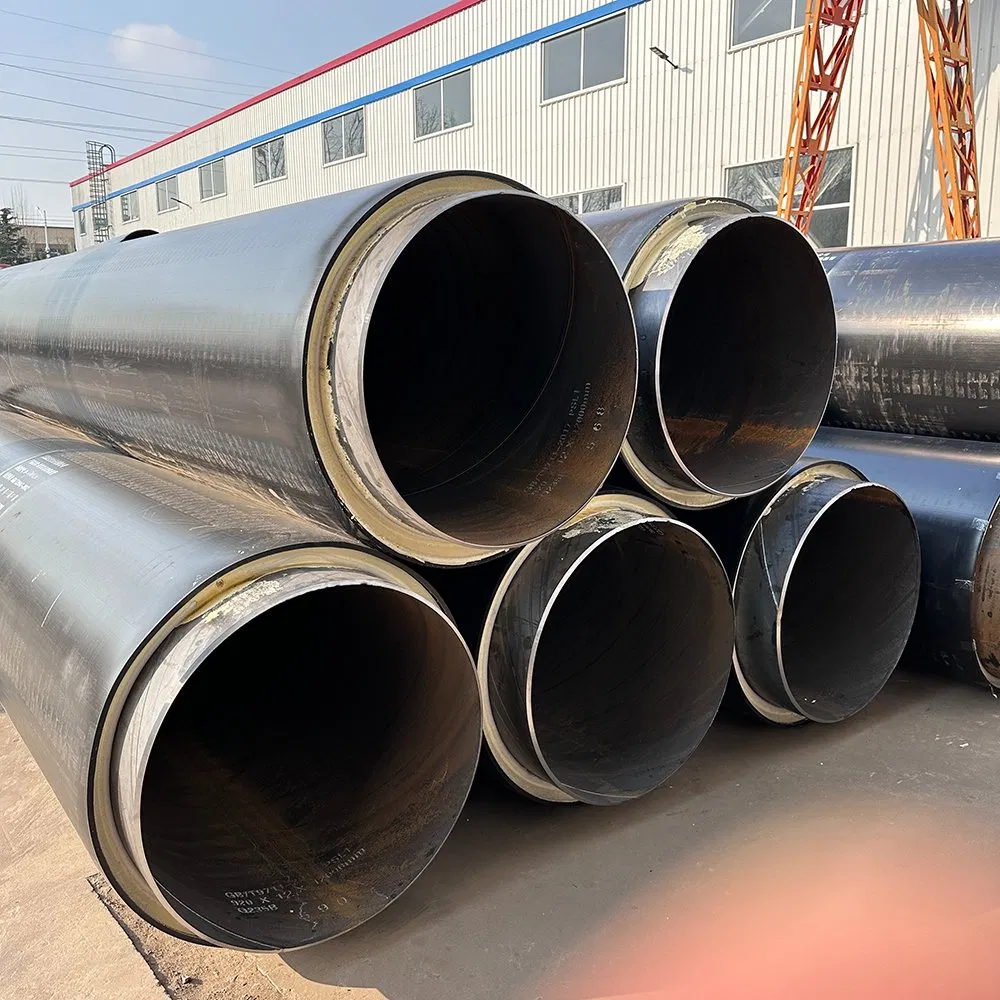

Underground Steel Pipe PU Pre-Insulation HDPE Jacket Pipe Extrusion Equipment

The HDPE Jacket Pipe Extrusion Line is a high-output, energy-efficient production system designed for manufacturing thin-wall HDPE outer casing pipes used for PU foam pre-insulated pipelines that comply with international standards.
The finished jacket pipe consists of a steel pipe, a PU polyurethane insulation layer, and a durable protective HDPE outer shell. Pipe Diameter Range: 110-2200mm

Main Advantages:
Utilizes a vacuum calibrating technique.
Ensures smooth internal and external walls.
Offers a long service life with excellent anti-corrosion properties.
High-efficiency extruder gives larger output, stable performance.

Typical Output Capacity:
SJ-75/33: 250-350 kg/h
SJ-120/33: 700-900 kg/h
SJ-150/33: 800-1200 kg/h

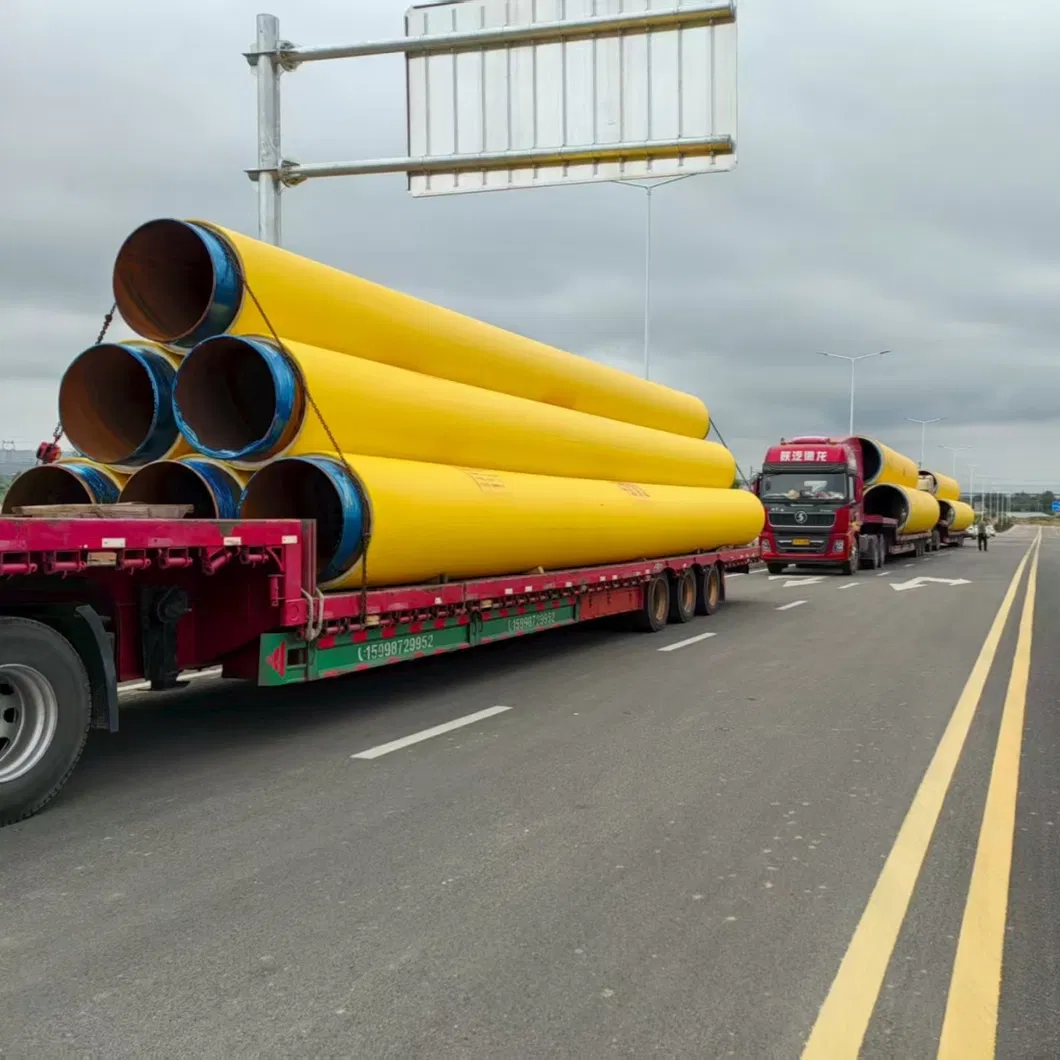

Pipe Usage:
HDPE jacket pipe is out case of thermal insulating pipe, which is widely used in central heating, oil, nature gas and other industrial area.

High-Output Energy-Efficient HDPE Jacket Pipe Extrusion Line for Smooth Internal and External Walls 0

High-Output Energy-Efficient HDPE Jacket Pipe Extrusion Line for Smooth Internal and External Walls 1

High-Output Energy-Efficient HDPE Jacket Pipe Extrusion Line for Smooth Internal and External Walls 2

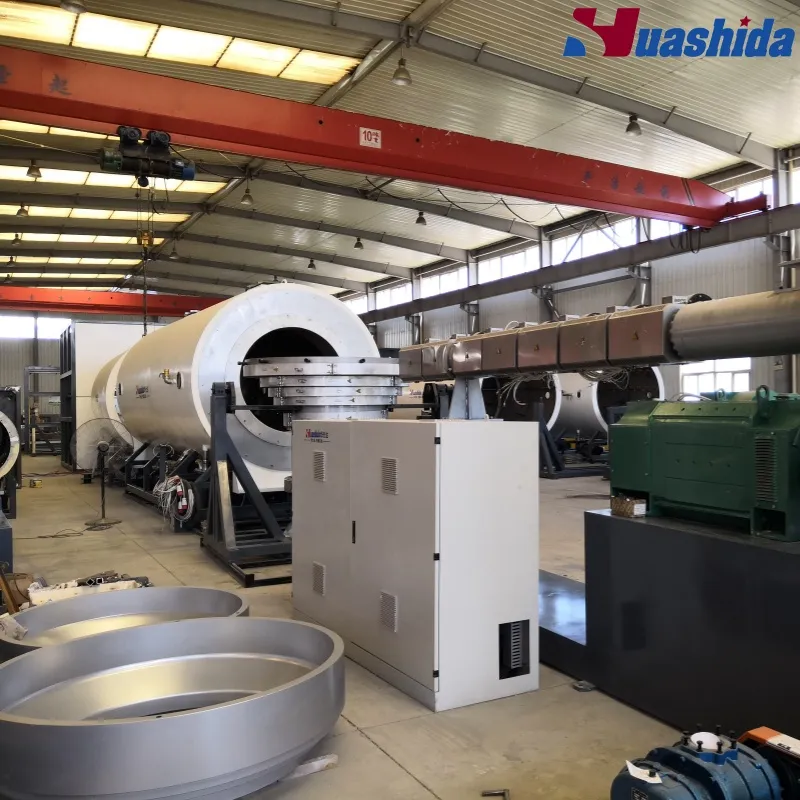

---The extrusion line comprise equipment and devices as below,
1set Vacuum loader
1set Hopper dryer
1set High-efficiency single screw extruder
1set 25/25 single screw extruder for mark line
1set Vacuum calibration table
1set Water spraying tank
1set Hauling machine
1set Cutting machine
1set Stacker

High-efficiency single screw extruder

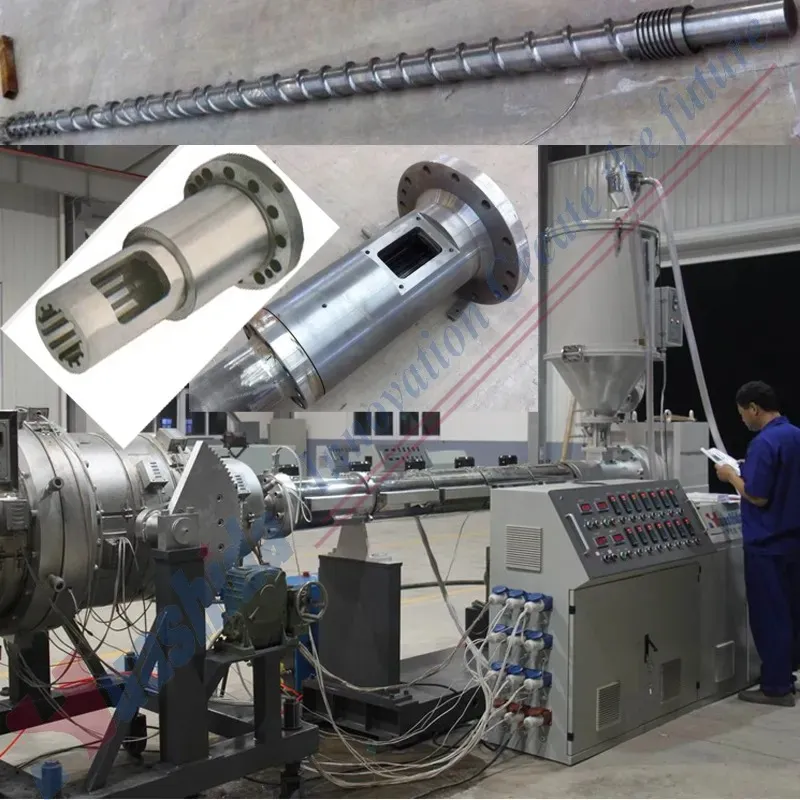

The screw is with barrier & mixing head; the barrel is a new model with slotting (channel). Both guarantee the good jellification, large output and stable performance of the extruder.

High-Output Energy-Efficient HDPE Jacket Pipe Extrusion Line for Smooth Internal and External Walls 3

Die-Head

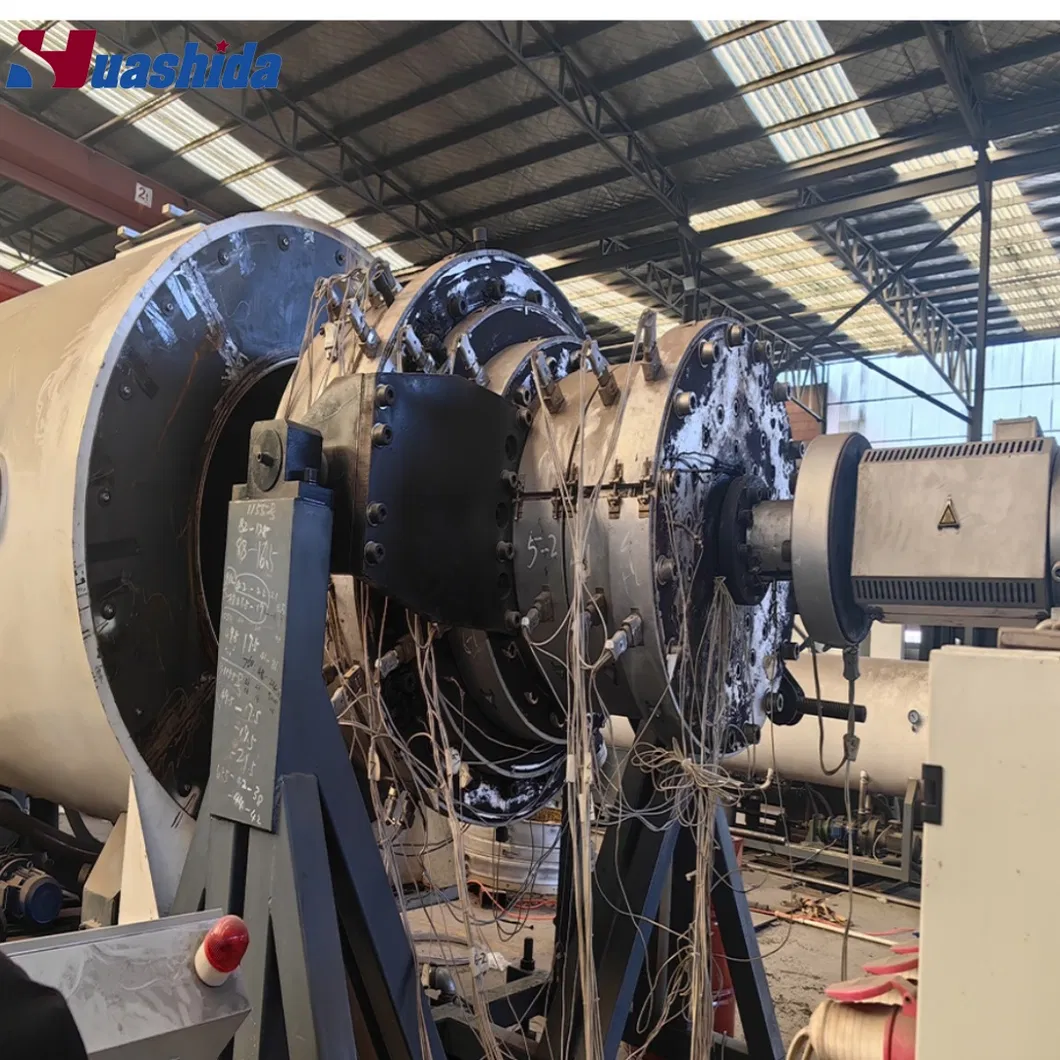

Die-head is mainly composed of mandril, neck mold, spiral body, cover, die-head body, bolts, and heating rings.

High-Output Energy-Efficient HDPE Jacket Pipe Extrusion Line for Smooth Internal and External Walls 4

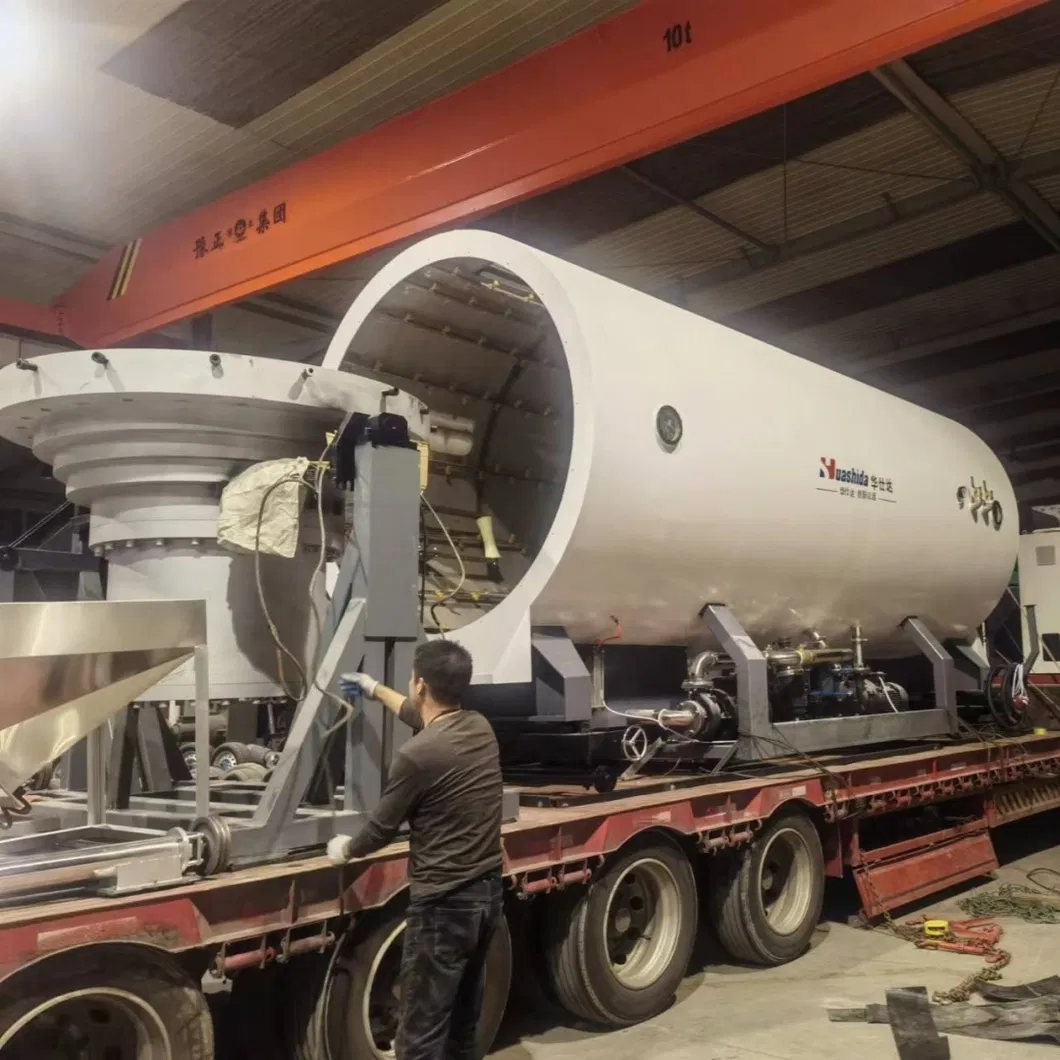

Vacuum Calibration Tank

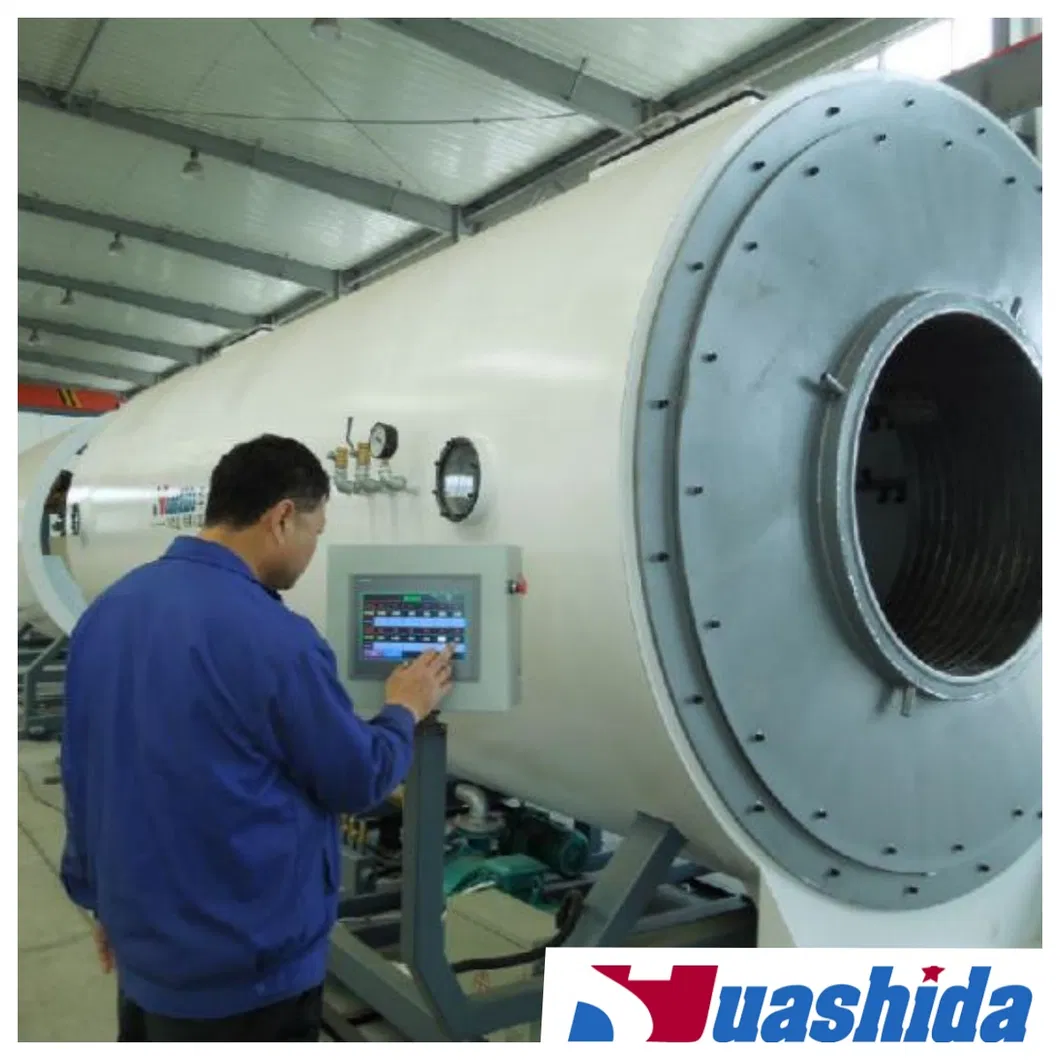

The vacuum calibration tank is mainly composed of a frame, stainless steel tank, vacuum system, spray cooling system, position adjustment device. Spray nozzles spray cooling water from all directions on pipe surface to cool down the pipe promptly.
High-Output Energy-Efficient HDPE Jacket Pipe Extrusion Line for Smooth Internal and External Walls 5

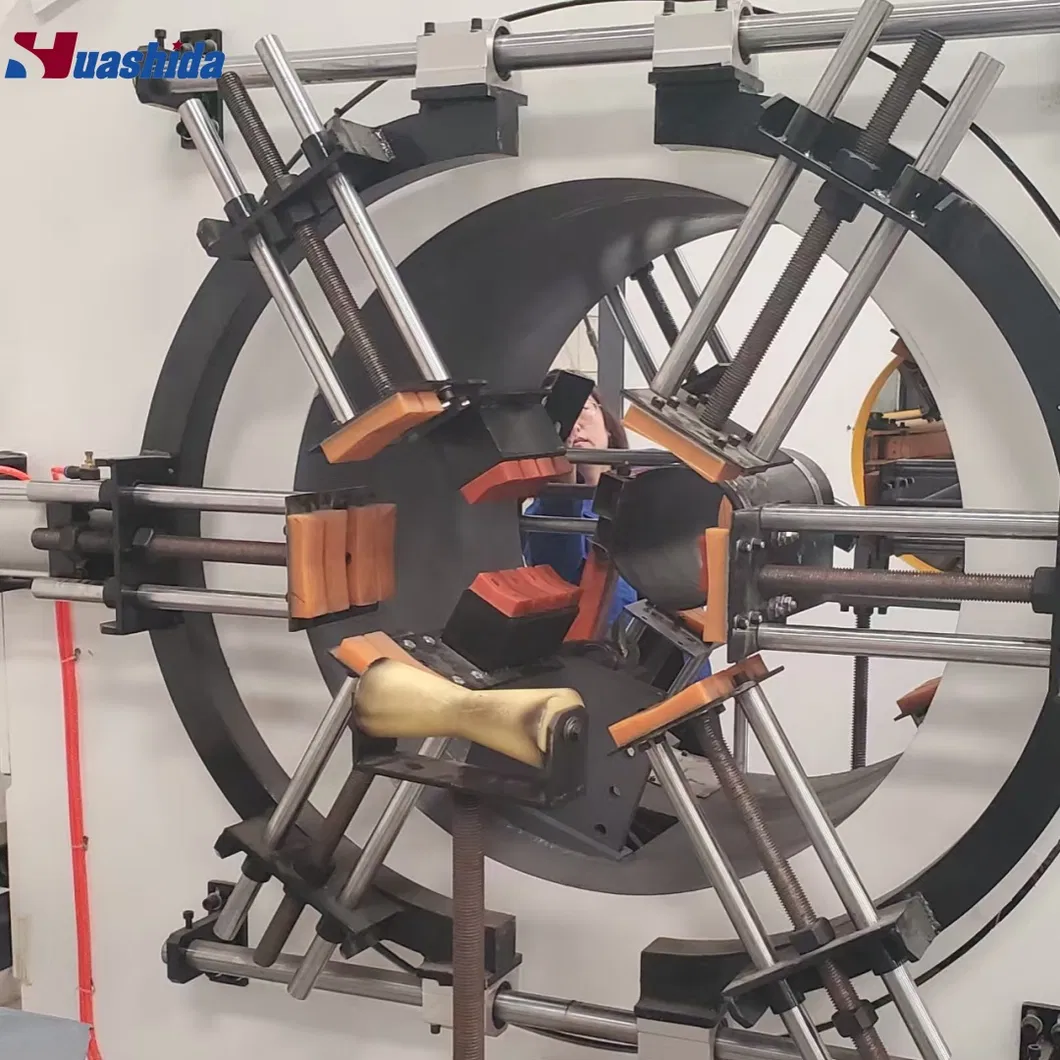

Haul-off Machine
The haul-off machine is mainly composed of a driving device, track, clamping structure, adjusting system, side plate and foundation bed. Haul-off caterpillars are driven by AC motor with frequency conversion control to adapt to different extrusion speeds.
High-Output Energy-Efficient HDPE Jacket Pipe Extrusion Line for Smooth Internal and External Walls 6

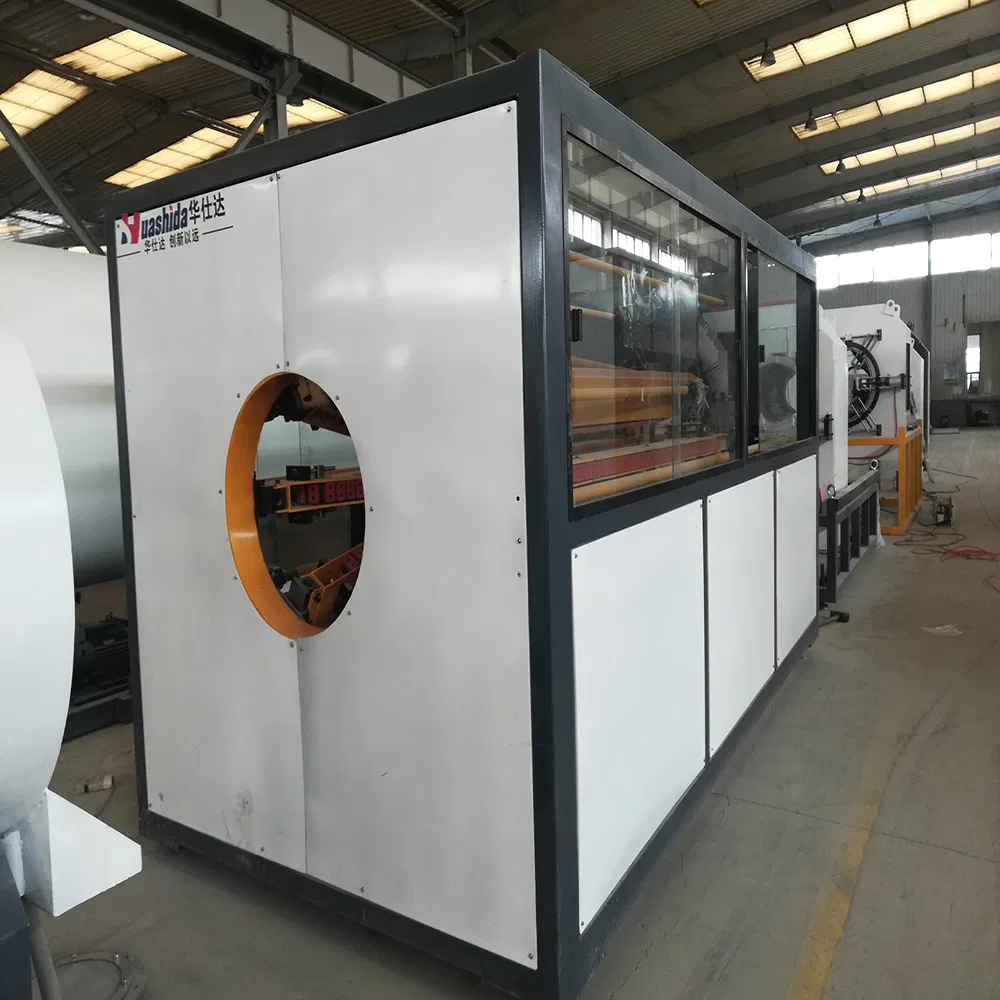

Chipless cutting
It adopts the blade punching principle to realize no-dust cutting.

High-Output Energy-Efficient HDPE Jacket Pipe Extrusion Line for Smooth Internal and External Walls 7

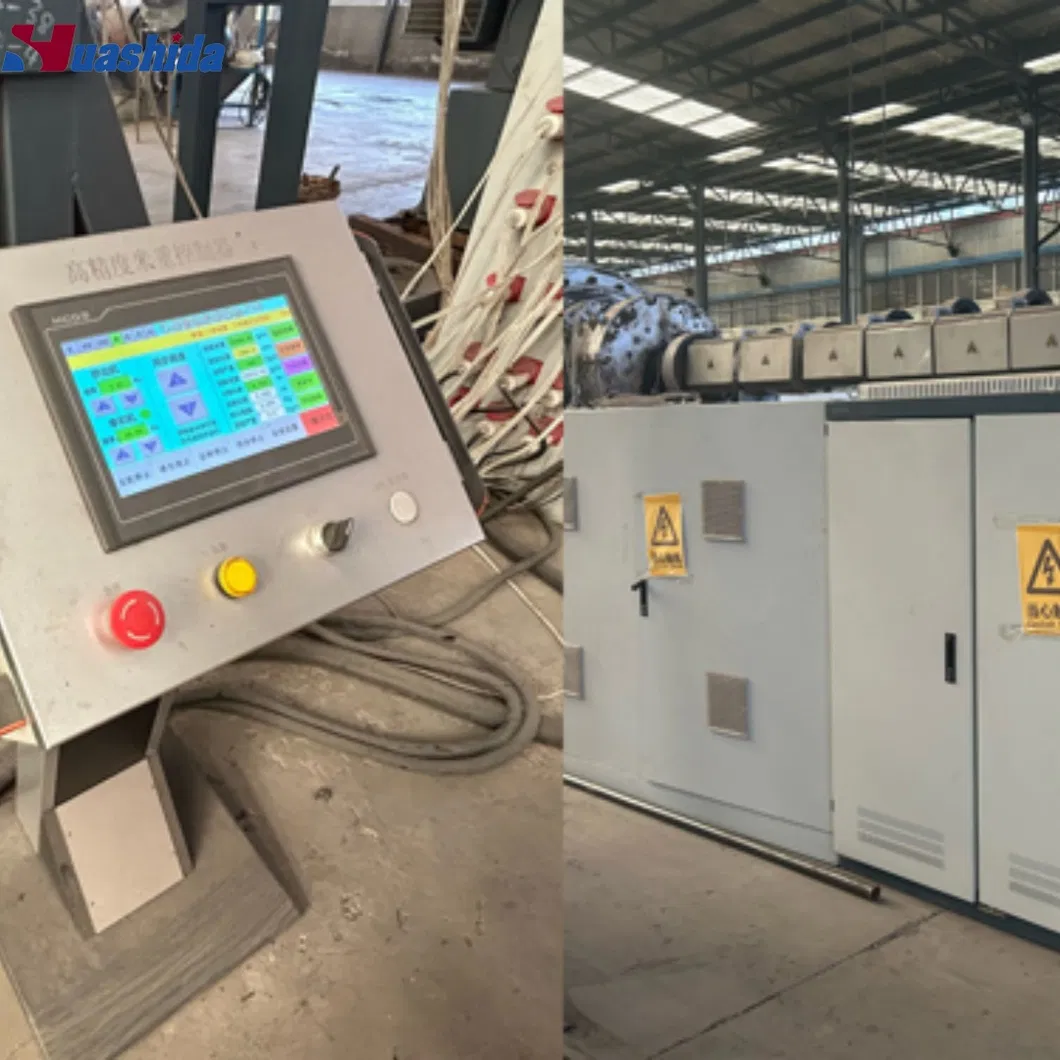

Control system
ABB frequency converter or EUROTHERM speed controller
Japan RKC temperature controller
SIEMENS AC contactors
A controlling system can be designed according to customers' requirements.
High-Output Energy-Efficient HDPE Jacket Pipe Extrusion Line for Smooth Internal and External Walls 8

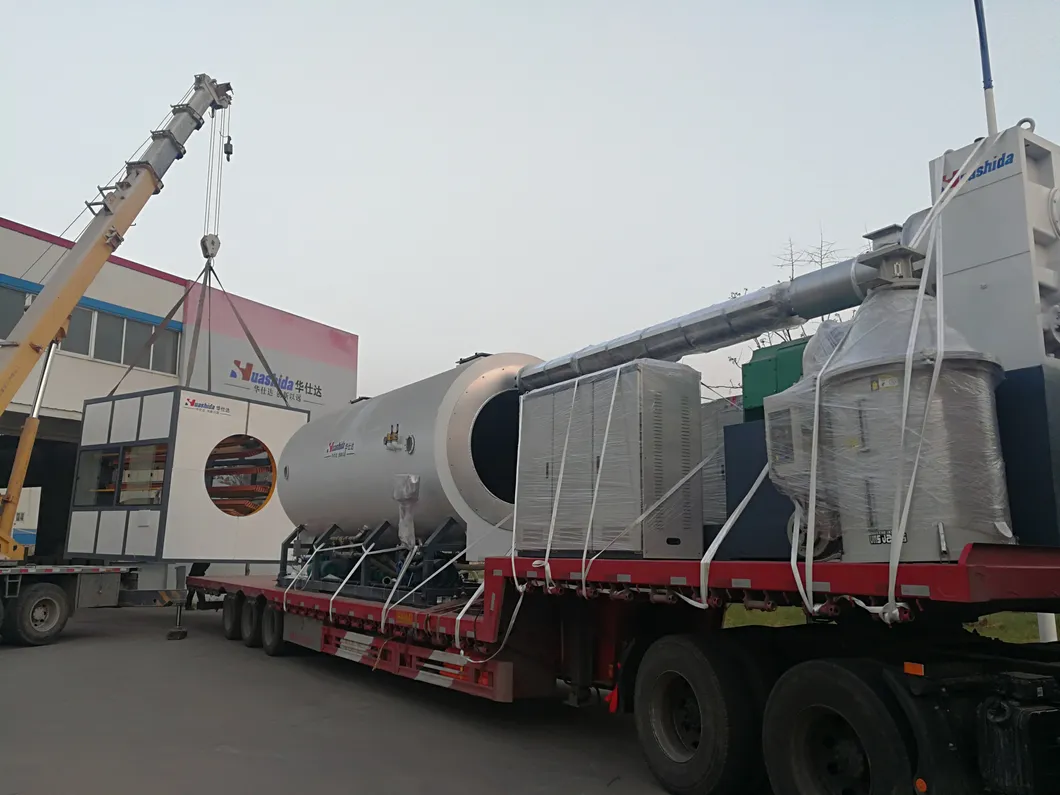

High-Output Energy-Efficient HDPE Jacket Pipe Extrusion Line for Smooth Internal and External Walls 9

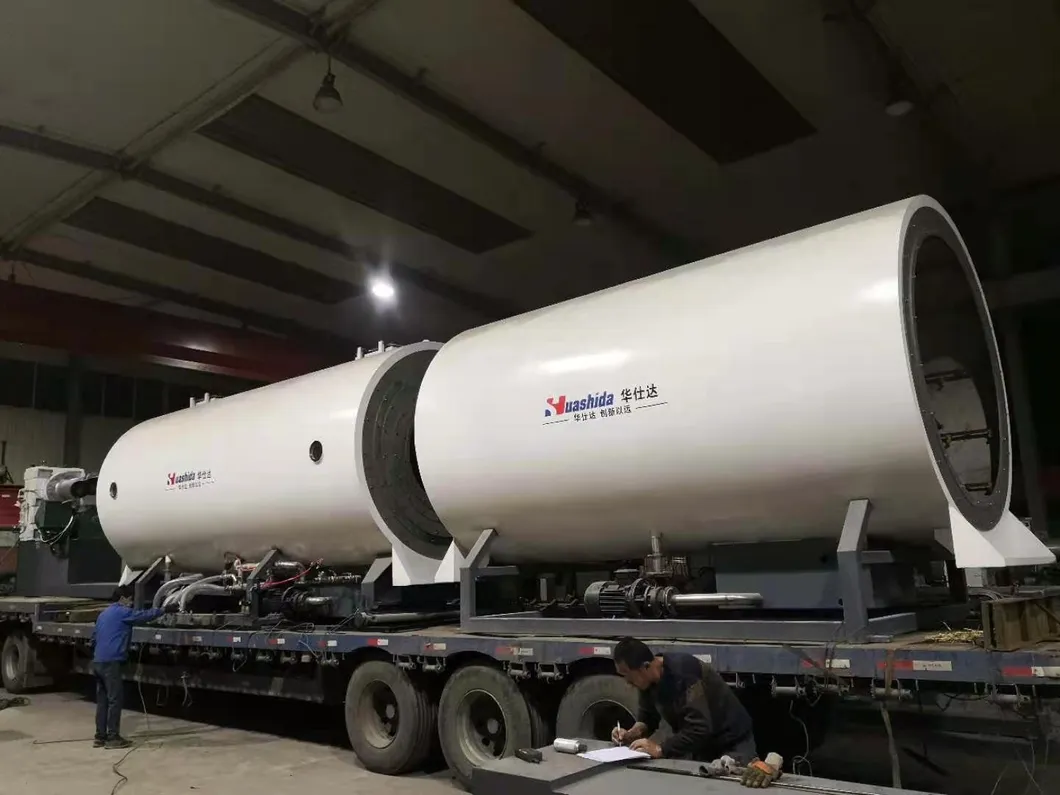

High-Output Energy-Efficient HDPE Jacket Pipe Extrusion Line for Smooth Internal and External Walls 10

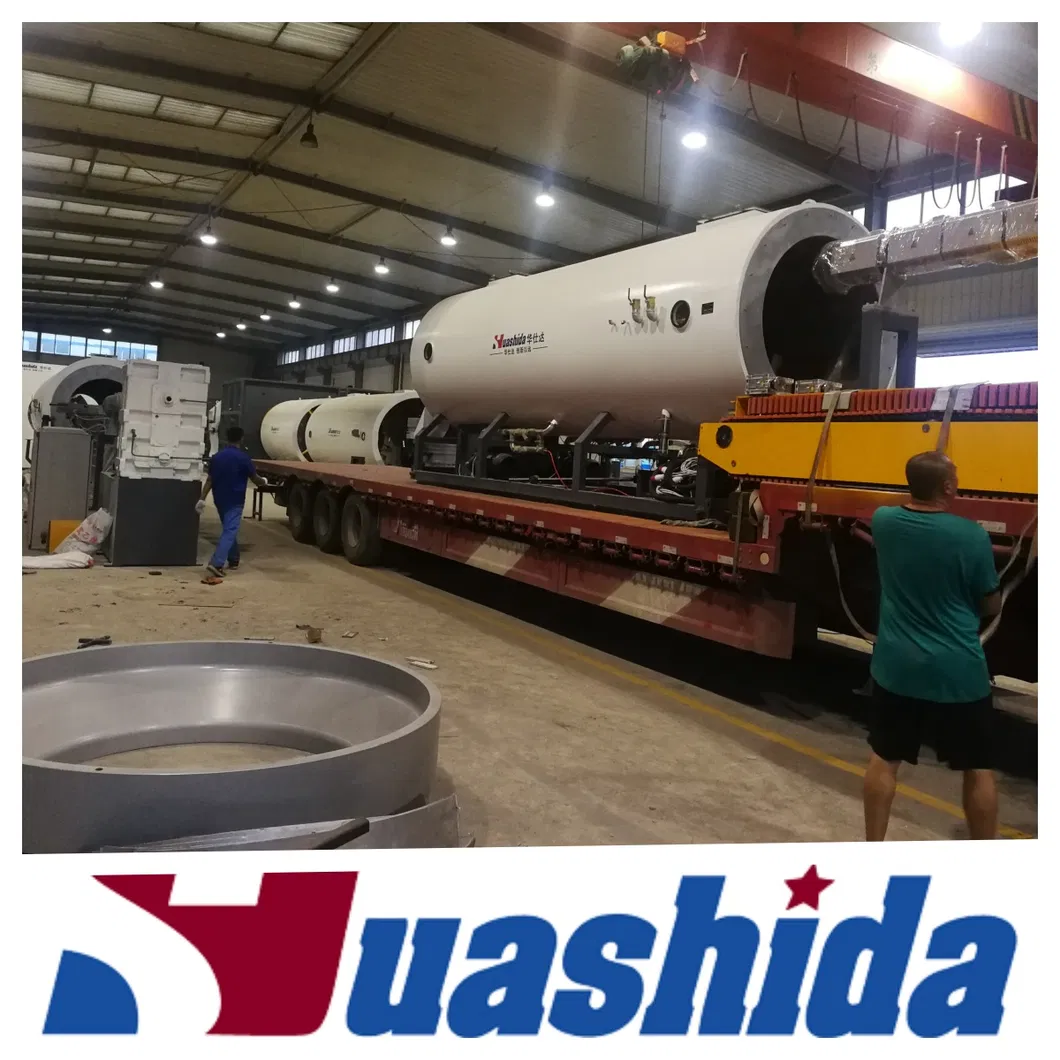

High-Output Energy-Efficient HDPE Jacket Pipe Extrusion Line for Smooth Internal and External Walls 11

High-Output Energy-Efficient HDPE Jacket Pipe Extrusion Line for Smooth Internal and External Walls 12

High-Output Energy-Efficient HDPE Jacket Pipe Extrusion Line for Smooth Internal and External Walls 13

High-Output Energy-Efficient HDPE Jacket Pipe Extrusion Line for Smooth Internal and External Walls 14

High-Output Energy-Efficient HDPE Jacket Pipe Extrusion Line for Smooth Internal and External Walls 15
