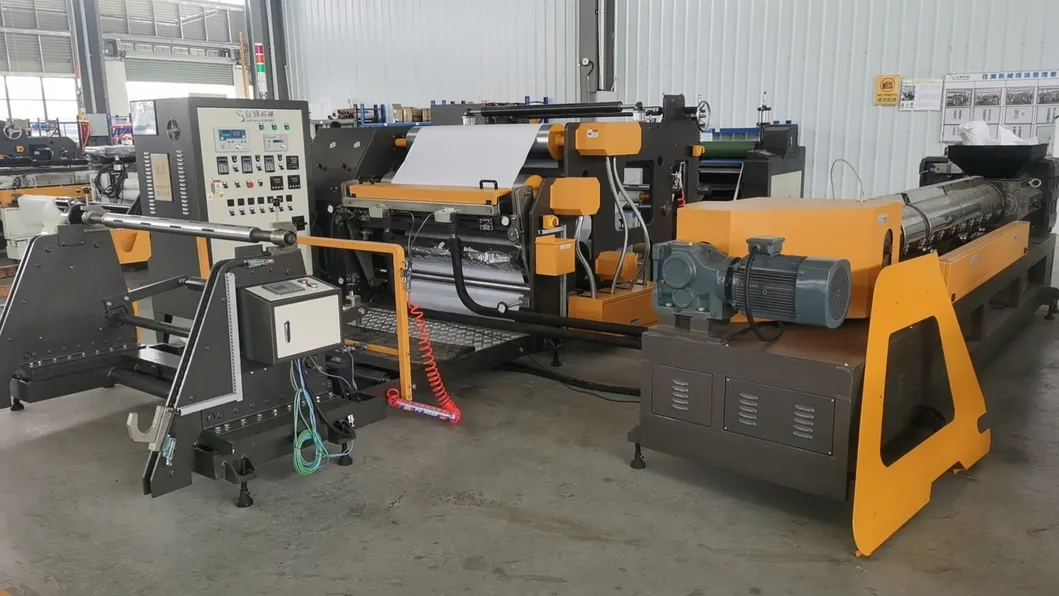

Huashida manufactures PE cold-applied anticorrosion tape production machines designed for pipeline corrosion protection in the oil, gas, petrochemical, and water industries.

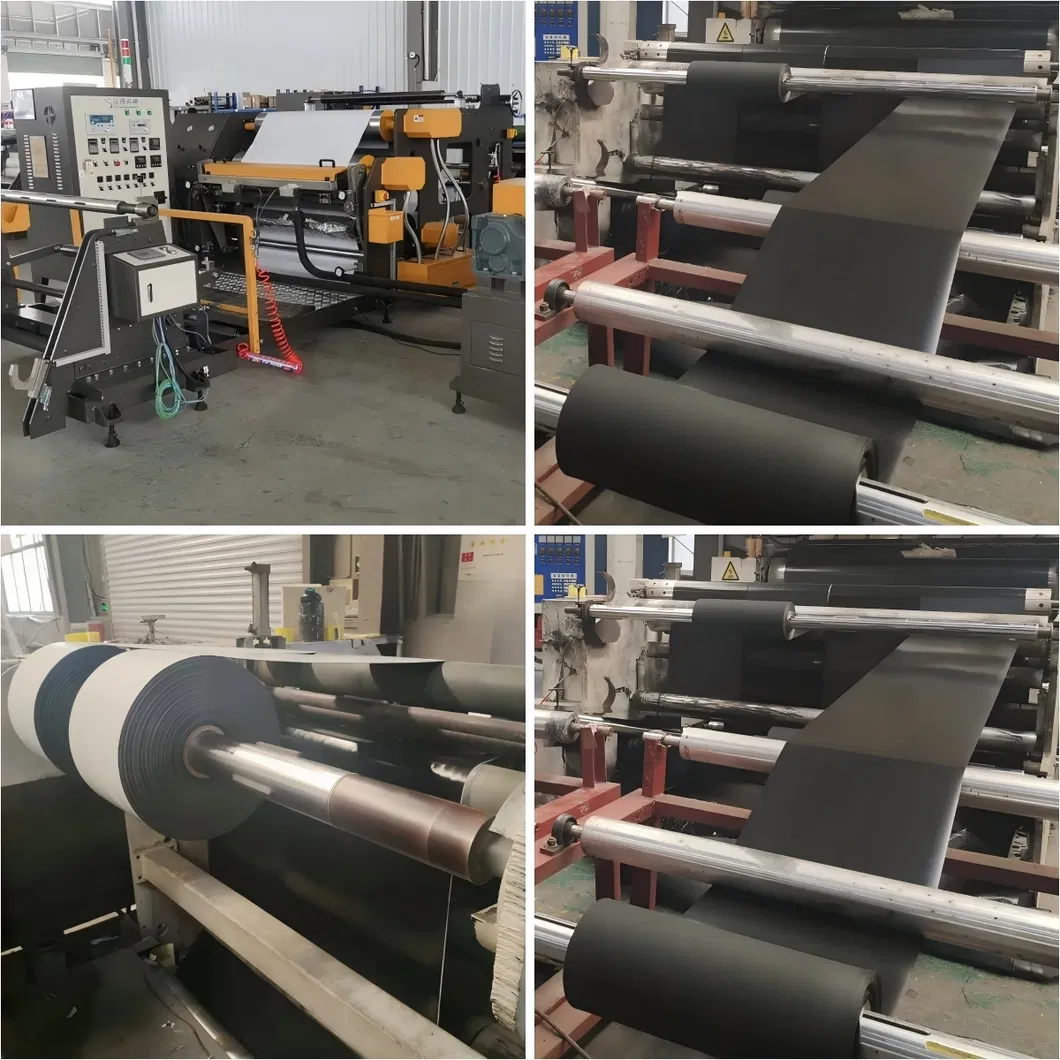

The production line integrates PE film extrusion, butyl rubber adhesive coating, and automatic slitting, providing a complete solution for high-performance PE pipeline wrap tape manufacturing.
Technological processes
Production Process of Cold-Applied Anticorrosion Tape
The manufacturing process of cold-applied anticorrosion tape generally involves three primary stages: base film extrusion, adhesive coating, and slitting & packaging. Each step is designed to ensure product uniformity, adhesion performance, and long-term durability.
1. Base Film Extrusion
Raw Material Preparation:
Polyethylene (PE) granules are used as the primary material for the base film. The raw material is carefully prepared to ensure purity and consistent quality.
Extrusion Forming:
The PE material is heated and melted in the extruder, then extruded through a die to produce a continuous film with a stable structure.
Cooling and Calibration:
The molten film is passed through cooling rollers, which solidify and shape it to achieve uniform thickness and smooth surface properties.
2. Adhesive Coating
Adhesive Preparation:
Butyl rubber-based adhesives are compounded to achieve the required viscosity, tackiness, and stability for optimal bonding performance.

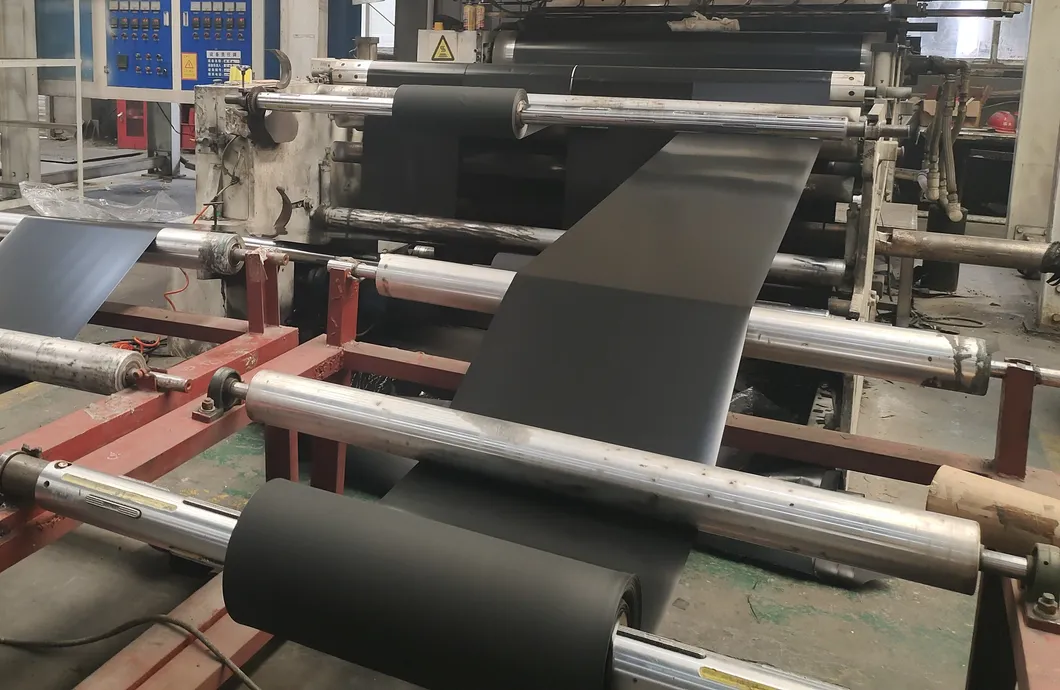

Coating Application:
The prepared adhesive is evenly applied to one or both sides of the PE base film using precision coating equipment, forming a consistent and uniform adhesive layer.
3. Slitting and Packaging
Slitting Setup:
The coated film roll is loaded onto the slitting machine, and the cutting parameters are adjusted according to the desired tape width specifications.

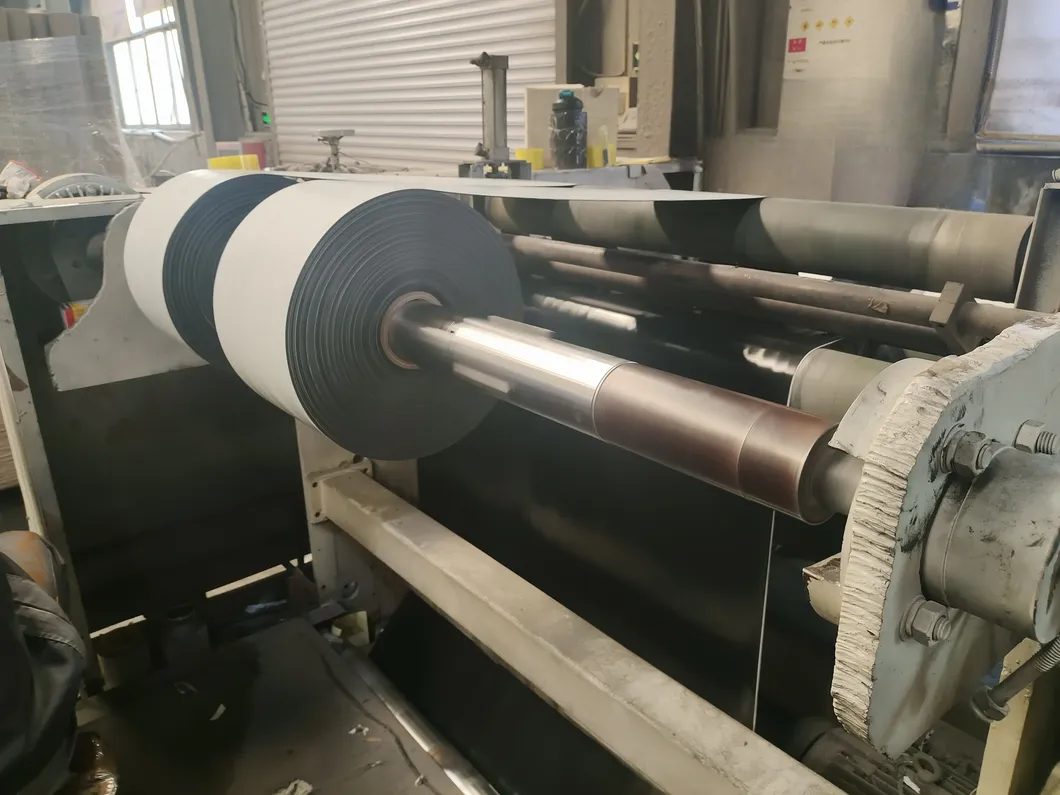

Slitting Operation:
The wide adhesive-coated film is slit into narrow rolls of cold-applied tape, ensuring clean edges and accurate dimensions.
Winding and Final Packaging:
The finished tapes are wound into rolls, carefully inspected, packaged, and prepared for storage or shipment.
Product Parameters
PE basing file extrusion line
|
Equipment Name |
Quantity |
| 1 |
Vacuum automatic feeder |
1 |
| 2 |
Hopper dryer |
1 |
| 3 |
SJ-75X30 extruder |
1 |
| 4 |
Hydraulic screen changer |
1 |
| 5 |
Die head mold type 1000 |
1 |
| 6 |
Multi-roller tape-casting machine |
1 |
| 7 |
Winding machine |
1 |
| 8 |
PLC computer control system |
1 |
Adhesive coating machine
| No. |
Equipment Name |
Quantity |
| 1 |
Frame |
1 unit |
| 2 |
200N·M Magnetic powder brake + Silicone stick 1300mm with corona processor |
1 unit |
| 3 |
100N·M Magnetic powder brake |
1 unit |
| 4 |
100N·M magnetic powder clutch |
2 unit |
| 5 |
200N·M magnetic powder clutch |
1 unit |
| 6 |
Screw |
1 unit |
| 7 |
Force-feed device |
1 unit |
| 8 |
Constant pressure system |
1 unit |
| 9 |
Adhesive delivery pipe |
1 unit |
| 10 |
Winding machine |
1 unit |
| 11 |
Unwinding machine |
2 unit |
| 12 |
Coating compound equipment |
1 unit |
| 13 |
Main engine frequency converter |
1 unit |
| 14 |
Extruder frequency converter |
1 unit |
| 15 |
Thermal switch |
1 unit |
| 16 |
PLC |
1 unit |
Our Advantages
-Adopt advanced technology
-Stable operation
-High degree of automation, saving labor costs
-Good quality, meets international standard
-Supply full completed production solution: design, installation, commissioning,training
-Share you 389 sets of production experience from all the world
-Having 9 professional senior engineers
-Having a high-end plastic machinery equipment expert workstation in China
Customer cases

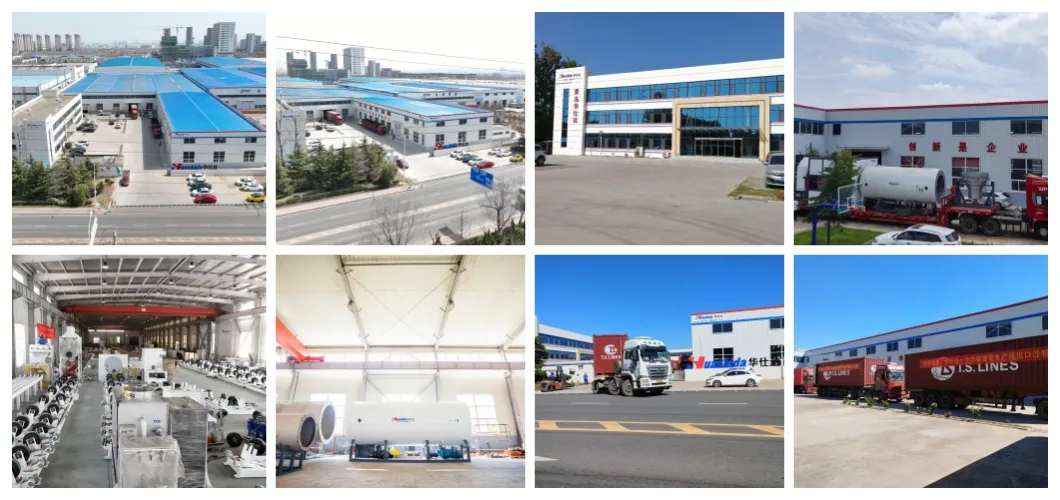

Company Profile
Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation&anticorrosion machines, and pipe jointing&anticorrosion materials, with 21 years of production experience.
Our main products are:
1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.
We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.
