PE Cold Applied Tape Pipeline Anticorrosion Wrap Tape Making Machine
Product Description
The cold-applied anticorrosion tape making machine is specifically designed for the production of high-quality PE tapes, primarily used for the corrosion protection of underground and overhead pipelines in industries such as oil, gas, petrochemical, and wastewater treatment. These tapes play a crucial role in safeguarding pipelines from external corrosion, moisture, and environmental damage, ensuring long-term durability and operational efficiency.

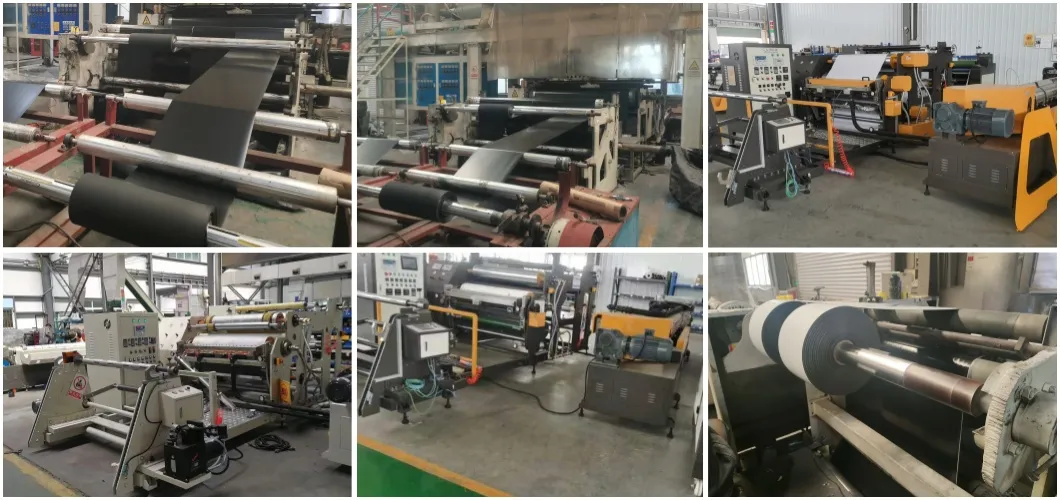

The production equipment consists of three key components:
-
PE Base Film Extrusion Line
-
Adhesive Coating System
-
Slitting Equipment
Designed for high efficiency and reliability, this machine is essential in the production of cold-applied anticorrosion tapes, offering a cost-effective and durable solution for pipeline protection. The system is fully automated, reducing labor costs while maintaining a high standard of quality and consistency. The machine is ideal for use in high-demand industries where pipeline integrity is critical, and the risk of corrosion must be minimized.
Technological processes
The production process of cold-applied tape typically includes the following main steps:
-
Base Film Extrusion
-
Raw Material Preparation: Polyethylene (PE) is prepared as the base film raw material.
-
Extrusion Molding: The raw material is heated and melted in an extruder, then molded through a die to form a continuous base film.
-

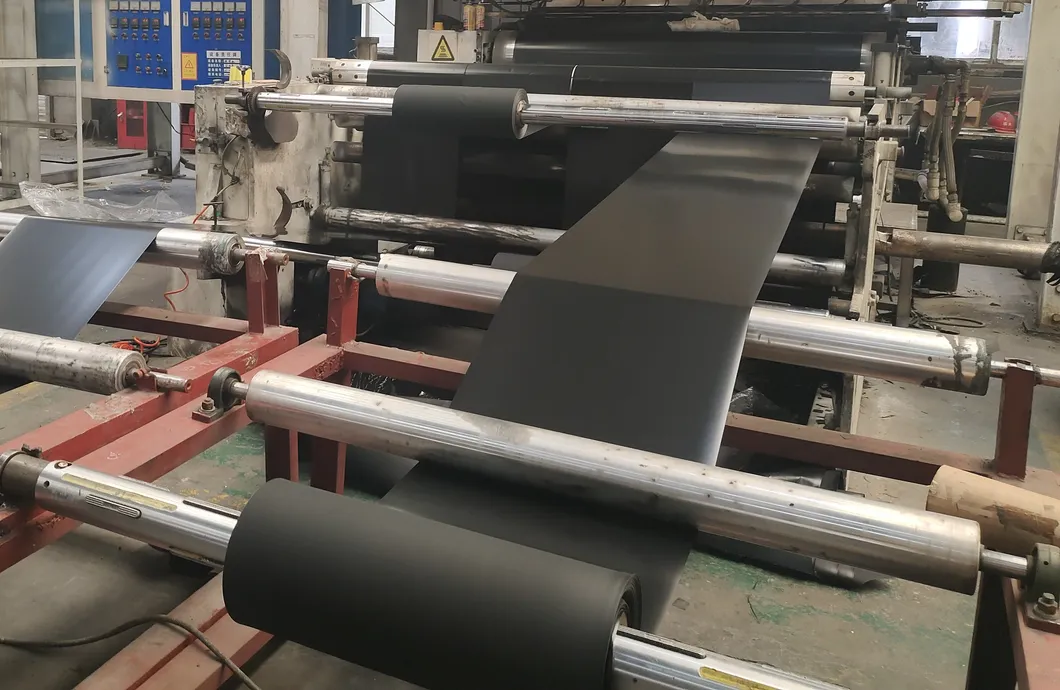

Cooling and Shaping: The extruded base film is cooled and shaped using cooling rollers to ensure uniform thickness and consistency.
-
Adhesive Coating
-
Adhesive Preparation: Butyl rubber are prepared to ensure proper viscosity and stability.
-
Coating Process: The adhesive is evenly applied to one or both sides of the base film using coating equipment to form an adhesive layer.
-
Slitting
-
Slitting Preparation: The coated base film roll is prepared, and the parameters of the slitting equipment are adjusted.
-

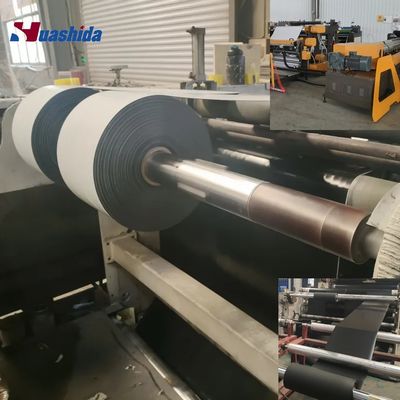

Slitting Operation: The wide roll is slit into cold-applied tapes of the required width using slitting equipment.
-

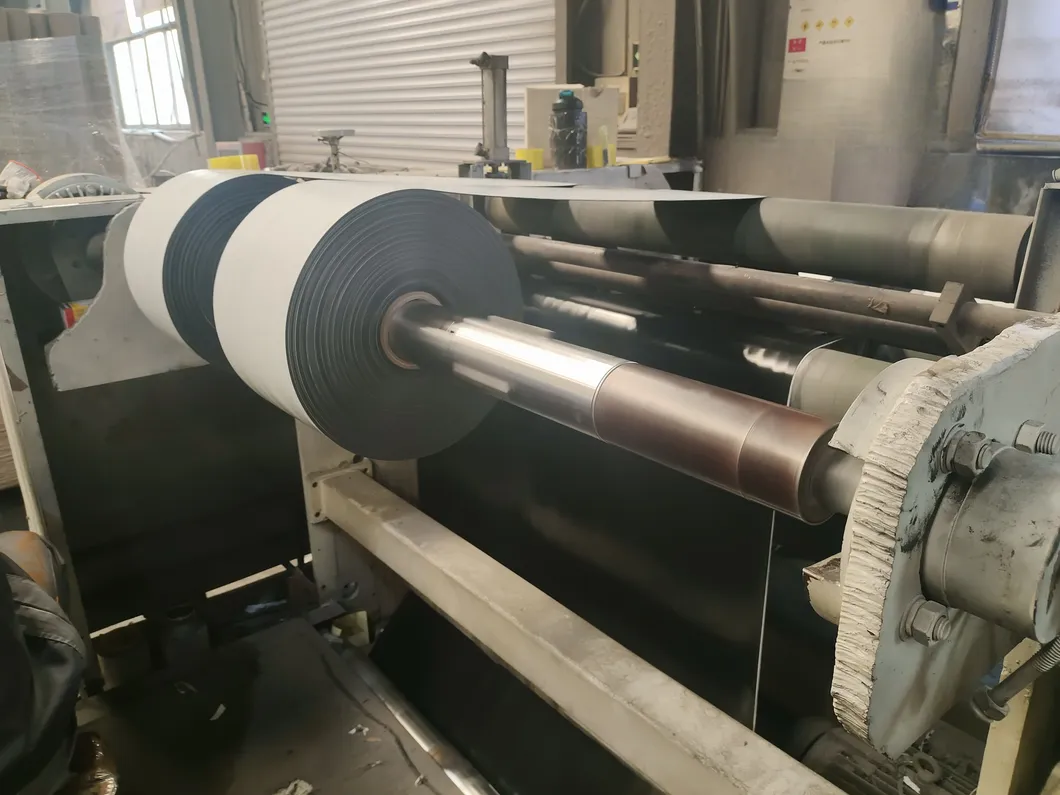

Winding and Packaging: The slit cold-applied tapes are wound into rolls, packaged, and prepared for shipment.
Product Parameters
Equipment List
PE basing file extrusion line
|
Equipment Name |
Quantity |
| 1 |
Vacuum automatic feeder |
1 |
| 2 |
Hopper dryer |
1 |
| 3 |
SJ-75X30 extruder |
1 |
| 4 |
Hydraulic screen changer |
1 |
| 5 |
Die head mold type 1000 |
1 |
| 6 |
Multi-roller tape-casting machine |
1 |
| 7 |
Winding machine |
1 |
| 8 |
PLC computer control system |
1 |
Adhesive coating machine
| No. |
Equipment Name |
Qua. |
| 1 |
Frame |
1 unit |
| 2 |
200N·M Magnetic powder brake + Silicone stick 1300mm with corona processor |
1 unit |
| 3 |
100N·M Magnetic powder brake |
1 unit |
| 4 |
100N·M magnetic powder clutch |
2 unit |
| 5 |
200N·M magnetic powder clutch |
1 unit |
| 6 |
Screw |
1 unit |
| 7 |
Force-feed device |
1 unit |
| 8 |
Constant pressure system |
1 unit |
| 9 |
Adhesive delivery pipe |
1 unit |
| 10 |
Winding machine |
1 unit |
| 11 |
Unwinding machine |
2 unit |
| 12 |
Coating compound equipment |
1 unit |
| 13 |
Main engine frequency converter |
1 unit |
| 14 |
Extruder frequency converter |
1 unit |
| 15 |
Thermal switch |
1 unit |
| 16 |
PLC |
1 unit |
Our Advantages
-Adopt advanced technology
-Stable operation
-High degree of automation, saving labor costs
-Good quality, meets international standard
-Supply full completed production solution: design, installation, commissioning,training
-Share you 389 sets of production experience from all the world
-Having 9 professional senior engineers
-Having a high-end plastic machinery equipment expert workstation in China
