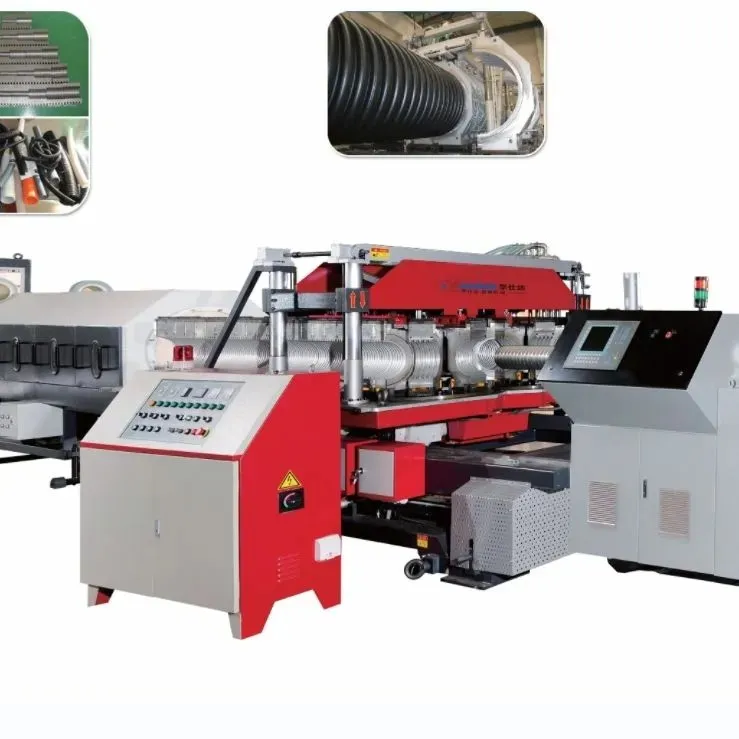

Name: High-Speed Water-Cooled Double Wall Corrugated Pipe Production Line with 6m/Min Max Speed for Drainage and Water Supply
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: 200-1000mm
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Material: PP/HDPE

Number Of Layers: Double Layer

Max Speed: 6m/Min,1.2m/Min

Field: Drainage/Water Supply/Sewage Discharge/Agricultura

Highlight:

High-Speed Corrugated Pipe Production Line

Water-Cooled Double Wall Corrugated Pipe Machine

6m/Min Max Speed HDPE Corrugated Pipe Machine

Basic Infomation

Place of Origin: Qingdao, China

Brand Name: HUASHIDA

Certification: CE, ISO9001:2008

Model Number: 200-1000mm

Payment & Shipping Terms

Packaging Details: Standard Packing

Delivery Time: 60DAYS

Payment Terms: L/C,D/P,Western Union,T/T

Supply Ability: 30 Set/Year

Gallery

High-Speed Water-Cooled Double Wall Corrugated Pipe Production Line with 6m/Min Max Speed for Drainage and Water Supply

Product Description

High-Speed Water-Cooled Double Wall Corrugated Pipe Production Line for Drainage Water

High-Speed Water-Cooled Double Wall Corrugated Pipe Production Line with 6m/Min Max Speed for Drainage and Water Supply 0

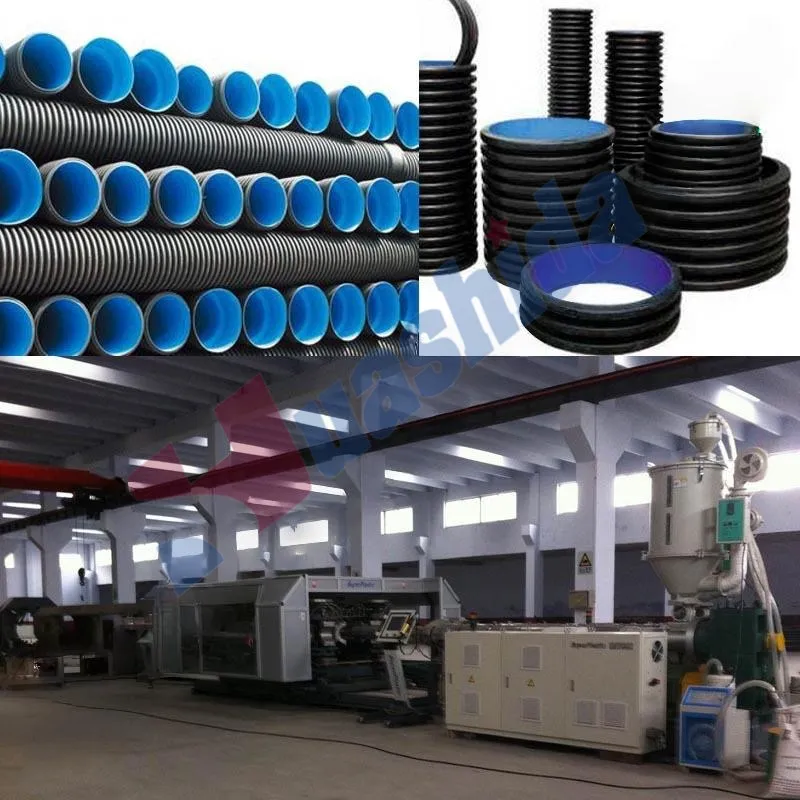

Double Wall Corrugated Pipe Production Line is a new type of high-speed water-cooled corrugated pipe production line developed and designed by ourselves based on advanced foreign technology. Mainly using polypropylene (PP) or high-density polyethylene (HDPE) as raw materials. Production of single and double wall corrugated pipes. Due to its unique structure, this pipe has the advantages of light weight, good impact resistance, strong corrosion resistance, and cold and heat resistance. It is widely used in urban drainage (water supply), geographical infiltration, construction water supply and drainage, PEF, wire and cable laying, bridge steel cable sheath, agricultural irrigation, and other fields.

Process Flow
Loader → Extruder → Corrugator → Cooling System → Cutting Machine

Features

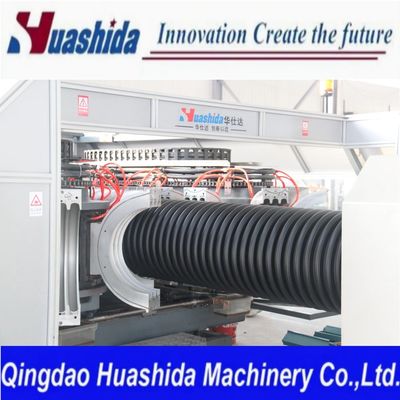

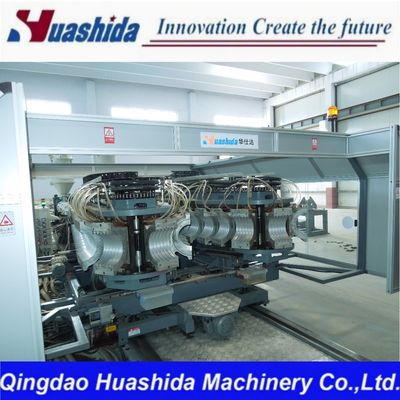

The die frame utilizes a sealed water-cooling structure, with the left and right modules moving within a closed curve.

The die frame utilizes a gear-driven mechanism, offering advantages such as automatic wear compensation, smooth operation, low noise, long service life, and high synchronization.

The uniquely designed circulating water circuit provides high reliability and effective cooling. The water in the circuit minimizes impact force, enhancing the reliability of continuous pipe production and ensuring the quality of the pipe surface.

pipe		Extruder		Corrugator		Maximum speed
style	DN	Model	Capacity	series	mold block qty	m/min
PP/PE double wall corrugated pipe	ID-200-600	SJ-9036/SJ-7536	600kg/h	DWCP-600	36	6
PP/PE double wall corrugated pipe	ID 600-1000	SJ-12036/Sj-9036	1000kg/h	DWCP-1000	39	12

Double-wall corrugated pipe production line features:
High degree of automation
High cooling efficiency
Low energy consumption
Customized production
High production efficiency
Intelligent operation
One-step pipe forming

High-Speed Water-Cooled Double Wall Corrugated Pipe Production Line with 6m/Min Max Speed for Drainage and Water Supply 1
Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!

Our Main Products Include:
HDPE Jacket Pipe Extrusion Line
https://hsdextruder.en.made-in-china.com/product/nUGpodSAarVq/China-HDPE-Insulation-Pipe-Extrusion-Machine-for-Supplying-Hot-Water-Oil-Pipeline.html

3LPE Steel Pipe Anti-Corrosion Coating Line
https://hsdextruder.en.made-in-china.com/product/EAnUkIvojTYJ/China-3lpe-3PE-Fbe-Anti-Corrosion-Insulation-Coating-Line-for-Trunk-Petroleum-Transport-Pipelines.html

Hollow Wall Spiral Pipe Production Line
https://hsdextruder.en.made-in-china.com/product/stZrvGPyCnYX/China-Durable-HDPE-Hollow-Wall-Corrugated-Pipe-Machine-Production-Line.html

Double Wall Corrugated Pipe Production Line
https://hsdextruder.en.made-in-china.com/product/uaCYpfkvstre/China-High-Density-Polyethylene-Double-Wall-Corrugated-Pipe-Production-Line-for-Drainage-Water.html

PE/PP Geo Membrane Production Line
https://hsdextruder.en.made-in-china.com/product/SfypzaVGOnYF/China-HDPE-Plastic-Geo-Membrane-Film-Extrusion-Line.html

PE/PP Sheet Board Extrusion Line
https://hsdextruder.en.made-in-china.com/product/ITrUKBnEBtRa/China-PE-PP-Pet-Multi-Layer-Sheets-Boards-Co-Extrusion-Line.html

Rubber Foam Insulation Pipe Production Line
https://hsdextruder.en.made-in-china.com/product/WafrnuQwRERF/China-PVC-NBR-Nitrile-Rubber-Foam-Insulation-Sheet-Tube-Production-Line-with-Thickness-9mm-13mm-19mm.html

HDPE Welding Wire Welder Rods

https://hsdextruder.en.made-in-china.com/product/OfIpGDJSmEUQ/China-HDPE-Welding-Wire-Plastic-Welding-Rod-Colored-Welder-Rods.html

Besides manufacturing machines, we also make Heat shrinkable sleeves and electro fusion sleeves and plastic welders, which are widely used as pipe joints and sealings of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines.
