Computerized Heat Shrinkable Sleeve Production Line with 0.5-3mm Sleeve Thickness and Basic Film Extrusion Line

Heat Shrink Sleeve Machinery 3lpe preinsulated HDPE Pipeline Field shrinkable Joints

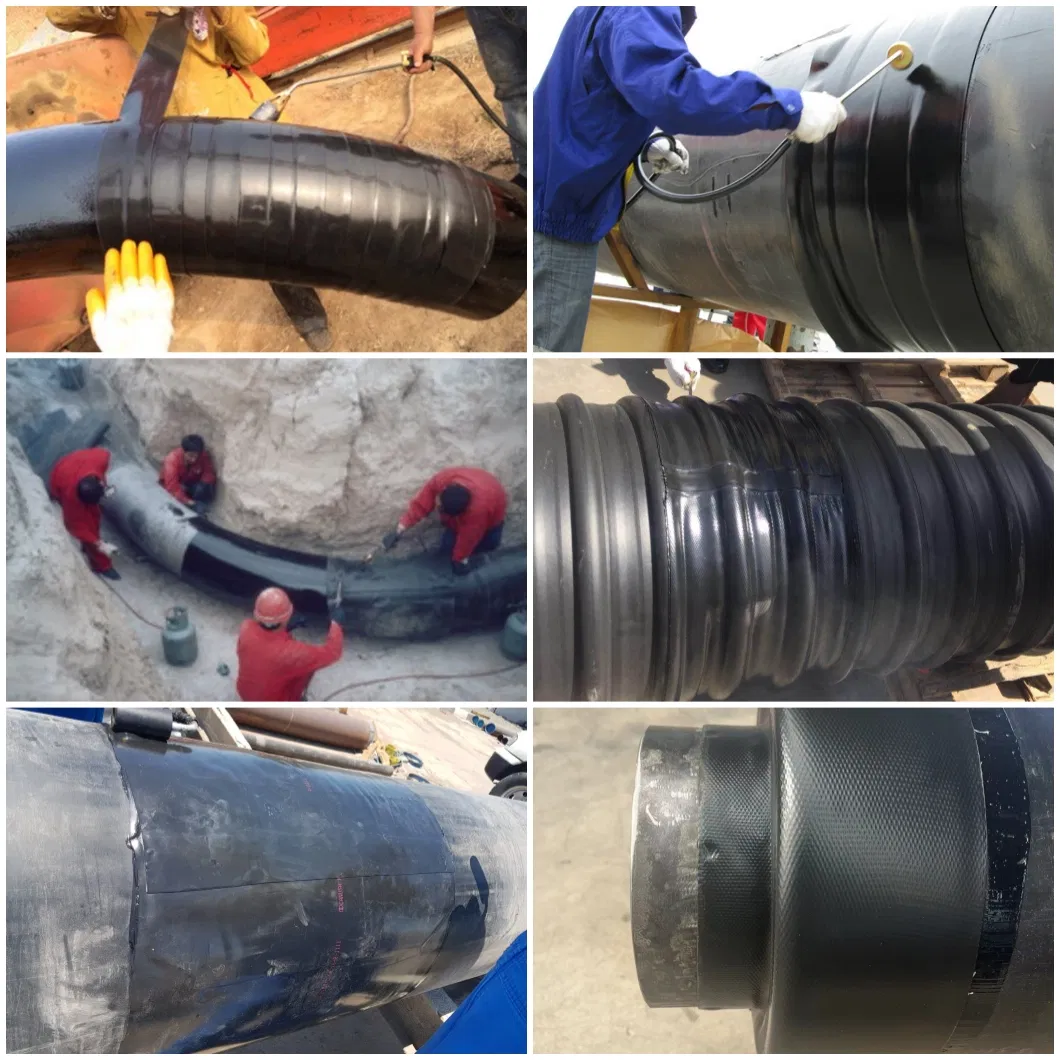

Radiation cross-linked heat shrinkable sleeves are primarily designed for field girth weld coating of 3LPE or thermally insulated pipelines, offering superior anti-corrosion and waterproof protection for pipe joints. They are especially suitable for plastic water supply and drainage systems.

The Huashida Heat Shrinkable Sleeve Extrusion Line utilizes a fully integrated and advanced production process:

Step 1: The PE backing film extrusion line produces PE films according to specific customer requirements.

Step 2: The extruded PE film is sent to a professional radiation facility for cross-linking treatment, which significantly improves the film's fire resistance, tensile strength, and thermal stability.

Step 3: The cross-linked film is fed into the heat shrinkable sleeve adhesive coating line. During this stage, the film substrate is stretched twice to achieve the optimal shrink ratio. A specially formulated hot-melt adhesive is prepared in a professional reactor, extruded, and evenly laminated onto the cross-linked PE backing film.

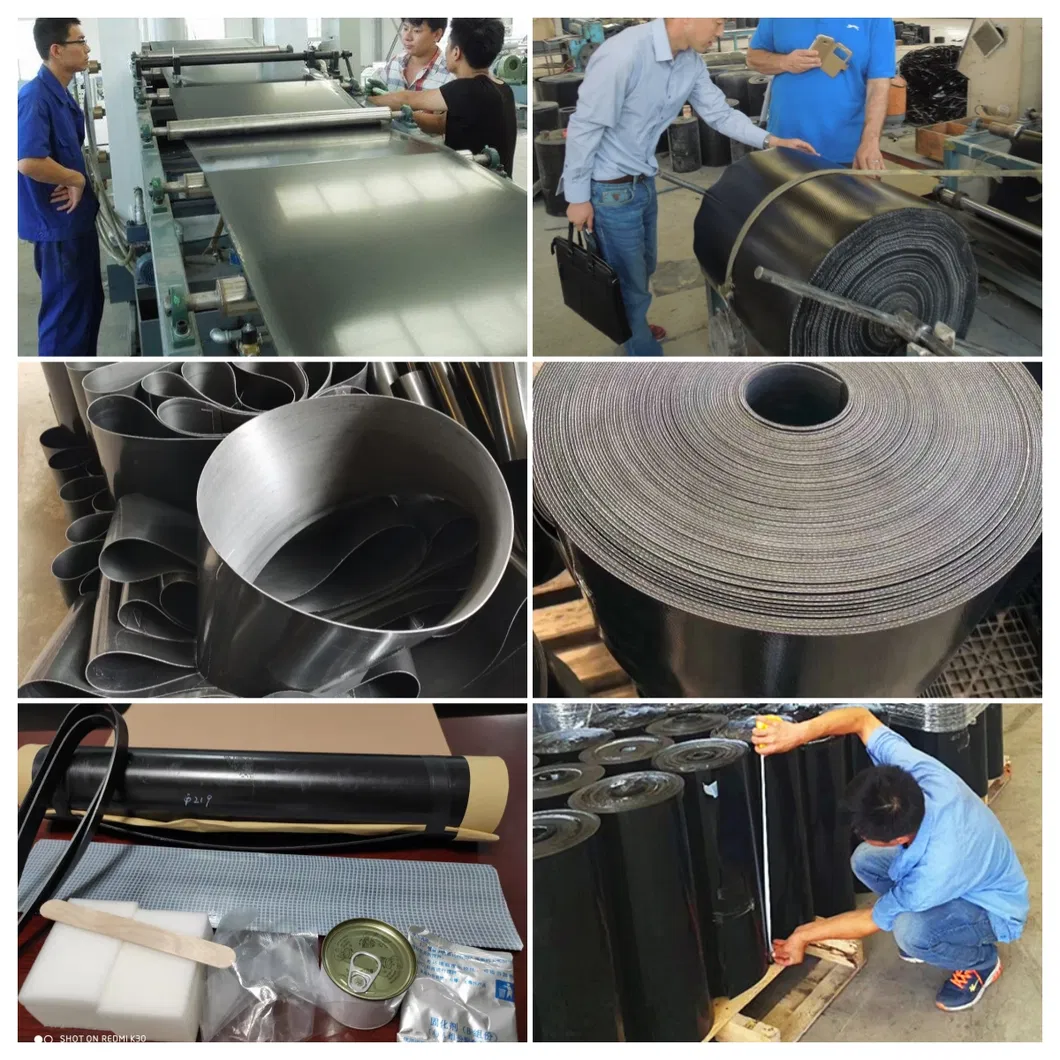

The final product demonstrates high adhesion strength, excellent corrosion resistance, and consistent shrink performance, fully complying with international pipeline protection standards.

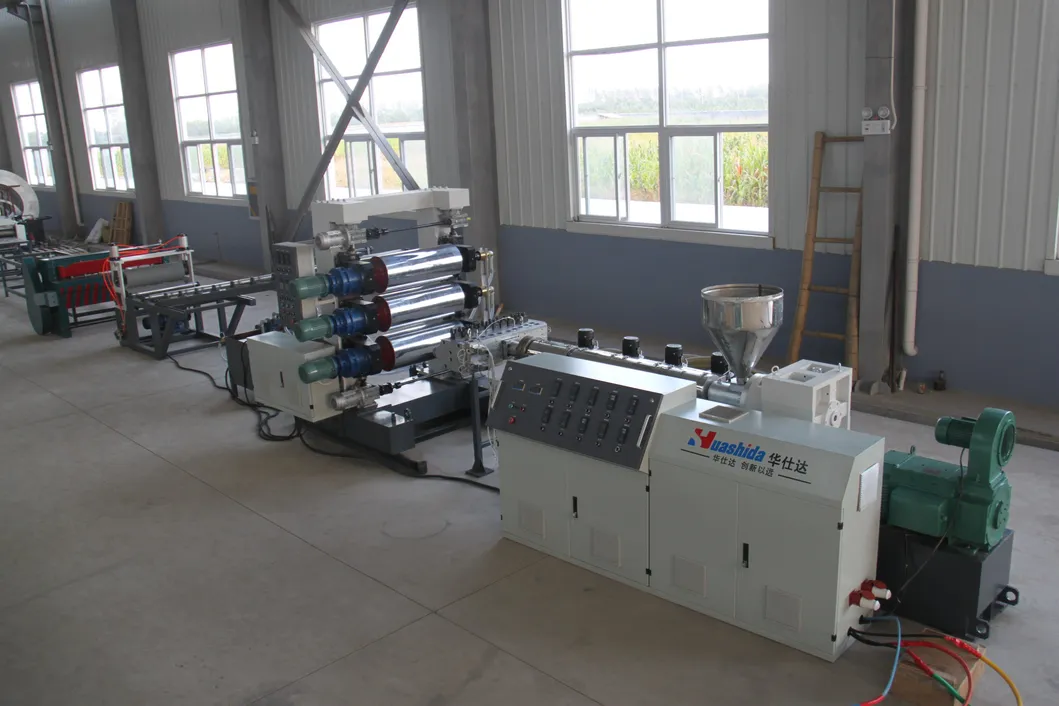

    1. PE back film extrusion Line

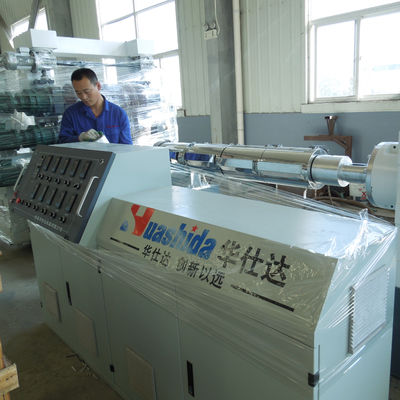

--- Single screw extruder
--- Die head

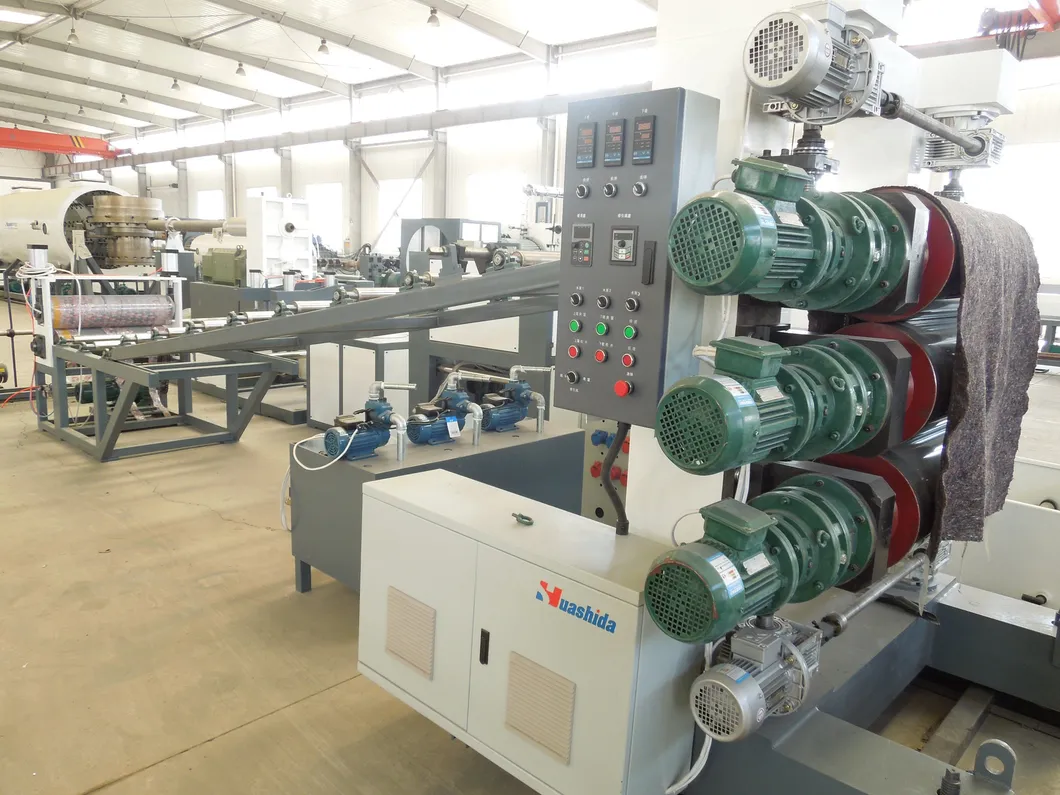

--- Three Calender
--- Roll temperature controlling system
--- Cooling rack
--- Hauling off
--- Rewinding machine

   2. Adhesive Mixing and Coating Line
--- Unpowered uncoil device
--- Reactor
--- Adhesive coating system
--- Cooling water tank
--- Haul off
--- Coiler platform.

  3. For three layer fiber reinforced heat shrink sleeve, we need to add below equipments
--- Fiber uncoiling device
--- Fiber heating device
--- Fiber flattening device


 Cross-linked Heat Shrinkable Belt Production Line (model SRSG-800 )

Adopts advanced manufacturing technology - ensures precision and high product consistency.

Stable and reliable operation - designed for long-term continuous production.

High degree of automation - reduces labor cost and improves efficiency.

Excellent anti-corrosion performance - meets international quality standards.

Complete production solution - includes design, installation, commissioning, and operator training.

Extensive global experience - over 389 production lines successfully operating worldwide.

Professional technical team - 9 senior engineers with rich industry expertise.

High-end expert workstation - certified plastic machinery R&D base in China.

Qingdao Huashida Machinery Co., Ltd. has been engaged in the development and producing of pipeline anti-corrosion equipment and raw materials since 2003. It is a leader manufacturer of heat-shrinkable sleeve and equipment in China. Huashida brand is favored by domestic and foreign customers. Devices of the equipment design have our patents. We passed ISO9001, ISO14001Environment, ISO45001 health certification. Up to now, more than 500 sets of production lines have been exported to Russia, Kazakhstan, Belarus, Egypt, Iran, Indonesia and other countries. Huashida brand heat shrinkable sleeve equipment in the production process of continuous summary and update has launched the fourth generation of products. The whole production line has reasonable design, intelligent operation, high speed and high efficiency, energy saving and electricity saving material labor cost. Continuous improvement in component design ensures uniform thickness, improved shrinkage, tensile strength and elongation at break. Product quality to meet the needs of different pipeline anti-corrosion demand. We have a professional after-sales service team to provide on-site and online video teaching and training. Help customers solve production problems as soon as possible.
