HDPE Jacket Pipe Extrusion Line with Thermal Insulation Dust-Free Planetary Cutting and Customizable Color

1
MOQ
US$200,000.00 - 1,000,000.00
Price
HDPE Jacket Pipe Extrusion Line with Thermal Insulation Dust-Free Planetary Cutting and Customizable Color
Features Gallery Product Description Request A Quote
Features
Specifications
Raw Material: PE
Application: Producing Pre-Insulated Pipe Jacket
Cutting Method: Dust-Free Planetary Cutting
HDPE Jacket Pipe Color: Can Be Customized
Highlight:

Thermal Insulation HDPE Jacket Pipe

,

Dust-Free Cutting Extrusion Line

,

Customizable Color Pipe Extrusion
Basic Infomation
Place of Origin: QINGDAO,CHINA
Brand Name: HUASHIDA
Certification: CE, ISO9001:2008
Model Number: 110-2200mm
Payment & Shipping Terms
Packaging Details: Standard Package
Delivery Time: 60days
Payment Terms: L/C,D/P,T/T,Western Union
Supply Ability: 30 Sets/Year
Product Description
HDPE Thermal Insulation Plastic Pipe Extrusion Line /Jacket Pipe Making Machine / Protective Pipe Extrusion Machine
Product Description
Pre-Insulated HDPE Plastic Jacket Pipe Production Line:

HDPE Jacket Pipe Extrusion Line with Thermal Insulation Dust-Free Planetary Cutting and Customizable Color 0

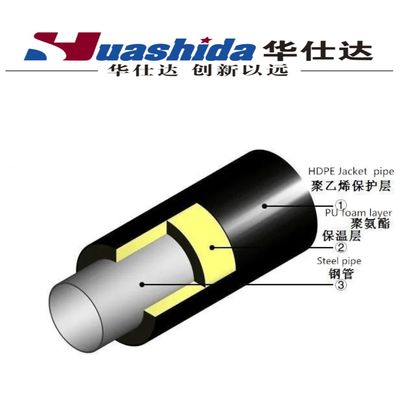

HDPE insulated pipe, also known as HDPE jacketed pipe, is a direct-buried polyurethane insulated pipe production line that uses a plastic outer jacket as the outer protective layer, a polyurethane-filled insulation layer in the middle, and a working steel pipe as the innermost layer. It is suitable for various hot and cold water, high- and low-temperature pipeline insulation projects. The HDPE jacketed pipe extrusion line is an efficient, high-speed, and energy-saving device that produces HDPE pipe for PU foam insulation and pre-insulated pipes in accordance with international standards. HDPE jacketed pipe is produced using a vacuum calibration method, resulting in smooth inner and outer walls, a long service life, excellent corrosion resistance, and superior mechanical properties.


Product Parameters



Style PE-110/500 PE-655/1380 PE-960/1860 PE-1155/2200
Main Extruder SJ-75/33 SJ-120/33 SJ-150/33 SJ-150/33
Pipe diameter Φ110-600mm Φ655-1380mm Φ960-1860mm Φ1155-2200mm
Capacity 250-350kg/h 700-900kg/h 1000-1200kg/h 1350kg/h
Installed power 160kw 480kw 580kw 650kw
Length 26m 36m 45m 48m

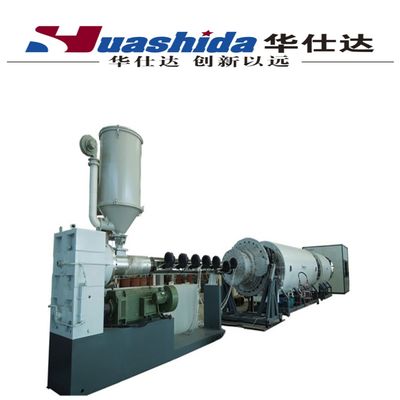

Production line composition:

-1set   Vacuum loader
-1set   Hopper dryer
-1set   High-efficiency single screw extruder
-1set   Vacuum calibration table
-1set   Water spraying tank
-1set   Hauling machine
-1set   Cutting machine
-1set   Discharging Frame
-1set   PLC

Technical Highlights:

Single-screw extruder Precision temperature control system ensures consistent material fusion
Proprietary single-screw extruder optimized for polyethylene (PE) materials
Vacuum Calibration Patented vacuum calibration system replaces traditional internal pressure methods
Smart Automation Fully integrated PLC control system
Real-time process monitoring
Production Capabilities Diameter range: 110mm - 2200mm (customizable)
Output capacity: 250-1600 kg/h (material-dependent)




Our Advantages

Features of the HDPE sleeve production line:

1.small dimension
2.high degree of automation, can be operated by one person, saving labor costs
3.long service life.
4.high-efficiency extruder gives larger output, stable performance
5.pipe wall is average and smooth
6.no waste of raw material
7.One-time molding


HDPE Jacket Pipe Extrusion Line with Thermal Insulation Dust-Free Planetary Cutting and Customizable Color 1HDPE Jacket Pipe Extrusion Line with Thermal Insulation Dust-Free Planetary Cutting and Customizable Color 2HDPE Jacket Pipe Extrusion Line with Thermal Insulation Dust-Free Planetary Cutting and Customizable Color 3

HDPE Jacket Pipe Extrusion Line with Thermal Insulation Dust-Free Planetary Cutting and Customizable Color 4
HDPE Jacket Pipe Extrusion Line with Thermal Insulation Dust-Free Planetary Cutting and Customizable Color 5


HDPE Jacket Pipe Extrusion Line with Thermal Insulation Dust-Free Planetary Cutting and Customizable Color 6
HDPE Jacket Pipe Extrusion Line with Thermal Insulation Dust-Free Planetary Cutting and Customizable Color 7




Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!
