Name: Polyurethane Spraying Foam Preinsulated Steel Pipe Making Machine with PUF Insulation Layer and PE Outer Casing for Hot Chiller Water/Oil/Chemical Material Pipeline
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: 50-1500MM
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Pipe Structure: Puf Insulation Layer, PE Outer Casing

Foaming Machine: High-Pressure Foaming Machine

Foaming Thickness: 30-100mm

Applications: Hot Chiller Water/Oil /Chemical Material Pipeline

Highlight:

PUF Insulation Layer Preinsulated Steel Pipe Making Machine

PE Outer Casing Polyurethane Insulation Pipe Production Line

Hot Chiller Water Pipeline Polyurethane Spraying Foam Machine

Basic Infomation

Place of Origin: QINGDAO,CHINA

Brand Name: HUASHIDA

Certification: CE, ISO9001:2008

Model Number: 50-1500MM

Payment & Shipping Terms

Packaging Details: Wodden Box

Delivery Time: 60DAYS

Payment Terms: L/C,T/T,Western Union

Supply Ability: 30 Sets/Year

Gallery

Polyurethane Spraying Foam Preinsulated Steel Pipe Making Machine with PUF Insulation Layer and PE Outer Casing for Hot Chiller Water/Oil/Chemical Material Pipeline

Product Description

Rigid Polyurethane Spraying Polyethylene Winding Insulating Pipes Production Line

1. Production line introduction
Polyurethane (PU)spraying polyethylene(PE) wrapping pre-insulated pipe production line is used for the production of polyurethane prefabricated direct buried thermal insulating pipes, which are widely used in the field of heating, cooling and crude oil transportation.
Polyurethane Spraying Foam Preinsulated Steel Pipe Making Machine with PUF Insulation Layer and PE Outer Casing for Hot Chiller Water/Oil/Chemical Material Pipeline 0

2. Product structure

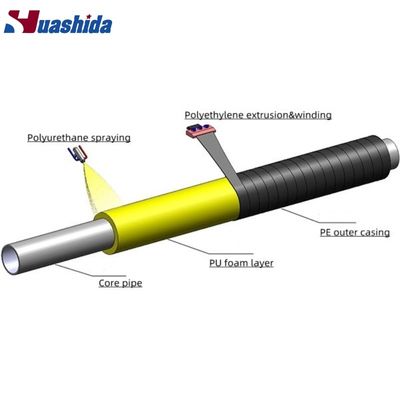

Huashida Rigid polyurethane spraying polyethylene winding prefabricated directly buried insulation pipe consists of steel working pipe, spraying polyurethane rigid foam insulation layer and winding polyethylene outer protective pipe. The product structure is shown in the figure below:
Polyurethane Spraying Foam Preinsulated Steel Pipe Making Machine with PUF Insulation Layer and PE Outer Casing for Hot Chiller Water/Oil/Chemical Material Pipeline 1

3. Technological flow:

The spraying and winding production process ensures the uniformity of the density of the insulation layer, improves product quality, and reduces production costs.

Polyurethane Spraying Foam Preinsulated Steel Pipe Making Machine with PUF Insulation Layer and PE Outer Casing for Hot Chiller Water/Oil/Chemical Material Pipeline 3

PU Foaming spary Preinsulation Pipe Continuous Production Line

4. PUF spray PE winding preinsulated pipe production line consists of the following parts:

1) Steel pipe outwall shot blasting line

2) Polyurethane spray molding line
3) Polyethylene sheet extruding winding line
4) Water cooling line
5) End-cutting equipment

Main line Composition of the polyurethane coating steel preinsulated pipe equipment:

No.	name
1	External wall Shot blasting rust removel machine
2	Medium-frequency induction heating furnace
3	Polyurethane spray foaming unit
4	pipe rotator trolley
5	Single screw extruder and diehead mould
6	Finished pipe ends trimming machine
7	pipe Conveyers and racks
8	Electrical system and PLC

5. Advantages of Polyurethane spray insulation pipe:
1). The density of polyurethane is uniform and controllable.
2). Polyurethane rigid foam has no empty spaces.
3). The surface of polyurethane foam is rough, the shear strength (friction) to the polyethylene outer casing is greater than 200Kpa.
4). The thickness of the polyurethane insulation layer and the thickness of the polyethylene outer casing can be adjusted according to the design.
5). The production has a high degree of automation.

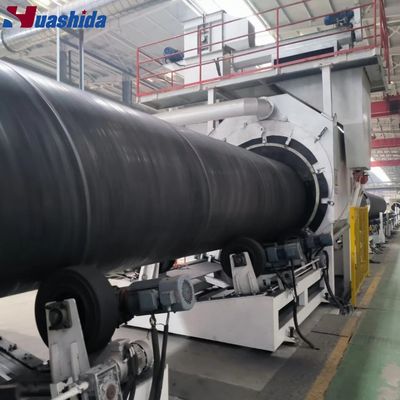

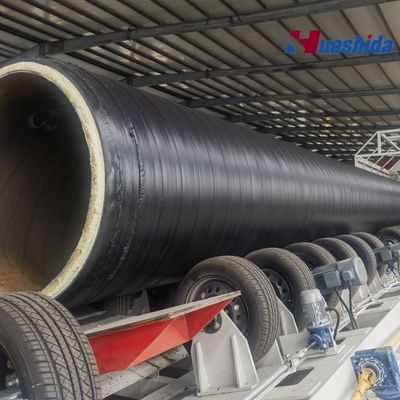

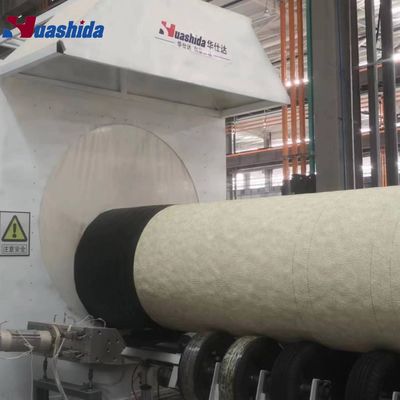

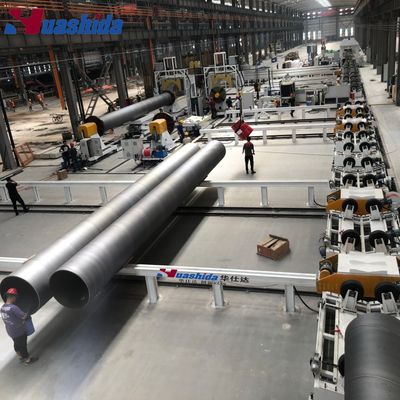

Production line equipment Photos show

Polyurethane Spraying Foam Preinsulated Steel Pipe Making Machine with PUF Insulation Layer and PE Outer Casing for Hot Chiller Water/Oil/Chemical Material Pipeline 4
Rust Removal

PE film jacket wrapping
Polyurethane Spraying Foam Preinsulated Steel Pipe Making Machine with PUF Insulation Layer and PE Outer Casing for Hot Chiller Water/Oil/Chemical Material Pipeline 6

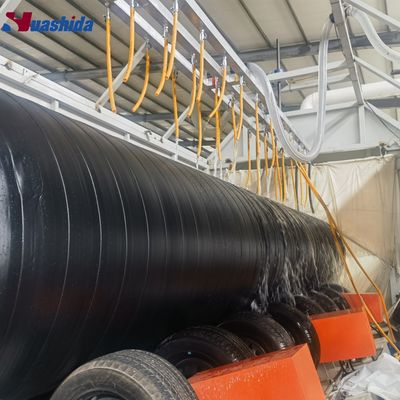

PE Jacket Water quenching
Polyurethane Spraying Foam Preinsulated Steel Pipe Making Machine with PUF Insulation Layer and PE Outer Casing for Hot Chiller Water/Oil/Chemical Material Pipeline 7
