Name: PLC Control Polyurethane Foam Pre-Insulated Steel Pipe Production Line with 30-100mm Foaming Thickness and Shot Blasting Rust Removal
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: 500-1500MM
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Type: Polyurethane Foam Machine

Foaming Thickness: 30-100mm

Applications: Hot Chiller Water/Oil /Chemical Material Pipeline

Foaming Machine: High-Pressure Foaming Machine

Highlight:

PLC Control Polyurethane Foam Pre-Insulated Steel Pipe Production Line

30-100mm Foaming Thickness Pre-Insulated Steel Pipe Making Machine

Shot Blasting Rust Removal PU Foam Pre-Insulated Pipe Machine

Basic Infomation

Place of Origin: QINGDAO,CHINA

Brand Name: HUASHIDA

Certification: CE, ISO9001:2008

Model Number: 500-1500MM

Payment & Shipping Terms

Packaging Details: Wodden Box

Delivery Time: 60DAYS

Payment Terms: L/C,D/P,T/T,Western Union

Supply Ability: 30 Sets/Year

Gallery

PLC Control Polyurethane Foam Pre-Insulated Steel Pipe Production Line with 30-100mm Foaming Thickness and Shot Blasting Rust Removal

Product Description

Polyurethane PU Foam Pre-Insulated Steel Pipe Production Line machine

PU Foaming spary Preinsulation Pipe Continuous Production Line

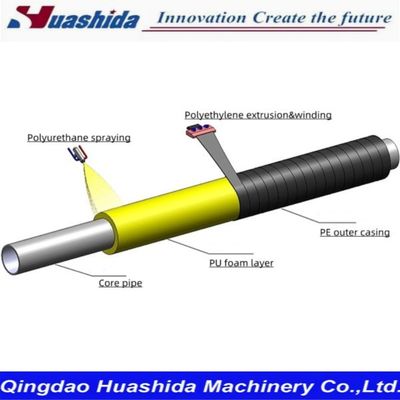

1. Pipe structure
Our company independently developed the spray winding insulation pipe production line, which consists of three parts: shot blasting and rust removal production line, polyurethane spraying production line, and PE winding production line.

2. Production line parameters:
(1) Steel pipe coverage: 206mm-1820mm
(2) Processing capacity: ≤250m²/h
(3) Cleaning level: Sa2.5
(4) Materials used: Black material (isocyanate), white material (combined polyether), polyethylene
(5) Main equipment: Shot blasting and rust removal production line, polyurethane spraying production line, PE winding production line, consisting of three parts

3. Technological flow:

PLC Control Polyurethane Foam Pre-Insulated Steel Pipe Production Line with 30-100mm Foaming Thickness and Shot Blasting Rust Removal 3
PU Foaming spary Preinsulation Pipe Continuous Production Line

PUF spray PE winding preinsulated pipe production line consists of the following parts:

1) Steel pipe outwall shot blasting line

2) Polyurethane spray molding line
3) Polyethylene sheet extruding winding line
4) Water cooling line
5) End-cutting equipment

Main line Composition of the polyurethane coating steel preinsulated pipe equipment:

No.	name
1	External wall Shot blasting rust removel machine
2	Medium-frequency induction heating furnace
3	Polyurethane spray foaming unit
4	pipe rotator trolley
5	Single screw extruder and diehead mould
6	Finished pipe ends trimming machine
7	pipe Conveyers and racks
8	Electrical system and PLC

Production line equipment Photos show

PLC Control Polyurethane Foam Pre-Insulated Steel Pipe Production Line with 30-100mm Foaming Thickness and Shot Blasting Rust Removal 4
Rust Removal

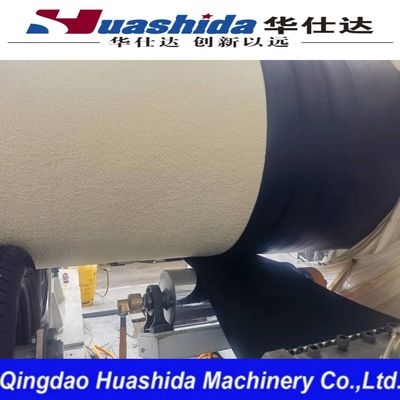

PE film jacket wrapping
PLC Control Polyurethane Foam Pre-Insulated Steel Pipe Production Line with 30-100mm Foaming Thickness and Shot Blasting Rust Removal 6

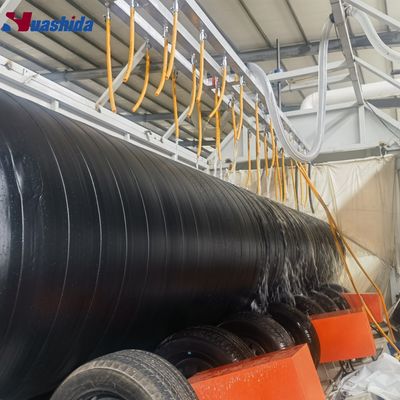

PE Jacket Water quenching
PLC Control Polyurethane Foam Pre-Insulated Steel Pipe Production Line with 30-100mm Foaming Thickness and Shot Blasting Rust Removal 7

Qingdao Huashida Machinery Co., Ltd was established in 2003. Since its inception, Huashida has focused on plastic polyurethane insulation pipe production line, 3LPE anticorrosion pipe production line, large diameter underground pipe production line and plastic pipe joints for 20 years. We always attach great importance to research and development,collaborating closely with Beijing University of chemical technology, Qingdao university of technology and scientific research institutions. by absorbing advanced technology home and abroad, after 22 years of endeavor we now rank one of the top 3 manufacturers in the industry in China. Huashida machines have been well received in Saudi Arabia, Kazakhstan, Uzbekistan, United Arab Emirates, Turkey, Russia, etc.

Welcome to our factory to discuss cooperation!
