Name: Full Automatic 3LPE Coating Machine with 15-90 Degrees Bending Angle and Epoxy Powder Thickness ≥170um
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: 426-1200mm
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Type: Coating Production Line

Coating: PE Extrusion

Epoxy Powder Thickness: More Than 170 Um

Bending Angle: 15-90 Degrees

Consists Of: First Fbe Coating, Middle Adhesive,Outer PE Layer

Application: Used In Pipeline Systems For The Transmission Of Oil, Gas, Water

Highlight:

Full Automatic 3LPE Coating Machine

15-90 Degrees Bending Angle 3LPE Coating Machine

Epoxy Powder Thickness ≥170um 3LPE Coating Machine

Basic Infomation

Place of Origin: qingdao ,china

Brand Name: huashida

Certification: CE, ISO, RoHS

Model Number: 426-1200mm

Payment & Shipping Terms

Packaging Details: Plastic Film and Wooden Pallet

Delivery Time: 60days

Payment Terms: L/C,D/P,T/T,Western Union

Supply Ability: 15 Sets/Year

Gallery

Full Automatic 3LPE Coating Machine with 15-90 Degrees Bending Angle and Epoxy Powder Thickness ≥170um

Product Description

Full Automatic Bend Pipe 3PE 3LPE Coating Machine / Equipment / Machinery / Processing line with FBE, Adhesive and PE Layers

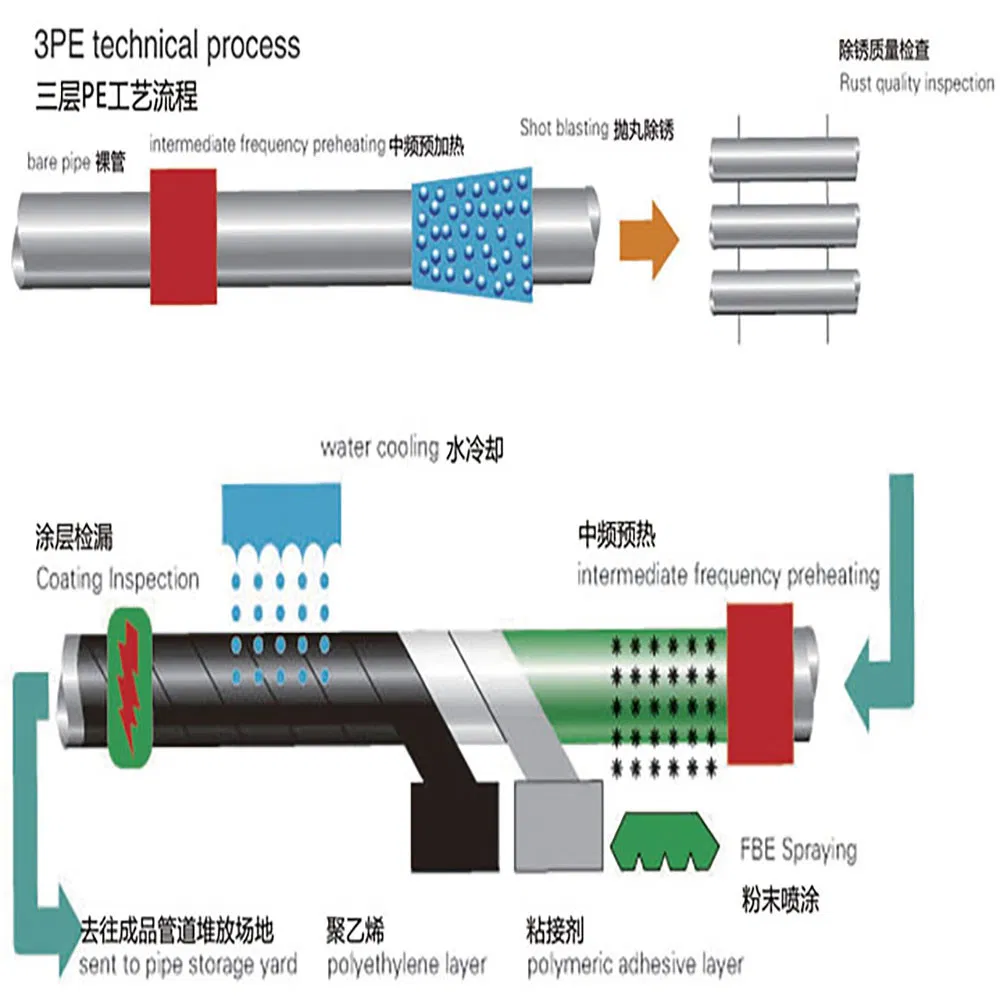

Anti-Corrosion in the form of 3PE is first layer epoxy, second is adhesive layer, the third is PE sleeve wrapping.

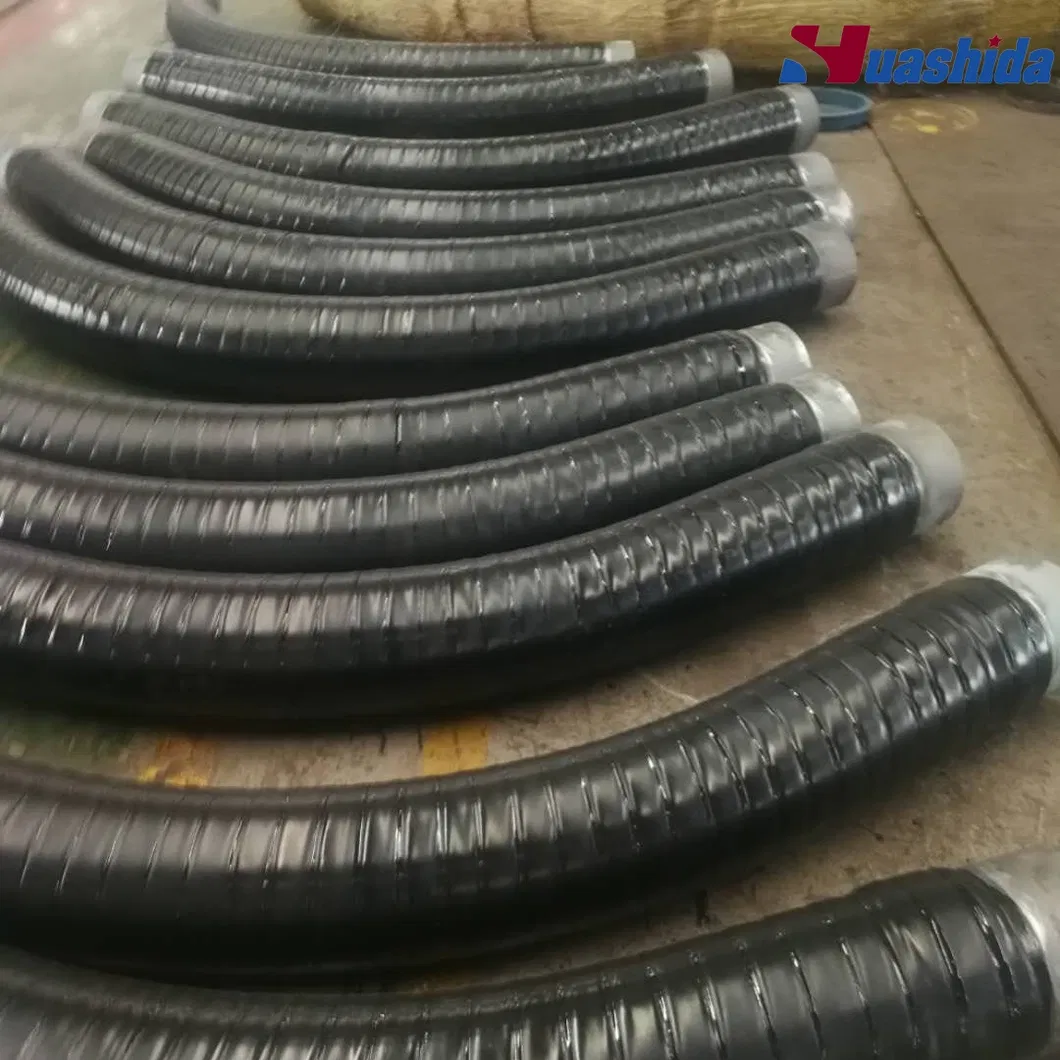

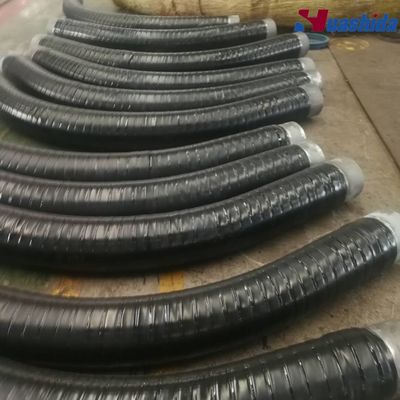

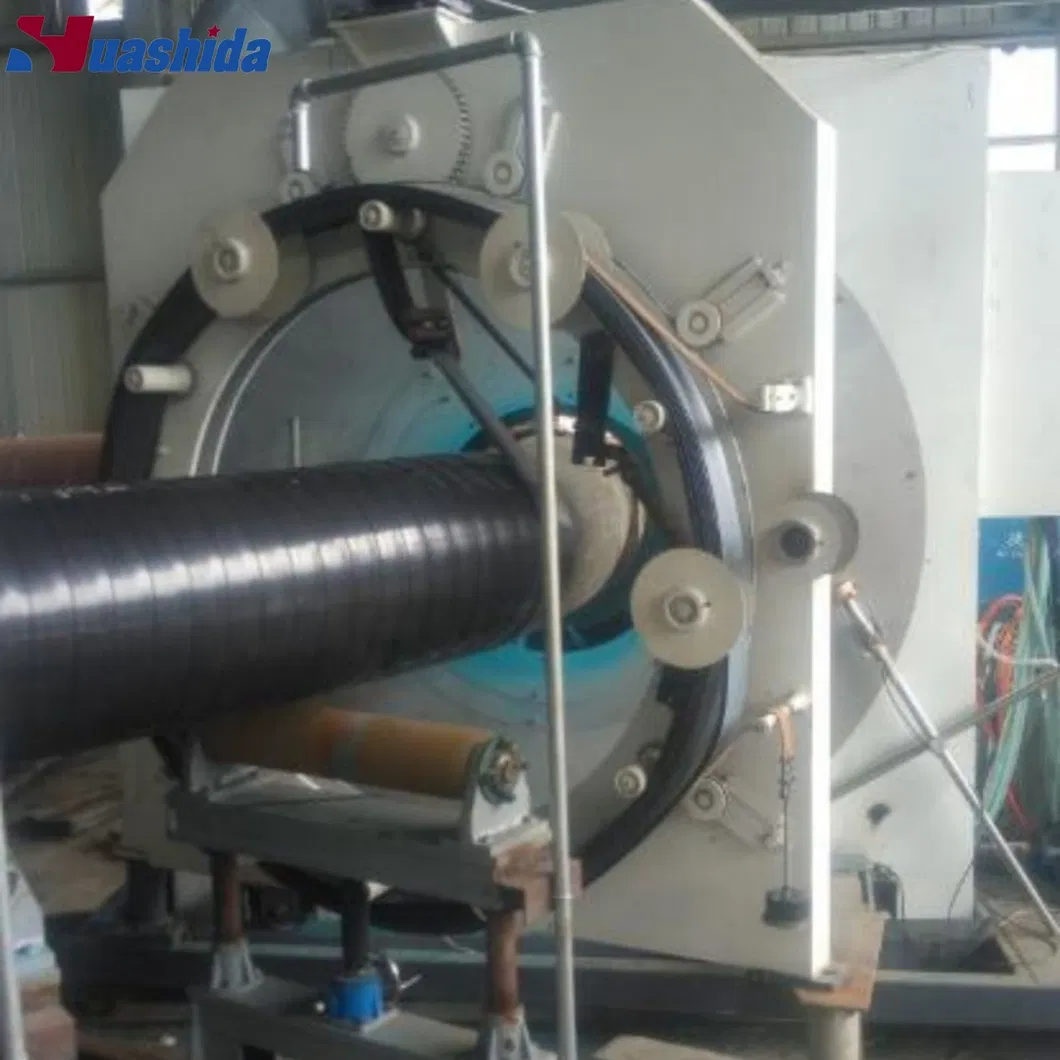

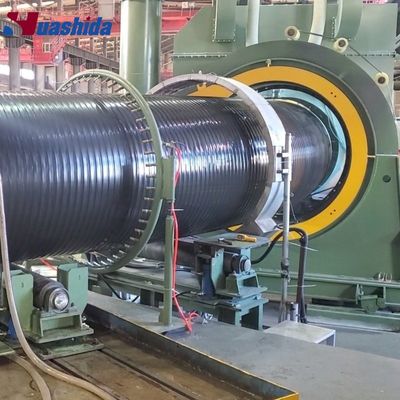

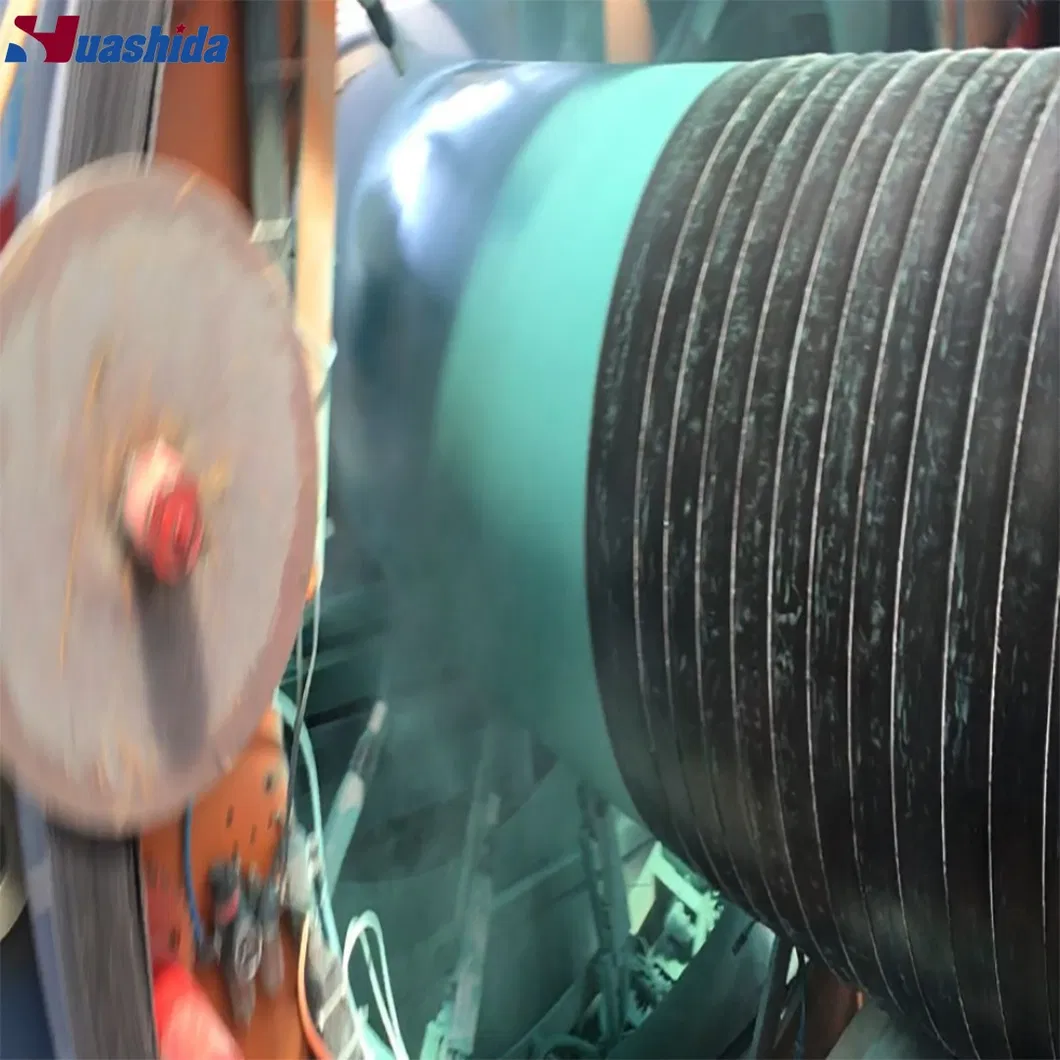

Steel Elbow 3LPE Coating Machinery is for curve steel pipe blasting&coating and PE layer wrapping machinery. It also can make 2PE/FBE coating pipe. Radius of curvature: 5-8 times D,Bend angle: 15-90 degrees.

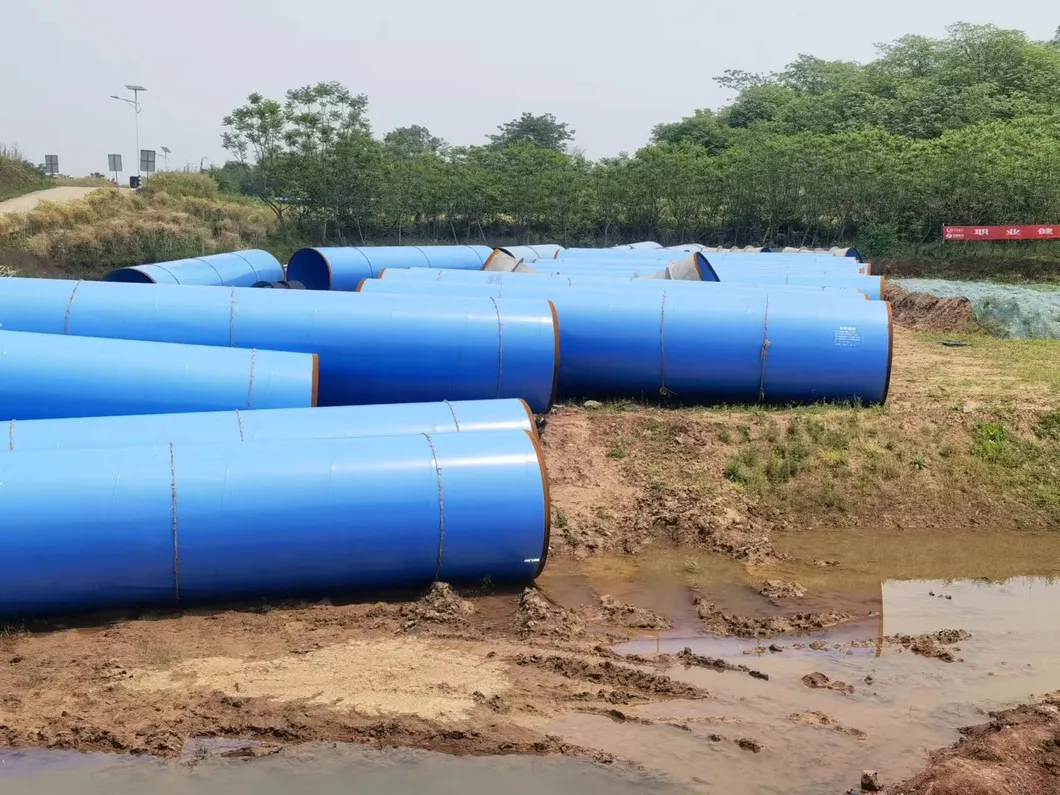

2PE,3PE and FBE Epoxy coated steel pipe is widely used in pipeline systems for the transmission of oil, gas, water and other fluids.They have high resistance to corrosive from chemicals, moisture, harmful environment, etc.

Process parameters of winding anticorrosion:
Overall dimension: 20 m X 15 m
Total water consumption: 30 cubic meters
Total power consumption: 450 kilowatts
Total gas consumption: 6 cubic meters/min.
Temperature condition: the temperature inside the workshop is higher than 5 degrees.

Full Automatic 3LPE Coating Machine with 15-90 Degrees Bending Angle and Epoxy Powder Thickness ≥170um 0

Full Automatic 3LPE Coating Machine with 15-90 Degrees Bending Angle and Epoxy Powder Thickness ≥170um 1

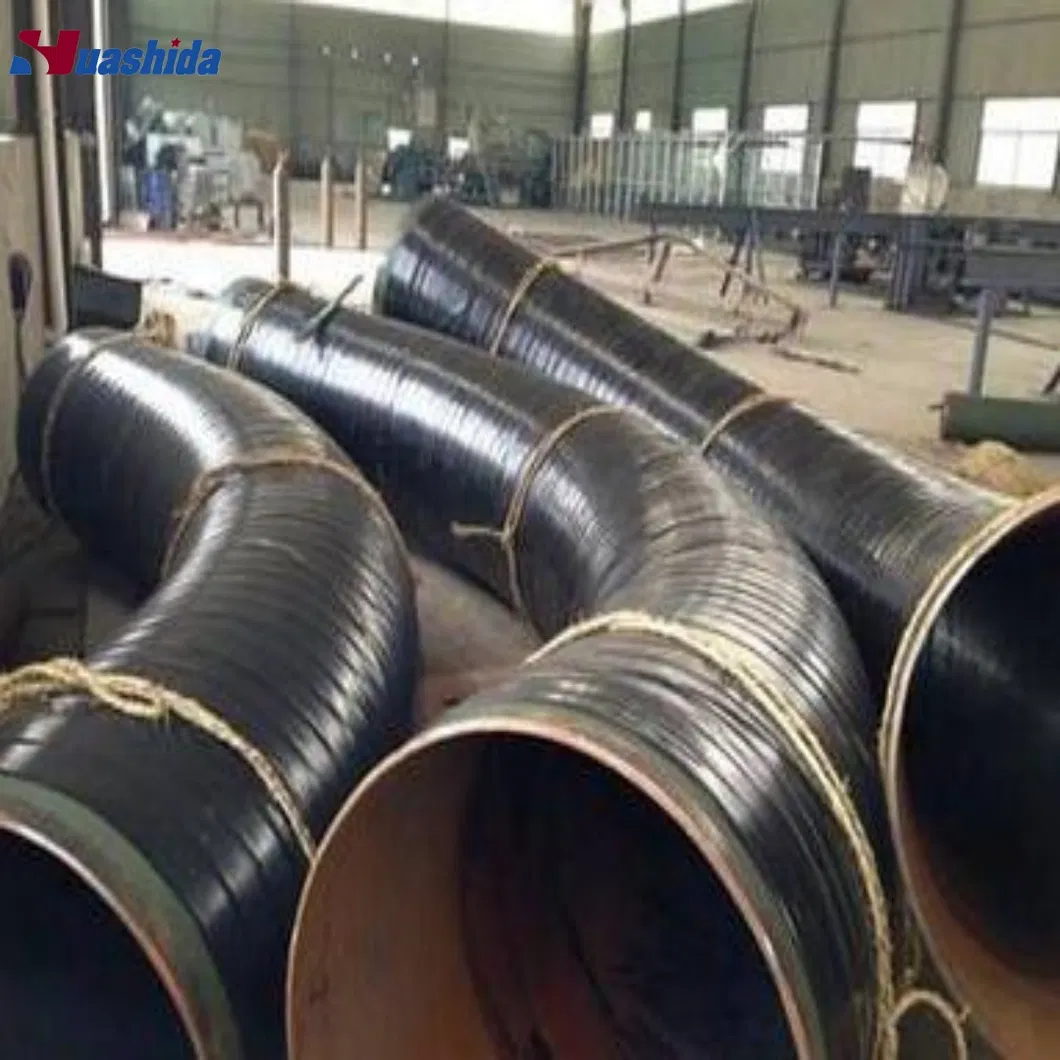

Winding anticorrosive steel pipe parameters:
The diameter of steel pipe: 426, 630, 720, 820, 1020, 1220, 1420, 1620
Curvature radius: 4-6D
Bending angle: 15-90 degrees.
Steel tube wall thickness: 8 mm -12 mm
Epoxy powder thickness: ≥170 um
AD copolymer adhesive thickness: 170-250 um
PE layer thickness: 2.5 - 3.7 mm

Full Automatic 3LPE Coating Machine with 15-90 Degrees Bending Angle and Epoxy Powder Thickness ≥170um 2

Full Automatic 3LPE Coating Machine with 15-90 Degrees Bending Angle and Epoxy Powder Thickness ≥170um 3

If you want to know more you can contact with us. MIa

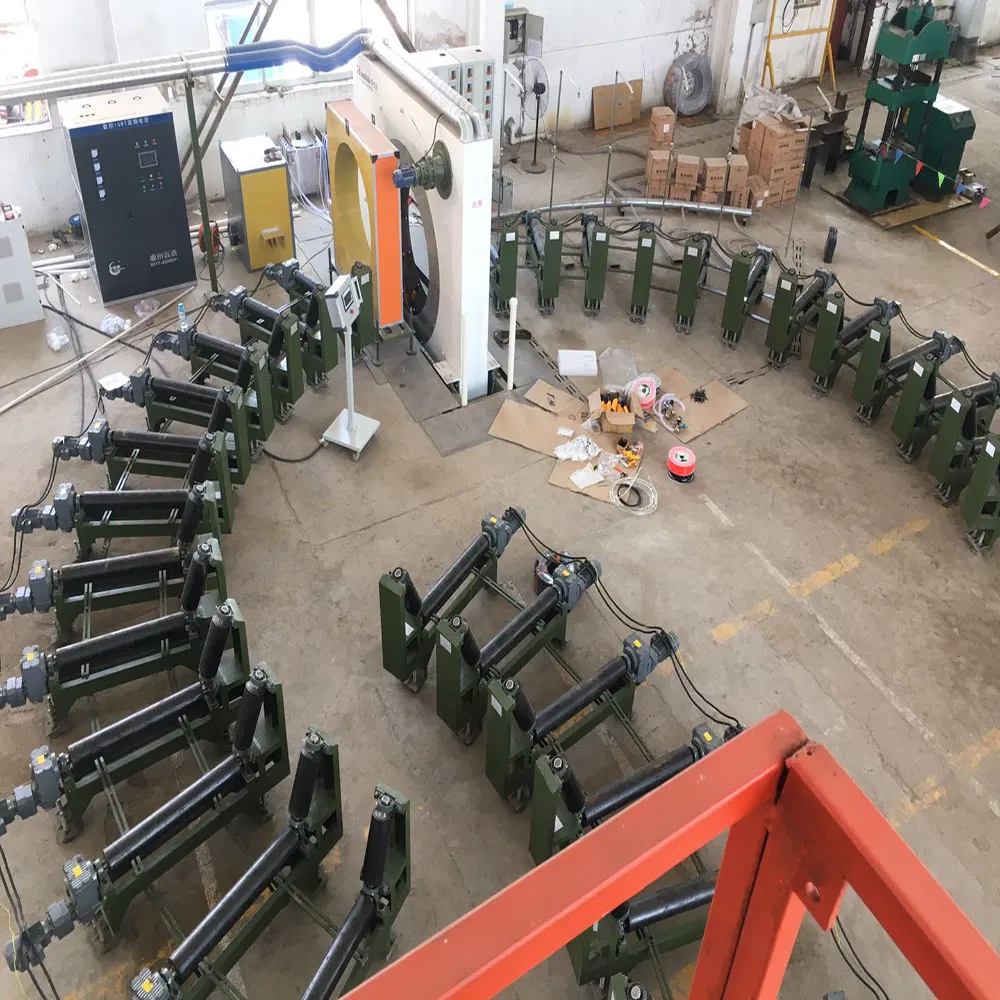

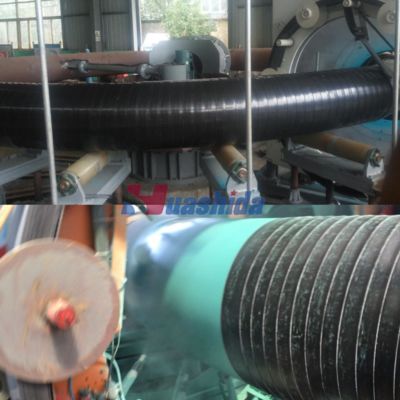

Our pipe bending anti-corrosion production line
Full Automatic 3LPE Coating Machine with 15-90 Degrees Bending Angle and Epoxy Powder Thickness ≥170um 4

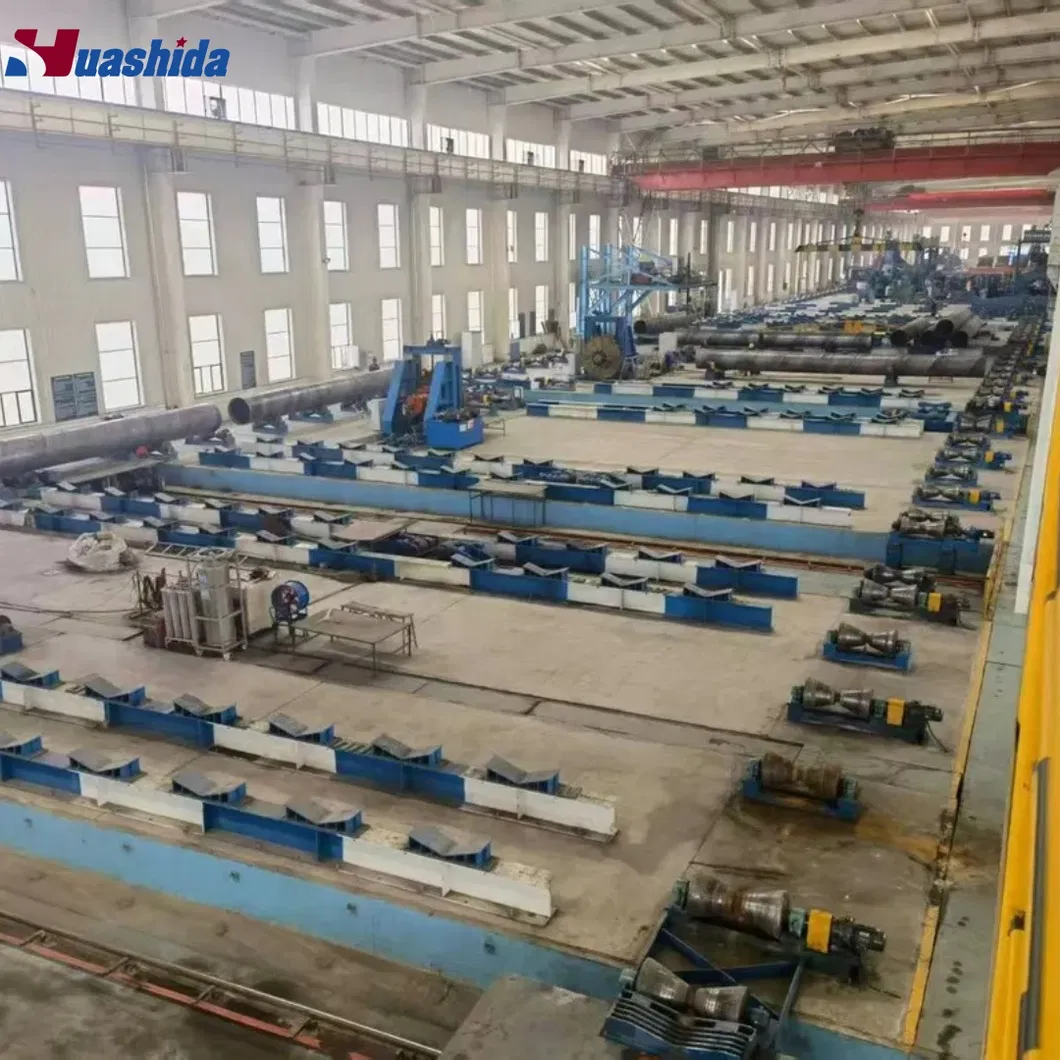

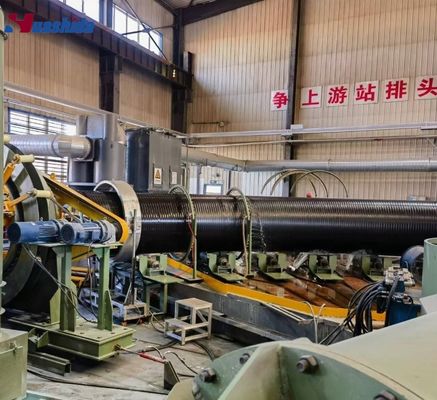

We also have a 3pe anti-corrosion production line
Full Automatic 3LPE Coating Machine with 15-90 Degrees Bending Angle and Epoxy Powder Thickness ≥170um 5

Full Automatic 3LPE Coating Machine with 15-90 Degrees Bending Angle and Epoxy Powder Thickness ≥170um 6

Full Automatic 3LPE Coating Machine with 15-90 Degrees Bending Angle and Epoxy Powder Thickness ≥170um 7

Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!

Our Main Products Include:
HDPE Jacket Pipe Extrusion Line
https://hsdextruder.en.made-in-china.com/product/nUGpodSAarVq/China-HDPE-Insulation-Pipe-Extrusion-Machine-for-Supplying-Hot-Water-Oil-Pipeline.html

3LPE Steel Pipe Anti-Corrosion Coating Line
https://hsdextruder.en.made-in-china.com/product/EAnUkIvojTYJ/China-3lpe-3PE-Fbe-Anti-Corrosion-Insulation-Coating-Line-for-Trunk-Petroleum-Transport-Pipelines.html

Hollow Wall Spiral Pipe Production Line
https://hsdextruder.en.made-in-china.com/product/stZrvGPyCnYX/China-Durable-HDPE-Hollow-Wall-Corrugated-Pipe-Machine-Production-Line.html

Double Wall Corrugated Pipe Production Line
https://hsdextruder.en.made-in-china.com/product/uaCYpfkvstre/China-High-Density-Polyethylene-Double-Wall-Corrugated-Pipe-Production-Line-for-Drainage-Water.html

PE/PP Geo Membrane Production Line
https://hsdextruder.en.made-in-china.com/product/SfypzaVGOnYF/China-HDPE-Plastic-Geo-Membrane-Film-Extrusion-Line.html

PE/PP Sheet Board Extrusion Line
https://hsdextruder.en.made-in-china.com/product/ITrUKBnEBtRa/China-PE-PP-Pet-Multi-Layer-Sheets-Boards-Co-Extrusion-Line.html

Rubber Foam Insulation Pipe Production Line
https://hsdextruder.en.made-in-china.com/product/WafrnuQwRERF/China-PVC-NBR-Nitrile-Rubber-Foam-Insulation-Sheet-Tube-Production-Line-with-Thickness-9mm-13mm-19mm.html

HDPE Welding Wire Welder Rods

https://hsdextruder.en.made-in-china.com/product/OfIpGDJSmEUQ/China-HDPE-Welding-Wire-Plastic-Welding-Rod-Colored-Welder-Rods.html

Besides manufacturing machines, we also make Heat shrinkable sleeves and electro fusion sleeves and plastic welders, which are widely used as pipe joints and sealings of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines.
