3LPE Coating Pipe Production Line with 15-90 Degrees Bending Angle PE Extrusion and Middle Adhesive Layer

1
MOQ
US$150,000.00 - 400,000.00
Price
3LPE Coating Pipe Production Line with 15-90 Degrees Bending Angle PE Extrusion and Middle Adhesive Layer
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Coating Production Line
Coating: PE Extrusion
Bending Angle: 15-90 Degrees
Consists Of: First Fbe Coating, Middle Adhesive,Outer PE Layer
Highlight:

15-90 Degrees Bending Angle 3LPE Coating Pipe Production Line

,

PE Extrusion 3LPE Coating Pipe Production Line

,

Middle Adhesive Layer 3LPE Coating Pipe Production Line
Basic Infomation
Place of Origin: qingdao,china
Brand Name: HSD
Certification: CE, ISO, RoHS
Model Number: 426-1200mm
Payment & Shipping Terms
Packaging Details: Plastic Film and Wooden Pallet
Delivery Time: 60days
Payment Terms: L/C,D/P,T/T,Western Union
Supply Ability: 15 Sets/Year
Product Description
Bend Pipe 3PE 3LPE Coating line with shot Blasting Systems and Epoxy Coated
Product Description

Steel Elbow 3LPE Coating Machinery is for curve steel pipe blasting&coating and PE layer wrapping machinery.It also can make 2PE/FBE coating pipe.Anti-Corrosion in the form of  3PE is first layer epoxy, second is adhesive layer, the third is PE sleeve wrapping.2PE,3PE and FBE Epoxy coated steel pipe is widely used in pipeline systems for the transmission of oil, gas, water and other fluids.They have high resistance to corrosive from chemicals, moisture, harmful environment, etc.

Winding anticorrosive steel pipe parameters:
The diameter of steel pipe: 426, 630, 720, 820, 1020, 1220, 1420, 1620
Curvature radius: 4-6D
Bending angle: 15-90 degrees.
Steel tube wall thickness: 8 mm -12 mm
Epoxy powder thickness: ≥170 um
AD copolymer adhesive thickness: 170-250 um
PE layer thickness: 2.5 - 3.7 mm
3LPE Coating Pipe Production Line with 15-90 Degrees Bending Angle PE Extrusion and Middle Adhesive Layer 0

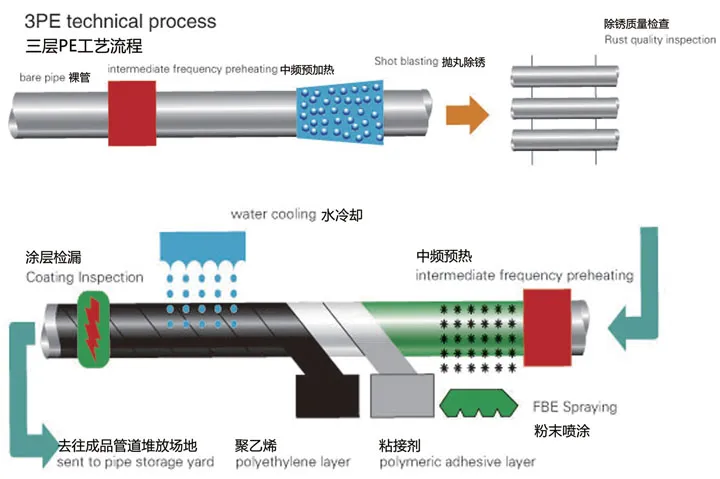

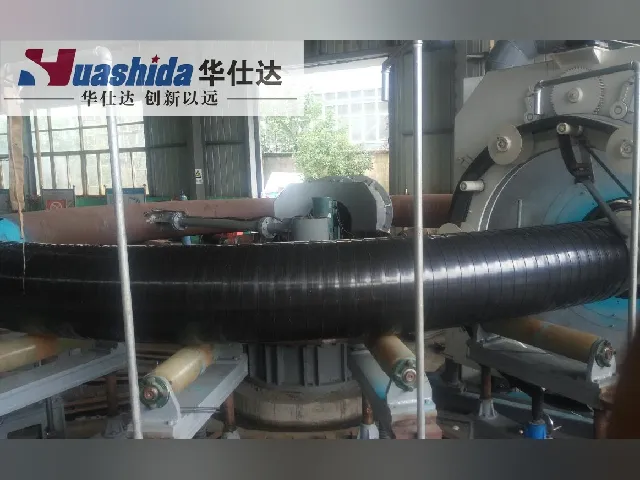

The 3PE anti-corrosion production line for steel elbows is composed of an L-shaped elbow conveyor, an external shot blasting rust removal machine, a dust collector, pipeline heating equipment, FBE powder coating equipment, PE winding equipment and an electrical control system, etc.

3LPE Coating Pipe Production Line with 15-90 Degrees Bending Angle PE Extrusion and Middle Adhesive Layer 1

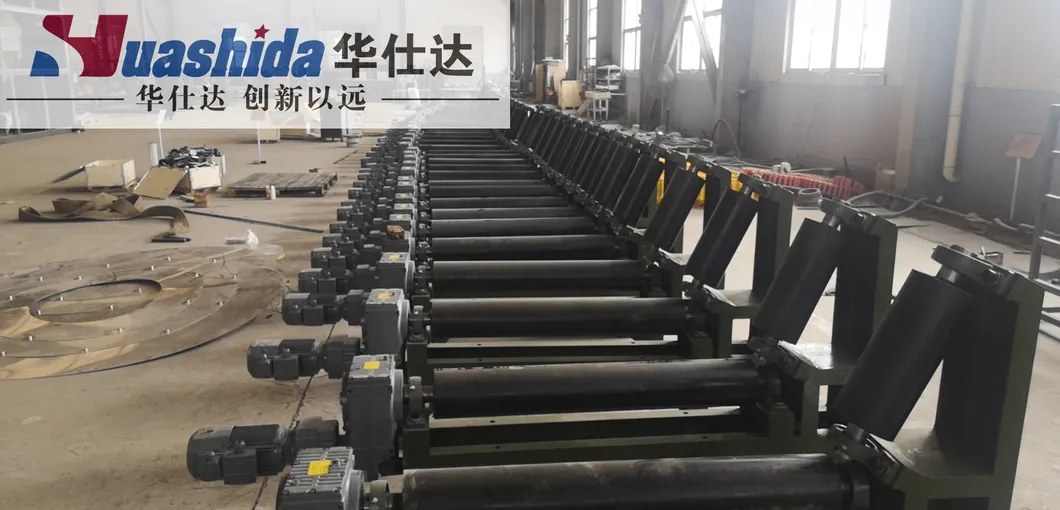

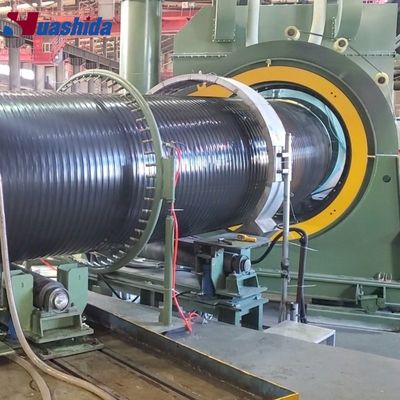

Elbow conveyor line

Independent center of rotation drive
Gear ring gear drive
frequency control
The main parts adopt protective supporting wheel
The supporting wheel is equipped with slide rail, which is easy to install
Fixed angle of self-locking structure of transmission line
Height lift adjustment
3LPE Coating Pipe Production Line with 15-90 Degrees Bending Angle PE Extrusion and Middle Adhesive Layer 2

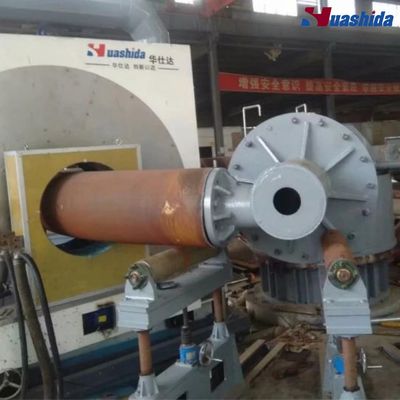

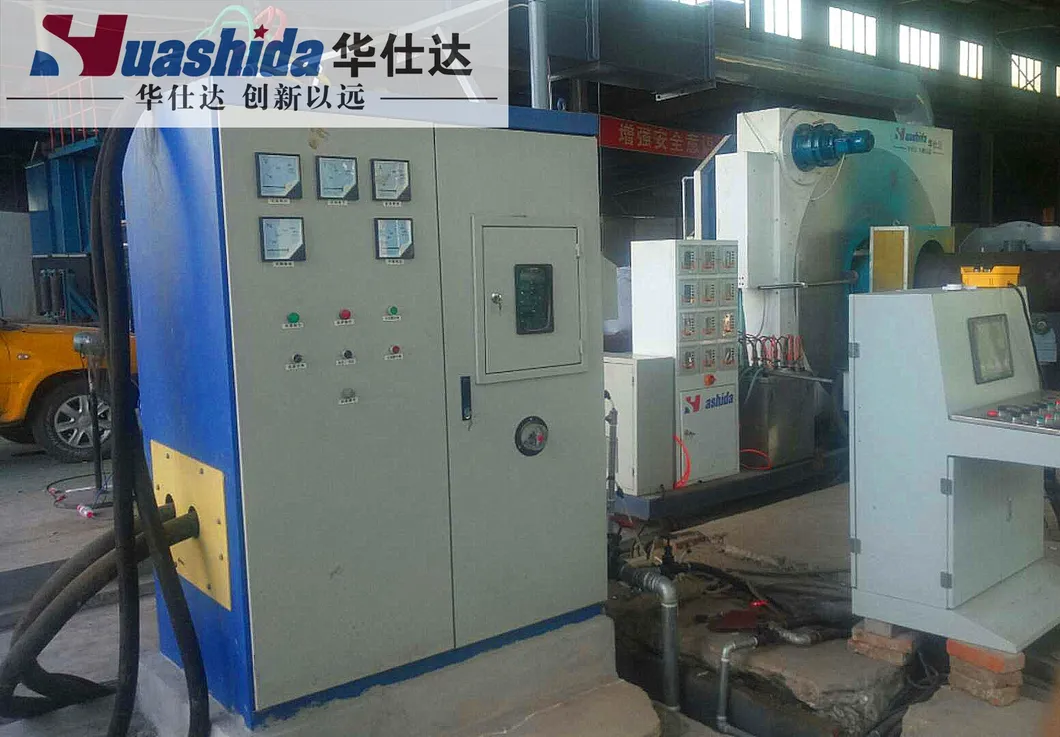

Medium frequency heating

Angle handwheel adjustment
Front and rear electric adjustment
The height is adjusted through the conveyor line
Narrow thickness to avoid uneven heating in bending section
If power 350kW
Voltage and current double close regulation
3LPE Coating Pipe Production Line with 15-90 Degrees Bending Angle PE Extrusion and Middle Adhesive Layer 3
Powder spraying for elbow

Annular dusting chamber
Front and rear electric adjustment of powder spraying chamber
The spray gun swings left and right
CNC adjustment of powder quantity
There are 12 powder guns
U-shaped bottom blowback recovery
Overall material 304 stainless steel
The hard negative pressure of recovery air duct does not deform
3LPE Coating Pipe Production Line with 15-90 Degrees Bending Angle PE Extrusion and Middle Adhesive Layer 4

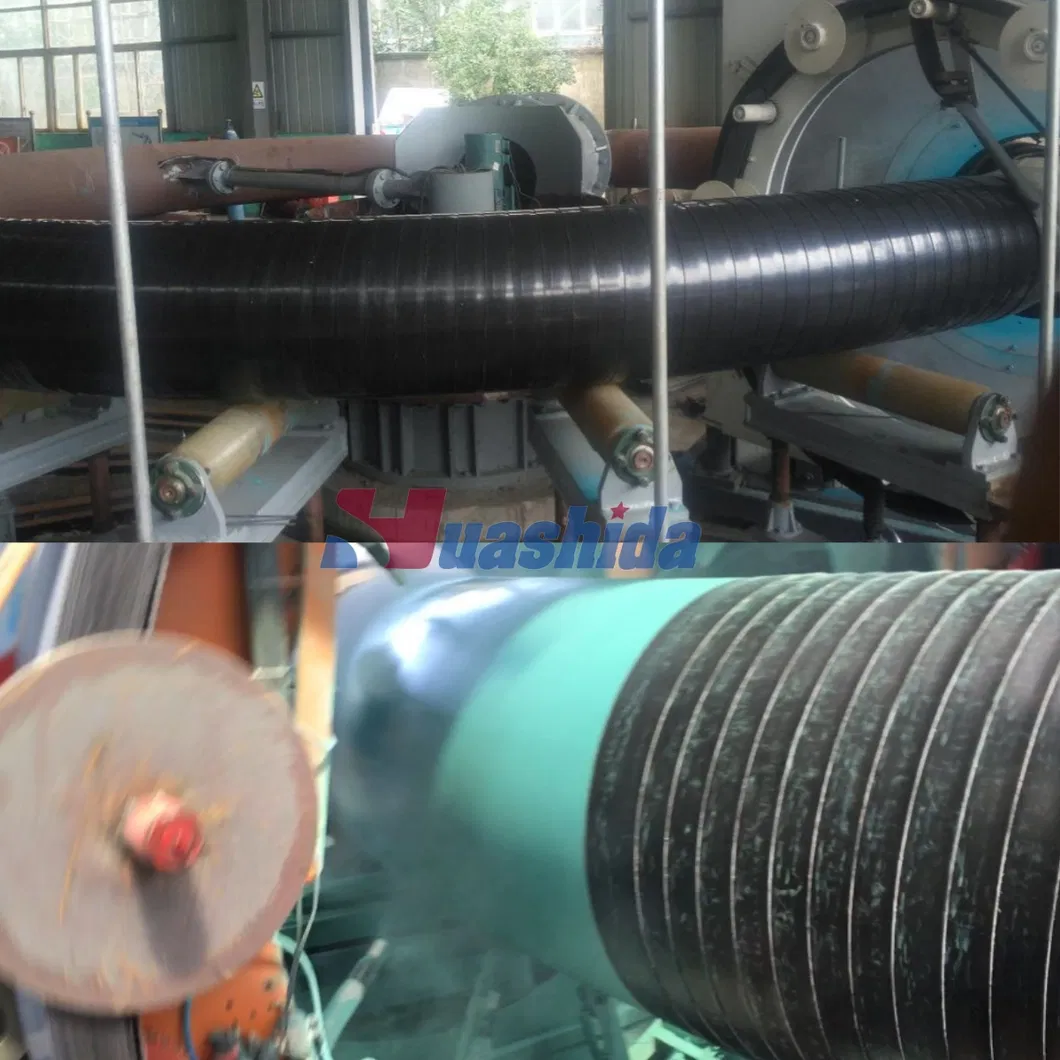

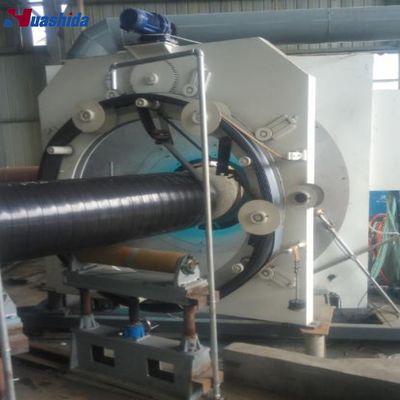

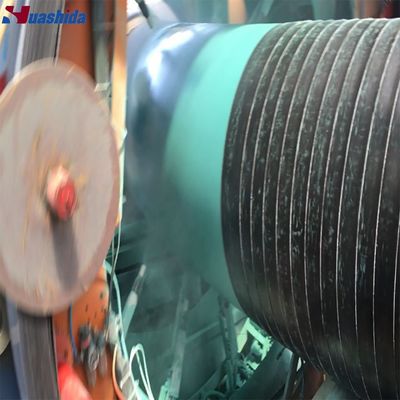

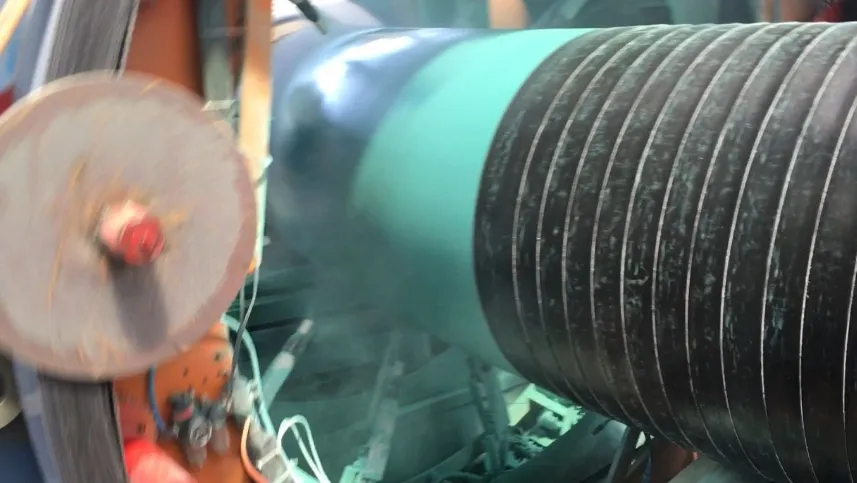

Winding machine

Automatic belt locking
One side with corrosion protection
Continuous operation of winding tape
The strip is wound tightly
High degree of automation
Automatic calculation of strip by computer
The deviation of straight pipe from the center does not affect the winding work


If you want to know more you can contact with us. MIa

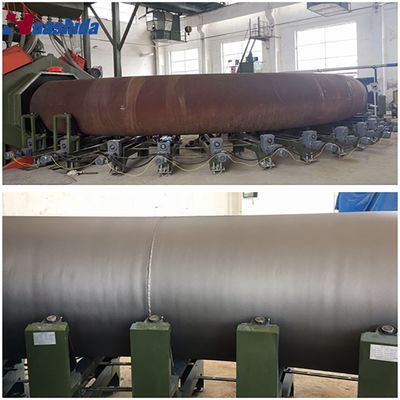

We also have a 3pe anti-corrosion production line
3LPE Coating Pipe Production Line with 15-90 Degrees Bending Angle PE Extrusion and Middle Adhesive Layer 5

3LPE Coating Pipe Production Line with 15-90 Degrees Bending Angle PE Extrusion and Middle Adhesive Layer 6
3LPE Coating Pipe Production Line with 15-90 Degrees Bending Angle PE Extrusion and Middle Adhesive Layer 7

Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!


Our Main Products Include:
HDPE Jacket Pipe Extrusion Line
https://hsdextruder.en.made-in-china.com/product/nUGpodSAarVq/China-HDPE-Insulation-Pipe-Extrusion-Machine-for-Supplying-Hot-Water-Oil-Pipeline.html

3LPE Steel Pipe Anti-Corrosion Coating Line
https://hsdextruder.en.made-in-china.com/product/EAnUkIvojTYJ/China-3lpe-3PE-Fbe-Anti-Corrosion-Insulation-Coating-Line-for-Trunk-Petroleum-Transport-Pipelines.html

Hollow Wall Spiral Pipe Production Line
https://hsdextruder.en.made-in-china.com/product/stZrvGPyCnYX/China-Durable-HDPE-Hollow-Wall-Corrugated-Pipe-Machine-Production-Line.html

Double Wall Corrugated Pipe Production Line
https://hsdextruder.en.made-in-china.com/product/uaCYpfkvstre/China-High-Density-Polyethylene-Double-Wall-Corrugated-Pipe-Production-Line-for-Drainage-Water.html

PE/PP Geo Membrane Production Line
https://hsdextruder.en.made-in-china.com/product/SfypzaVGOnYF/China-HDPE-Plastic-Geo-Membrane-Film-Extrusion-Line.html

PE/PP Sheet Board Extrusion Line
https://hsdextruder.en.made-in-china.com/product/ITrUKBnEBtRa/China-PE-PP-Pet-Multi-Layer-Sheets-Boards-Co-Extrusion-Line.html

Rubber Foam Insulation Pipe Production Line
https://hsdextruder.en.made-in-china.com/product/WafrnuQwRERF/China-PVC-NBR-Nitrile-Rubber-Foam-Insulation-Sheet-Tube-Production-Line-with-Thickness-9mm-13mm-19mm.html


HDPE Welding Wire Welder Rods

https://hsdextruder.en.made-in-china.com/product/OfIpGDJSmEUQ/China-HDPE-Welding-Wire-Plastic-Welding-Rod-Colored-Welder-Rods.html


Besides manufacturing machines, we also make Heat shrinkable sleeves and electro fusion sleeves and plastic welders, which are widely used as pipe joints and sealings of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines.
