Name: HDPE Jacket Pipe Extrusion Line for Pre-Insulated Pipes with Customizable Color One-time Molding and Smooth Pipe Walls
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: 110-2200mm
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Screw No.: Single-screw

Raw Material: PE

Application: Producing Pre-Insulated Pipe Jacket

HDPE Jacket Pipe Color: Can Be Customized

Highlight:

Customizable Color HDPE Jacket Pipe Extrusion Line

One-time Molding Pre-Insulated Pipe Production Line

Smooth Pipe Walls PU Foam Preinsulated Pipe Cover Extrusion Line

Basic Infomation

Place of Origin: Qingdao,china

Brand Name: huashida

Certification: CE, ISO9001:2008

Model Number: 110-2200mm

Payment & Shipping Terms

Packaging Details: standard packaged

Delivery Time: 60days

Payment Terms: L/C,D/P,T/T,Western Union

Supply Ability: 30 Sets/Year

Gallery

HDPE Jacket Pipe Extrusion Line for Pre-Insulated Pipes with Customizable Color One-time Molding and Smooth Pipe Walls

Product Description

HDPE Outer Casing Jacket Pipe PU Foam Preinsulated Pipe Cover Extrusion line

Pre-Insulated HDPE Plastic Jacket Pipe Production Line:

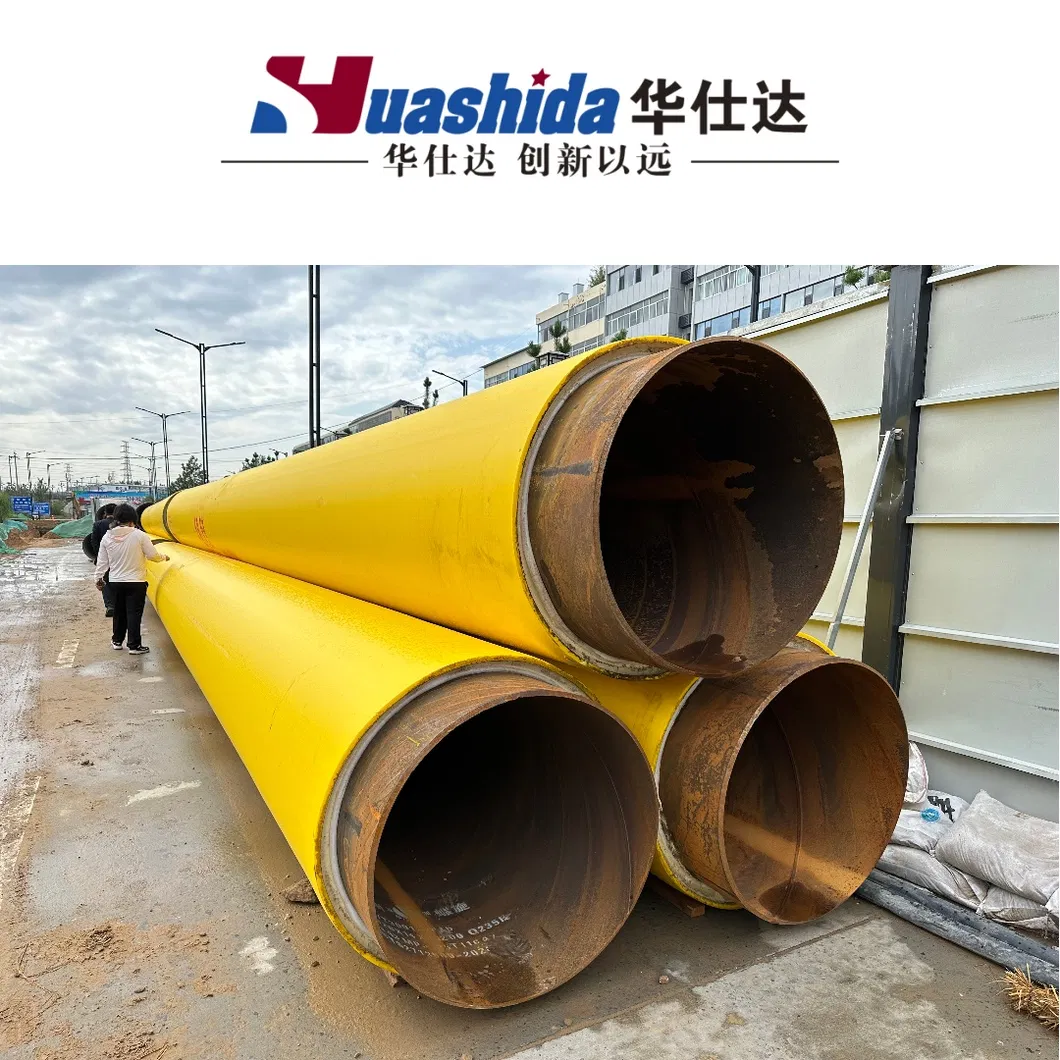

HDPE jacket pipe extrusion line is high-efficiency equipment with high speed and energy saving for producing HDPE pipe used as protective cover of PU foam thermal Pre-Insulated Pipe according to international standard.
HDPE jacket pipes are produced by vacuum calibration method, with smooth inner and outer walls, a long service life, good anti-corrosion and heat preservation performance, and excellent mechanical properties.

HDPE Jacket Pipe Extrusion Line for Pre-Insulated Pipes with Customizable Color One-time Molding and Smooth Pipe Walls 0

HDPE Jacket Pipe Extrusion Line for Pre-Insulated Pipes with Customizable Color One-time Molding and Smooth Pipe Walls 1

Style	PE-110/500	PE-655/1380	PE-960/1860	PE-1155/2200
Main Extruder	SJ-75/33	SJ-120/33	SJ-150/33	SJ-150/33
Pipe diameter	Φ110-600mm	Φ655-1380mm	Φ960-1860mm	Φ1155-2200mm
Capacity	250-350kg/h	700-900kg/h	1000-1200kg/h	1350kg/h
Installed power	160kw	480kw	580kw	650kw
Length	26m	36m	45m	48m

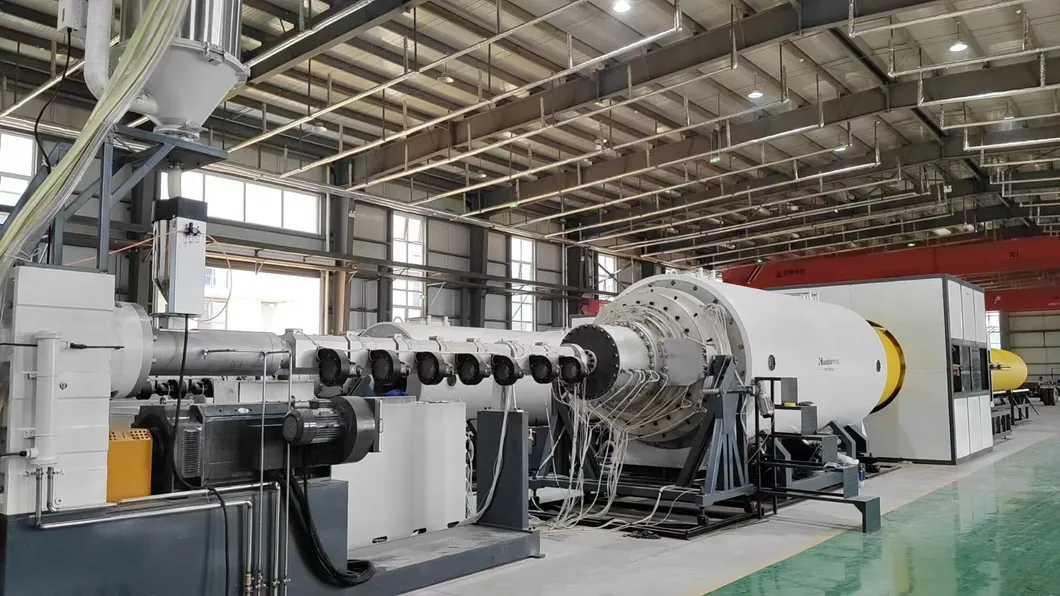

Production line composition:

-1set   Vacuum loader
-1set   Hopper dryer
-1set   High-efficiency single screw extruder
-1set   Vacuum calibration table
-1set   Water spraying tank

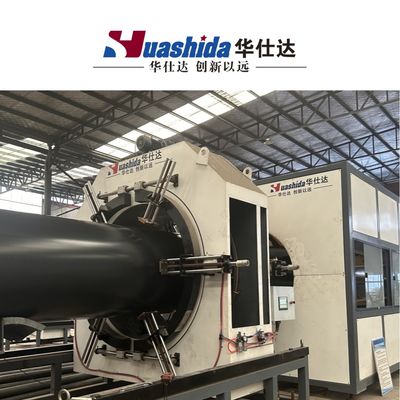

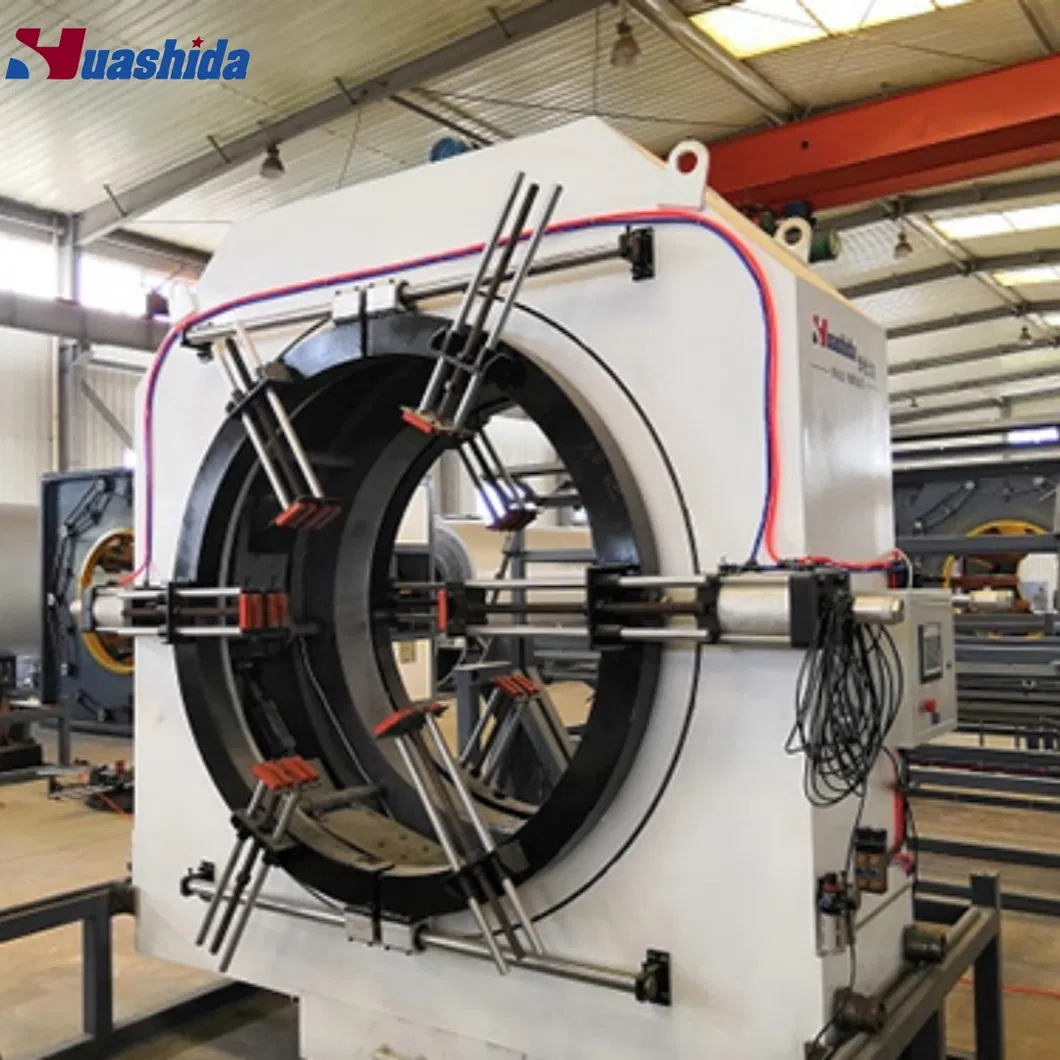

-1set   Hauling machine
-1set   Cutting machine
-1set   Discharging Frame
-1set PLC

Technical Highlights:

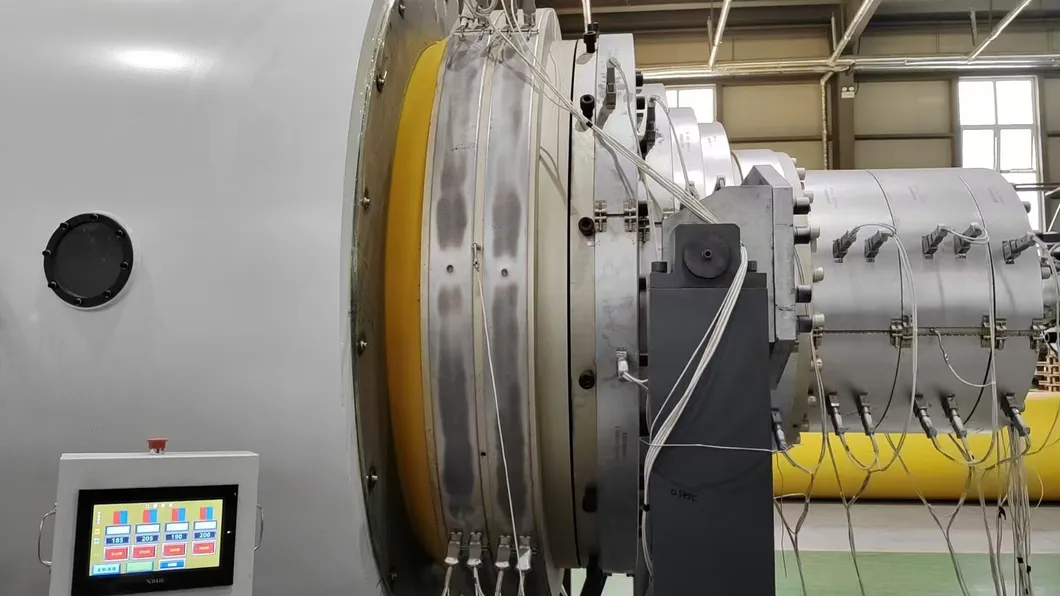

Single-screw extruder	Precision temperature control system ensures consistent material fusion Proprietary single-screw extruder optimized for polyethylene (PE) materials
Vacuum Calibration	Patented vacuum calibration system replaces traditional internal pressure methods
Smart Automation	Fully integrated PLC control system Real-time process monitoring
Production Capabilities	Diameter range: 110mm - 2200mm (customizable) Output capacity: 250-1600 kg/h (material-dependent)

Features of the HDPE sleeve production line:

1.small dimension
2.high degree of automation, can be operated by one person, saving labor costs
3.long service life.
4.high-efficiency extruder gives larger output, stable performance
5.pipe wall is average and smooth
6.no waste of raw material
7.One-time molding
HDPE Jacket Pipe Extrusion Line for Pre-Insulated Pipes with Customizable Color One-time Molding and Smooth Pipe Walls 2

HDPE Jacket Pipe Extrusion Line for Pre-Insulated Pipes with Customizable Color One-time Molding and Smooth Pipe Walls 5

HDPE Jacket Pipe Extrusion Line for Pre-Insulated Pipes with Customizable Color One-time Molding and Smooth Pipe Walls 6

HDPE Jacket Pipe Extrusion Line for Pre-Insulated Pipes with Customizable Color One-time Molding and Smooth Pipe Walls 7

Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!

Our Main Products Include:
HDPE Jacket Pipe Extrusion Line
https://hsdextruder.en.made-in-china.com/product/nUGpodSAarVq/China-HDPE-Insulation-Pipe-Extrusion-Machine-for-Supplying-Hot-Water-Oil-Pipeline.html

3LPE Steel Pipe Anti-Corrosion Coating Line
https://hsdextruder.en.made-in-china.com/product/EAnUkIvojTYJ/China-3lpe-3PE-Fbe-Anti-Corrosion-Insulation-Coating-Line-for-Trunk-Petroleum-Transport-Pipelines.html

Hollow Wall Spiral Pipe Production Line
https://hsdextruder.en.made-in-china.com/product/stZrvGPyCnYX/China-Durable-HDPE-Hollow-Wall-Corrugated-Pipe-Machine-Production-Line.html

Double Wall Corrugated Pipe Production Line
https://hsdextruder.en.made-in-china.com/product/uaCYpfkvstre/China-High-Density-Polyethylene-Double-Wall-Corrugated-Pipe-Production-Line-for-Drainage-Water.html

PE/PP Geo Membrane Production Line
https://hsdextruder.en.made-in-china.com/product/SfypzaVGOnYF/China-HDPE-Plastic-Geo-Membrane-Film-Extrusion-Line.html

PE/PP Sheet Board Extrusion Line
https://hsdextruder.en.made-in-china.com/product/ITrUKBnEBtRa/China-PE-PP-Pet-Multi-Layer-Sheets-Boards-Co-Extrusion-Line.html

Rubber Foam Insulation Pipe Production Line
https://hsdextruder.en.made-in-china.com/product/WafrnuQwRERF/China-PVC-NBR-Nitrile-Rubber-Foam-Insulation-Sheet-Tube-Production-Line-with-Thickness-9mm-13mm-19mm.html

HDPE Welding Wire Welder Rods

https://hsdextruder.en.made-in-china.com/product/OfIpGDJSmEUQ/China-HDPE-Welding-Wire-Plastic-Welding-Rod-Colored-Welder-Rods.html

Besides manufacturing machines, we also make Heat shrinkable sleeves and electro fusion sleeves and plastic welders, which are widely used as pipe joints and sealings of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines.

HDPE Jacket Pipe Extrusion Line for Pre-Insulated Pipes with Customizable Color One-time Molding and Smooth Pipe Walls 8

HDPE Jacket Pipe Extrusion Line for Pre-Insulated Pipes with Customizable Color One-time Molding and Smooth Pipe Walls 9

HDPE Jacket Pipe Extrusion Line for Pre-Insulated Pipes with Customizable Color One-time Molding and Smooth Pipe Walls 10
