3LPE Coating Production Line for Steel Pipes with 100µm FBE Layer

3PE anti-corrosion coating is that the steel pipe is protected by three layers to prolong the life of service  from 5-10years to 50-100years.
First layer is Fusion bonded epoxy layer (FBE> 100µm), the second layer is adhesive (AD) 170 ~ 250µm, and the third layer is polyethylene (PE) stripe 2.5 ~ 3.7mm.
3PE steel coating pipe has the features of high mechanical strength, excellent electrical insulation performance, Process accuracy and environmental friendliness.

The three-layer HDPE stripe winding process, with epoxy powder coating as bottom layer and binding adhesive as second layer, is the widely used technique in steel pipe anti-corrosion all over the world.  The anti-corrosion steel pipe are applied in oil, gas and water supply pipelines.

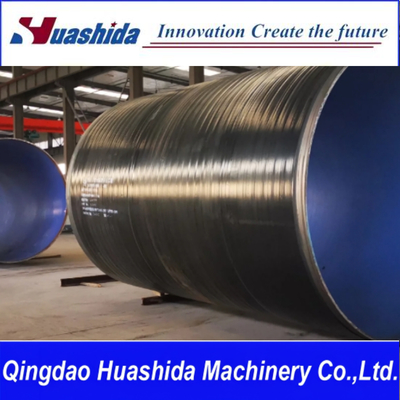

Three-Layer structure of 3PE anti-corrosion pipe
The three-layer PE anti-corrosion structure includes fusion bonded epoxy-powder bottom layer, polymer adhesive middle layer and polyethylene outside layer. The epoxy powder is a kind of thermosetting nontoxic coating, forming the high molecular weight cross-linking structure coating after solidifying, featuring good chemical anti-corrosion and high mechanical properties. Function of epoxy layer is to form continuous coating and to provide the steel tube surface with good  chemical resistance and cathodic disbanding resistance. The function of polymer adhesive is to agglutinate the epoxy layer and the polyethylene outside layer, which unites all three layers together. The polyethylene layer protects the pipe from abrasion, bump and water.



Upload pipes→pipes conveyor→rust removal→intermediate frequency heating→Epoxy powder coating→Middle layer  &polyethylene stripe winding→water cooling→pipes conveyor→ pipe chamfer→unload pipes




Blasting machinery

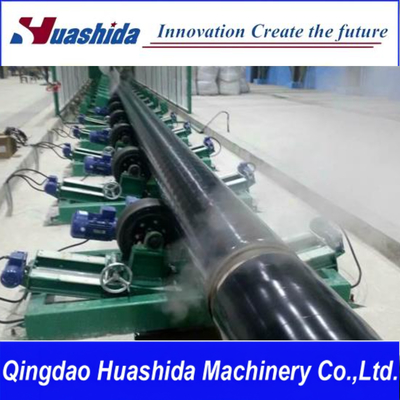

steel pipe conveyor

FBE Coating machinery

PE/PP  layer wrap extruder line

Qingdao Huashida Machinery Co., Ltd was established in 2003. Since its inception, Huashida has focused on plastic polyurethane insulation pipe production line, 3PE anti-corrosion pipe production line, large diameter underground pipe production line and plastic pipe joints for 20 years. We always attach great importance to research and development,collaborating closely with Beijing University of chemical technology, Qingdao university of technology and scientific research institutions. by absorbing advanced technology home and abroad, after 20 years of endeavor we now rank one of the top 3 manufacturers in the industry in China.  Huashida machines have been well received in Saudi Arabia, Kazakhstan, Uzbekistan, United Arab Emirates, Turkey, Russia, etc.
