3PE Coating Production Line for Steel Elbow Pipes 426-820mm Dia

Qingdao Huashida Machinery Co., Ltd. is dedicated to providing advanced pipeline anti-corrosion solutions. Our Steel Elbow 3PE Anti-Corrosion Production Line is specifically designed for hot-bent pipes, elbows, and certain structural parts of a suitable size, offering a one-stop, highly efficient, fully automated solution for anti-corrosion protection.

This integrated production line combines key processes such as shot blasting, intermediate frequency heating, 3PE coating, and rapid cooling into a single, continuous workflow. It not only thoroughly removes rust, mill scale, and welding slag from the pipe surface but also eliminates welding stress. The shot blasting process also enhances surface roughness, significantly improving the adhesion of the epoxy powder or 3PE coating, thereby fully boosting the pipe's anti-corrosion and mechanical performance.

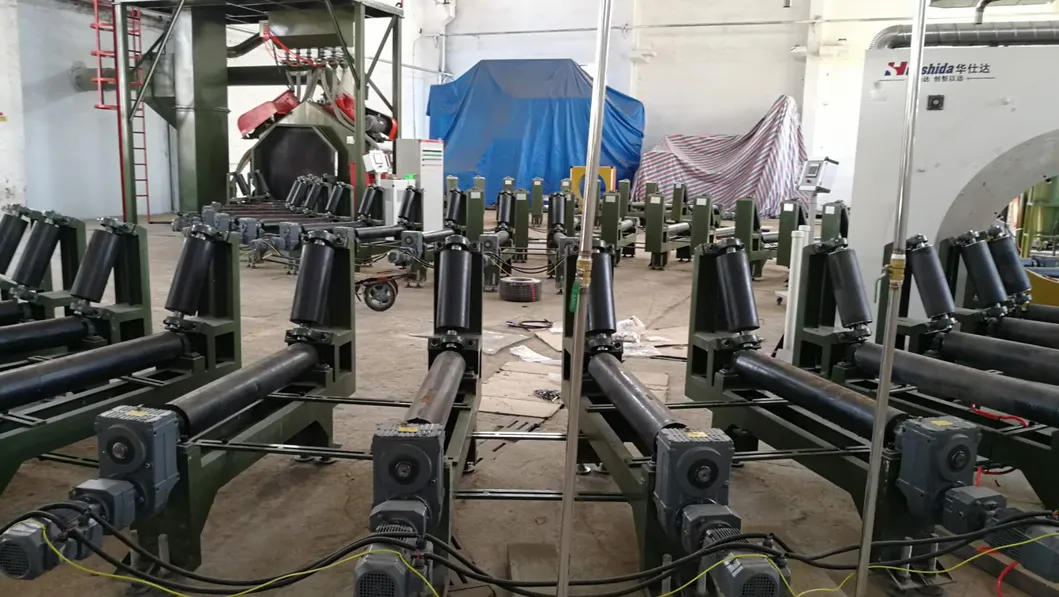

Elbow conveyor line

Independent center of rotation drive

Gear ring gear drive

frequency control

The main parts adopt protective supporting wheel

The supporting wheel is equipped with slide rail, which is easy to install

Fixed angle of self-locking structure of transmission line

Height lift adjustment

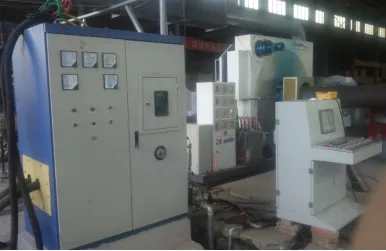

Medium frequency heating

Angle handwheel adjustment

Front and rear electric adjustment

The height is adjusted through the conveyor line

Narrow thickness to avoid uneven heating in bending section

If power 350kW

Voltage and current double close regulation

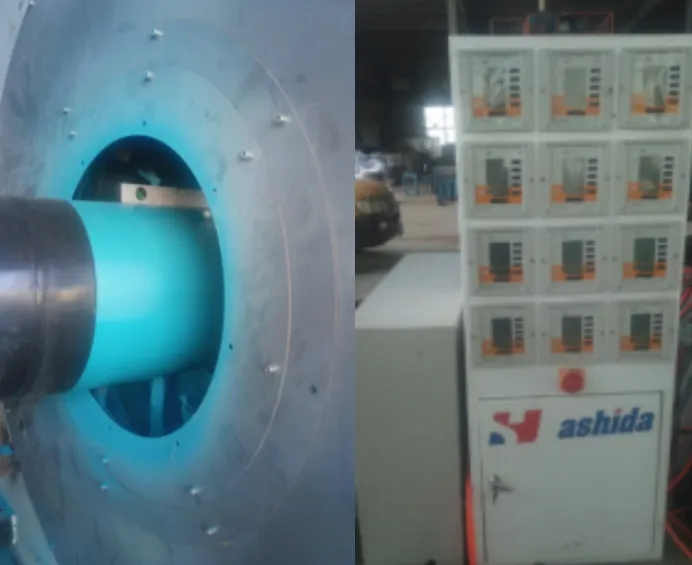

Powder spraying for elbow

Annular dusting chamber

Front and rear electric adjustment of powder spraying chamber

The spray gun swings left and right

CNC adjustment of powder quantity

There are 12 powder guns

U-shaped bottom blowback recovery

Overall material 304 stainless steel

The hard negative pressure of recovery air duct does not deform

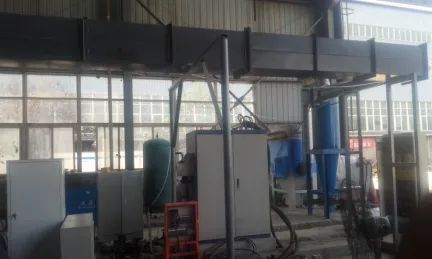

Powder injection recovery

The drawing air duct is suitable for the change of pipe diameter

Cyclone + filter cartridge dust removal standard discharge

U-shaped bottom structure + pulse back blowing to recover powder more thoroughly

304 stainless steel fluidization tank, vibrating screen powder filter, equipped with 12 venturi powder pumps

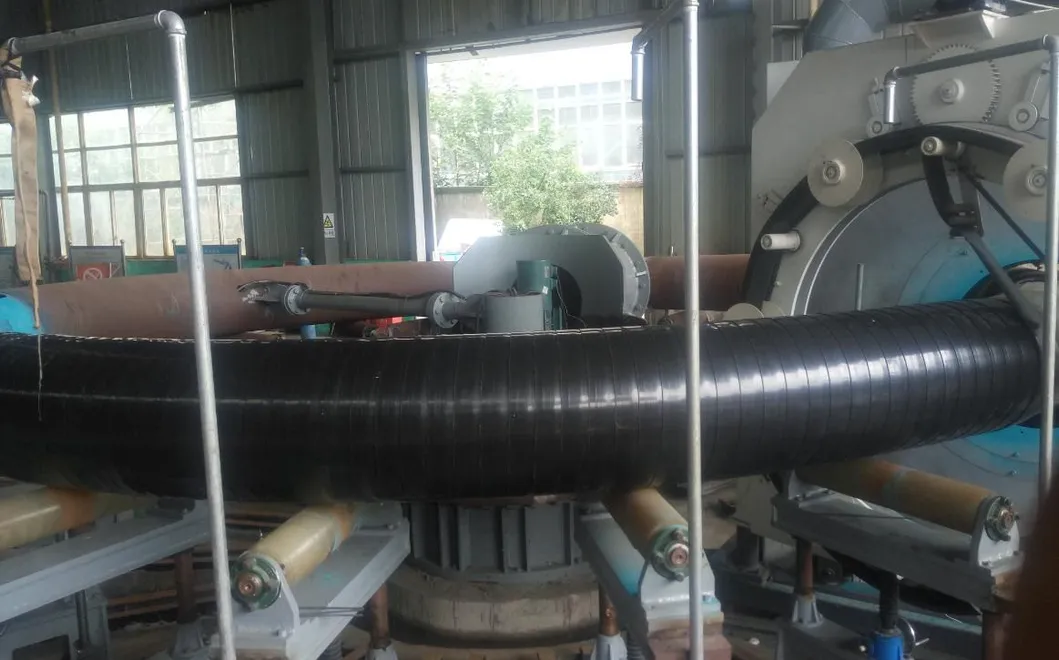

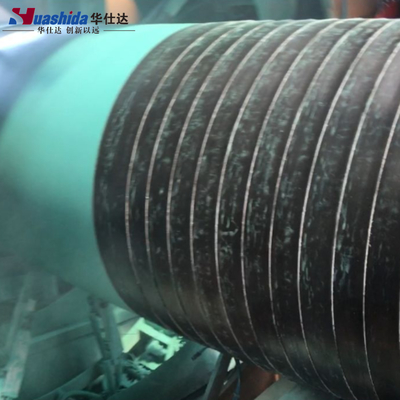

Winding machine

Automatic belt locking

One side with corrosion protection

Continuous operation of winding tape

The strip is wound tightly

High degree of automation

Automatic calculation of strip by computer

The deviation of straight pipe from the center does not affect the winding work

PLC control systerm

Data collection

edit

With memory function

Automatic calculation of strip consumption

Automatic acquisition and correction of transmission speed

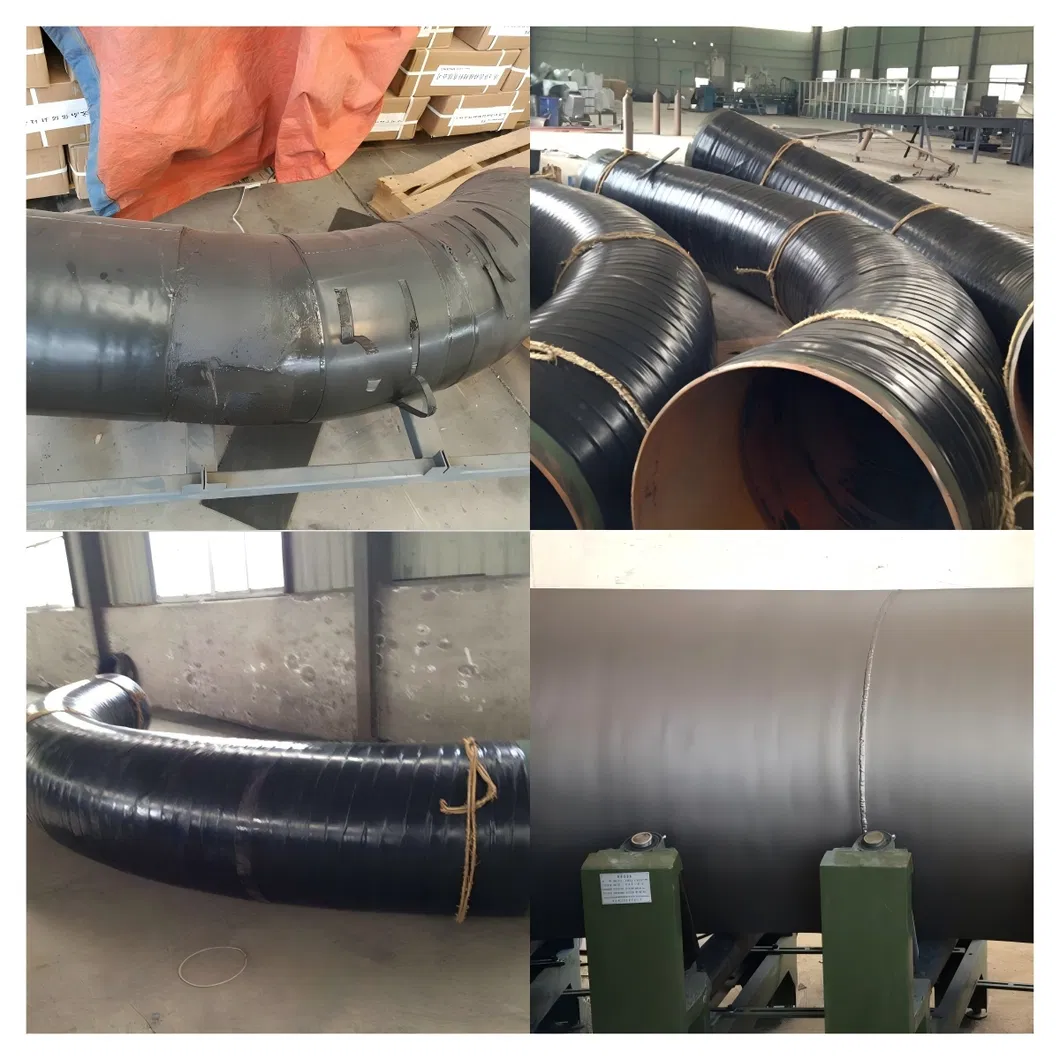

Bend Pipe Conveyor System: Ensures smooth and stable movement of the pipes throughout the coating process. Our proprietary "Variable Elbow Pipe Conveyor Line" can adapt to bend pipes of different diameters, radii, and angles.

Bend Pipe Blasting Machine: Thoroughly removes surface rust and welding slag.

Bend Pipe Intermediate Frequency Heating System: Precisely controls temperature to ensure proper melting and curing of the coating.

Bend Pipe 3PE Coating System: Precisely applies the three-layer anti-corrosion structure.

Bend Pipe Spray Cooling System: Rapidly cools and solidifies the coating, improving adhesion.

Oil & Gas pipeline systems

Water supply pipelines

Sewage and wastewater transport

Chemical industry pipeline protection

Qingdao Huashida Machinery Co., Ltd was established in 2003. Since its inception, Huashida has focused on plastic polyurethane insulation pipe production line, 3PE anti-corrosion pipe production line, large diameter underground pipe production line and plastic pipe joints for 20 years. We always attach great importance to research and development,collaborating closely with Beijing University of chemical technology, Qingdao university of technology and scientific research institutions. by absorbing advanced technology home and abroad, after 20 years of endeavor we now rank one of the top 3 manufacturers in the industry in China.  Huashida machines have been well received in Saudi Arabia, Kazakhstan, Uzbekistan, United Arab Emirates, Turkey, Russia, etc.
