Home /Products/3LPE Coating Pipe Production Line/Steel Pipe Blasting Deruster for 3LPE Coating Line 48-3000mm

Steel Pipe Blasting Deruster for 3LPE Coating Line 48-3000mm

1 set
MOQ
US$176,500.00 - 200,000.00 1 Set (MOQ)
Price
Steel Pipe Blasting Deruster for 3LPE Coating Line 48-3000mm
Features Gallery Product Description Request A Quote
Features
Specifications
Blasting: >2.5A
Specification: EN253, EN448, EN728, ISO1133, ISO8501-1
Pipe Dia.: 48-3000mm
Substrate: Steel
Highlight:

steel pipe blasting deruster

,

coated pipe derusting machine

,

internal FBE coating line equipment
Basic Infomation
Place of Origin: Qingdao，China
Brand Name: Huashida
Certification: CE，ISO9001:2008
Model Number: 58-3500 mm
Payment & Shipping Terms
Packaging Details: Standard Package
Delivery Time: 70-90 days
Payment Terms: L/C,T/T
Supply Ability: 30 set / year
Product Description

Blasting Deruster for Steel Pipe and Coated Pipe and Internal Fbe Coating Line


Basic Info.

Model NO.
58-3500 mm
Type
Coating Production Line
Coating
Powder Coating
Substrate
Steel
Certification
ISO
Condition
New
Pipe Dia.
48-3000mm
Blasting
>2.5A
Transport Package
Standard Package
Specification
EN253, EN448, EN728, ISO1133, ISO8501-1
Trademark
HSD
Origin
Qingdao China
HS Code
8479819000
Production Capacity
10 Units/Year

Packaging & Delivery

Package Size
1000.00cm * 220.00cm * 260.00cm
Package Gross Weight
1000.000kg

Product Description

Blasting Deruster for Steel Pipe And Coated Pipe And Internal FBE Coating Line

Product Parameters


Steel pipe outside shot blasting derusting operation   line

No.

Description

Qty.

Remark

1

Transmission   line

1set

2

Shot  blasting derusting line

1set

3

Cyclone  dust collector

1set

4

Pulse filter cartridge dust collector

1set

5

Centrifugal   wind blower

1set

6

Derusting equipment electrical control system


1set

Steel pipe outside spiral 3PE production line

No.

Description

Qty.


1

Coating transmit system

1set

2

Intermediate   frequency heating system

1set

3

Epoxy   spraying system

1set

4

Automatic feeding dryer

2sets

5

single screw high efficiency extruder SJ-65/30


1set

6

SJ-120/30   extruder

1set

7

Hot melt   adhesive extrusion die head

1set

8

PE   sheet  extrusion die head

1set

9

Hot melt   adhesive/PE sheet press device

1set

10

Stainless steel spray powder chamber

1set

11

Cooling water spray system

1set

Platform system

No.

Description

Qty.


1

Steel pipe   up load platform

1set

2

Derusting   transition platform

1set

3

Finished   pipe storage system

1set

4

Hydraulic   system

3sets

Grooving system

No.

Description

Qty.


1

PE grooving   device

2sets

2

Hydraulic elevating pipe turner

2sets

3

Operating   cabinet

1set


      Corrosion resistant steel pipe can be divided into two categories, inner lined anti-corrosion steel pipe and anti-corrosion steel pipe. Inner lined anti-corrosion mainly cement mortar lining anti-corrosion steel pipe application more, lower cost, using cement mortar coating on the pipeline to play a preservative effect. Outer wall anti-corrosion steel pipe applied more 3PE anti-corrosion steel pipe. Anti-corrosion technology with Huashida 3PE anti-corrosion coating production line is the process of protecting the outer wall or inner wall of the steel pipe to protect the pipeline itself. On the straight seam steel pipe, spiral pipe and other pipes can be processed. Huashida production line, the establishment of a sound quality assurance system, has passed ISO9001: 2000 certification, the implementation of the whole process of quality tracking control, reliable quality. Customers can assure.
Steel Pipe Blasting Deruster for 3LPE Coating Line 48-3000mm 0







Steel Pipe Blasting Deruster for 3LPE Coating Line 48-3000mm 1Steel Pipe Blasting Deruster for 3LPE Coating Line 48-3000mm 2
Detailed Photos


Steel Pipe Blasting Deruster for 3LPE Coating Line 48-3000mm 3Steel Pipe Blasting Deruster for 3LPE Coating Line 48-3000mm 4Steel Pipe Blasting Deruster for 3LPE Coating Line 48-3000mm 5
FAQ

Question & Answer:
Q1. What is Size of Pipe Dia. your equipment can produce ?
A: We can produce four main Model:
Diameter of steel Pipe:
48-219mm.
219-1220 - mm
800-1600 - mm
1000-2400 - mm
Q2. What is Descaling grade?
A:SA2.5?
Q3. What is your anticorrosion coating standard?
A: It can meet  SY/T0413-2002 ,GB/T23257-2009, German DIN 30670 , DIN 30678 and  coating specification requirements from American Corrosion Association, and DNV . The product pipe fully complies with  SY/T0315-2005 ,CNPC38-2002 "Technical specifications for double-layer fusion-bonded epoxy powder coating on buried steel pipe and Canada, American Corrosion Association standards.
Q4. What is Delivery Time
A: 2-3monthes after deposit.
Q5. Production output:
A: It is different output capability as different pipe diameter, the Max. is 3 to 8 km/day, and annual processing capacity is 2 million square meters (Φ508 mm).
Q6. Coating thickness:
       A: 80~800um
Q7. Which country did you sell your 3PE equipment?
A. We have produced nearly 50sets 3PE processing line at home and abroad. Such as Russia, Iran, UAE, Iran, India, Belarus, Kazakhstan and so on.
Q8. After-sales service:
A:  Warranty period:
Before delivery all the equipment must be trial operated  to confirm the quantity perfectly.
The warranty period is 12 months from the date of pick-up for mechanical part , and 6 months  for the electrical part.
Service:
The seller provides free technical services and provides training and guidance to buyer operators.
Company Profile

Qingdao Huashida Machinery Co., Ltd is a professional plastic extrusion production line manufacture since 2003. The factory covers 34000 square meters.

Our products such as HDPE pressure pipe for gas or water transmission, structural wall pipe extrusion line, corrugated pipe extrusion line. The products have been exported to Middle East, Russia, Africa. Turkey, Korea.
Our factory locates in Chengyang Industrial area, Qingdao, Shandong Province. We have been approved and got certificate ISO90001:2008 by SGS. All the customers are welcome to visit the factory.

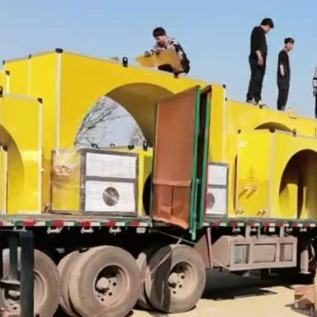

Packaging & Shipping

Steel Pipe Blasting Deruster for 3LPE Coating Line 48-3000mm 6Steel Pipe Blasting Deruster for 3LPE Coating Line 48-3000mm 7Steel Pipe Blasting Deruster for 3LPE Coating Line 48-3000mm 8Steel Pipe Blasting Deruster for 3LPE Coating Line 48-3000mm 9
