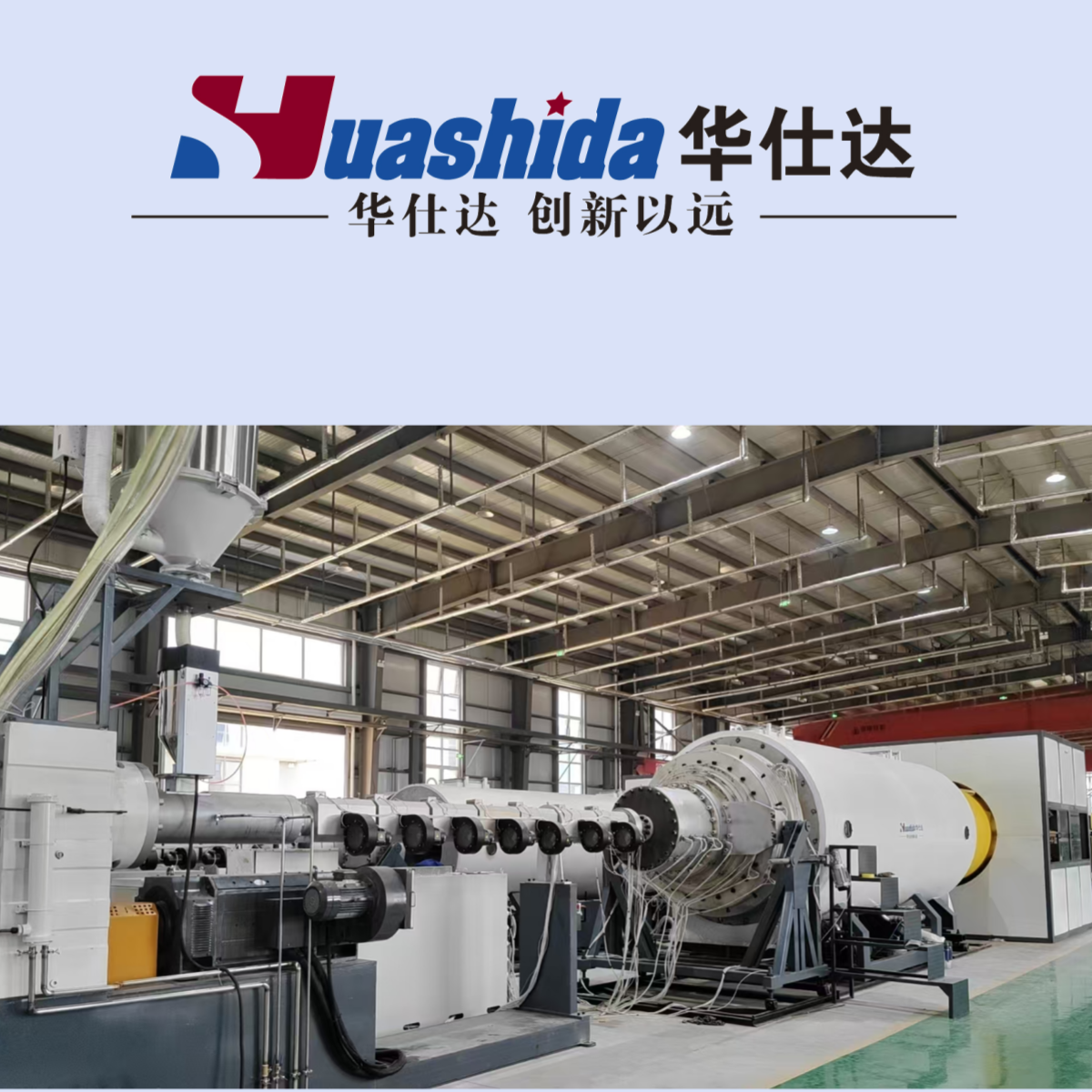

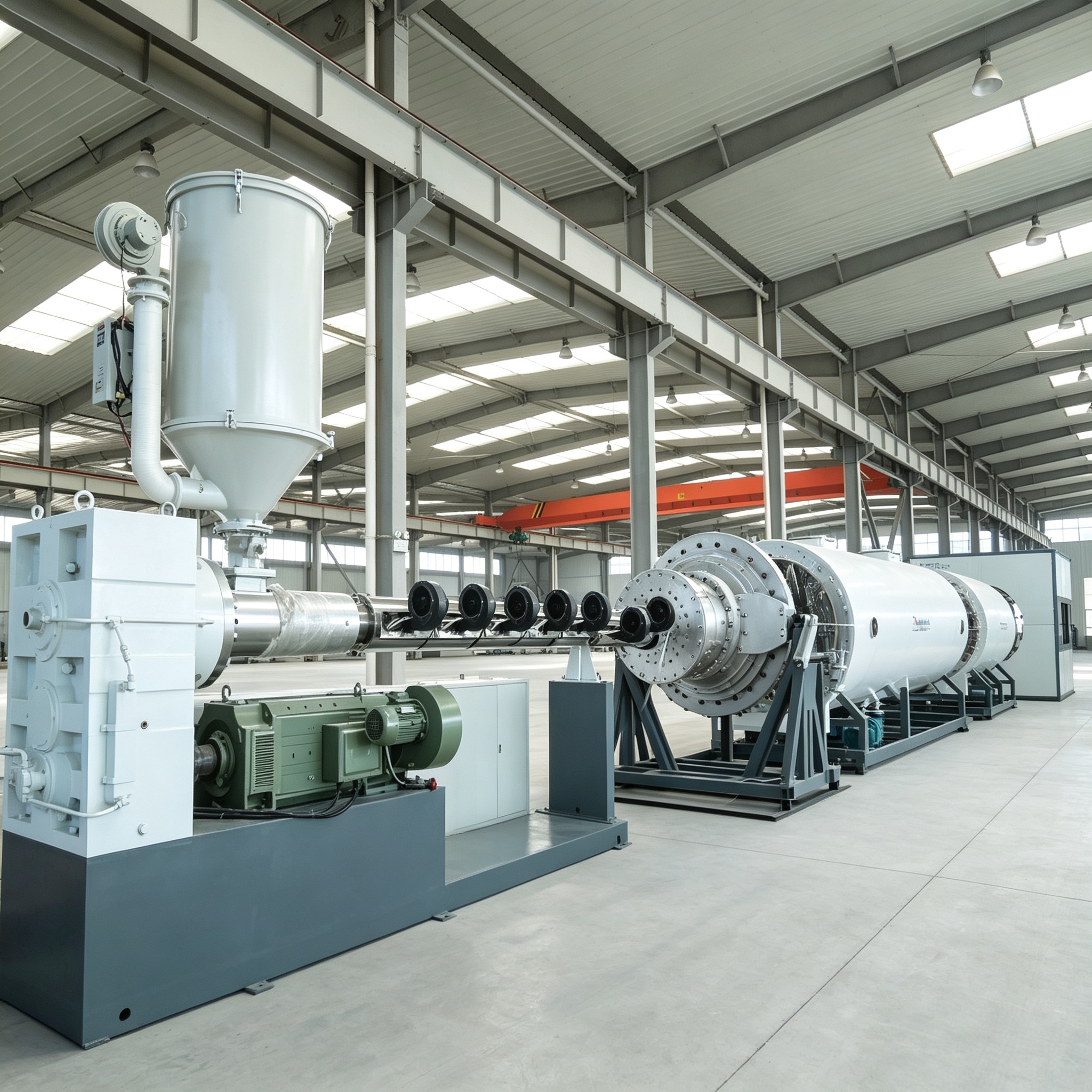

HDPE Pipe Extrusion Machine with Vacuum Calibration 110-1870mm

• 1x Vacuum Loader - Ensures consistent material feeding
• 1x Hopper Dryer - Maintains optimal material moisture levels

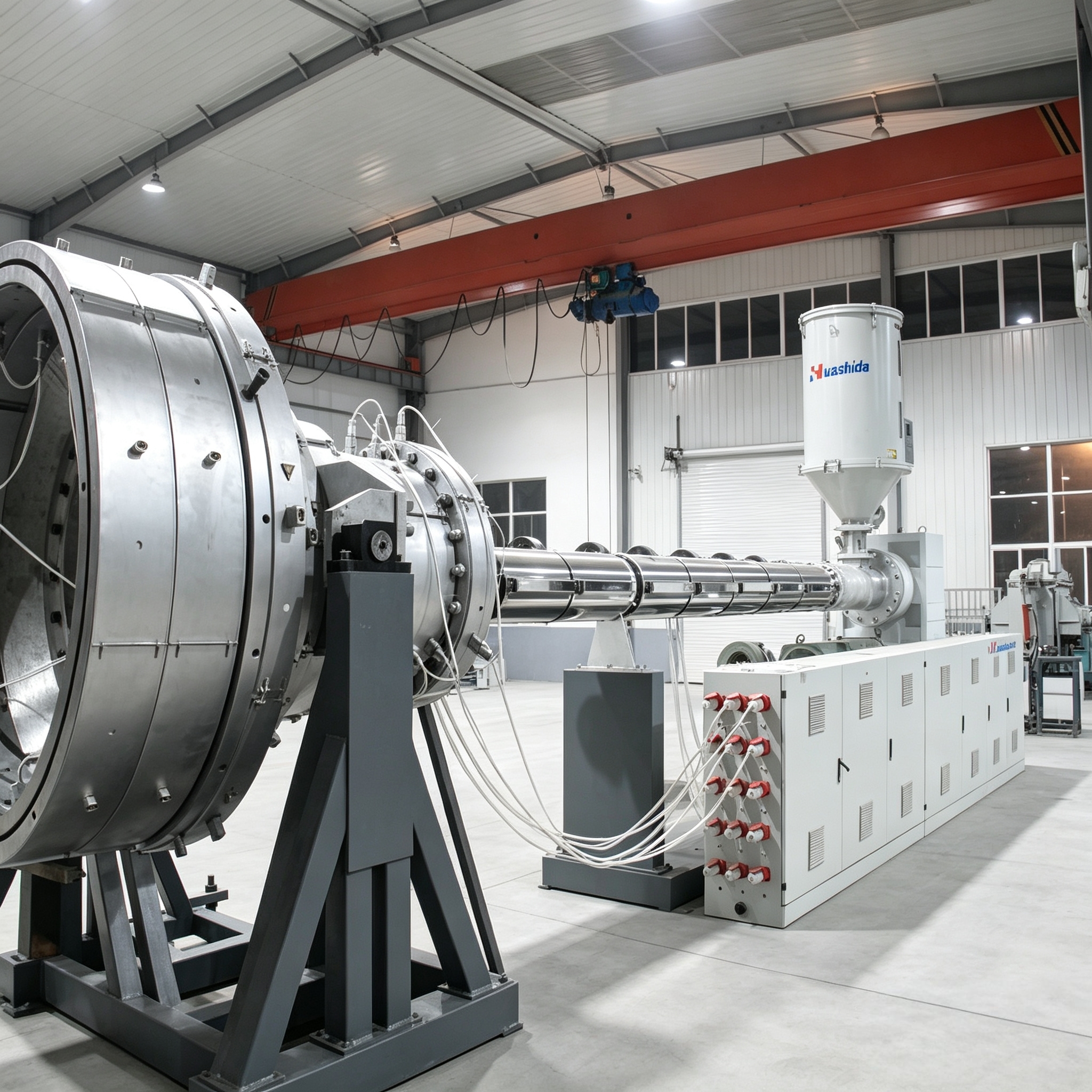

• 1x High-Efficiency Single-Screw Extruder - Delivers smooth, high-output melting
• 1x 25/25 Single-Screw Extruder (Marking Line) - Precision stripe application

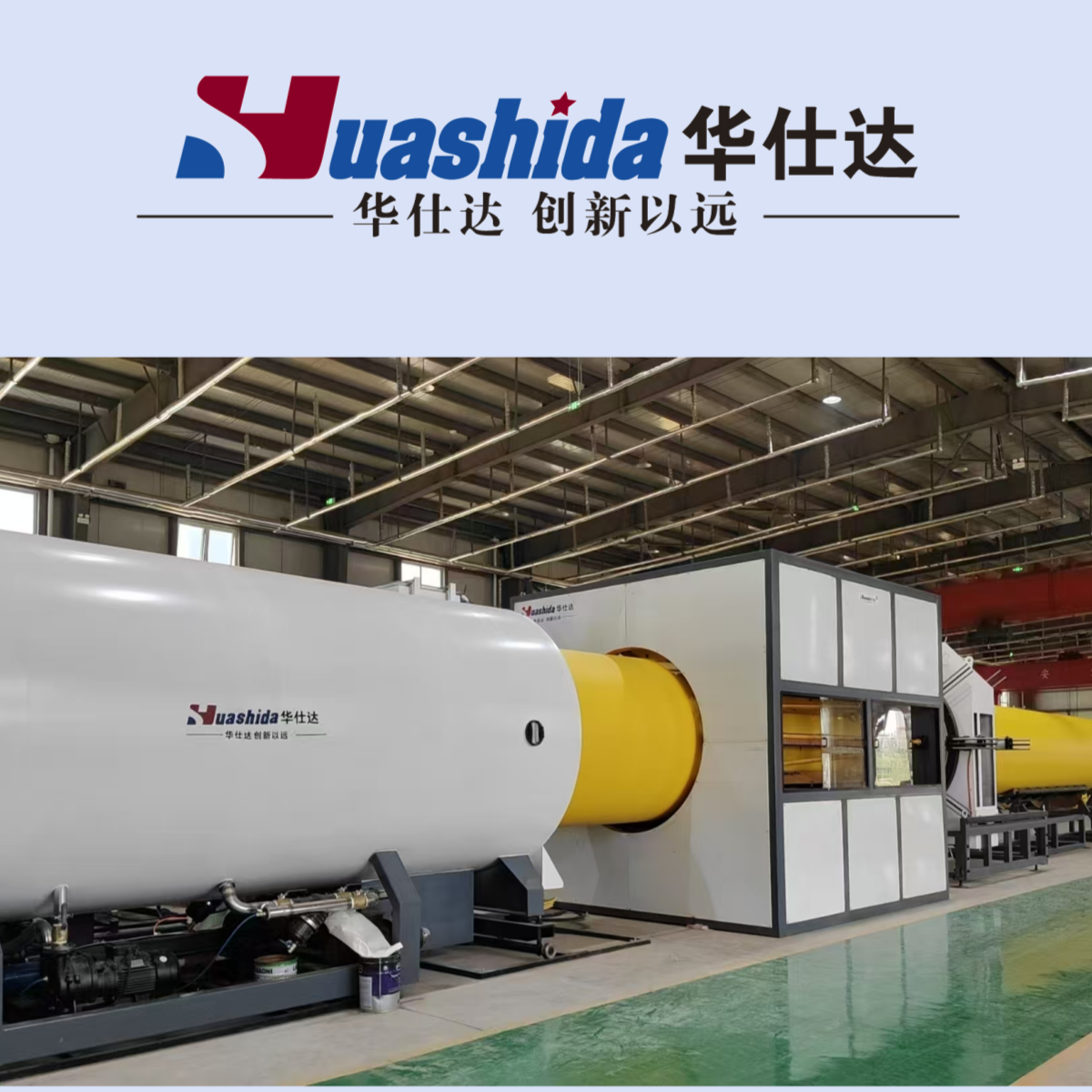

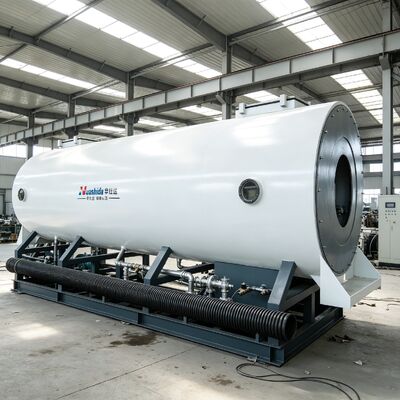

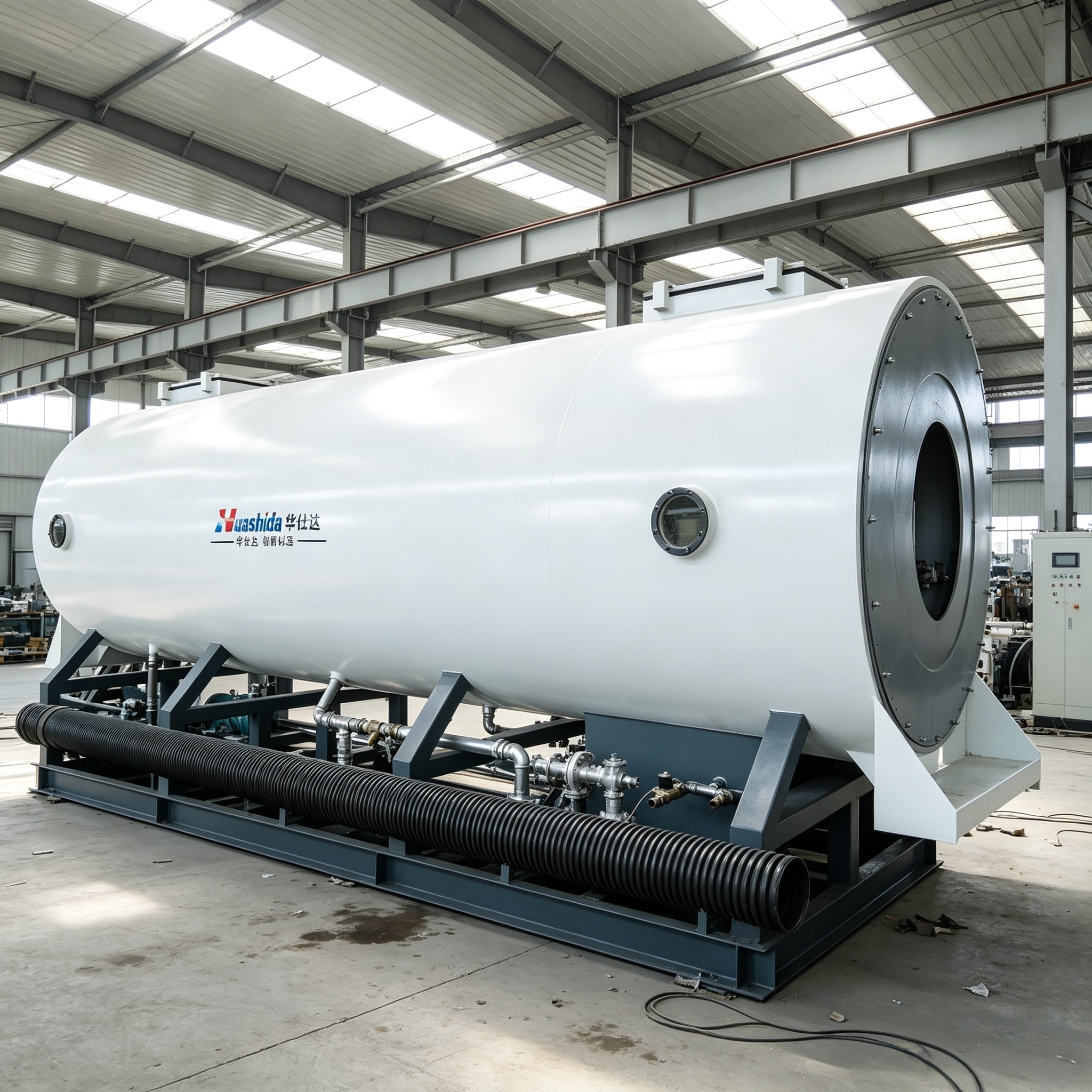

• 1x Vacuum Calibration Table - Guarantees precise pipe dimensions
• 1x Water Spray Cooling Tank - Ensures uniform cooling for stability
• 1x Hauling Machine - Provides steady traction for consistent production
• 1x Cutting Machine - Accurate, automated cutting to required lengths
• 1x Stacker - Automated pipe collection for efficient handling

HDPE jacket pipe serves as the outer casing of thermal insulating pipes, widely used in central heating, oil, natural gas, and other industrial applications.

• SJ90/33: 600-700kg/h output
• SJ120/33: 800-900kg/h output
• SJ150/33: 1000-1200kg/h output

• Reduces labor requirements by 2-3 workers per shift for 24-hour operation
• Eliminates waste material processing needs
• Higher output (e.g., 60 pieces of 11.6m diameter 960mm pipes per day)
• Consistent, smooth pipe walls with adjustable thickness
• Single-step forming process eliminates edge trimming

The high-efficiency single screw extruder features a barrier and mixing head design with a slotted barrel channel, ensuring superior material gelification, high output, and stable performance.

The complete production line features PLC control with intuitive touchscreen interface for parameter setting and monitoring. Control systems can be customized to include or exclude PLC based on customer requirements.

• ABB frequency converter or EUROTHERM speed controller
• Japan RKC temperature controller
• SIEMENS AC contactors
