3LPE Coating Pipe Production Line For Steel Pipes 57-3400mm

1 set
MOQ
100,000.00 - 300,000.00 1 Set (MOQ)
Price
3LPE Coating Pipe Production Line For Steel Pipes 57-3400mm
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: Pipe Dia. 57-3400mm
Certification: CE, ISO, RoHS
Substrate: Steel
Blasting: >2.5A
PE Thickness: 2-3mm
Highlight:

Steel Pipes 3LPE Coating Production Line

,

3400mm 3LPE Coating Pipe Production Line

,

3LPE Steel Pipe Coating Line
Basic Infomation
Place of Origin: Qingdao，Huashida
Brand Name: Huashida
Certification: CE，ISO9001：2008
Model Number: 58-3500 mm
Payment & Shipping Terms
Packaging Details: Standard Package
Delivery Time: 70-90 days
Payment Terms: T/T
Supply Ability: 30 sets units/year
Product Description
3LPE Pipe Steel Rust-Blasting System For Internal Surface Production Line
Product Specifications
Attribute Value
Model NO. Pipe dia. 57-3400mm
Certification CE, ISO, RoHS
Substrate Steel
Blasting >2.5A
PE Thickness 2-3mm
Product Overview

Qingdao Huashida Steel Pipe Shot-Blasting & Rust-Removal Line: high-speed centrifugal blast wheels clean and derust pipe surfaces, ready for fusion-bonded epoxy or 3LPE coating, handling pipes from 219 mm to 3,000 mm OD, 6 m to 18 m length, with automatic dust recovery and PLC control.

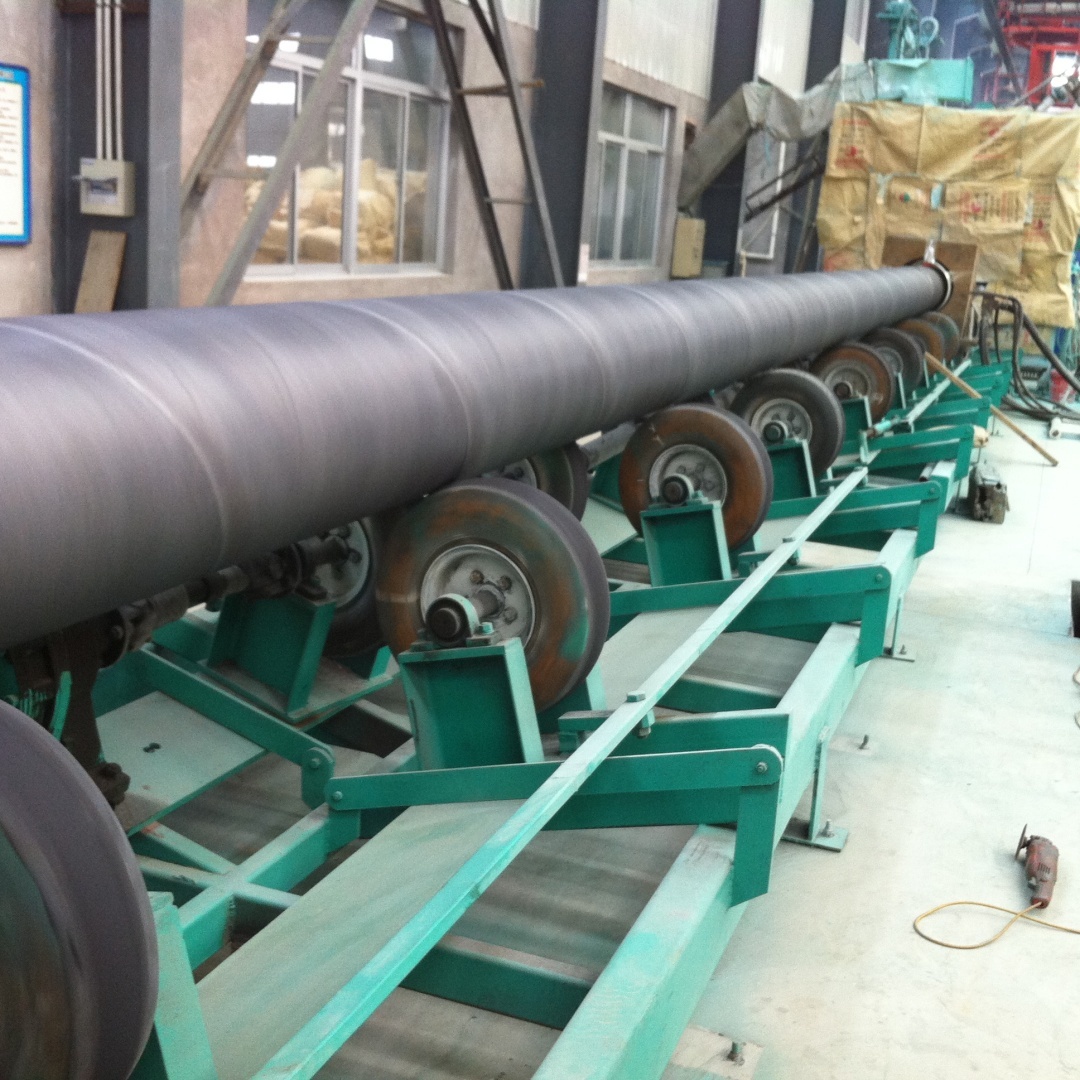

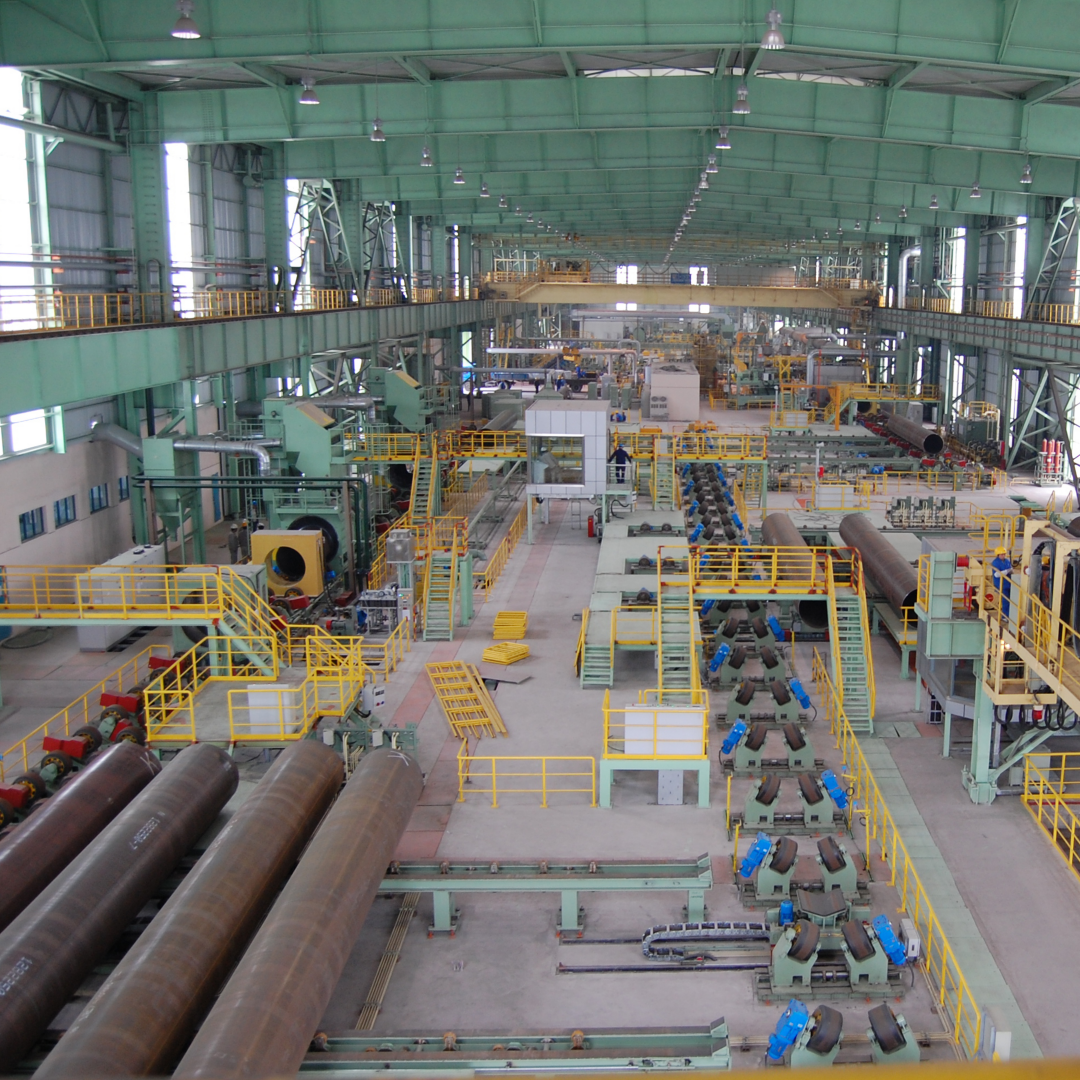

3LPE Coating Pipe Production Line For Steel Pipes 57-3400mm 0 3LPE Coating Pipe Production Line For Steel Pipes 57-3400mm 1
Key Advantages
  • 50% Faster Processing - Synchronized internal & external epoxy spraying eliminates dual-step coating
  • Heavy-Duty Performance - Handles pipes up to 3,200mm in diameter and 30 tons in weight, with 3x higher load capacity per conveyor wheel
  • 40% More Efficient Rust Removal - High-speed internal shot blasting ensures superior coating adhesion
  • Zero Pollution - No wastewater, no emissions, and ultra-low noise for eco-friendly production
Performance Results
  • 25% More Uniform Coating - Precision digital control eliminates material waste
  • 30% Longer Lifespan - Enhanced anti-corrosion performance extends pipe durability
"This technology bridges the gap between China's pipeline standards and global benchmarks," says Huashida's Chief Engineer.

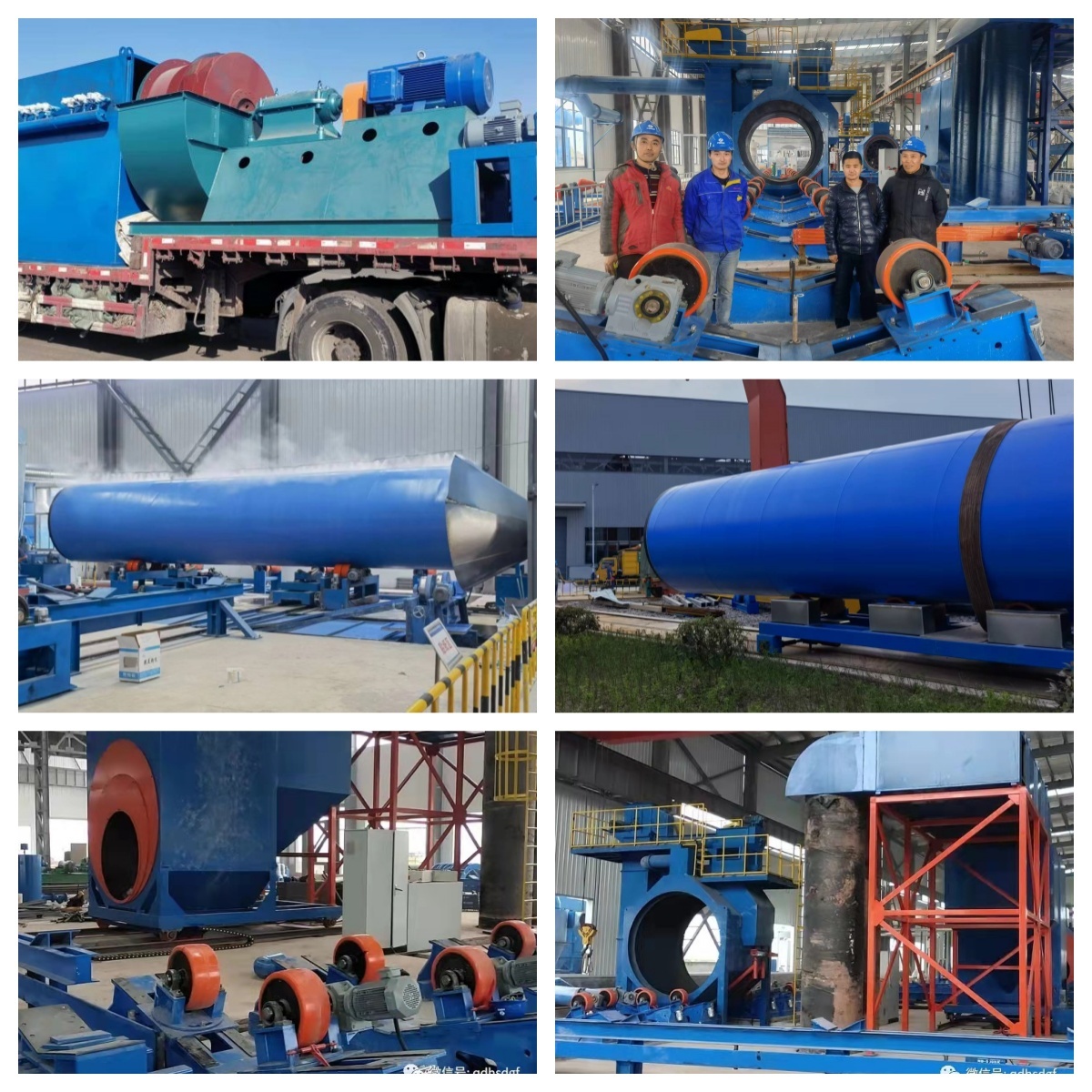

3LPE Coating Pipe Production Line For Steel Pipes 57-3400mm 2
Additional Resources
Equipment Configuration
Derusting Equipment
No. Name Set
1 Pipe-conveying Equipment 1
2 Shot Blast Cleaning Machine 1
3 Cyclone Dust Collector 1
4 Pulse dust collector 1
5 Centrifugal exhaust fan 1
6 Rust removal equipment PLC 1
Coating Equipment
No. Name Set
1 Coating transfer equipment 1
2 IF heating device 1
3 Powder spraying device 1
4 Automatic loading dryer 2
5 SJ-65/30 Extruder 1
6 SJ-180/30 Extruder 1
7 Hot melt adhesive extruder die 1
8 PE sheet extruder head mold 1
9 Hot melt adhesive/PE sheet coating device 1
10 Environmental Protection Ventilation equipment 1
11 Cooling Spray equipment 1

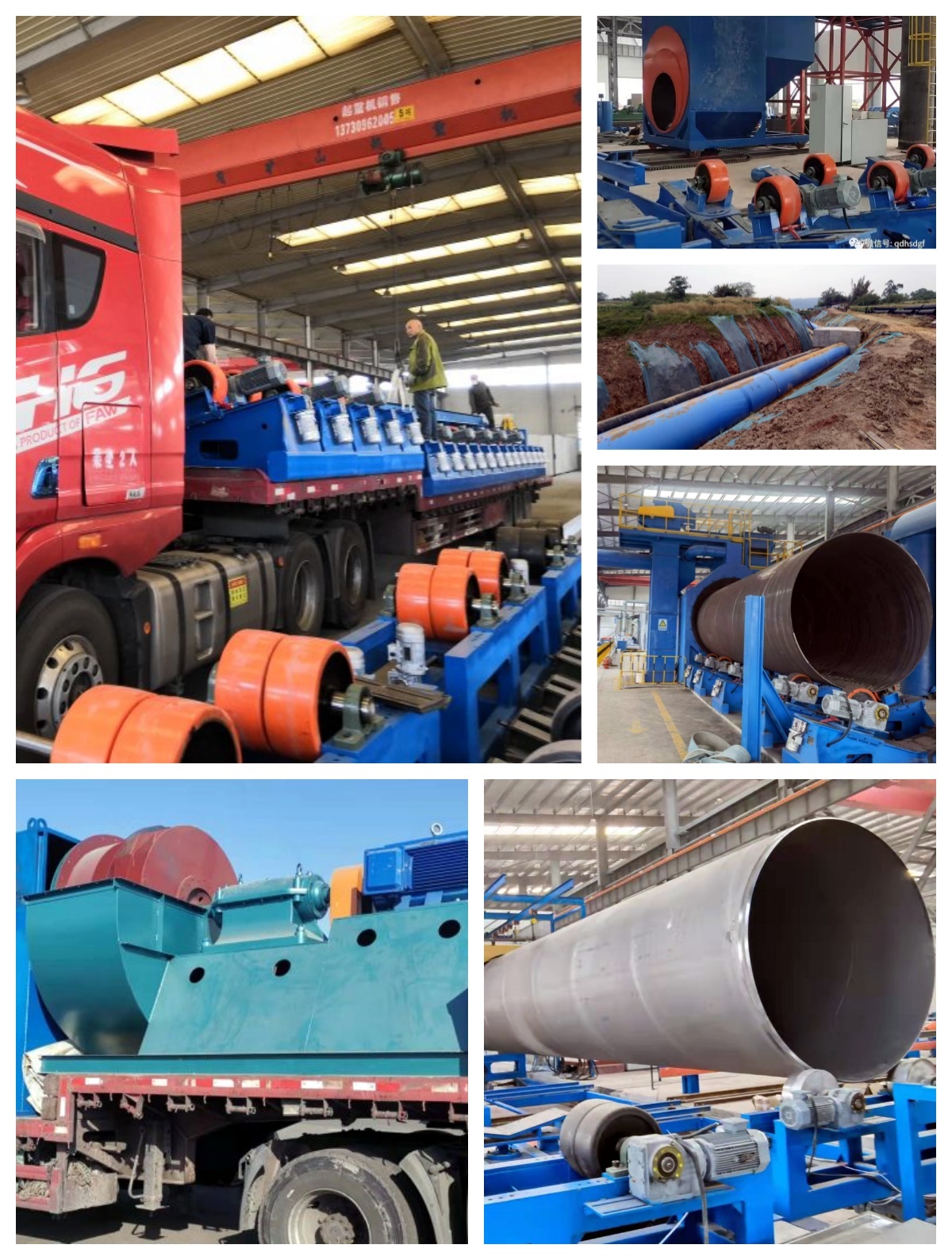

3LPE Coating Pipe Production Line For Steel Pipes 57-3400mm 3 3LPE Coating Pipe Production Line For Steel Pipes 57-3400mm 4 3LPE Coating Pipe Production Line For Steel Pipes 57-3400mm 5 3LPE Coating Pipe Production Line For Steel Pipes 57-3400mm 6
Supporting Equipment: SA2.5 External Shot Blasting Machine (114-1219mm)
  • Full System Includes: Pipe conveyor, shot blaster, elevator, abrasive loader
  • Dust removal: Cyclone + pulse cartridge with PLC control
  • Global Success: Exported to Russia, Iran, UAE, India, Kazakhstan, and more
  • After-Sales Support: 12-month mechanical warranty | 6-month electrical warranty | On-site training & technical guidance
Frequently Asked Questions
What is the pipe diameter range the equipment can produce?
48-219mm, 219-1220mm, 800-1600mm, 1000-2400mm
What is the sandblasting grade?
SA2.5
What is the anti-corrosion coating standard?
Meets multiple international standards, including SY/T0413-2002 and DIN 30670
What is the delivery time?
2-3 months after deposit
What is the production output?
Max. 3-8 km/day, annual capacity of 2 million square meters (Φ508mm)
What is the coating thickness?
80 ~ 800µm
Where has the 3PE equipment been sold?
Countries including Russia, Iran, UAE, India, Belarus, Kazakhstan, etc.
What after-sales services are offered?
Warranty: 12 months for mechanical parts, 6 months for electrical parts. Support: Technical services, training, and guidance for operators.
About Huashida

With 21+ years of expertise, Huashida specializes in:

  • Steel Pipe Anti-Corrosion Lines (FBE/2LPE/3LPE)
  • HDPE Jacket Pipe Lines (up to 2,000mm)
  • Pre-Insulated & Derusting Solutions

400+ International Clients - Trusted in Nigeria, Turkey, Uzbekistan, and beyond.

3LPE Coating Pipe Production Line For Steel Pipes 57-3400mm 7 3LPE Coating Pipe Production Line For Steel Pipes 57-3400mm 8 3LPE Coating Pipe Production Line For Steel Pipes 57-3400mm 9 3LPE Coating Pipe Production Line For Steel Pipes 57-3400mm 10 3LPE Coating Pipe Production Line For Steel Pipes 57-3400mm 11 3LPE Coating Pipe Production Line For Steel Pipes 57-3400mm 12 3LPE Coating Pipe Production Line For Steel Pipes 57-3400mm 13
